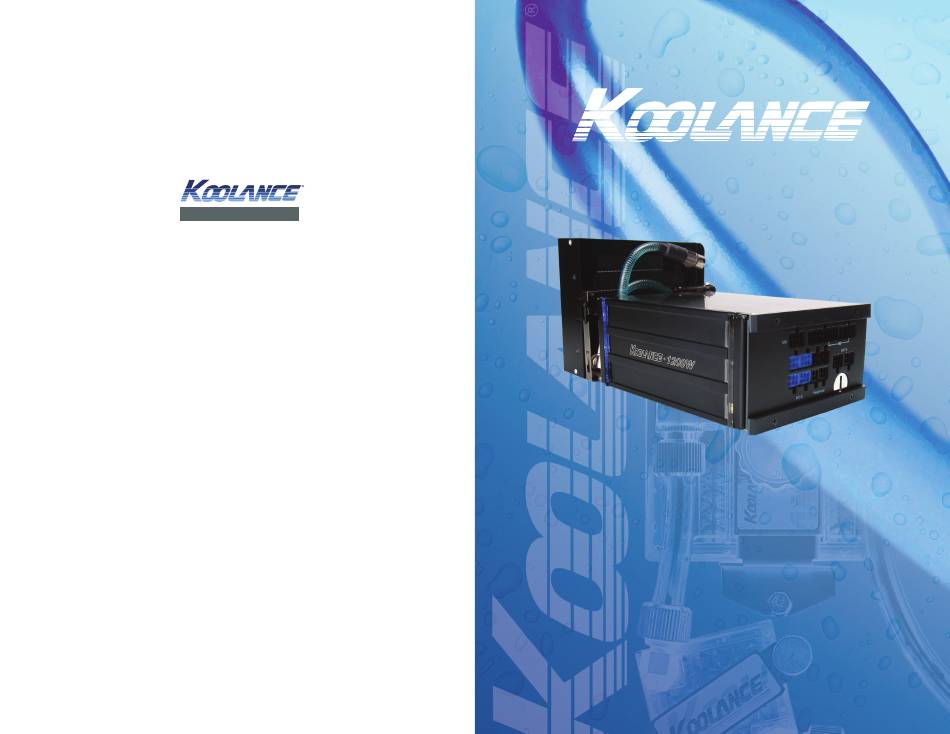

- Page 1 ® Superior Liquid Cooling Systems www.koolance.com PSU-1200ATX-12S PSU-1200ATX-12S User’s Manual User’s Manual English v1.02 9001 Protected by U.S. Patents 6,664,627; 6,313,990; 6,234,240; 5,731,954 Other Technology Pending U.S. & World-Wide Patents Printed in Korea...
- Page 2 GENERAL PRECAUTION Please read this manual carefully before beginning the installation of your Koolance product. This manual assumes the user has basic experience in building and confi guring computer systems. Information referring to traditional hardware assembly is intentionally brief.
- Page 3 For further information, please visit our website at: www.koolance.com CAUTION: Koolance Incorporated can not be held responsible for any damage to your system due to misconfi guration or incorrect installation. If there is any point of installation that you do not understand, please contact our Technical Support Staff at: tech@koolance.com, or visit...
-
Page 4: Internal Connections
Motherboard Main ATX PCI-Express SATA Peripheral Devices (IDE, etc.) Liquid Plug - DO NOT OPEN! SATA x 2 PCI-Express x 4 8-pin PSU Temperature Sensor (used in Koolance systems only) Main ATX 24pin Peripheral x 3 (IDE, Floppy, etc.) User Manual... -
Page 5: External Connections
THE PRODUCT, OPENING OF THE PRODUCT, LOSS OF PARTS OR LIQUID, OR OPERATING COMPONENTS AT SPEEDS OR FUNCTIONS OTHER THAN THOSE SPECIFIED BY THEIR MANUFACTURERS. Use of unauthorized replacement parts or liquid additives will void this warranty. Koolance Coolant Coolant... -
Page 6: Specifications
Specifi cations AC Input Operating Range: 90-264VAC; Power Factor > 0.9 Frequency: 47-63Hz Current: 15A @ 115V Effi ciency: 80% min. DC Output INCORRECT Direction INCORRECT Direction Output Max: +5V @ 30A +12V1@18A, 12V2@18A, 12V3@30A, 12V4@30A -12V @ 0.8A +3.3V @ 30A Insert the power supply into the chassis (per normal installation). - Page 7 (without damaging the external radiator. the radiator’s fi ns). The PSU-1200ATX-12S has an internal temperature sensor. If the power supply See the following images for the reaches a preset limit, the unit will sound an audio alarm. The temperature can recommended hose confi...
