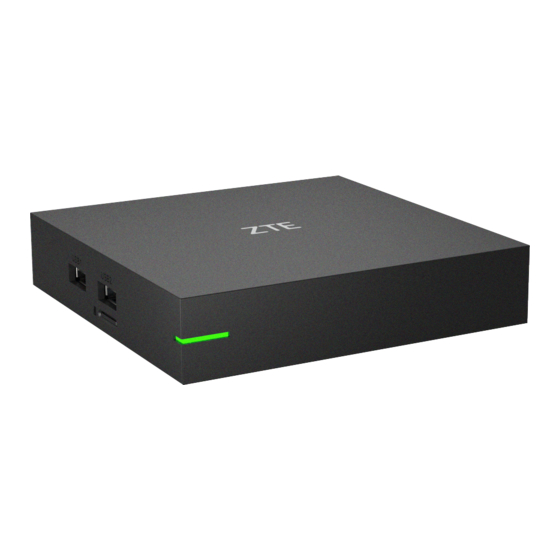

- Page 1 ZXV10 B866V2F Set Top Box User Guide...
- Page 2 The contents of this document are protected by copyright laws and international treaties. Any reproduction or distribution of this document or any portion of this document, in any form by any means, without the prior written consent of ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations.
- Page 3 Chapter 1 Safety Instructions..........1 Chapter 2 Packing List............3 Chapter 3 Panels..............4 3.1 Front Panel...................4 3.2 Rear Panel....................4 3.3 Side Panel.....................5 Chapter 4 Connecting Up.............6 4.1 Connecting Network................6 4.2 Video and Audio Connections...............6 4.3 Power ON.....................8 4.4 Upgrade....................8 Chapter 5 Remote Control...........9 Chapter 6 Operation Guide..........10 Chapter 7 Troubleshooting..........11 Chapter 8 Technical Specification........13...
- Page 4 Chapter Safety Instructions Special Note • Remove the plastic covering before using the Set-Top Box to provide normal ventilation. • Use the power adapter provided with the Set-Top Box. Important Safety Instructions • Ensure that the electric voltage meets the device requirements. Check the cables periodically, replace any damaged cables immediately.
- Page 5 EU Declaration of Conformity Hereby, ZTE Corporation declares that the radio equipment types ZXV10 B866V2F are in compliance with Directive 2014/53/EU, The full text of the EU declaration of conformity is available at the following Internet address:...
- Page 6 Chapter Packing List Quantity Item Remarks Set-Top Box (STB) Remote control AAA battery HDMI cable Power adapter Notes: This packing list is for reference only. The items actually delivered depend on the companion packing list of the STB. Contact the provider immediately if parts are missing or damaged.
- Page 7 Chapter Panels 3.1 Front Panel Name Description Power indicator Red: STB is in standby state. Green: STB is running normally. Not Lit: STB is not powered on. Power switch Press it to switch between running and standby state. 3.2 Rear Panel...
- Page 8 Name Description DC +12 V Power input socket, +12 V DC power adapter provided. Consult technical engineer before using other types of power adapter. Audio and composite video output interface. HDMI HDMI output interface. 10 M/100 M Base-T RJ45 self-adaptive Ethernet interface.
- Page 9 Chapter Connecting Up 4.1 Connecting Network This section introduces the network connection methods for STB. Select one method to connect according to the on-site conditions. 4.2 Video and Audio Connections Steps Connecting 3.5 mm RCA AV Output Interface Connect the R and L interfaces on the TV to the corresponding interfaces with the AV cables.
- Page 10 Connecting High Definition Interface Connect the HDMI interface on the STB and TV with HDMI cable, as shown in the follow figure. —END OF STEPS—...
- Page 11 4.3 Power ON Steps 1. Ensure that all cables are connected correctly. 2. Install the power cable to STB using the power adapter and to AC power source. 3. Ensure that all other devices are plugged in and receiving power. 4.
- Page 12 Chapter Remote Control Notes: • The remote control is powered by two AAA batteries. Insert two AAA batteries into the remote control according to the polarity instruction displayed on it. • The remote control works on the infrared mode by default. When the Bluetooth pairing is successful, the infrared function will be closed.
- Page 13 Chapter Operation Guide Common Operations Switch between the standby and working state. Press the key on the remote control to enter the Launcher homepage. Press direction keys (up, down, left, and right) on the remote control to select an item. Press OK key to confirm the selection.
- Page 14 Chapter Troubleshooting Problem Possible Cause Solution The indicator is The power adapter Connect the power not lighting has not been adapter. after switching connected. on the STB. The power adapter is Consult the service damaged. provider and replace power adapter with a new one.
- Page 15 Problem Possible Cause Solution The STB is set as Press Vol+ or Vol- on the Mute remote control The remote The remote control is Change a new remote control fails. physically damaged. control. The Bluetooth pairing fails. Long press at the (OK) + for 3 seconds (indicator light...
- Page 16 Power Adapter Input: 100 V ~ 240 V, 50 Hz ~ 60 Hz Output: +12.0 V DC Environment Working environment temperature: +32 ℉ ( 0 ℃ ) ~ Requirement +104 ℉ ( +40 ℃ ) Working environment humidity: 10% ~ 90% Protocol TCP/IP, HTML 4.0, HTTP 1.1/JavaScript 1.5, NTP, FTP, HTTPS/SSL2.0/3.0, RTSP, RTP, RTCP, and...
- Page 17 States and other countries. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories. Certification REACH Notes: Google, Google Play and YouTube are trademarks of Google LLC. All specifications are subject to the actual product.
