Zte ZXV10 B700 User Manual

Ip set-top box
Hide thumbs
Table of Contents

Advertisement

Quick Links

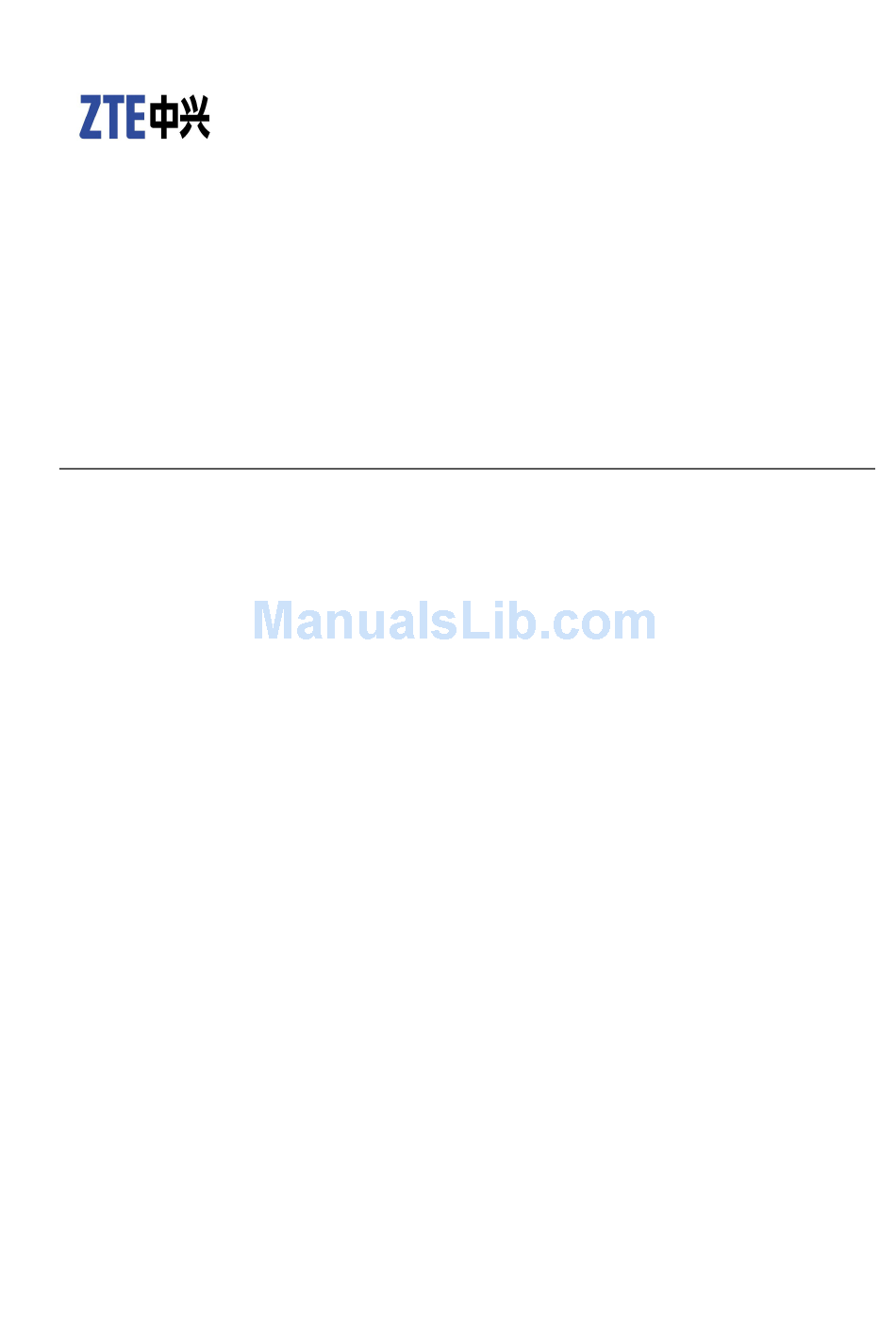

ZTE CORPORATION
ZTE Plaza, Keji Road South,
Hi-Tech Industrial Park, Nanshan District, Shenzhen,
P. R. China
518057
Tel: (86) 755 26771900
Fax: (86) 755 26770801
URL: http://ensupport.zte.com.cn
E-mail: support@zte.com.cn
ZXV10 B700
IP Set-Top Box
User Manual
Version 2A

Advertisement

Table of Contents
loading

Related Manuals for Zte ZXV10 B700

Summary of Contents for Zte ZXV10 B700

  • Page 1 ZXV10 B700 IP Set-Top Box User Manual Version 2A ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, P. R. China 518057 Tel: (86) 755 26771900 Fax: (86) 755 26770801 URL: http://ensupport.zte.com.cn E-mail: support@zte.com.cn...
  • Page 2 ZTE CORPORATION or its licensors may have current or pending intellectual property rights or applications covering the subject matter of this document. Except as expressly provided in any written license between ZTE CORPORATION and its licensee, the user of this document shall not acquire any license to the subject matter herein.

  • Page 3: Table Of Contents

    Contents 1 Safety Instruction.................. 2 2 Packing List ..................3 3 Panels ....................4 Front Panel ....................4 Rear Panel ....................5 4 Connecting Up ..................6 Connecting Network ..................6 Video and Audio Connections ................. 6 Power ON ....................8 Upgrading Automatically ................

  • Page 4: Safety Instruction

    1 1 1 Safety Instruction Special Note If there is a plastic covering wrapping the device, remove the covering before using the device � for normal ventilation. Please use the power adapter provided along with the device. � Make sure the position of the power switch on the rear panel of the device before usage. �...

  • Page 5: Packing List

    2 2 2 Packing List Item Remarks Set-top box Remote control AAA battery AV cable Straight-through network cable YPbPr component cable Power adapter User manual Qualification certificate/WA RRANTY Packing list Note: This packing list is for reference only. The items actually delivered depend on the companion packing list of the set-top box.

  • Page 6: Panels

    3 3 3 Panels Front Panel Figure 1 Front Panel Description Standby button Running status indicator � Red: Standby state � Green: running normally � Yellow: Fault � OFF: Not powered ON Connection status indicator � Green: Normal network connection �...

  • Page 7: Rear Panel

    Rear Panel Figure 2 Rear Panel Description Ethernet interface, used to connect to the external network USB ports HDMI output interface Component video output interfaces Composite video output interface Audio output interfaces (left channel and right channel) Digital audio output interface Power socket: Make sure to use the delivered +12V power adapter.

  • Page 8: Connecting Up

    Note: The wireless network card is designated to W200C USB wireless network card provided by ZTE. It is recommended to use ZXV10 W300 residential gateway device of ZTE to get the best performance. Video and Audio Connections Connecting Standard Definition Interface 1.
  • Page 9 Figure 3 Standard Definition Interface Connecting High Definition Interface ZXV10 B700 provides two high definition output interface types. Select one of the following methods to connect with video/audio devices (such as TV, stereo). 1. Connect the R and L interfaces on STB to the corresponding interfaces on TV with AV cables (red and white).

  • Page 10: Power On

    5. Press TV/AV button to switch the system mode of TV until the EPG page is shown on TV. Upgrading Automatically The ZXV10 B700 can automatically connect to the server on each power-on. The ZXV10 B700 can automatically check whether an upgrade is necessary. The upgrade will start automatically if neces-...

  • Page 11: Remote Control

    5 5 5 Remote Control STB Remote Control Figure 6 shows the STB remote control. Figure 6 STB Remote Control...

  • Page 12: Tv Learning Buttons

    Note: The remote control is powered by two AAA batteries. Insert two AAA batteries into the remote control according to the polarity instruction displayed on it. During the operation, point the front part of the remote control to the infrared receiving area on the STB. TV Learning Buttons The remote control has four buttons (Power, TV/AV, VOL +, VOL-) having TV learning functions.

  • Page 13: Operation Guide

    6 6 6 Operation Guide Standby/Working Status Switch the STB between the standby and working status. Switch the TV between the standby and working status. Switch the system mode of the TV. EPG Operations Press this button on the remote control to enter the EPG home page. Press direction buttons (up, down, left, and right) on the remote control to select an EPG item (such as button, text box, column).

  • Page 14: Common Operations During Watching Programs

    Enter TVOD program. Enter VOD program. Enter information surfing program. Enter application program. Common Operations During Watching Programs Use the following buttons to control the volume. Switch between different audio channels (left channel, right channel, stereo). Turn on/off the volume of the STB. Increase/decrease the output volume of the STB.

  • Page 15: Watching Tstv Program

    Press this button to operate fast forward when playing VOD or TSTV program. Press this button to operate fast backward when playing VOD or TSTV program. While watching the program organized in chapters, press this button to go to the next chapter.

  • Page 16: Troubleshooting

    7 7 7 Troubleshooting Problem Possible Cause Solution The indicator is off after The power adapter has not been Connect the power adapter switching on the STB. connected. correctly. The power adapter is damaged. Consult your service provider and replace a new one. The power outlet has no power.
  • Page 17 Problem Possible Cause Solution The remote control fails. There is no battery in the remote Install the batteries correctly. control, or the batteries are installed with wrong polarities. The batteries run out of power. Replace the batteries. TV cannot receive instructions Use the remote control at a from the remote control.

  • Page 18: Technical Specification

    8 8 8 Technical Specification Compliant Q/SZX 186 - 2005 Standard Power Adapter Input: 100 - 240V 50/60Hz Output: +12.0VDC Environment Working environment temperature: 0℃ - +40℃ Requirement Working environment humidity: 10% - 90% Protocol TCP/IP, HTML 4.0, HTTP 1.1/JavaScript 1.5 Video Supports PAL, NTSC Receiving bit rate range: 200K - 10M...

  • Page 19: Text Input

    9 9 9 Text Input Input via remote control Operations To input numerals, letters and symbols via the remote control, perform the following steps: 1. Select the text box. 2. Press TXT to switch to the interested input mode. The current input mode is shown on the TV screen.

  • Page 20: Input Via Soft Keyboard

    2. Press 9 and then press OK to display the input interface. 3. Press 8 to input the upper-case letter Z. 8 is the number corresponding to letter Z. Symbol Input There are three methods for symbol input. To input the symbol “.”, the user has the following three options: Method 1 1.
  • Page 21 Letter/Numeral/Symbol Input 1. Press LOC/KB on the remote control to activate the soft keyboard. 2. Switch to the another interface of soft keyboard if the required character is not in current interface. 3. Use direction buttons on the remote control to select the required character. 4.

  • Page 22: Wireless Network Card Usage Guidelines

    Restrictions The wireless network card is designated to the W200C USB wireless network card provided by � ZTE. It is recommended to use the ZXV10 W300 residential gateway device of ZTE to get the best � performance. Installation Prerequisites It is recommended to conform to the following prerequisites for good performance of the device: There is no obstacle between AP and wireless network card of STB.

  • Page 23: Checking Signals

    6. Select Search in the Services Settings page to find nearby AP. After that, select an AP. 7. Set the following parameters: authentication mode, encryption mode, encryption key, encryption key ID. After settings, select Next. Note: Different AP needs to set different parameters. Set the parameters according to the on-site de- mands of AP.

  • Page 24: Troubleshooting

    Signal Intensity Signal Status 55 - 79 Good 80 - 100 Very good Note: When the signal intensity is lower than 50, the connection will not be smooth. Troubleshooting 1. Symptom: The alert information on the loading failure of wireless network card pops up. Possible cause: The wireless network card is not inserted, or it is not well connected.
