Summary of Contents for BENRO Polaris BR203

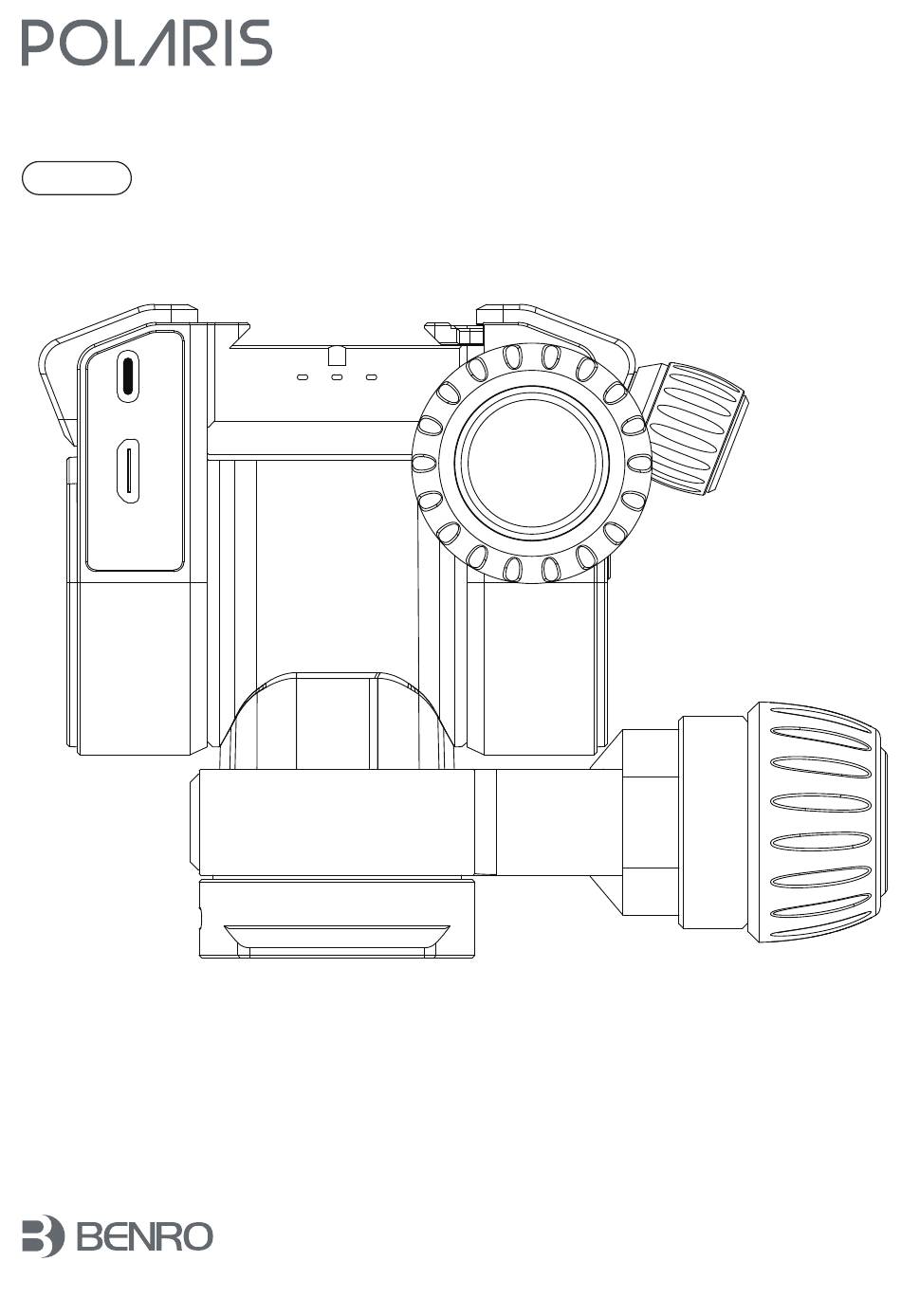

- Page 1 User Manual v1.1 ©2021 BENRO All Right Reserved...
- Page 2 “3/8" to "1/4" Adaptor Polaris does not come with a memory card (microSD) or HDMI Cable. If you purchased an Astro Kit, check that the Astro Kit is included. Be careful not to lose any of these items. ©2021 BENRO All Right Reserved...
- Page 3 Shutter Port Pan Motor USB-C Port Card Cover The SIM card slot can only be used with the Cellular version of Polaris. The Wi-Fi version of Polaris has no use of the SIM card slot. ©2021 BENRO All Right Reserved...
- Page 4 Polaris and mount it securely. Use a 3/8 to 1/4 adapter if necessary. 3. Install Camera After sliding the camera with the quick release plate installed into the [Clamp] slot on the top of the Polaris body, lock it in place with the [Lock Knob]. ©2021 BENRO All Right Reserved...
- Page 5 It is recommended that you select the camera's mode dial to M shooting mode before use. 5. Power On Wlan Power Double press and hold the [power button], and release the button after hearing three “beep” . ©2021 BENRO All Right Reserved...
- Page 6 App Store or scan the QR code with your phone to install it. Polaris App requires iOS v12.0 and above or Android v8.0 and above. ©2021 BENRO All Right Reserved...
- Page 7 Charging time varies greatly depending on ambient temp- erature and remaining battery power. The battery is not fully charged at the time of purchase. Charge the product before use. Inserting/Removing MicroSD Card Insertion 1. Open The 【Card Cover】 ©2021 BENRO All Right Reserved...
- Page 8 Camera shooting and firmware updates are not supported when no SD card available. 3. Close The 【Card Cover】 Formatting If the card is new or was previously formatted (initialized) by another device or computer, format the card with this device. ©2021 BENRO All Right Reserved...
- Page 9 Turn the device off for a period of time before removing the SD card. Removing the SD card immediately after shooting may cause damage to the SD card. Please be careful when removing the SD card. ©2021 BENRO All Right Reserved...
- Page 10 1.Twist And Loosen The Clamp Turn to loosen the [Lock Knob] on the side of the equipment [Clamp]. 2.Mount The Quick Release Plate Attach the quick release plate to a camera that will be used. ©2021 BENRO All Right Reserved...
- Page 11 If you can still move it side to side, you need to tighten the [Clamp] even further. If the base plate comes out completely, try again and make sure that both sides of your base plate are in position with the [Clamp]. ©2021 BENRO All Right Reserved...
- Page 12 Caution No memory card in the camera may result in the captured photos not being saved. It is recommended that you select the camera's mode dial to M shooting mode before use. ©2021 BENRO All Right Reserved...
- Page 13 (blue) are always on after successful power on. Power Off In the power-on state, long-press the [Power Button], hear a “beep” and let go to turn off the device. Once the power is successfully shut down, all the lights turn off. ©2021 BENRO All Right Reserved...
- Page 14 When the device is in the storage state, short press and then long press the [power button], until you hear "beep beep beep" three times and then let go, the device is turned on, the pitch axis will automatically move up until it reaches the unfolded state. ©2021 BENRO All Right Reserved...
- Page 15 "Join" to start connecting to the Polaris device. 3.Connection Success The word "Connected" and the device’ s Wi-Fi name will be displayed on the left side of the interface after successful connection. ©2021 BENRO All Right Reserved...
- Page 16 As even the protected images will be deleted, it is important to make sure that there are no images in them that need to be kept. 1. Enter Settings Page Tap the [Settings] icon from the home page to enter the settings screen. ©2021 BENRO All Right Reserved...
- Page 17 A card-related error is displayed. Caution Formatting or erasing data on a card does not completely erase the data. Be aware of this when selling or discarding the card. When disposing of cards, take steps to protect personal information. ©2021 BENRO All Right Reserved...
- Page 18 To avoid forgetting, please try to fill in the real information when filling in the answers. Caution Do remember the security question you have set. When you forget your password, you will need to answer the password question to reset your password. ©2021 BENRO All Right Reserved...
- Page 19 [Upgrade Firmware] to upgrade the firmware. Caution To upgrade the firmware via the app make sure that the cellular net- work using the phone is turned on and that Internet access is available. Turn on your phone's Wi-Fi. ©2021 BENRO All Right Reserved...
- Page 20 Manually set the camera ISO value. 5.White Balance :Tap and slide to manually set the camera White balance. 6.Manual Focus :Tab for manual focus. :Indicates that the focus area is based on the nearest subject. Matching Range :Small :Medium :Large ©2021 BENRO All Right Reserved...
- Page 21 :Tab the virtual joystick to enter the shooting angle fine-tuning mode. 14.Memory Card Information :Displays the memory card capacity information. 15.Battery Level :Plays the Polaris battery level. ©2021 BENRO All Right Reserved...
- Page 22 Please use the camera to set the desired photo format, frame size and photo qualitybeforeshooting. If you need to use the [Focus Stack] shooting mode, please make sure that the camera lens supports focus first. ©2021 BENRO All Right Reserved...
- Page 23 TF Card micro SD(Max. Capacity is 2TB) Materials Aluminum, Stainless Steel，PC, POM 3/8” Screw-in （1/4" screw-in Tripod Socket adapter included）、 Quick-Release Hardware interface Camera Installation Method Quick-Release plate *This content is subject to change. Copyright © 2021 Benro All Rights Reserved...
