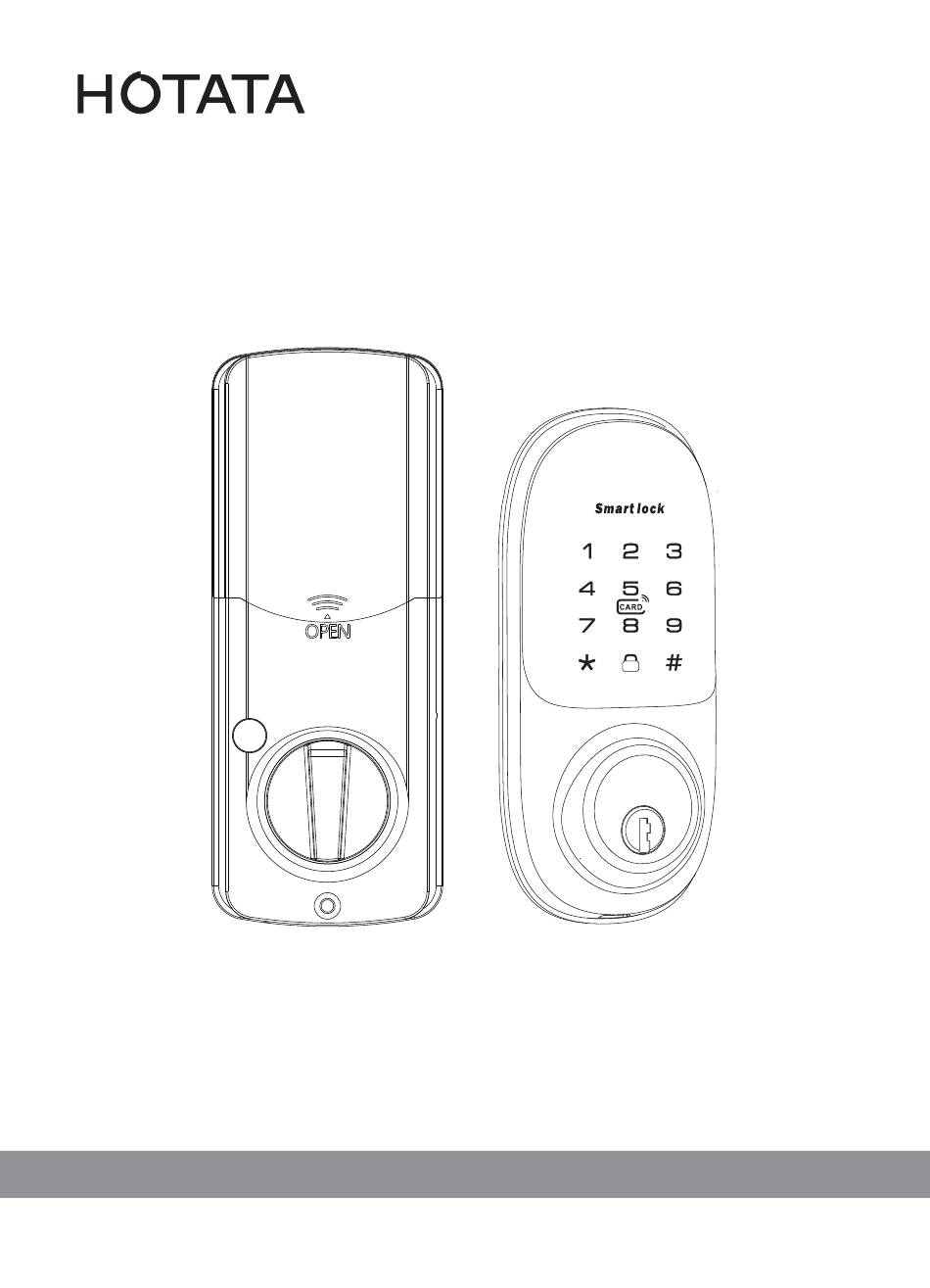

- Page 1 User Manual Model No: 3109 IMPORTANT: Read the instructions carefully before operating the appliance and keep them for future reference. Version 1.0...
-
Page 3: Customer Service
Customer Service 1 Year Warranty Lifetime Customer Support Quality Assurance Support Return and Exchange aftersale@hotata.com Email US: Check out our video tutorials available at https://www.youtube.com/ @hotataaftersale/playlists Scan QR code for video tutorials aftersale@hotata.com... -
Page 4: Table Of Contents
Contents Components List Installation Guide Programming Guide Change Programming Code Advanced Stting Options Basic Functions Of The App FCC Warning Template aftersale@hotata.com... -
Page 5: Components List
Interior Assembly Mounting Plate Deadbolt Strike Plate 3/4"(19mm)Screws-2 pcs ④ ⑤ Entry Key Optional Reinforcement Keypad Assembly Deadbolt Latch (2 ea.) screws (1 set) Tools Required Tools Required for Installation on Pre-drilled Doors: ·Phillips Screwdriver (DO NOT USE POWER DRILL!) aftersale@hotata.com... -
Page 6: Installation Guide
(60 or 70mm) 2-1/8" 54mm 3.Measure to confirm that the hole in the 4.Measure to confirm the thickness of the door edge is 1"(25mm) door is between 1-3/8"and 2"(35 and 50mm) 1-3/8" and 2" (35 and 50mm) 1" 25mm aftersale@hotata.com... - Page 7 Proceed to next step. the bolt length. (As shown below) 2-3/4"70mm 2.Install strike on the door frame. Actural Size 3 / 4"(19mm) Screws-2 ea. Make sure the hole in the door frame is drilled a minimum of 1"(25mm) deep. aftersale@hotata.com...
- Page 8 Installation Guide Install the exterior assembly Locking lever transversal through the latch cable Route the cable through the The key must be pulled out when door below the bolt and installing. push the keypad onto the door. aftersale@hotata.com...
- Page 9 4.Ensure tight cable connection. 5.Tighten screws evenly. Insert key and test latch.if latch does not If the keypad and mounting plate are deflection. please loose mounting plate screws and adjust. extend or retract smoothly. please adjust mounting plate screws. aftersale@hotata.com...
- Page 10 , the latch bolt extends by itself. ② Enter preset code: 123456, press , the latch bolt retracts by itself. If the latch bolt extends or retracts not smoothly. please check the door opening ！ direction and re-install the lock. aftersale@hotata.com...
-
Page 11: Programming Guide
Hold to lock / Number 0 Unlock / Programming Programming Code User Code(6 Digits) Type-C emergency power port Factory default settings ！ The lock is in experience mode Programming Code: none User Code: any digits Indoor unlock / lock button Reset button aftersale@hotata.com... -
Page 12: Change Programming Code
Intelligent cards are acceptable. Not first time registration Touch to light up keyboard then: Verify Enter new Reenter new programing programing programing code code code DONE NEXT User code/ User code/ IC Card IC Card aftersale@hotata.com... -
Page 13: Advanced Stting Options
A factory reset will delete all codes associated with the lock. Find a paper clip, put it into the hole at the bottom, long press for 5 seconds until the lock voice prompts “initialized successfully” ！ The lock has been reset successfully. All entered information has been deleted. aftersale@hotata.com... - Page 14 TUYA APP Search “TUYA” in the app market or scan the code to get the APP. How to connect the app Step 1 Step 2 Open TUYA APP, click to add device Choose Security & Surveillance- Lock(BLE) aftersale@hotata.com...
- Page 15 Advanced Stting Options Step 3 Step 4 Click on the scanned device and Next Edit your device name Step 5 You can press the icon to unlock via Bluetooth, and manage your device on your phone. aftersale@hotata.com...
-
Page 16: Basic Functions Of The App
· · Member management · Member management · · Dynamic password · Dynamic password System language & volumeFor more functions, please refer to the APP. lf you have any questions, please contact us at any time. Email: Aftersale @hotata.com aftersale@hotata.com... -
Page 17: Fcc Warning
This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. aftersale@hotata.com... - Page 18 aftersale@hotata.com...
- Page 20 Scan the QR code or visit the link: https://www.youtube.com/@hotataaftersale/playlists to watch video tutorials, which can help you better understand the installation and usage of the product. Scan QR code for video tutorials aftersale@hotata.com...
