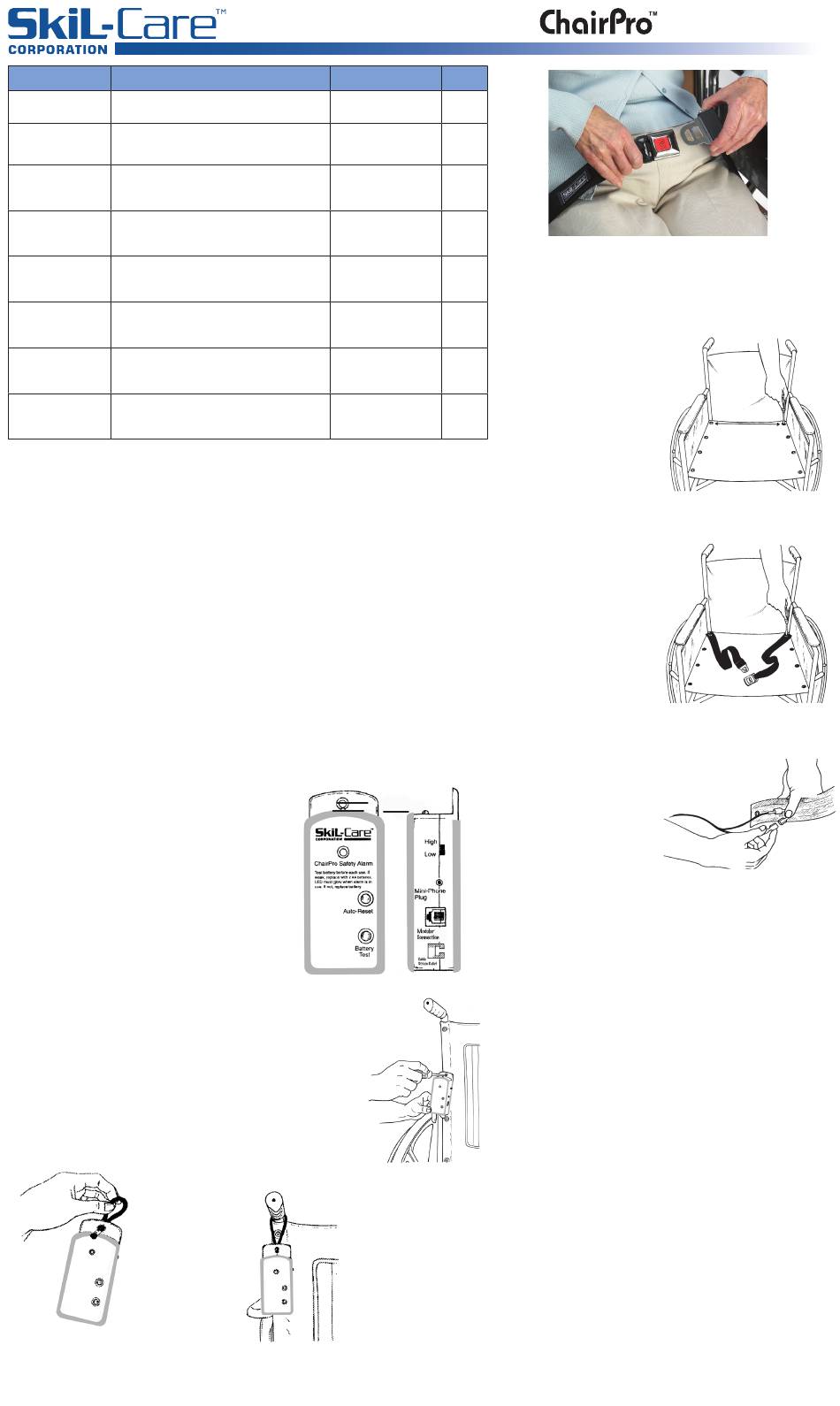

Skil-Care ChairPro Installation

Re-Order # Description
Metal Press Release Seat Belt Alarm with
909370
ChairPro Alarm Unit and Grommets
Metal Press Release Seat Belt Alarm with
909373
ChairPro Alarm Unit and Grommets
Metal Press Release Seat Belt Alarm with
909385 ChairPro Alarm Unit and Adjustable Loop
Attachment
Metal Press Release Seat Belt Alarm with
909386 ChairPro Alarm Unit and Adjustable Loop
Attachment
Metal Press Release Seat Belt Alarm with
909392 Grommets Only
(ChairPro/MultiPro/BedPro Alarm sold separately)
Metal Press Release Seat Belt Alarm with
909394 Grommets Only
(ChairPro/MultiPro/BedPro Alarm sold separately)
Metal Press Release Seat Belt Alarm with
914117 Adjustable Loop Attachment Only
(ChairPro/MultiPro/BedPro Alarm sold separately)
Metal Press Release Seat Belt Alarm with
914118 Adjustable Loop Attachment Only
(ChairPro/MultiPro/BedPro Alarm sold separately)
Note: Please see page two to calculate appropriate belt size
Skil-Care's ChairPro Seat Belt Alarm combines a wheelchair belt with an
alarm for wheelchair safety. The belt attaches to the chair and provides
security while the user is seated. When the buckle is opened, the alarm is
activated. Skil-Care has selected a durable buckle that is easily released by
most wheelchair users in order to assist long-term care facilities maintain a
restraint-free environment.
The ChairPro Seat Belt Alarm is designed to alert caregivers when a patient/
resident has released the wheelchair safety belt buckle and may leave from
the wheelchair.
1. The ChairPro Seat Belt Alarm is not a substitute for proper supervision.
Fall-risk and wander-risk patients or residents should be monitored regularly.
2. Check battery each time alarm is used. If weak, replace the "AA" batteries.
3. LED should glow when buckle is closed. If LED fails to glow, check battery.
Replace if necessary.
You may choose one of the following
two ways to attach the alarm unit to the wheelchair.
Attachment of Alarm Unit
1. Remove the second-from-top screw from either the left
or right side of the wheelchair backrest.
2. Remove grommet from screw, place the screw through
hole on alarm unit mounting bracket, and fasten screw to
wheelchair backrest. (Illustration A)
B
1. Insert enclosed cord
loop through bracket hole.
(Illustration B)
Belt Length Unit
PURPOSE
CAUTIONS
INSTALLATION
Alarm Unit
Mounting Bracket
Cord Loop
C
2. Hang from wheelchair
push-handle (Illustration C)
30"L - 45"L Each
50"L - 70"L Each
47"L - 60"L Each
57"L - 74"L Each
30"L - 45"L Each
50"L - 70"L Each
1. Remove the rearmost screws
from the left and right sides of
47"L - 60"L Each
the wheelchair seat.
(Illustration D)
57"L - 74"L Each
2. Place screws through
the grommets at the
ends of the belt. Select
either hole in the belt
depending upon desired length, closer holes will
yield a shorter length, holes closet to the end will
yield a longer length.
Then refasten the screws to
the wheelchair seat.
(Illustration E)
3. For models 909370,
909373, 909392 and
909394, attach the two
"spade" connectors on
the connector wire to those on the seat belt.
(Illustration F)
Note, that for removable arm wheelchairs it may
be easier to install the belt after the arm is
removed.
5. Place connector cord
Mounting Bracket
LED
through the space
between the wheelchair
seat and backrest.
Make certain that it is away from wheels and other
moving parts.
A
Seat Belt Alarm
Safety Alarm
SEAT BELT INSTALLATION
WHEELCHAIR BELT INSTALLATION
(Grommet)
D
E
F
