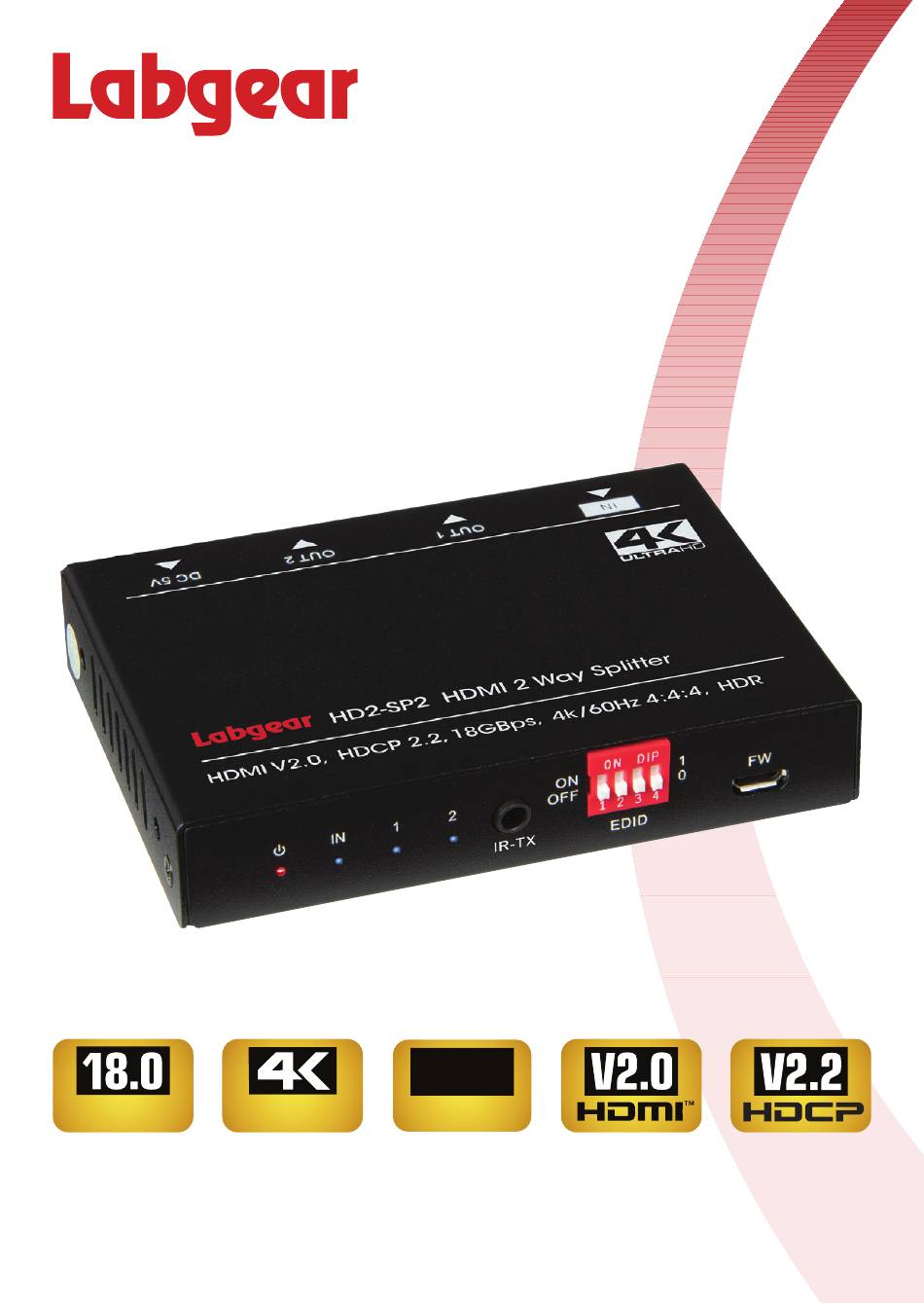

- Page 1 HD2-SP2 4k 2 Way HDMI Splitter with downscaling and AOC support User Guide Gbps @60Hz lossless...
- Page 2 • Install the units in locations with adequate ventilation. Introduction The Labgear range of 4k splitters are designed to split the HDMI signal from a single high resolution source to mutiple displays without signal loss. They also have a backward IR function allowing remote control of the source from the display location.*...
- Page 3 Front Panel Functions 1 2 3 4 POWER LED is lit Red when the unit is powered ➊ INPUT LED flashes Blue to indicate an HDMI signal input to displays ➋ OUTPUT LEDs when lit Blue indicate HDMI signal output on the ➌...
- Page 4 DIP Switch Operation EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. If the second connected display has a lower maximum resolution it may not display any picture.
- Page 5 Switch Status Video Resolution Audio Format Obtains EDID from the first detected display starting at HDMI output 1>2. Obtains EDID from the first detected display starting at HDMI output 2>1. 1080p LPCM 1080p DTS/Dolby 3840x2160@30Hz HDR LPCM 3840x2160@30Hz HDR DTS/Dolby 3840x2160@60Hz HDR LPCM 3840x2160@60Hz HDR...
- Page 6 Remote IR System The Remote IR System in conjunction with the HD2 IRK IR Extender Kit (sold separately) allows you to control your source device from the location of the the display using the source remote control. HD2 IRK Kit comprises: 1x IR Receiver IR Signal 1x IR Emitter...
- Page 7 Specifications Video Input Input 1x HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version 2.3, 1.4 compliant Supported Video Output Output 2x HDMI HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Power Output Up to 5V 200mA for powering AOC cable HDMI Standard HDCP Version 2.3, 1.4 compliant...
- Page 8 Please recycle where facilities exist. Check with your Local Authority for recycling advice. Labgear, Philex House London Road, Bedford, MK42 0NX, U.K. EU Distributor: Philex Electronic Ireland Ltd., Robwyn House, Corrintra, Castleblayney, Co. Monaghan, A75 YX76, Ireland. © Labgear 2020 Vb2.3...
