Summary of Contents for Labgear HD2-SP8

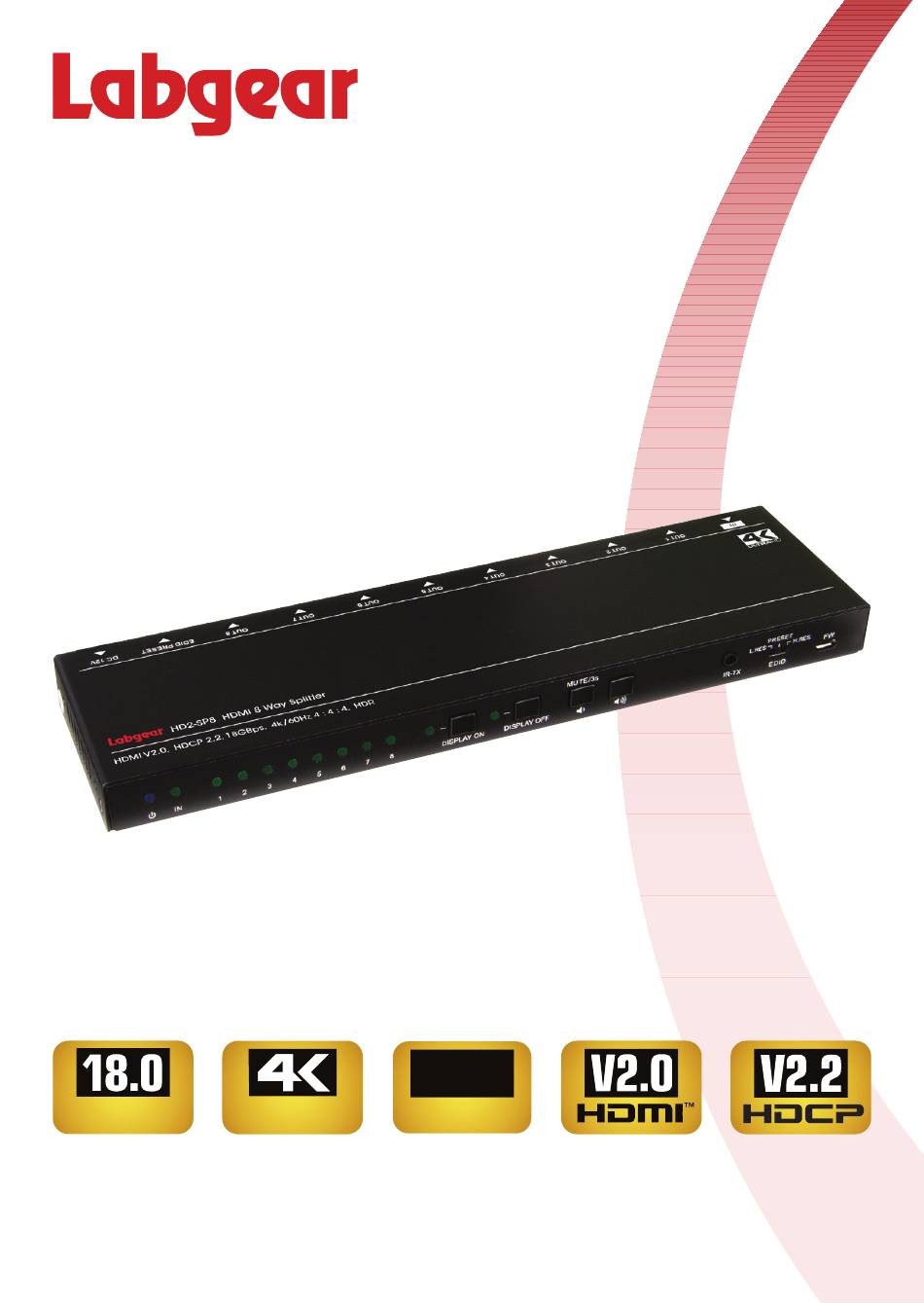

- Page 1 HD2-SP8 4k 8 Way HDMI Splitter User Guide Gbps @60Hz lossless...
-
Page 2: General Safety
• Install the units in locations with adequate ventilation. Introduction The Labgear range of 4k splitters are designed to split the HDMI signal from a single high resolution source to mutiple displays without signal loss. They also have a backward IR function allowing remote control of the source from the display location.*... -
Page 3: Front Panel Functions
Front Panel Functions MUTE/3s MUTE/3s PRESET L.RES H.RES IR-TX DISPLAY ON DISPLAY OFF EDID POWER LED is lit Blue when the unit is powered. ➊ INPUT LED lights up green to indicate HDMI signal input to displays. ➋ OUTPUT LEDs when lit Green indicate HDMI signal output on the ➌... -
Page 4: Typical Connections
Typical Connections TV 1 TV 2 TV 3 TV 4 TV 5 TV 6 TV 7 TV 8 Blu-ray player EDID Selector Switch & DIP Switch Operation EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. - Page 5 Switch Status Video Resolution Audio Format 0000 Obtains EDID from the display connected to port 1 0001 Obtains EDID from the display connected to port 2 0010 Obtains EDID from the display connected to port 3 0011 Obtains EDID from the display connected to port 4 0100 Obtains EDID from the display connected to port 5 0101...
- Page 6 Video Resolution Downscaling The product supports video resolution downscaling, the 4K input can be converted to 1080p for 1080p displays, details below: Input Output Refresh Color Resolution Downscale 1080p Specs Rate Space 3840x2160 60Hz 4:4:4 Supported 1080p@60Hz 4:4:4 3840x2160 30Hz 4:4:4 Supported 1080p@30Hz 4:4:4...
-
Page 7: Specifications
Specifications Video Input Input 1x HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version 2.2, 1.4 compliant Supported Video Output Output 8x HDMI HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version 2.2, 1.4 compliant Supported Control 24x Control Buttons, EDID selector switch,... -
Page 8: Firmware Upgrade
Please recycle where facilities exist. Check with your Local Authority for recycling advice. Labgear, Philex House London Road, Bedford, MK42 0NX, U.K. EU Distributor: Philex Electronic Ireland Ltd., Robwyn House, Corrintra, Castleblayney, Co. Monaghan, A75 YX76, Ireland.
