- Page 1 User manua PullAid ® USER MANUAL – PullAid – UK VERSION 2...
- Page 2 USER MANUAL – PullAid – UK VERSION 2 INTRODUCTION .............................. 3 EU DECLARATION OF CONFORMITY ....................... 4 PRODUCT LABELING ............................5 TERMS OF USE ............................... 6 TECHNICAL SPECIFICATIONS ........................... 7 ............................7 IMENSIONAL KETCH ..........................8 ECHNICAL PECIFICATIONS ......................8...

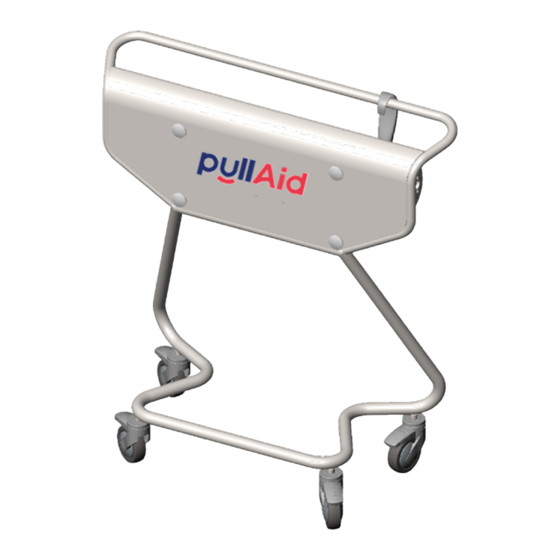

- Page 3 USER MANUAL – PullAid – UK VERSION 2 1. Introduction Congratulations on your new PullAid. This is an original user manual for your new PullAid assistive device for repositioning patients in bed. Throughout the text, we will use the term PullAid unless otherwise specified.
- Page 4 Equipment: PullAid, Electrically powered machine Year: 2022 is in conformity with: PullAid complies with the relevant requirements within the following standards: DS/EN/ ISO 13485 Quality management systems. EN 12182:2012 Assistive products for persons with disability – General requirements and test methods.
- Page 5 USER MANUAL – PullAid – UK VERSION 2 3. Product Labeling Manufacturer of this assistive device. Danrehab A/S Phone: +45 86447355 Manufacturer's name, phone number and address. DK-7160 Tørring The product complies with all requirements for CE marking. PullAid 100.206 (HMI no. 136047)
- Page 6 4. Terms of Use PullAid should only be used for repositioning patients in bed. It must be used together with a slide sheet (Item no. 2201) and a specially designed sheet (Item no. 6015) to assist in pulling back up a patient who has slipped down to the optimal position in bed.
- Page 7 USER MANUAL – PullAid – UK VERSION 2 5. Technical Specifications Dimensional Sketch...
- Page 8 USER MANUAL – PullAid – UK VERSION 2 Technical Specifications Duty Cycle: 10% 2 min. operation / 18 min. break Dimensions (L x W x H-seat x H-backrest): 975 x 1056 x 400 mm Net Weight: 21 kg Maximum Load: Max.
- Page 9 USER MANUAL – PullAid – UK VERSION 2 RISK OF FIRE, ELECTRIC SHOCK, EXPLOSION OR BURNS • No user serviceable parts. Do not attempt to open or disassemble the control unit. If the control unit is damaged, do not touch it while it is connected to the 100-240V power supply.
- Page 10 To avoid material damage due to overloading (max. 150 kg), it is important that the person’s weight does not exceed the specified weight limit. Operating with a higher load may cause material damage to the PullAid or the bed. In the event of overloading, consider using a ceiling lift to move the patient. 6.3 Personal Safety •...
- Page 11 USER MANUAL – PullAid – UK VERSION 2 6.4 Handling The PullAid usually comes fully assembled by your dealer. The product is ready for use upon delivery; any protective film should be removed before use. Do not subject the PullAid to strong impacts or blows, as this may affect the functionality of the product.
- Page 12 Assembling the PullAid Normally, the PullAid is assembled by your dealer. All you need to do is plug it in, and the product is ready for use. However, it should be noted that in order to use the PullAid correctly, the specially designed sheet must always be used and in place on the bed of the patient.
- Page 13 8.3 Operating the PullAid The control panel is located on the handle, attached to a cable. To turn on the PullAid, insert the 230V plug into the socket and switch on the power. The PullAid is now ready for use.
- Page 14 PullAid (see section 9.3). Positioning the PullAid • Position the PullAid behind the headboard of the bed, with the front plate against the headboard. IMPORTANT: Press the PullAid firmly against the headboard to prevent it from tilting during use. •...
- Page 15 USER MANUAL – PullAid – UK VERSION 2 Attaching the Sheet to the PullAid Pull the narrow part of the sheet over the PullAid, and attach the sheet to the roller via the Velcro strips found on both the sheet and the roller. Position the sheet in the middle of the roller to prevent it from folding during rolling.
- Page 16 After the Pull Loosen the sheet slightly by pressing the "Down" button at the bottom. Remove the plug from the socket and place it in the holder on the PullAid. The PullAid is now turned off.
- Page 17 A wheel might unexpectedly have removed itself from the factory-installed screw lock. It could also have come loose if a wheel change, which was not carried out by Danrehab A/S, was done without using a screw lock.
- Page 18 USER MANUAL – PullAid – UK VERSION 2 11. Service Inspection Under normal operation, the product has an expected lifespan of >5 years provided it is maintained according to the manufacturer's instructions. In addition to the general maintenance described in section 10, we as the manufacturer recommend that routine inspections be carried out annually by a trained service technician.
- Page 19 USER MANUAL – PullAid – UK VERSION 2 12. Spare Parts and Accessories IMPORTANT! It is essential to always use genuine spare parts. Parts should only be replaced by a trained service technician. If generic spare parts are used, the manufacturer’s warranty may become void.
- Page 20 (at the end of the The system is connected to a power source, tube). and the green LED is lit, but the PullAid does not operate. • Check if the plug for the remote control is correctly connected to the control unit.
- Page 21 USER MANUAL – PullAid – UK VERSION 2 14. Block Diagram Motor Control U it Remote Control 100-230V...
- Page 22 USER MANUAL – PullAid – UK VERSION 2 15. Disposal It is the owner's responsibility to dispose of the product in accordance with the applicable regulations. Please note that batteries are installed in the control unit and the remote control, which must be disposed of separately.
- Page 23 USER MANUAL – PullAid – UK VERSION 2 This product must be recycled in accordance with national regulations. After disassembly of the product, you should sort the components based on what they are made of and recycle them individually. Please contact your local recycling center for guidance if necessary.
- Page 24 USER MANUAL – PullAid – UK VERSION 2...
