- Page 1 User Manual ERGOtip USER MANUAL – ERGOtip chairs – UK VERSION 2.2...
-
Page 2: Table Of Contents
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 Table of Contents Introduction ....................................4 1.1 Electronic Version ................................ 4 EU Declaration of Conformity........................... 6 Equipment Labeling ................................. 8 Terms of Use ................................... 9 Technical Specifications ............................10 5.1 Dimensional Sketch ..............................10 5.2 Technical Specifications ............................ - Page 3 USER MANUAL – ERGOtip chairs – UK VERSION 2.2 12.1 Cleaning ..................................... 27 12.2 Automatic Car Wash ............................... 27 12.3 Mechanical Maintenance ............................ 27 13. Service Inspection ................................28 14. Spare Parts and Accessories ..........................29 15. Troubleshooting ................................32 16.
-
Page 4: Introduction

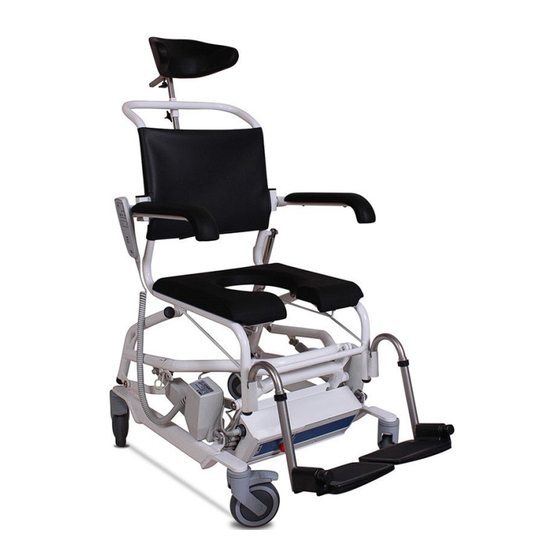

This manual applies to the following ERGOtip models: ERGOtip 5 EL, 6 EL, 7 EL, 8 EL, 9 EL, 11 EL and VH All models have three electric motors: Two motors for adjusting the seat height and one motor for seat tilt. - Page 5 USER MANUAL – ERGOtip chairs – UK VERSION 2.2 Scan to learn more about the product and download the user manual online:...
-
Page 6: Eu Declaration Of Conformity
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 2. EU Declaration of Conformity Danrehab A/S Manufacturer: Address: Vejlevej 15, 7160 Tørring Phone: +45 86 44 73 55 hereby declares that: Equipment: ERGOtip chair Battery operated toilet & shower chair... - Page 7 USER MANUAL – ERGOtip chairs – UK VERSION 2.2 June 2023 Date Signature...
-
Page 8: Equipment Labeling
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 3. Equipment Labeling Manufacturer of the device in question. Danrehab A/S Phone: 86447355 Manufacturer's name, phone number and address. DK-7160 Tørring The product meets all requirements for CE marking. ERGOtip XX (HMI no. XXXX) Product identity (trade name and HMI no.) -
Page 9: Terms Of Use
Local regulations and directives must be observed. Disclaimer Danrehab A/S guarantees the safe use of the product, provided that it is used sensibly and as intended. If the product exhibits any kind of visible faults it should not be used, and may not be considered safe for use or compliant with normal standards of use, including quality, nature and durability. -
Page 10: Technical Specifications
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 5. Technical Specifications Dimensional Sketch Table containing the width of the different ERGOtip models: Model no. Seat Width Seat Depth Between Total Width Armrests ERGOtip 5 430mm 430mm 460mm 580mm ERGOtip 6 490mm 480mm 510mm 635mm... - Page 11 USER MANUAL – ERGOtip chairs – UK VERSION 2.2...
-
Page 12: Technical Specifications
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 Technical Specifications Number of lifts at full charge: Approximately 20 lifts at maximum load, 30 lifts at average load. Duty cycle: 10% 2 minutes operation / 18 minutes break Charging time: Up to 5 hours (with the included control unit) Dimensions (L x W x H-seat x H-backrest): 1175 x 600 x 540-940 x 1107-1507 mm... -
Page 13: Technical Specifications - Control Unit
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 Technical Specifications - Control Unit Dimensions (L x W x H): 239 x 117 x 75mm Input Voltage: 24V (with CBJ2 battery) Standby power consumption: 2.5W Power consumption during charging: Weight: 900 g Operating temperature: +5ºC to +40ºC... -
Page 14: Technical Specifications - Battery
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 5.4 Technical Specifications - Battery Dimensions (L x W x H): 239 x 117 x 75mm Input Voltage: 24V (with charger in control unit CBJ2) Output Voltage: 24V, 2.9 A/linear actuator port Weight: 900 g Operating temperature:... - Page 15 USER MANUAL – ERGOtip chairs – UK VERSION 2.2 WARNING: FIRE, ELECTRIC SHOCK, EXPLOSION AND BURNING HAZARD No user serviceable parts. Do not attempt to open or disassemble • the lead-acid battery. If the battery module is damaged, do not touch the corrosive electrolyte or powder;...
-
Page 16: Safety Instructions
In the event of overloading, the chair is lowered to the lowest position, and the load is removed from the chair. Model no. max. load ERGOtip 5 200 kg. ERGOtip 6 200 kg. -
Page 17: Handling
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 6.5 Handling The ERGOtip chair is normally assembled by your dealer. The chair is ready for use upon delivery; any protective film should be removed before use. Do not subject the ERGOtip chair to heavy impacts or blows, as it may affect the functionality of the product. -
Page 18: Precautions For Normal Use
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 6.6 PRECAUTIONS for Normal Use: The chair must be used on a horizontal surface, and never on an inclined surface. When the chair is used to transport patients, the following precautions apply: a) The chair should NOT be tipped forward. -
Page 19: Functional Description
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 7. Functional Description The ERGOtip chair is a mobile toilet/shower chair used for the hygienic care of patients. The chair has two primary functions: First, a raising/lowering function that is used to lift the patient to the optimal working height, thereby relieving the care staff and safeguarding the patient’s dignity by bringing them to eye level with the caregiver. -
Page 20: Assembling And Adjusting Accessories
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 8.3 Assembling and Adjusting Accessories The ERGOtip chair can be stored wherever desired. However, the lifting speed will be reduced when the battery is below 0ºC. But in practice, if charged, the chair will always be able to perform its task even after being stored in very cold temperatures (-15ºC). - Page 21 USER MANUAL – ERGOtip chairs – UK VERSION 2.2 The knob takes approximately 2 turns to loosen. Tighten the knob after adjusting.
-
Page 22: Operating The Chair
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 8.6 Operating the Chair The control panel is located on the side of the chair, attached to a spiral cord. To turn on the ERGOtip chair, press the UP/DOWN arrow buttons on the control panel. Make sure the chair is charged before use. -
Page 23: Charging The Chair
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 9. Charging the Chair When the battery is sufficiently charged, all 3 indicator fields will light up. The battery must be charged IMMEDIATELY when the indicator light on the remote control changes to the bottom level. -
Page 24: Charging The Battery Directly On The Chair
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 CHARGING THE BATTERY Directly on the Chair: Charging on the chair (i.e. without removing the battery case from the chair): a. Pull the protective plug (A) out of the charging port (B). b. -
Page 25: Emergency Stop And Emergency Lift
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 10. Emergency Stop and Emergency Lift Control 10.1 Emergency Stop Press the button on the chair's control unit. This will make it impossible to activate the chair using the remote control. Turn the button clockwise to cancel the emergency stop. -
Page 26: Usage
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 11. Usage 11.1 Raising the Seat Raise the seat by pressing the top arrow button in the upper square of the remote control. Hold the button until the chair reaches the desired position: Upon releasing the button, the chair will be locked in position. -
Page 27: Maintenance
It could also have come loose if a wheel change, which was not carried out by Danrehab A/S, was done without using a screw lock. However, the risk of accidents and injuries is minimal, as a loose wheel will wobble quite violently and thus be noticed immediately by the care staff upon moving the chair. -
Page 28: Service Inspection
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 In the event of unusual sounds and/or uneven motor performance, ALL lifting and tilting of the seat must be stopped IMMEDIATELY. Contact the dealer/manufacturer. DO NOT use the chair UNTIL the fault(s) have been corrected. When replacing one or several of the motors, a risk of injury may arise if not done correctly. -
Page 29: Spare Parts And Accessories
In addition, the safety of the product may be compromised, leading to potential safety hazards. For additional spare parts and service, please refer to the authorized dealer from whom you purchased the product. Danrehab part Description Photo / Illustration number... - Page 30 USER MANUAL – ERGOtip chairs – UK VERSION 2.2 Danrehab part Description Photo / Illustration number Seat ERGO-S5 ERGOtip 5 ERGO-S26 ERGOtip 6 50833-SO ERGOtip 7 1030-SPUR ERGOtip 8 1030-SPUR ERGOtip 9 109635-SO11 ERGOtip 11 ERGO-SO5 Anytoilet ERGO-XSB Control box for ERGOtip chair...
- Page 31 USER MANUAL – ERGOtip chairs – UK VERSION 2.2 Danrehab part Description Photo / Illustration number Armrest PUR 01041-PURP Complete arm for headrest 11111219 A) Vertical arm for headrest B) Horizontal arm for headrest 11111220 Head cushion ERGO-NP...
-
Page 32: Troubleshooting
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 15. Troubleshooting TROUBLESHOOTING for various malfunctions: SYMPTOM: The chair does not respond to the lift or tilt functions. 1. Check if the various plugs have been inserted correctly. o If NO, insert the plugs. o If YES, proceed to step 2. - Page 33 USER MANUAL – ERGOtip chairs – UK VERSION 2.2 o Next, press lightly on the front of the battery case with your left hand while simultaneously pushing the battery case toward the control unit with your right hand. You will hear a slight click when the battery case has been put in place and securely fastened.
-
Page 34: Disposal
USER MANUAL – ERGOtip chairs – UK VERSION 2.2 try to raise the chair, and if the two motors are still not in synch, repeat the process. If this does not resolve the issue, the chair should be sent to Danrehab A/S for repair. - Page 35 USER MANUAL – ERGOtip chairs – UK VERSION 2.2 _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________...
- Page 36 USER MANUAL – ERGOtip chairs – UK VERSION 2.2...
