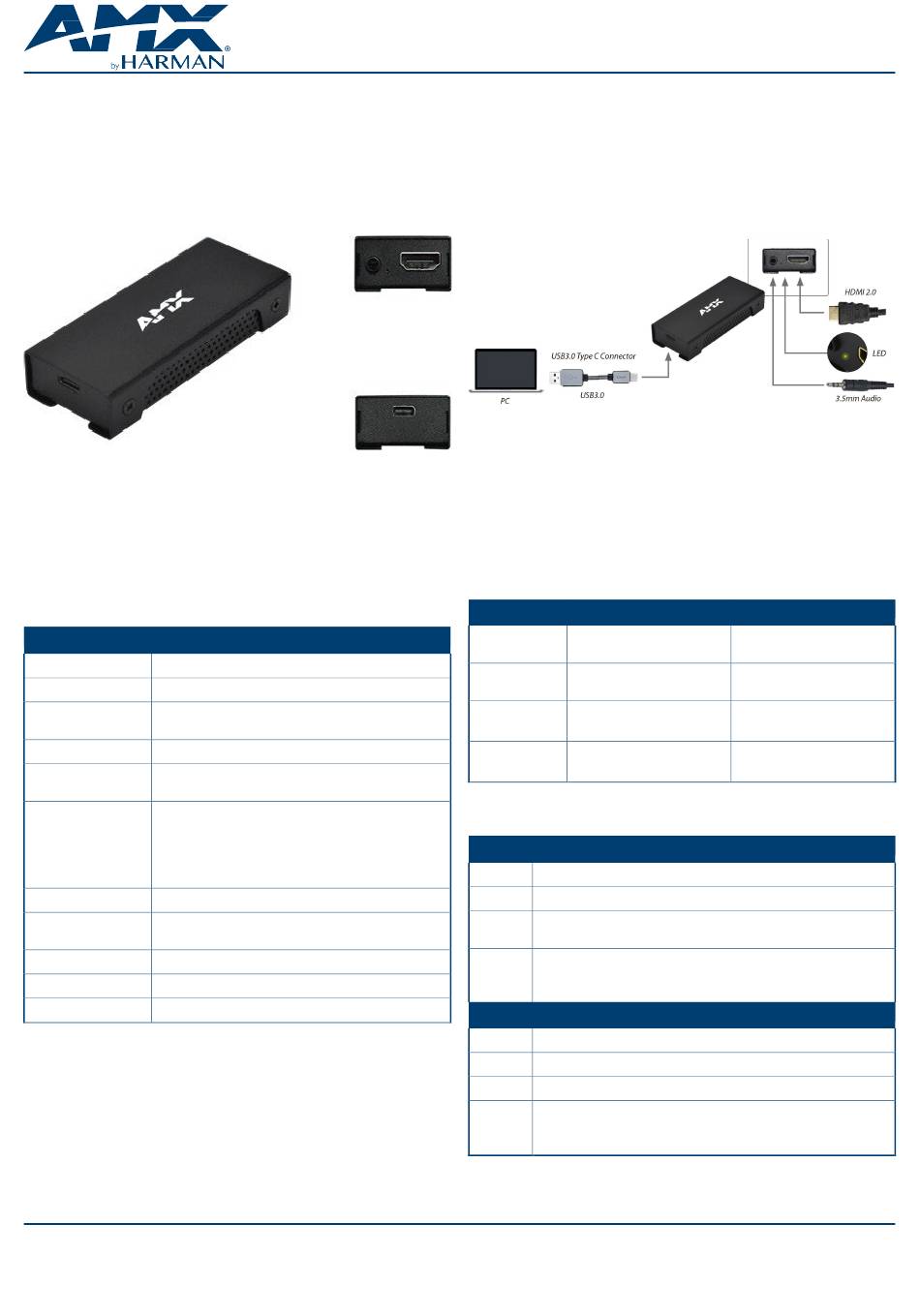

Harman AMX UVC1-4K Quick Start Manual

Overview
UVC1-4K is a high-quality, high-performance capture device which is
specially designed for high-definition and 4K video capture applications. It
supports 1 channel of up to 4096×2160p @ 60 fps video from an HDMI
source and selectable HDMI or 3.5mm analog audio.
What's in the box
The following items are included with the UVC1-4K:
USB 3.0 A to C Cable
•
• Quick Start Guide (QSG)
Specifications
UVC1-4K SPECIFICATIONS
Video Input Interface HDMI 2.0
Audio Input Interface HDMI Embedded Audio / 3.5mm Analog Stereo Audio
Video RAW Data YUY2, P010 (Support on outputs below 1080P60)
Format NV12, I420 (Support on all outputs)
Video Input Resolution Up to 4096×2160p@60fps (4:4:4 10-Bit HDR)
YUY2, P010, NV12, I420 (USB 3.0)
Recording Video
Format
UVC Output Resolution 4096×2160p@60/50fps and 3840×2160p@60/50fps
inputs will be output at 3840×2160p@30fps
(NV12, I420) or 1920×1080p@60fps (YUY2, P010)
For all inputs below 3840×2160p@30fps, UVC1-4K
outputs will match the input resolution
LED Red/Green
OS Compatibility Windows 10 (64-bit)
macOS 10.12 or newer
Power Consumption 3.57W Max (4.76V / 750mA)
Dimensions (H x W x D) 0.66" x 1.43" x 3.44" (17.0mm x 36.3mm x 87.3mm)
Weight 93.62g
Installation
UVC1-4K supports operating system:
Windows 10 (64-bit)
•
• macOS 10.12 or newer
For UVC devices, such as the UVC1-4K, there is no need to install drivers.
The driver will activate automatically when the device is attached to your
PC or Mac.
Interface
3.5mm TRS audio jack for Line in/Mic in
•
(Gain: Line in is 0dB, Mic in is 32dB)
HDMI 2.0 port supports input resolution up to 4096×2160 pixels
•
• USB 3.0 Type C
LED Indicator and Video Notification
LED Video
Red "No Signal" white text on a
black background
Red "Signal Unlock" white text on
a black background
Green Source video
Red & Green Content protection
cross flashing (video stops, freezes, etc.)
System Requirement
Notebook
th ®
CPU: 7 generation Intel Core™ i7‐7XXX (Quad‐Core) or above
Memory: 8GB (dual-channel)
Graphic:
NVIDIA GeForce GTX 870M,
Intel HD graphics 4000, or above
USB port: USB3.0 standard type-A port (use USB3.0 type-C to type-A cable)
Or USB3.0 type-C port
(use USB3.0 type-C to type-C cable - not included with product)
Desktop PC
th ®
CPU: 6 generation Intel Core™ i5‐6XXX (Quad‐Core) or above
Memory: 8GB (dual-channel)
Graphic: NVIDIA GeForce GTX 660, Intel HD graphics 4000, or above
USB port: USB3.0 standard type-A port (use USB3.0 type-C to type-A cable)
Or USB3.0 type-C port
(use USB3.0 type-C to type-C cable - not included with product)
QUICK START GUIDE
UVC1-4K
Input status
HDMI is not connected
HDMI is connected, but
the signal is not locked
HDMI is connected
with source
HDCP protected content
AV FOR AN IT WORLD
®
