Harman AMX IRIS Quick Start Manual

Overview
As a stand-alone self-contained unit, the IRIS (FG5448) captures IR or wired function
signals from a hand controller and instantly captures and verifies the control functions,
where they are transmitted to a PC operating the IRLIB program. Designed with
versatility in mind, the IRIS captures IR functions from hand controllers for a wide
variety of audiovisual equipment such as monitors, VCRs, TVs, and CD players.

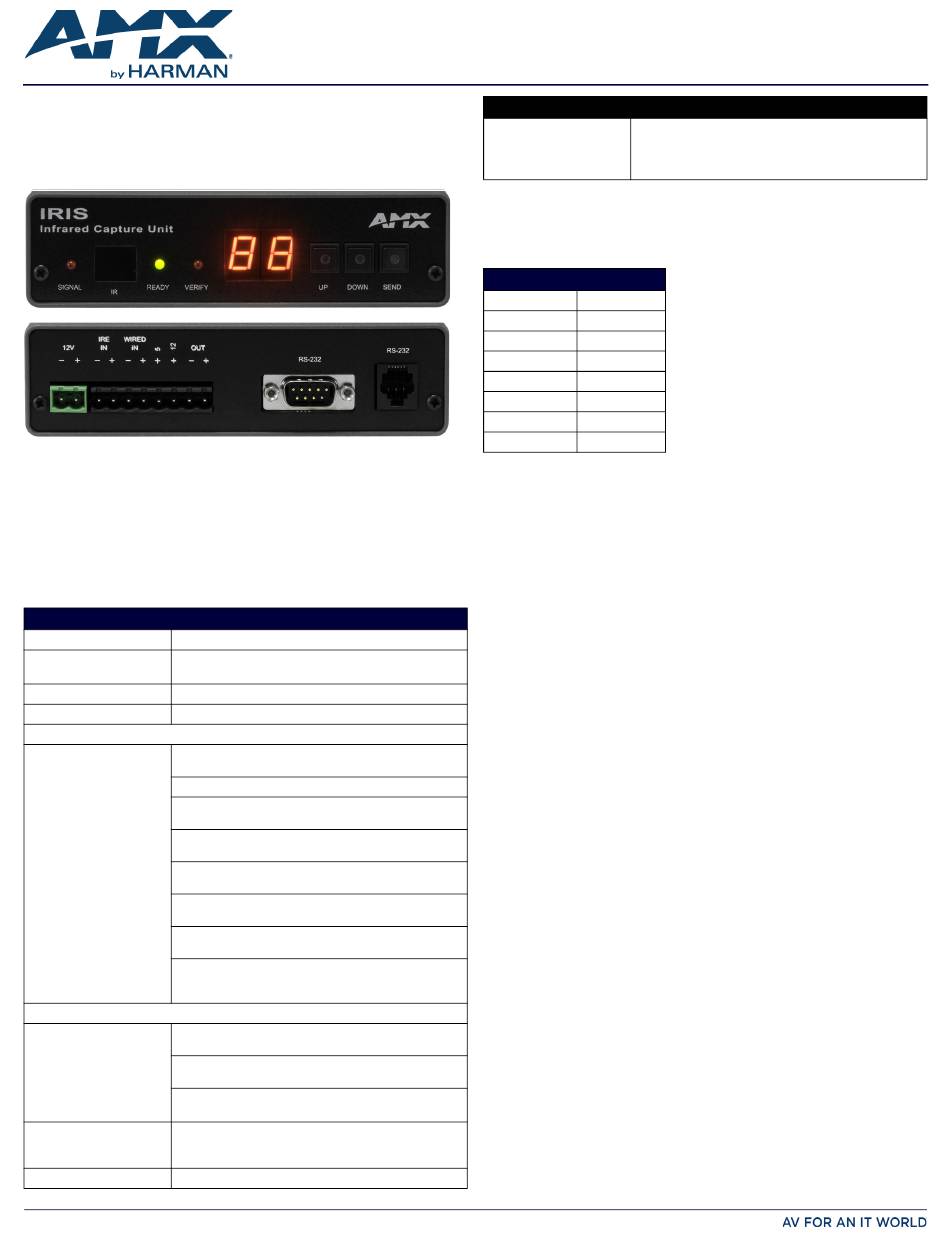

FIG. 1 IRIS FRONT AND REAR VIEWS
After IR functions are captured with the IRIS unit, the functions are sent to a PC running
the IREdit software program.
The IREdit software program creates HC function files that are downloaded to the
Central Controller. For step-by-step instructions on how to use the IREdit software
program, refer to the IREdit instruction manual.
You can also the IR Capture and Management tool in AMX's VisualArchitect software
application to capture and manage IR functions via the IRIS. Refer to the
VisualArchitect Instruction Manual and online help for details.
Specif ications
IRIS (FG5448) SPECIF ICATIONS
Power: 12 VDC @ 160 mA max.
Dimensions (HWD): • 1 1/2" x 5 1/2" x 5 1/2" (3.8 cm x 14 cm x 14 cm)
• RU: 1
Weight: 1.8 lbs (518.2 g)
Power Requirement: 12 VDC at 160 mA max
Front Panel Components
SIGNAL LED: Red indicator that blinks when the IRIS unit is receiving HC
functions.
IR window: Captures HC functions.
READY LED: Green indicator that lights when the IRIS unit is ready to
receive HC functions.
VERIFY: Red indicator that lights when the IRIS unit is ready to verify
HC functions.
Alphanumeric display: (2-digit) Red 7-segment alphanumeric display that shows the
capture mode and operating status.
UP: Increments the alphanumeric display by one and lights the
red LED inside the pushbutton.
DOWN: Decrements the display by one and lights the red LED inside
the pushbutton.
SEND: Transmits captured HC functions to a PC running the IREdit
software program. The red LED inside the pushbutton lights
when valid HC functions are ready to send.
Rear Panel Components
12 VDC/12 VAC 2-pin (male) 12 VDC or 12 VAC power supply connector.
connector:
8-pin data connector: Captures wired-IR HC functions. Connect the HC to the IRE
IN or WIRED IN pins.
RS-232 connectors: • DB-9 connector for data communications with a PC.
• 6-pin RJ-11 modular connector for data communications.
Control ports: • IR sensor to receive IR codes; IR serial input for wired IR
codes.
• DB-9 female connector for Axcess and PC communication.
Enclosure: Metal with black matte finish
IRIS
IRIS (FG5448) SPECIF ICATIONS (CONT.)
Includes: • Large, 2-digit status LED
• Adjustable RS-232 port (300 - 9600 baud)
• 12 VAC power supply
• IREdit software
Capturing HC Functions
The two modes you can use to capture HC functions are default and special function.
You use default mode, which is automatically set when you connect power to the IRIS
unit, to capture the majority of HC functions. The table below shows the IRIS unit
settings for default mode:
DEFAULT MODE SETTINGS
Default Setting
Baud 9600
P3 off
P4 on
P5 off
P6 on
P7 on
P8 off
Before capturing HC functions, make sure the baud rate in the IRIS unit is set properly,
and connected to a PC running the IREdit software application.
Note: All settings are returned to their default state when power is removed from the unit.
Refer to the IREdit instruction manual for information on to storing captured HC
functions.
Capturing HC functions in default mode
1. Make a list of the name and sequence of the HC functions you want to capture.
The standard order for HC functions is listed in the HC IR Functions table.
2. Connect the RS-232 cable to the DB-9 connector on the IRIS unit and the RS-232
port on your PC, as shown in the Cables and Adapters section.
3. Set the baud rate in the IRIS unit to match the PC baud rate (refer to the Baud
Rate Settings table).
4. Connect the 12 VDC or 12 VAC power supply to the 12 VDC connector on the IRIS
unit. The READY LED lights and 01 appears in the display.
5. Holding the HC device approximately 3-inches away from the IR capture window,
press and hold the first key on the HC to capture the first function.
The SIGNAL LED will start blinking.
6. Release the HC key as soon as the READY LED goes off.
The [ ] briefly appears in the display to indicate the HC function is captured. Then,
01 appears and the and
READY
active; refer to the Display Characters and P Modes table for details.
7. Holding the HC device approximately 3-inches away from the IR capture window,
press and hold the same key on the HC device again to verify the IR function was
captured correctly by the IRIS unit.
• If the HC function is captured correctly, a pair of [ ] (brackets) will briefly flash in
the display. The VERIFY LED goes off, 01 appears in the display, and the
pushbutton's LED lights.
• If an Er message appears in the display, repeat steps 3 and 5. Otherwise, go to
step 6.
8. Press the pushbutton to send the captured HC function to the PC running the
SEND
IREdit software program.
9. Repeat steps 3 through 6 to capture all the HC functions on your list.
Capturing HC functions in SP mode
If you cannot capture an HC function in default mode, set the IRIS unit to special
function (SP) mode:
1. Press and release the and
UP SEND
briefly appears in the display and the
mode.
2. Perform the Capturing HC functions in default mode steps 3 through 6 four times,
or until the SEND LED lights, to capture the HC function. Then, go to the next step.
3. Simultaneously press and release the
unit to default mode. The message nO (normal operation) briefly appears in the
display to indicate default mode is active.
Capturing Diff icult HC Functions Using P3-P8 Modes
Set the IRIS unit to the P3-P8 modes if you cannot capture an HC function in default or
SP mode, The P3 and P4 modes are special settings to capture HC functions:
1. Simultaneously press and release the
message P1 appears in the display. The IRIS unit is now in P mode.
2. Use the or pushbutton to select the appropriate P modes according to the
UP DOWN
descriptions in the following table.
QUICK START GUIDE
IR/Serial Data Capture Device
LEDs light. The LED will not light if P4 mode is
VERIFY
pushbuttons at the same time. The message SP
lights. The IRIS unit is now in SP
UP LED
and pushbuttons to reset the IRIS
UP SEND
, , and pushbuttons. The
UP DOWN SEND
SEND
