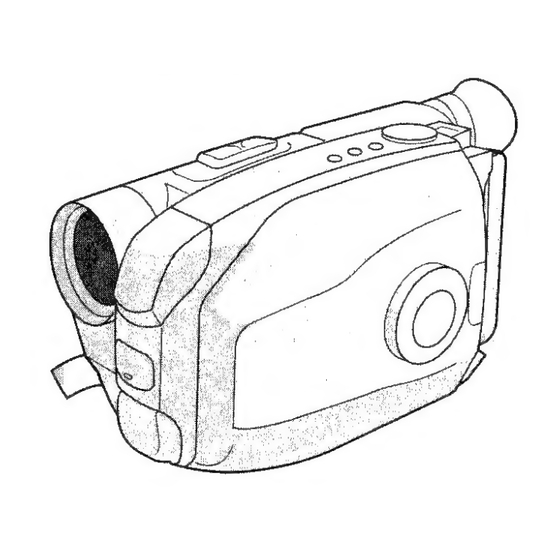

COMPACT VHS CAMCORDER ~

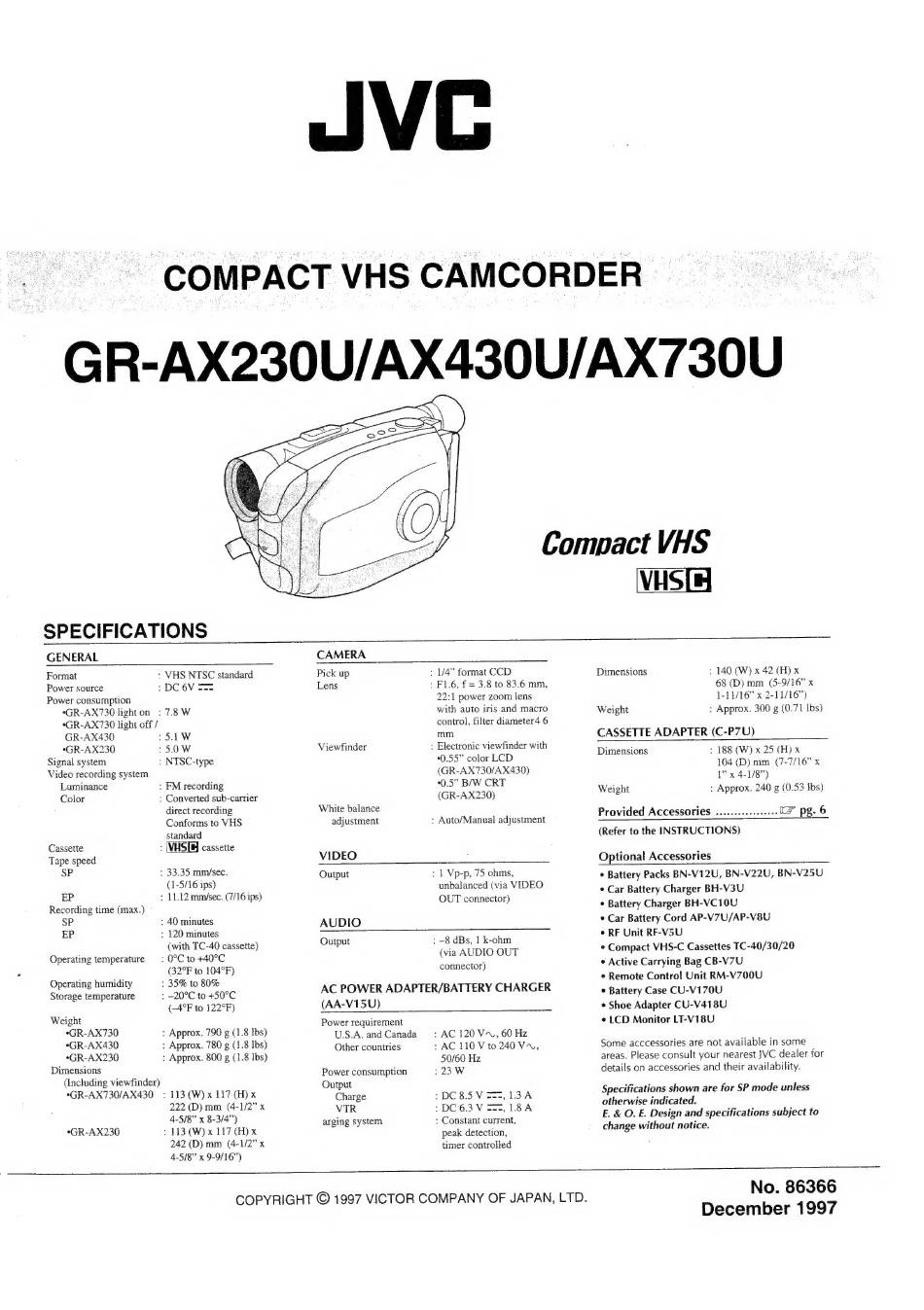

SPECIFICATIONS
Compact VHS
VHSi®
GENERAL
Format
: VHS NTSC standard
: DC 6V ==:
Power source
Power consumption
*GR-AX730 light on
*GR-AX730 light off /
GR-AX430 :
*GR-AX230
Signal system
Video recording system
Luminance
Color
Cassette
Tape speed
SP
EP
Recording time (max.)
SP
EP
Operating temperature
Operating humidity
Storage temperature
Weight
*GR-AX730
*GR-AX430
*GR-AX230
Dimensions
(Including viewfinder)
*GR-AX730/AX430
*GR-AX230
:7.8W
5.1 W
:5.0W
: NTSC-type
: FM recording
: Converted sub-carrier
direct recording
Conforms to VHS
standard
: (VAST cassette
: 33.35 mm/sec.
(1-5/16 ips)
: 11.12 mmisec. (7/16 ips)
: 40 minutes
: 120 minutes
(with TC-40 cassette)
2 OPC to +40°C
(32°F to 104°F)
: 35% to 80%
: -20°C to +50°C
(-4°F to 122°F)
: Approx. 790 g (1.8 Ibs)
: Approx. 780 g (1.8 Ibs)
: Approx. 800 g (1.8 Ibs)
: 113 (W) x 117 (HW) x
222 (D) mm (4-1/2" x
4-5/8" x 8-3/4")
: 113 (W) x 117 (A) x
242 (D) mm (4-1/2" x
4-5/8" x 9-9/16")
CAMERA
Pick up
Lens
Viewfinder
White balance
: 1/4" format CCD
: F1.6, f = 3.8 to 83.6 mm,
22:1 power zoom lens
with auto iris and macro
control, filter diameter 4 6
mm
: Electronic viewfinder with
0.55" color LCD
(GR-AX730/AX430)
°0.5" B/W CRT
(GR-AX230)
adjustment : Auto/Manual adjustment
VIDEO
Output : | Vp-p, 75 ohms,
unbalanced (via VIDEO
OUT connector)
AUDIO
Output : -8 dBs, 1 k-ohm
(via AUDIO OUT
connector)
AC POWER ADAPTER/BATTERY CHARGER
(AA-V15U)
Power requirement
U.S.A. and Canada
Other countries
Power consumption
Output
Charge
VTR
arging system
: AC 120 V~, 60 Hz
: AC 110 V to 240 Vv,
50/60 Hz
223'W
:DC8.5V ==, 13A
> DC 6.3 V =, 18A
: Constant current,
peak detection,
timer controlled
Dimensions : 140 (W) x 42 (AH) x
68 (D) mm (5-9/16" x
1-11/16" x 2-11/16")
Weight : Approx. 300 g (0.71 Ibs)
CASSETTE ADAPTER (C-P7U)
Dimensions : 188 (W) x 25 (H) x
104 (D) mm (7-7/16" x
1" x 4-1/8")
Weight : Approx. 240 g (0.53 Ibs)
Provided Accessories .......++.10+++ = pg. 6
(Refer to the INSTRUCTIONS)
Optional Accessories
* Battery Packs BN-V12U, BN-V22U, BN-V25U
¢ Car Battery Charger BH-V3U
Battery Charger BH-VC10U
* Car Battery Cord AP-V7U/AP-V8U
¢ RF Unit RF-V5U
* Compact VHS-C Cassettes TC-40/30/20
* Active Carrying Bag CB-V7U
¢ Remote Control Unit RM-V700U
¢ Battery Case CU-V170U
* Shoe Adapter CU-V418U
¢ LCD Monitor LT-V18U
Some acccessories are not available in some
areas. Please consult your nearest JVC dealer for
details on accessories and their availability.
Specifications shown are for SP mode unless
otherwise indicated.
E. & O. E. Design and specifications subject to
change without notice.
No. 86366
December 1997
