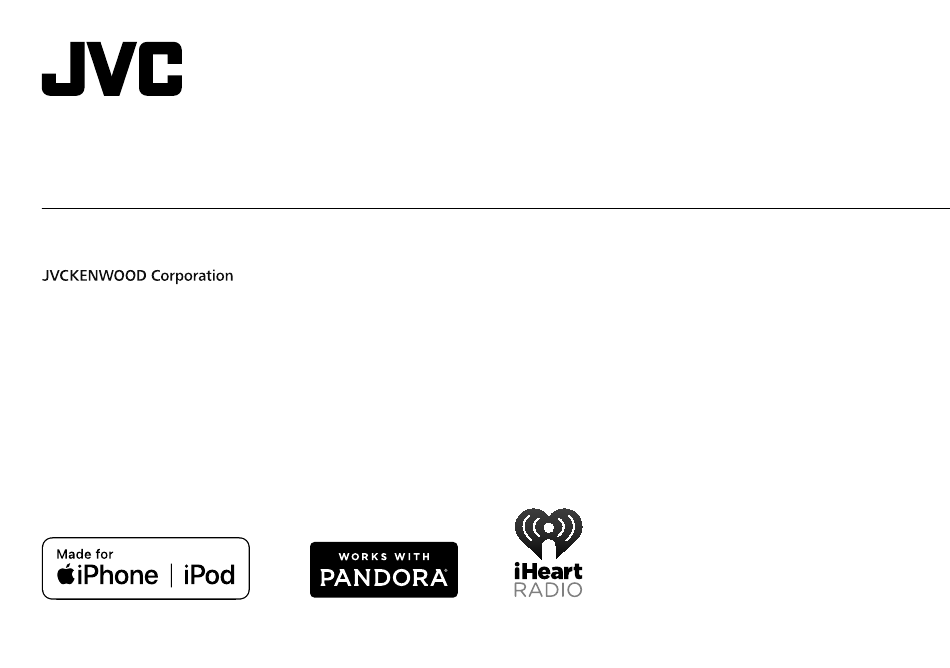

- Page 1 ENGLISH KD-X220 / KD-X120 DIGITAL MEDIA RECEIVER Please read all instructions carefully before INSTRUCTION MANUAL operation to obtain the best possible performance from the unit. B5A-0116-10 [U]...
- Page 2 CONTENTS BEFORE USE BEFORE USE Warning Do not operate any function that takes your attention away from safe driving. BASICS Caution GETTING STARTED Volume setting: USB / iPod / ANDROID • Adjust the volume so that you can hear sounds outside the car to prevent accidents. •...
- Page 3 BASICS Faceplate Remote control (RM-RK52) Attach Remote sensor (Do not expose to bright sunlight.) KD-X120 Volume knob (turn/press) Display window Detach Pull out the insulation sheet when using for the first time. How to reset How to replace the battery...
- Page 4 For details on how to update the firmware, see: Press to exit. <http://www.jvc.net/cs/car/>. To return to the previous setting item, press CLOCK CLOCK SYNC AUTO: The clock time is automatically set using the Clock Time (CT) data Set the basic settings in FM Radio Data System signal. ;...
- Page 5 (commercially available) When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting.
- Page 6 Quick Search repeatedly. If you have many files, you can search through them quickly. AUTO MODE: Control from the unit (using JVC MUSIC For MP3/WMA/WAV/FLAC or JPC / JMC file: PLAY application). Turn the volume knob quickly. AUDIO MODE: Control other media player applications...
- Page 7 RADIO Other settings Press and hold Turn the volume knob to select [TUNER], then press the knob. Turn the volume knob to make a selection (see the following table), then press the knob. Repeat step until the desired item is selected/ “ST”...
- Page 8 RADIO Default: XX Use a portable audio player Connect a portable audio player (commercially available). LOCAL SEEK* ON: Searches only stations with good reception. ; OFF: Cancels. • Settings made are applicable only to the selected source/station. Once 3.5 mm stereo mini plug with “L” shaped connector you change the source/station, you need to make the settings again.
- Page 9 Pandora® (for KD-X220) (Applicable for Australia or New Zealand models only) Preparation: Create and save a new station Install the latest version of the Pandora application on your device Press (iPhone/ iPod touch), then create an account and log in to Pandora. Turn the volume knob to select [NEW STATION], then press the knob.
- Page 10 (for KD-X220) (Applicable for Australia or New Zealand models only) Preparation: Search for a station Install the latest version of iHeart Link for JVC application on your device (iPhone/ iPod Press touch), then create an account and log in to iHeartRadio.
- Page 11 AUDIO SETTINGS Default: XX On the faceplate EQ SETTING Select a preset Press repeatedly. equalizer EQ PRESET FLAT / HARD ROCK / JAZZ / POP / R&B / TALK / USER1 / USER2 / Press , then turn the volume knob VOCAL BOOST / BASS BOOST / CLASSICAL / DANCE: Selects a preset within 2 seconds. equalizer. Preset equalizer: FLAT (default), HARD ROCK, JAZZ, POP, R&B, TALK, USER1, USER2, VOCAL BOOST, BASS BOOST, 1 USER1/ USER2: Select a preset name.
- Page 12 AUDIO SETTINGS AUDIO D.T.EXP ON: Creates realistic sound by compensating the high-frequency (Digital Track components and restoring the rise-time of the waveform that are lost in BASS BOOST +01 / +02: Selects your preferred bass boost level. ; OFF: Cancels. Expander) audio data compression. ; OFF: Cancels. LOUD 01 / 02: Boosts low or high frequencies to produce a well-balanced TEL MUTING *...
- Page 13 DISPLAY SETTINGS BRIGHTNESS Sets the button, display and USB input terminal brightness for day and night separately. 1 DAY / NIGHT: Select day or night. 2 Select a zone for setting. ( Illustration on left) 3 Set the brightness level (00 to 31). (Default: DAY: 31 ; NIGHT: 15) SCROLL * ONCE: Scrolls the display information once. ;...
- Page 14 Control. - iPod nano (3rd, 4th, 5th, 6th, and 7th generation) • When you play audio file with song data added using the JVC Playlist Creator or JVC Music - iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C Control, you can search for audio file by Genres, Artists, Albums, Playlists, and Songs.
- Page 15 TROUBLESHOOTING MORE INFORMATION Change the display information Symptom Remedy Press repeatedly. Sound cannot be heard. • Adjust the volume to the optimum level. FM/AM/SW1/SW2 Station name (PS)* Frequency Program type (PTY)* • Check the cords and connections. Title* Day/Clock (back to the beginning) “MISWIRING CHECK WIRING Turn the power off, then check to be sure the terminals For FM Radio Data System stations only.
- Page 16 Station cannot be selected. If “Explicit Content” in [Account Settings] is checked in Cannot playback at • Make sure JVC MUSIC PLAY APP is installed on the Android the web version of iHeartRADIO, custom stations become [AUTO MODE]. device. ( 5) unavailable.
- Page 17 SPECIFICATIONS FM Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step) Frequency Response (±3 dB) 20 Hz — 20 kHz Usable Sensitivity 8.2 dBf (0.71 μV/75 Ω) Input Maximum Voltage 1 000 mV (S/N = 26 dB) Input Impedance 30 kΩ Quieting Sensitivity 17.2 dBf (2.0 μV/75 Ω) (DIN S/N = 46 dB) Maximum Output Power 50 W × 4 or Frequency Response (±3 dB) 30 Hz — 15 kHz 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω) Signal-to-Noise Ratio (MONO) 64 dB Full Bandwidth Power...
- Page 18 Warning Installing the unit (in-dash mounting) • The unit can only be used with a 12 V DC power supply, negative ground. • Disconnect the battery’s negative terminal before wiring and mounting. • Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
- Page 19 Wiring connection Firmly connect the ground wire of the amplifier to the Part list for Signal cord (not supplied) car’s chassis to avoid damaging the unit. installation JVC Amplifier * (A) Faceplate Fuse (10 A) Rear/subwoofer output Antenna terminal Vehicle dashboard...
- Page 20 ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. © 2014 JVC KENWOOD Corporation 1014DTSMDTJEIN...
