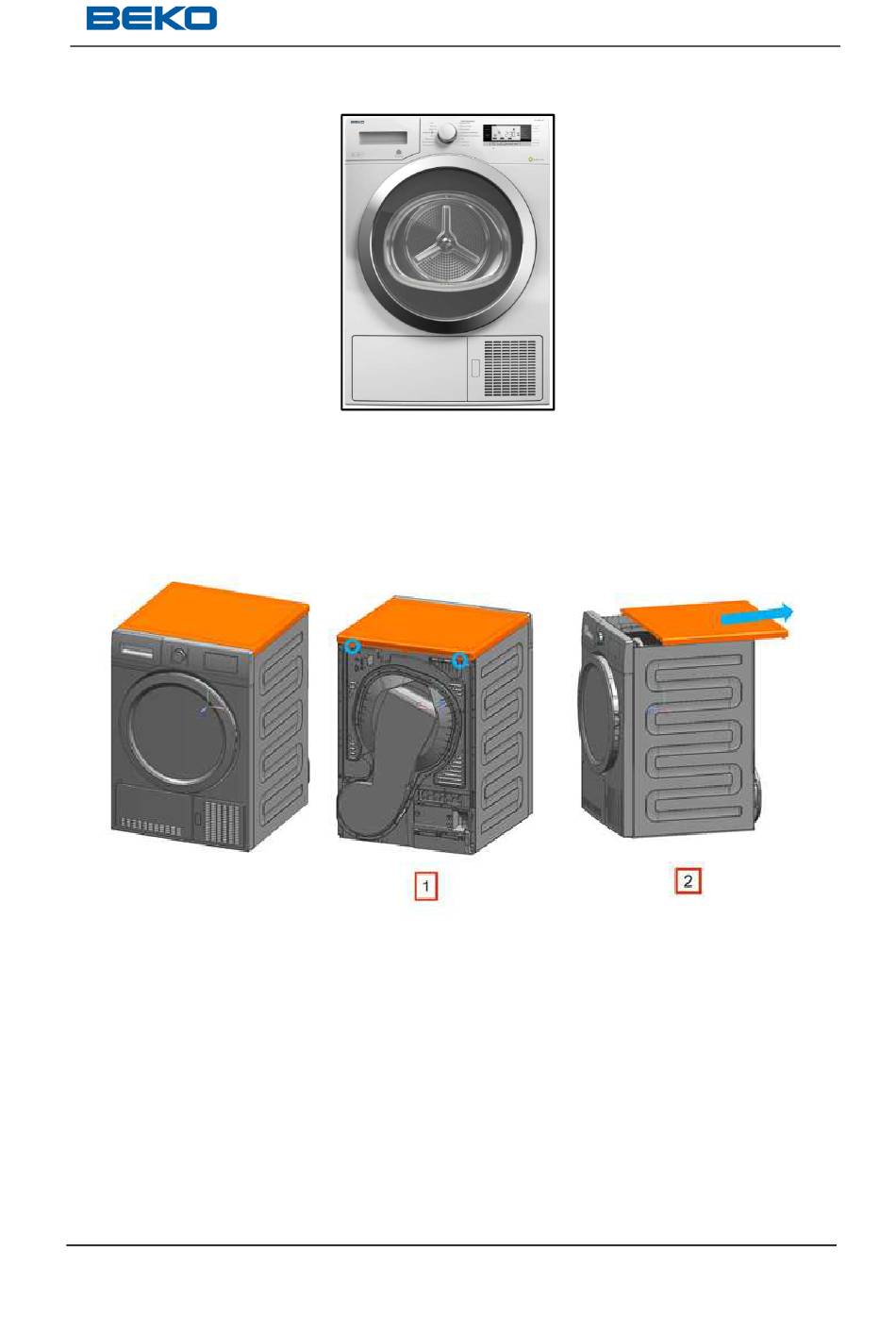

- Page 1 Beko2013 Good+ Heat Pump Tumble Dryer Dismounting Details: Figure 1.1. General View 1.1. Top Plate: Figure 1.2. Disassembling the top plate • Unscrew the top plate. • Pull the top plate towards the rear of the machine. May’14...
- Page 2 Beko2013 Good+ Heat Pump Tumble Dryer 1.2. Side Panel: 1.2.1. Side Panel / Side Support Bracket: Figure 1.3. Screws between the side panel and side support bracket (Water Tank Side) • Remove the screws between the side panel and side support bracket. Figure 1.4.
- Page 3 Beko2013 Good+ Heat Pump Tumble Dryer 1.2.2. Side Panel / Rear Panel: Figure 1.5. Connections between the side panel and the rear panel at the back side of the dryer • Remove the screws as highlighted in the figure between the side panel and the rear panel.
- Page 4 Beko2013 Good+ Heat Pump Tumble Dryer • Remove the 2 pieces of the PT screw on each side of the dryer as highlighted in the figure between the side panel and the plastic chassis. • Remove the 1 piece of the screw on each bottom side of the dryer as highlighted in the figure.
- Page 5 Beko2013 Good+ Heat Pump Tumble Dryer • Remove the 10 pieces of sheet screws between the plastic rear cover and the rear panel. • Remove the 8 pieces of PT screws between the plastic rear cover and the plastic chassis. 1.4.
- Page 6 Beko2013 Good+ Heat Pump Tumble Dryer Figure 1.12. Connection points for Support Sheet Brackets on Left Hand Side (LHS) • Remove the screws on the connection points of support sheet brackets on left and the right hand sides of the dryer. 1.6.
- Page 7 Beko2013 Good+ Heat Pump Tumble Dryer • Remove 5 pieces PT screws between the rear panel and the chassis assembly. • Disassemble the washer and the circlip shown in the figure by the aid of a screwdriver. Figure 1.14. Sub-parts on the Rear Panel Assembly •...
- Page 8 Beko2013 Good+ Heat Pump Tumble Dryer 1.7. Drum Assembly: To disassemble the drum assembly: • Lift up the drum on the highlighted direction. • Pull towards the drum to the backside and remove from the dryer body. • By this movement, any interaction between the drum and the plastic chassis is prevented.
- Page 9 Beko2013 Good+ Heat Pump Tumble Dryer 1.9. Water Tank Housing: Figure 1.18. Water Tank Housing • Disassemble the water tank housing due to the details mentioned above figure. • Water tank housing consists of hose holders, tank housing safety part and the tank housing cover.
- Page 10 Beko2013 Good+ Heat Pump Tumble Dryer • Place the gasket inside the inner plastic door. • Assemble the glass inside the gasket and the inner plastic door. Figure 1.20. Assembling the Inner Inlay • After assembling the glass, place the inner inlay. •...
- Page 11 Beko2013 Good+ Heat Pump Tumble Dryer Figure 1.22. Hook Assembly • After assembling the protective door, place the hook inside the hook holder. • Firstly, insert the hook spring inside the hook as shown in the figure above. • Assemble the hook inside the hook holder as shown in the figure above. Figure 1.23.
- Page 12 Beko2013 Good+ Heat Pump Tumble Dryer • After assembling the hook inside the hook holder, insert the hook holder assembly on the inner door. • Assemble the hook holder with the 4 blue highlighted screws. • Red highlighted gaps should be kept empty. Figure 1.24.
- Page 13 Beko2013 Good+ Heat Pump Tumble Dryer Figure 1.26. Outer Door Assembly • Assemble the outer door on the inner door assembly. • As shown in the figure above, upper boss of the outer door should correspond to the upper gap of the inner door assembly. May’14...
- Page 14 Beko2013 Good+ Heat Pump Tumble Dryer Figure 1.27. Microswitch Assembly • Assemble the microswitch as shown in the figure above. May’14...
- Page 15 Beko2013 Good+ Heat Pump Tumble Dryer 1.11. Microswitch and Pump: Figure 1.28. Disassembling the pump and the microswitch 1.12. Kickplates: Figure 1.29. Disassembling the kickplate May’14...
- Page 16 Beko2013 Good+ Heat Pump Tumble Dryer 1.13. Front Panel: Figure 1.30. Disassembling the front panel • After disassembling the kickplates, front panel can be dismounted from the dryer by removing the screws shown in the figure above. 1.14. Drum Front Bearing Unit: Figure 1.31.
- Page 17 Beko2013 Good+ Heat Pump Tumble Dryer • Disassemble the front bearing housing from the mounting points shown in the figure above. 1.15. Adjustable Feet: • 4 adjustable feet and their rubber parts are mounted underneath the plastic chassis as shown in the figure above. May’14...
- Page 18 Beko2013 Good+ Heat Pump Tumble Dryer 2. Service Details for the Components: 2.1. Service Details of the Motor Unit: • Remove the top plate. • Remove the rear plastic cover (2). • Remove the side panel on RHS (3). May’14...
- Page 19 Beko2013 Good+ Heat Pump Tumble Dryer • Force the motor assembly to turn it on clockwise direction to loose V-belt (5). • Take out the tension spring (6). • Unscrew the 4 pcs of the PT screw as shown on the picture and take out the plastic brackets (7).
- Page 20 Beko2013 Good+ Heat Pump Tumble Dryer • Take out the bracelets on the main cable harness path (6). • Remove the drum bearing prevention part (8). • Remove the circlip and nut as highlighted on picture (9). • Disassemble hoses (10). •...
- Page 21 Beko2013 Good+ Heat Pump Tumble Dryer 2.4. Base Parts Inside the Plastic Chassis: 1. Motor Assembly 2. Assembly of HP System with Plastic Chassis 1. Bottom plastic Chasis 2. Heat Exhanger-Evaparator 3. Heat Exhanger-Condenser 4. Compresor Assy. 5. Tube Assy. 6.
- Page 22 Beko2013 Good+ Heat Pump Tumble Dryer • Take out the process fan dismounting the nut and bolt (1) • Dismount both capacitors unplugging of their sockets (2) • Unscrew 4 pcs of the PT screws and dismount the plastic brackets (3) •...
- Page 23 Beko2013 Good+ Heat Pump Tumble Dryer Assemble plastic brackets (mounting direction of the bracelets is important, see pictures (9)(10)) Capacitors: • Pay attention types of the capacitors (Bigger capacitive capacitor should be at compressor side) • Harness May’14...
- Page 24 Beko2013 Good+ Heat Pump Tumble Dryer Cable connection of compressor (Grey cable is at S; red cable is at R; cable of thermic is at C) Compressor Cable Connection of HP with Energy Classes of A+/A++ (A-50%)/A+++ Compressor Cable Connection of HP with Energy Classes of A++ (A-60%) Assemble each part &...
- Page 25 Beko2013 Good+ Heat Pump Tumble Dryer 2.6. Service Details of Pump and Microswitch: Remove the highlighted screw. • • Open the cover with pushing snap-fit. • Remove the highlighted hose. It is possible to apply service on microswitch parts on this level. •...
- Page 26 Beko2013 Good+ Heat Pump Tumble Dryer 2.8. Service Details of Door Lock System: Remove the top plate. • Remove side panel on LHS. • Disassemble the plastic housing as shown on the pictures. • Take out the locking assembly working on inner side as highlighted on the picture. •...
