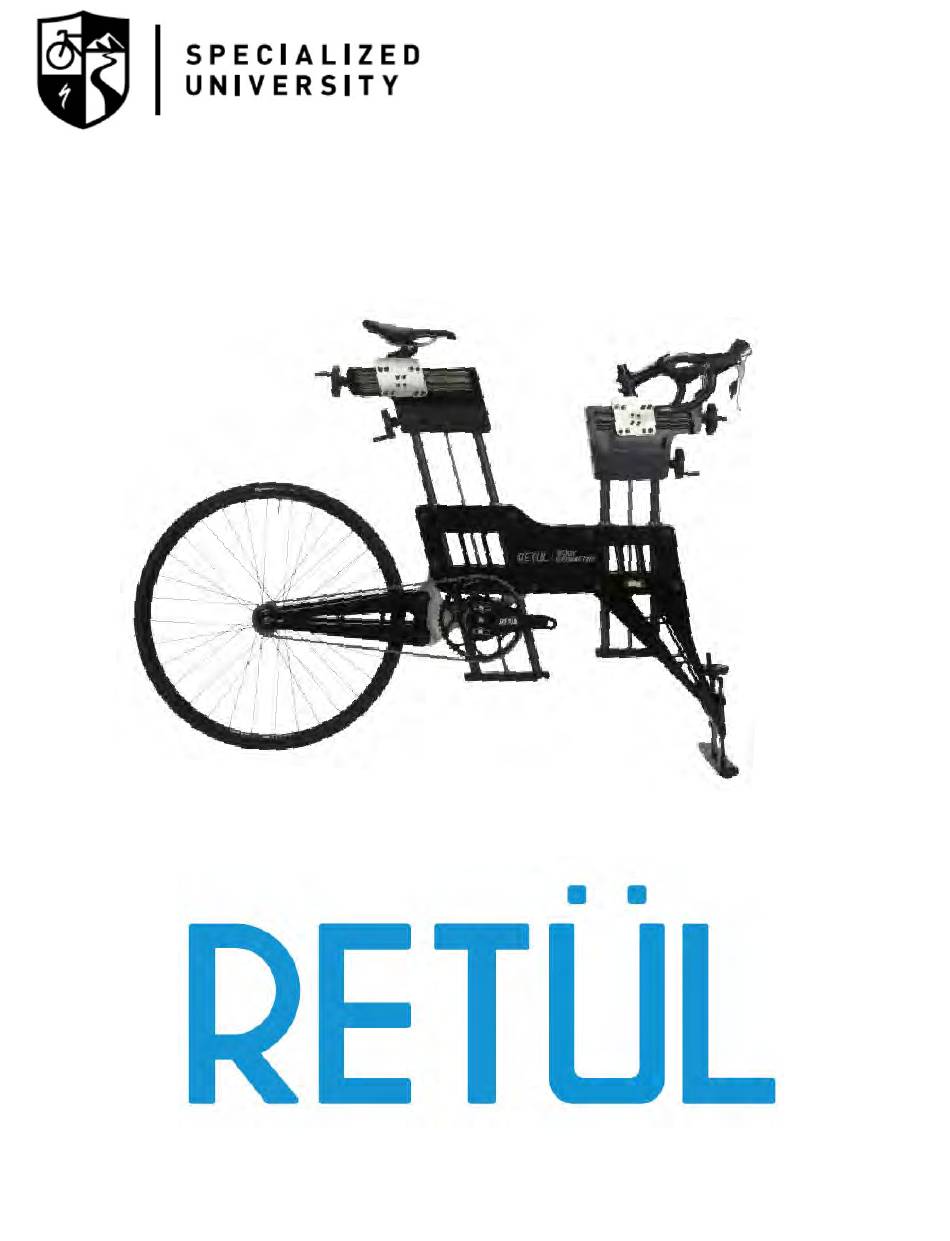

- Page 1 Retül Müve SL Guide...
- Page 2 • SPECIALIZED WEBSITE NAVIGATION INSTRUCTIONS • GEOMETRY INSTRUCTIONS • CALIBRATE YOUR SADDLE CLAMP SETBACK • GET YOUR SADDLE HEIGHT • RETUL MUVE SL SETBACK - SPECIALIZED BIKE • NON SPECIALIZED BIKE SADDLE SETBACK CALCULATOR • ADJUST THE MUVE SL o LEVEL YOUR BIKE...
- Page 3 • Navigate towards the slight top right for “TECHNICAL SPECIFICATIONS” o You can also scroll down towards the “GEOMETRY” tab yourself lower on the page • Open the “GEOMETRY” tab using the + which allows you to view your MUVE SL bike data needed to make initial adjustments...
- Page 4 The specific data you need are highlighted in GREEN on the GEOMETRY sheet below. It is best to adjust the MUVE SL in the following order 1. You can choose to change the saddle to personal or stock size. Make sure to do this before you calculate the saddle height 2.
- Page 5 Retül Müve SL Guide CALIBRATE YOUR SADDLE CLAMP SETBACK • Navigate to: sizing.Retül.com/Müve/ o Or search “Müve SL SETUP” in the google search bar and select the top choice GET YOUR SADDLE HEIGHT Before you can fill out this page, make sure that you have the correct saddle height If you do not have a saddle height, please follow the following steps: 1.
- Page 6 Retül Müve SL Guide Retül Müve SL SETBACK - SPECIALIZED BIKE If you know the bike you are mimicking on the MUVE SL is a current year Specialized bike, then go ahead and use this main page calculator Navigate through the available bike options and select the right size for your rider Once you filled out the entire page,...
- Page 7 Retül Müve SL Guide ADJUSTING THE Müve SL CONTENT ORDER • LEVEL YOUR BIKE • RULER USE • STACK • REACH • STEM LENGTH • STEM ANGLE • SADDLE CLAMP SETBACK • CRANK LENGTH • SADDLE ADJUSTMENT...
- Page 8 LEVEL YOUR BIKE Start with a great base, make sure your bike is level and straight from every angle After you place the MUVE SL in the stand, do a quick walk around the bike and scan for any wrong angles...
- Page 9 Retül Müve SL Guide RULER USE The rulers shown above are included in the MUVE SL package and the only two needed to completely setup your MUVE SL bike NOTE: Rulers assigned to specific bikes are no longer relavant and should be thrown away...
- Page 10 STACK NOTE: The MUVE SL has a grove build into the headset. To create this grove, a 5MM spacer had to be build in. To account for this 5mm space you can either count a 5mm spacer or use a headset cap if this is 5mm. If you are mimicking an aero bike and want to slam the stem to the top tube, adjust the Stack with -5mm from the recommended stack number provided.
- Page 11 Retül Müve SL Guide REACH...
- Page 12 Retül Müve SL Guide STEM LENGTH...
- Page 13 Retül Müve SL Guide STEM ANGLE Most Specialized stems have a -6 degree angle Check your store demo bike to confirm if you have any doubt - Stem angle can be found on the physical stem...
- Page 14 Retül Müve SL Guide SADDLE CLAMP SETBACK Note that the Clamp Setback Ruler has a perfect fitting cut out to place on the bottom right to match the frame...
- Page 15 Retül Müve SL Guide CRANK LENGTH NOTE: Re-alight the teeth on the crank adjustment piece before re-tightening the bolts. If not done correctly, you risk stripping the crank teeth that keep the right length in place.
- Page 16 Retül Müve SL Guide SADDLE ADJUSTMENTS Loosen the seat clamp bolt to get started with any seat adjustments The rear adjuster can be used to adjust the seat angle. Make sure to stay within the actual seat post capabilities. Aluminum Rail = The small Circumference Carbon Rail = The larger Circumference While the bolt is still loose, rotate for the appropriate saddle rail material...
