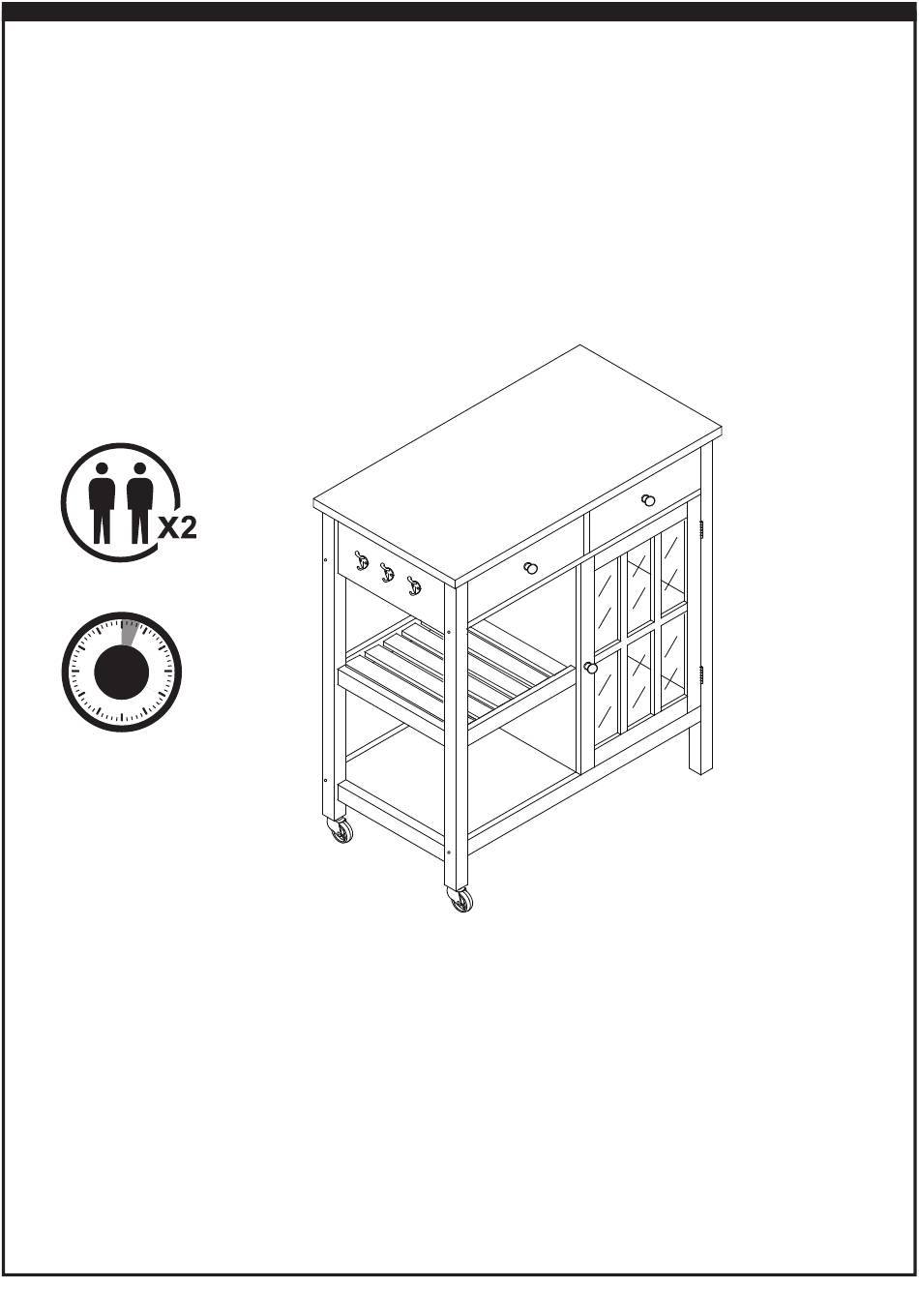

102146
90mins
Assembly Instructions
We have designed our furniture with you,the customer in mind.Our clear,easy to follow step by
step instructions will guide you through the project from start to finish. Feel confident that this
will be a fun and rewarding project. The final product will be a quality piece of furniture that will go
together smoothly and give enjoyment.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lehner Versand Ela 102146
Summary of Contents for Lehner Versand Ela 102146
- Page 1 102146 90mins Assembly Instructions We have designed our furniture with you,the customer in mind.Our clear,easy to follow step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of furniture that will go together smoothly and give enjoyment.
- Page 2 Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. Never use power tools unless instructed. before you begin. Panel Identify and lay out all of the Two people are required to assemble. components before you begin assembly. Useful Information ! Never use power tools unless specifically instructed.
- Page 3 QUICKFIT Tighten quickfit until shoulder is flush with panel. Do not overtighten or undertighten. CAM LOCK When fitting cam lock, ensure starting position is correct before you insert connecting quickfit. Quickfit head should be in the centre of the cam lock when the two panels are joined.
- Page 5 1 x1 2 x1 3 x1 4 x1 5 x1 6 x1 7 x1 8 x1 9 x1 10 x1 11 x1 12 x1 15 x2 16 x2 17 x2 13 x2 14 x1 18 x2 23 x1 19 x2 20 x1 21 x1 22 x1...
- Page 6 Step 1 Step 2...
- Page 7 Step 3 Step 4...
- Page 8 Step 5 Step 6...
- Page 9 Step 7 Step 8...
- Page 10 Step 9 Step 10 SAFETY RELEASE TAB F and G are shipped together to maintain the oil for the ball bearings. Note that you need to �p up the safety release tab to take out the G part prior to assembly. Slider Fx4 and Gx4...
- Page 11 Step 11 Back Front Front Back Step 12...
- Page 12 Step 13 Back Front Back Front Step 14...
- Page 13 Step 15 Ensure the 2nd person is holding the panel 6 to support them un�l this step is completed, this will avoid damage to your item. Step 16...
- Page 14 Step 17 This is how a cam nut works ..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt. Step 18...
- Page 15 Step 19 Step 20 This is how a cam nut works ..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 16 Step 21 Back Front Step 22...
- Page 17 Step 23 This is how a cam nut works ..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt. Ensure the 2nd person is holding the panel 3 to support them un�l this step is completed, this will avoid damage to your item.
- Page 18 Step 25 Step 26...
- Page 19 Step 27 Step 28...
- Page 20 Step 29 NOTE: When install the drawer runners please fix screws in front and back. The front screw hole on runner is an oval shape to allow for small adjustment if you find the gaps between drawers aren’t even. Fix the middle screw after adjustment. Back Front 12xE...
- Page 21 Step 31 Attention: If the doors may shift or sag after assembly, please adjust the hinges according to below instruction. Vertically adjustment Slightly adjust the screws position on side panels. When the doors are flush, lock the middle screws on hinges. Horizontally adjustment Slightly adjust the screws position on doors.
- Page 22 Step 32...
- Page 23 Before you insert the drawers into the frame, please ensure that the ball bearing sliders (on the assembled unit) have been placed to the front of the main unit. If the bearings are in the middle of the slider it will be difficult to install the drawers correctly. Insert the drawer into the assembled frame as show below.
- Page 24 NOTE: CAUTION When removing the drawer,be careful to tip up the safety release tab on the left side,and tip it down on the right side to remove the drawer from the body as shown.
