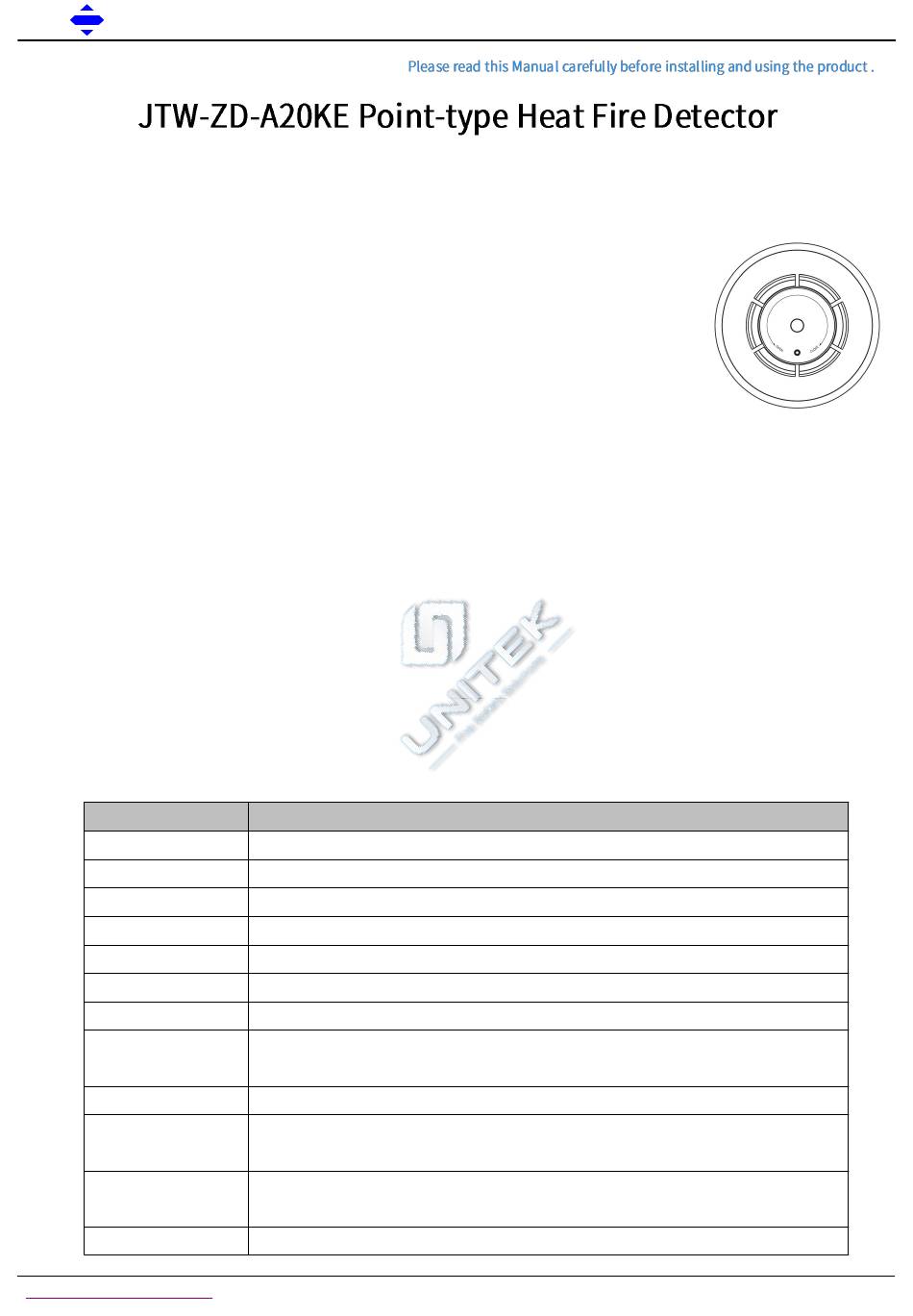

SANJIANG JTW-ZD-A20KE Product Manual

1
Product overview
1.1
JTW-ZD-A20KE point-type heat fire detector (detector hereunder) is a two-wire switch-type
temperature detector. The detector adopts a non-polarity two-wire connection, which can
be applied in the compatible conventional switch quantity alarm control system and
monitoring alarm system, and it can also be connected to the intelligent fire alarm control
system through the input module. The detector monitors the temperature of the working
site in real-time. When the detector is in the monitoring status, the red indicator light
flashes and the working current is small. When the field temperature exceeds the set alarm
threshold, the detector enters the alarm status, the red light is steady, and the loop current
increases rapidly. The alarm signal of the detector is transmitted in the form of a loop
current change and has the alarm locking function, and the reset of the alarm can only be
realized by a short power failure.
1.2
The detector is suitable for places where a lot of heat is generated when a fire occurs, such as kitchens, boiler rooms,
generator rooms, drying workshops, smoking rooms and other industrial and civil buildings. It is not suitable for places
where a large amount of smoke and a small amount of heat are generated when a fire occurs.
2
Product features
2.1
Using the upper and lower cover structure design, independent base installation. Installation, debugging, and
maintenance are simple and convenient.
2.2
Real-time monitoring, and accurate judgment of the environmental temperature in the protected area.
2.3
Non-polarity two-bus connection, easy installation and maintenance.
3
Technical parameters
3.1
Items
Executive standard
Product type
Weight
Product dimension
Installation Height
Wiring mode
Operating voltage
Operating current
Temperature
Operating instruction
Protection area
Connecting host
www.sanjiang-security.com
Product Manual
GB 4716-2005
A2 (operating temperature:54℃～70℃)
about 60g (with base)
diameter: 105mm, height:43mm (With base)
≤8m
non-polarity two-bus system
Loop 24V
inspection status:＜50uA alarm status:1mA～15mA(It is related to the current limiting
resistance of the loop)
-10℃～+50℃ RH≤95%(40 ℃±2℃, without condensation)
monitoring status: red indicator shining;
alarm status: red indicator steady on
specific reference to the national standard GB 50116-2013 "Code for
automatic fire alarm system" relevant provisions
used with the input module and the fire alarm control panel/fire linkage control panel
