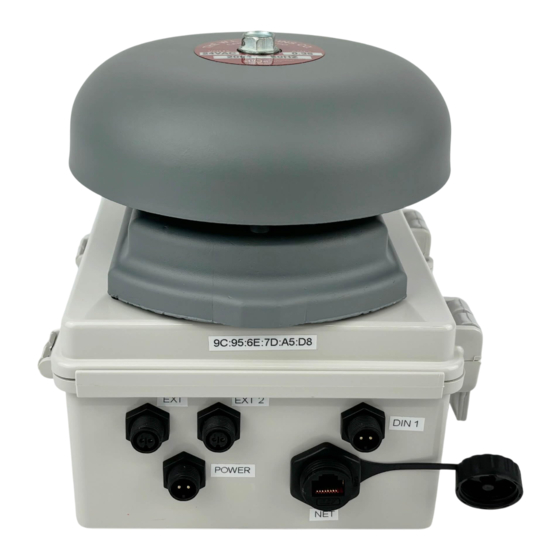

Linortek Netbell-KL-E2M Wiring Instructions

1. Netbell-KL-E2M Packing Lists
Netbell-KL-M2 Server (01-910-00043) (1)
____ Extra Loud Bell Kit (01-910-00041)(2)
____ Bell Cable (01-850-00046)(2)
20FT RJ45 Cable (01-390-00028) (1)
3M Power Cable (01-850-00029) (1)
24VAC Power Supply (01-850-00024) (1)
Set of Mounting Brackets (1)
Netbell Setting Instructions
Packing List and Wiring Instructions
Safety Instructions
•
If the device is not powered via an Ethernet cable, use only the power adapter provided by Linortek that comes
with your order. Other power supplies may damage or destroy the device, affect its behavior, or induce noise.
•
Avoid placing the cables where people may trip over them or where they may be exposed to mechanical
pressure as this may damage them.
•
Do NOT install the device in rooms with high humidity. Do NOT immerse the device in water and do NOT spill or
pour liquids of any kind onto or into the device.
•
Do NOT install the device in surroundings at risk for explosions. Do NOT use the device if you smell gas or other
potentially explosive fumes.
•
Do NOT use the device during thunderstorms. Lightning striking the power grid may cause electric shocks.
•
Do NOT remove the device's power supply (Ethernet cable when using PoE, power adapter when not using PoE)
when the RED LED is blinking and the GREEN LED is on (called Bootload state); a firmware update is ongoing.
Cutting off the device's power during a firmware update (red LED blinking, green LED on) will damage the
firmware and render the SERVER inoperative. In such cases, it will need to be returned to factory for resetting.
Product Manuals & Resources
To access the complete product manual, wiring instructions, and tutorial videos regarding the product setup and
configuration, please visit
the QR code with your smartphone to access the documentation.
2. Wiring Instructions
1) Attach the mounting brackets to the SERVER using the provided self-tapping screws (4 places). Install the
SERVER at the desired location with the appropriate screws, depending on your wall type.
2) Power supply wiring: Wire one side the power cable to the 24VAC power supply AC terminals (use both
terminals). Plug the power supply to a suitable AC outlet, plug the CP connector into Server at the location
labelled POWER.
Packing Lists and Wiring Instructions
https://bit.ly/01-910-00051 and click the Manuals & Resources tab. Alternatively, scan
