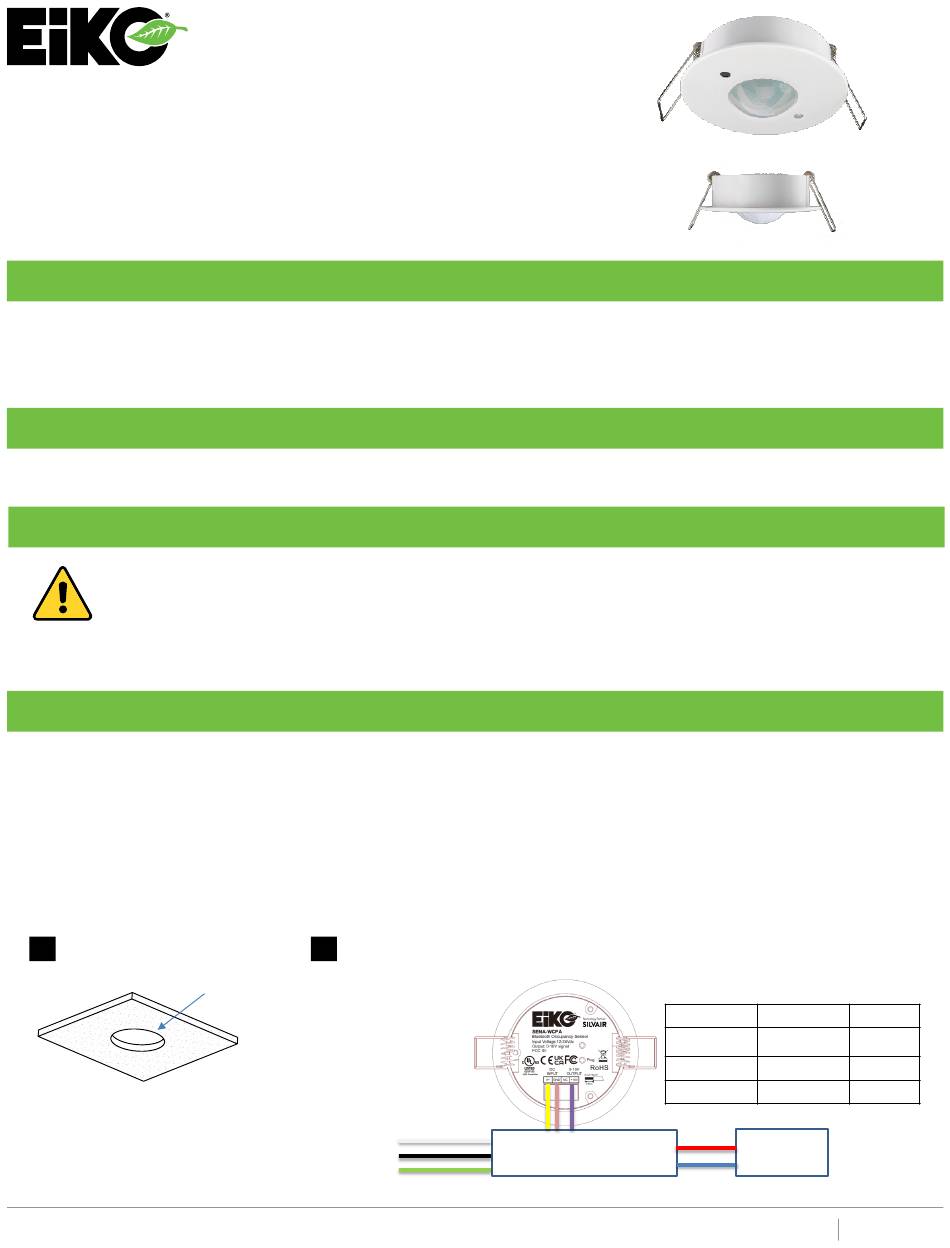

Eiko SENA-WCPA Installation Instructions

INSTALLATION INSTRUCTIONS
SENA - WCPA
SPECIFICATIONS
• Power Supply 12-24VDC MAX. 50mA
• Dimming Protocol 0-10VDC MAX. 20mA Sinking Current
• Sensor Technology Passive Infrared Sensor (PIR)
• Communication Frequency 2.4 GHz to 2.483 GHz
• Sensor Mounting Height 8-12ft
COMPATIBLE WITH
• Easily incorporate additional EiKO's BLE devices like wall/wireless controllers,
sensors, fixture controllers, range extenders, and timekeepers
IMPORTANT
WARNING AND SAFETY
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
INSTALLATION
1. Determine Coverage Area: Determine the area you want the sensor to cover and mark it accordingly.
2. Cut Hole in Ceiling: Use a drywall circular saw to cut a 3-inch hole in the ceiling tile for each sensor you plan to install. As shown in Figure 2.
3. Connect to Power: Attach a 22 or 24 AWG 3-conductor plenum-rated cable to either the AC to DC converter or a nearby fixture with 12 or 24V auxiliary
power. As Shown in Figure 3.
4. Wire the Sensor: Connect the 3-conductor plenum-rated cable to the sensor's push-in wire terminals by following the manufacturer's instructions As
Shown in Figure 4.
5. Test the Sensor: Turn on the power pair and configure the sensor using your iOS device, then perform a test to verify that the sensor is functioning
correctly. As Shown in Figure 5.
6. Secure the Sensor: After verifying that the sensor is functioning correctly, insert the device into the ceiling tile and release the clips. The wing clips will
return to their down position, securing the sensor in place. As Shown in Figures 6.1 - 6.4.
Mark and cut a 3-inch hole
2
in the ceiling tile.
3'' diameter hole
1
©2023 EiKO Global, LLC. World Headquarters: 18000 W. 105
Sensor Wiring Diagram
3
with 12VDC Aux Power
0-10V Dim-to-off LED
Driver.
120-277VAC Input
Line: Black
Neutral: White
Ground: Green
Head Office, Canada: 80-86 Carrier Drive Toronto, ON Canada M9W 5R1 (P) 1.888.741.2673 (F) 1.888.705.1335
• Communication range Max. 82ft
• Operating Temperature -4 °F to 122 °F (-20 °C to 50 °C)
• IP Rating IP20
• Warranty 5-Years
LED Driver with 12 or
24V auxiliary power
Street, 3 Floor, Olathe, KS 66061 (P) 1.800.852.2217 (F) 1.800.492.8975
th rd
LED Driver Wire color
12-24V Aux Yellow
Dim-/GND Pink/Gray
Dim+ Purple
LED PCB
Sensor
V+
GND
+10V
eiko.com
Rev. 07/21/23
