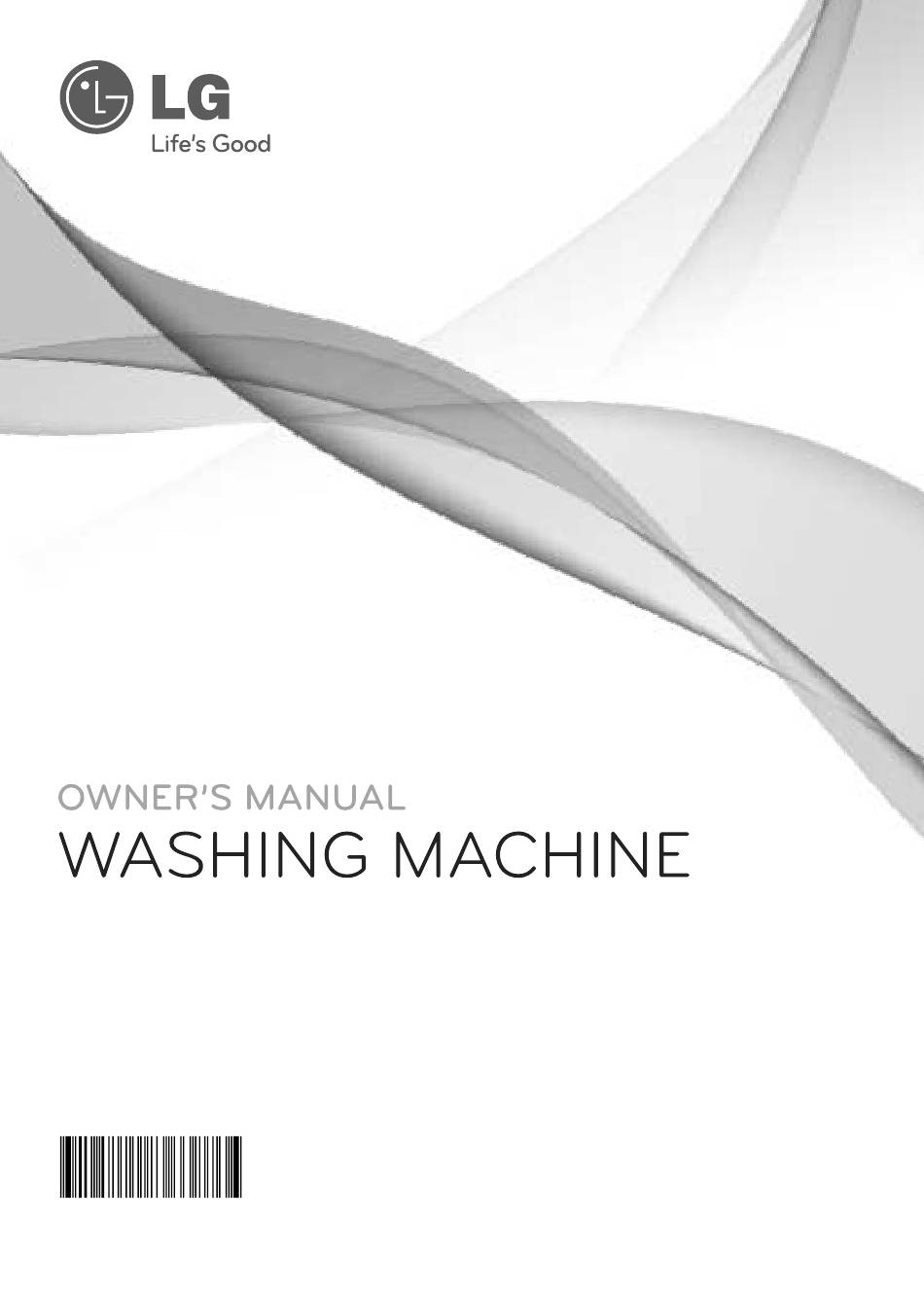

LG T 1 932AFPS5 Owner's Manual

Hide thumbs

page of 82

/ 82
Bookmarks

Quick Links

Download this manual

Please read this manual carefully before operating

your washing machine and retain it for future reference.

T 1 932AFPS5

T2032AFPS5

P/No. : MFL68019731

www.lg.com

Need help?

Do you have a question about the T 1 932AFPS5 and is the answer not in the manual?

Questions and answers

Summary of Contents for LG T 1 932AFPS5

Page 1 Please read this manual carefully before operating your washing machine and retain it for future reference. T 1 932AFPS5 T2032AFPS5 www.lg.com P/No. : MFL68019731...
Page 2 Product Features The Turbo Drum DD washing machine does not operate with the lid open. If the lid is opened during wash, rinse and spin cycles, the machine will stop automatically. Please close the door gently. Closing the door in an agressive manner can cause damage and or injury.
Page 3 Contents READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer.
Page 4 Safety Information Read carefully and thoroughly through this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product. This booklet is divided into 2 parts : Warning and Caution. : This is a warning sign specifying user’s applications which might be dangerous.
Page 5 Safety Information YOUR Warning LAUNDRY AREA • Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemical, etc. Operating with such materials around the machine may trigger explosion or fire. • Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with, or inside this or any other appliance.
Page 6 Safety Information WHEN USING WARNING THE WASHER Do not use a plug socket and wiring equipment for more than their rated capacity. Exceeding the limit may lead to electric shock, fire , break down, and/or deformation of parts. Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce toxic gases which may cause death.
Page 7 Identification of Parts Body * Picture might be different by model. WATER SUPPLY HOSE Make sure the ater does not leak. SOFT SAFETY DOOR TEMPERED GLASS POWER PLUG If the supply cord is POWDER AND LIQUID damaged, it must be DETERGENT BOX replaced by the manufacturer or its...
Page 8 Function Information Our machine provides various washing methods which suits various conditions and types of laundry. Different types of laundry washing Normal Wash Use this Program for everyday washing e.g. sheets, towels, T-shirts. (refer to page 16) Stain Care Wash Washing is the best temperature (40 degrees) by heating the clean clothes when you want to use.
Page 9 Use nylon nets for long, DELICATE items. For laundry with long strings or long length, a net will prevent tangling during washing. Fasten zippers, hook, and strings to make sure that these items don't snag on other clothes. Nylon net is not supplied by LG.
Page 10 Use of Water, Dispenser Drawer, Detergent, Bleach and Softener Using Water Amount of WATER LEVEL • This machine detects the quantity of laundry automatically, then sets the Water Level and proper amount of Detergent. • When you select a wash program, the Water Level will be shown on the control panel. •...
Page 11 Using Detergent Detergent Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems. Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature. Choosing the right Detergent We recommend the use of domestic Detergent, (powder, liquid or concentrated).
Page 12 Use of Water, Dispenser Drawer, Detergent, Bleach and Softener Using Liquid Bleach • Check clothing care label for special instructions and separate the Bleach dispenser laundry to be bleached • Dilute liquid chlorine bleach. • Measure the recommended amount of liquid bleach carefully following instructions on the bottle.
Page 13 Special Guide for Stain Removal WARNING Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death. To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below: •...
Page 14 Function of each Button Display laundry Display remaining time, reservation time, Time Delay progress and alarm for trouble (Reservation) button • Use for laundry • Laundry progress is • During operation this indicates time to finish of reservation. indicated here. laundry.
Page 15 SmartDiagnosis Air dry START/PAUSE button Power button Function Display • To shorten dry time. • Use to start or pause • Use to turn the power • It marks the place on or off. • Air dry is a stand the washing process.
Page 16 Washing Programs Washing Add the Programs laundry the Detergent Used for normal loads, this mode • Water will be supplied. automatically selects the most After supplying, laundering appropriate conditions and completes will be started. the sequence in one operation. The built-in sensor detects the size of the load and the ideal wash power and wash, rinse and spin times are set...
Page 17 Close the lid Finish Caution & Note • If water is already in the tub, or putting wet laundry into the tub before starting will increase the Water Level. • With lightweight bulky loads, Water Level can be set low. •...
Page 18 Washing Programs Washing Add the Programs laundry the Detergent • Add the appropriate quantity Select the • Use this mode when washing of Detergent as indicated by Quick Wash lightly soiled clothes for a short the Water Level. program on time.
Page 19 Close the lid Finish Caution & Note • Lay out in cool floor or on a hanger covered by a towel to dry these type of clothes. • It might have damped clothes because spin dry intensity and time are set to short to prevent damage of clothes.
Page 20 Favorite Wash Press the POWER button to turn power on. Put laundry in and Press the Program button to Select Favorite Program. Press Water Wave button and select Water Wave. ("Medium Wave" if nothing is selected) Press Hot Wash, Cold Wash laundry to select water temperature. Select Water Level by pressing Water Level button.
Page 21 Soak Wash Press the POWER button to turn power on. Put laundry in and Press the Program button to Select Washing Program. Stain Care, Allergy Care, Delicates, Quick Wash, Tub Clean Program do not suppose soak laundry. Press soak laundry button. “Soak laundry”...
Page 22 Intensive Rinse Press the POWER button to turn power on. Put laundry in and Press the Program button to Select Washing Program. Intensive Rinse can only be selected only under Normal, Smart Rinse, and Favorite. Press Rinse button to start Intensive Rinse( times times times...
Page 23 Tub Clean If scrud is allowed to build-up in the machine it can result in stains on your clothes or unpleasant smell in your washer. Scrud is the way build-up that can occur within any washer when the fabric softener comes into contact with Detergent, and according to particular degree of dirtiness or quality of water to be use, in these case, use this program to clean inner tub and outer tub.
Page 24 Air Dry Press the POWER button to turn power on. Press Spin for 3 seconds to select Air Dry. Other function cannot be selected during Air Dry. Automatically set to 60 minutes upon selection. Press Spin button again to select duration (90min 120 min 60 min.) To deselect Air Dry press power button.
Page 25 Option Washing When you only need the Wash, Wash/Rinse or Rinse cycles, these can be set manually. Press the POWER button to turn power on. Only Wash Only Spin Only Rinse Press the Wash button to Press the Rinse button to Press the Spin button to select the desired timing.
Page 26 Time Delay (RESERVATION) Wash Press the POWER button to turn power on. Put laundry in and detergent and Press the Program button to Select Washing Program. Put detergent in a slot for reserved synthetic powder detergent. This program will not work in Delicates and Tub Clean Program. Press Time Delay (Reservation) button to set reservation time.
Page 27 Other Useful Functions Child Lock Function If you want to lock all the keys to prevent settings from being changed by a child, you can use the child lock option. How to Lock Press the POWER button. • Turn Power on. Press the START/PAUSE button to start washing.
Page 28 Placing and Leveling Please ensure that transit restraint has been removed before operating your machine. Place the machine on a flat and firm surface which allows proper clearance. We suggest a minimum clearance of 2 cm to the right side and left sides of the machine for ease of more than 10 cm installation.
Page 29 Connecting Water Supply Hose Before connecting the Water Supply Hose to the water tap, check the hose type and then choose the correct instruction here under. Note that the Water Supply Hose supplied may vary from country to country, Make sure to connect the blue inlet hose to the COLD water tap, and the orange inlet hose to the HOT water tap.
Page 30 Connecting Water Supply Hose Normal Type (Normal tap without thread & one touch type inlet hose.) Separate Middle connector from Water Supply Hose Separate Middle connector from the Water Middle Fixed Sticker Connector Supply Hose by pulling the Pressing Rod and the Pressing Handle Pressing Handle that is attached to the Water Pressing Rod...
Page 31 Screw Type Attach the water supply hose to the tap. Push the water supply hose up so that the rubber packing within the hose can adhere completely to Water tap the tap. Rubber Packing Water Supply Hose Connect the water supply hose to the tap. Connect the water supply hose to the tap and then tighten it by screwing it to the right.
Page 32 Connecting Drain Hose Before connecting Drain Hose, check your Drain Hose model and choose the correct instructions. Pump Model Firmly insert the free end of the drain hose into the drain opening of your home. Make sure the soft rubber end is completely inside the drain opening. •...
Page 33 Grounding Method Earth wire should be connected. If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage . Grounding Method with Ground insert space Terminal Ground If the AC current outlet has a ground terminal, then Terminal separate grounding is not required.
Page 34 Cleaning and Maintenance Cold water washing • If you always use COLD water, we recommend that a WARM or HOT wash be used at a regular intervals e.g. every 5th wash should be at least a WARM one. When you have finished •...
Page 35 Cleaning and Maintenance When there is a fear of freezing • Close the water taps and remove the Water Supply Hose. • Remove the water which remains in the water supply. • Lower the drain hose and drain the water in the bowl and the drain hose by spinning. If frozen •...
Page 36 Soft Safety Door Using tempered glass, inside can be seen while washing and safety is guaranteed. To prevent sudden close of door, it uses smart hinge so the door closes softly. Door is heavy. Be careful not to be caught in hand or other material. It might cause injury or damage on product.
Page 37 Common washing problems Many washing problems involve poor soil & stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these instructions. WASH PROBLEM Problems Solutions & Preventive Measures Possible Causes • Use correct amount of Detergent for load size, amount of soil and Poor soil •...
Page 38 When the spin is complete, remove the clothes and then find and remove any objects caught in the wash plate. The washer experienced • Restart the cycle. a power failure. • Please call your nearest LG Electronics service center for help.
Page 39 Accordingly, LG does not guarantee that Smart Diagnosis would accurately troubleshoot any given issue.
Page 40 Terms of Warranty What Is Not Covered: • Service trips to your home to teach you how to use the product. • If the product is connected to any voltage other than that shown on the rating plate. • If the fault is caused by accident, neglect, misuse or Act of God. •...
Page 41 Specification Model T1932AFPS5 T2032AFPS5 Power supply 220 V~, 50 Hz Rated input 1650 W Weight 62 kg Size 686(W) 721(D) 1020(H) mm Water tab pressure 30 - 800 kPa (0.3 - 8.0 kgf/cm In our continuing effort to improve the quality of our appliances, it may be necessary to make changes to the appliance without revising this manual.
Page 42 T 1 932AFPS5 T2032AFPS5 www.lg.com P/No. : MFL68019731...
Page 53 23,34...
Page 56 (ex)
Page 61 "...
Page 62 "...
Page 63 "...
Page 64 "...
Page 66 "...
Page 67 3:00 7:00 1:00 18 12 "...
Page 70 "...
Page 71 "...
Page 75 " "...
Page 80 "...
Page 82 T2032AFPS5 T1932AFPS5 220 V~, 50 Hz 1650 W 62 kg 686(W) X 721(D) X 1020(H) mm 30 - 800 kPa (0.3 - 8.0 kgf/cm...
