D+H Bluekit BK AIO-TS Original Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Bluekit Downloads

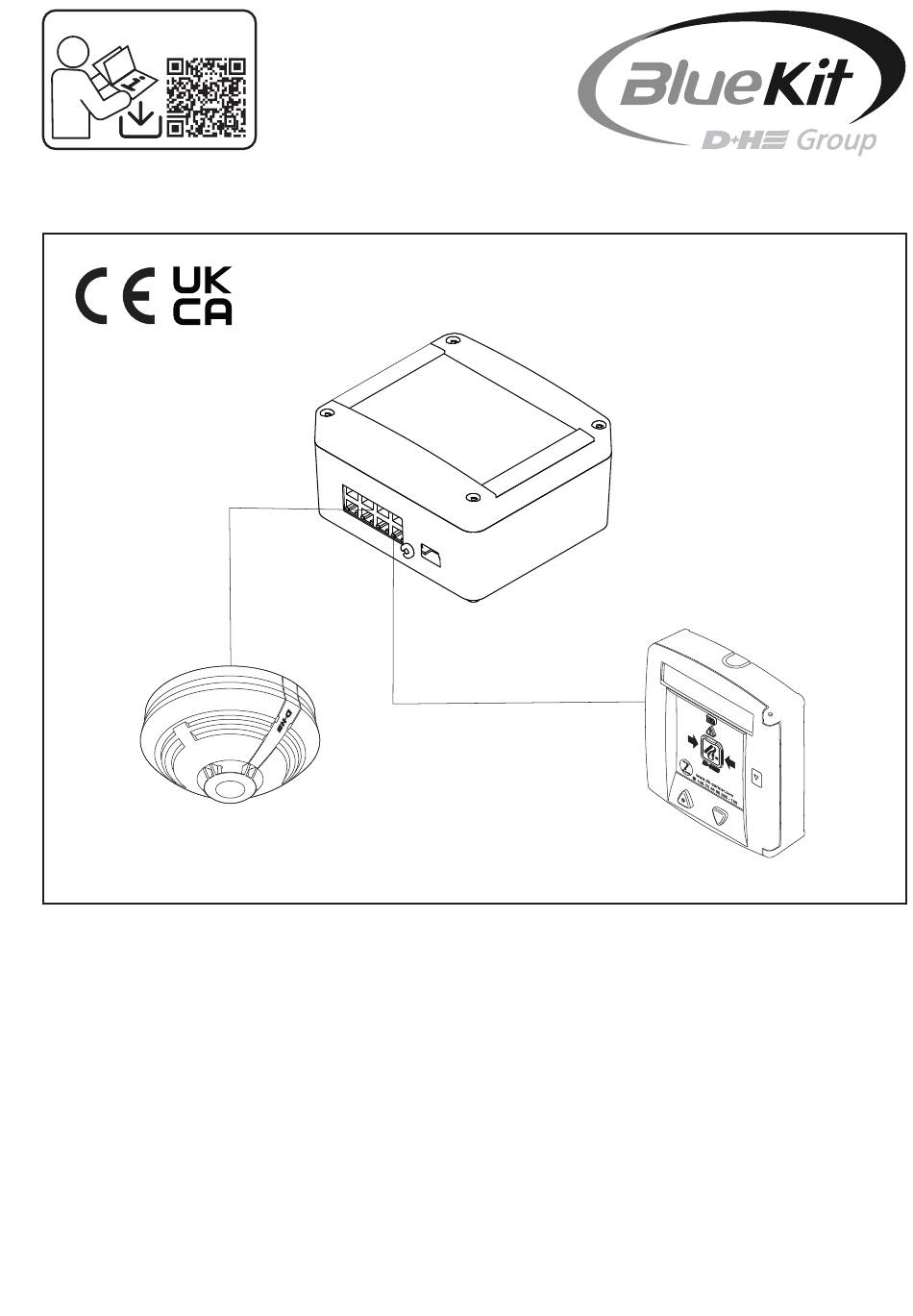

BK AIO-TS
Original instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . Page . . . . . . . 2
Product overview and mounting . . . . . . . . . . . . . . . . . Page . . . . 3–13
Connection and commissioning . . . . . . . . . . . . . . . . . . Page . . . 14–21
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page . . . 21–25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page . . . 25–31
99.829.31 1.0/09/24

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bluekit BK AIO-TS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for D+H Bluekit BK AIO-TS

Summary of Contents for D+H Bluekit BK AIO-TS

  • Page 1 Bluekit Downloads BK AIO-TS Original instructions ......Page ..2 Product overview and mounting .
  • Page 2 Commissioning central unit ........................21 Maintenance and cleaning ........................21 Set maintenance mode, ventilation elements function test ..............22 Maintenance of drives for D+H ventilation elements................22 Status displays (normal operation)......................23 Maintenance drives external ventilation elements ...................23 Cycle counting of the motor strokes on the central processing unit (BK AIO-TS)........23 Function test –...
  • Page 3 - Connection may only be carried out by an authorised electrically skilled person WARNING - Only suitable for installation indoors - Only use unmodified D+H original parts Read all safety warnings, instructions, illustrations and specifications provided with this product. Intended use Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
  • Page 4 Example of application Notice/information: 1 Central unit (BK AIO-TS) The system is not shown here with all available Horizontal ventilation element / components. Vertical ventilation element If available, the timer and thermostat must be installed near the central unit. The key switch must 3 Smoke detector be installed in consultation with the operator.
  • Page 5 Overview – Central unit Connections (RJ45 plug) All connections in the compact housing are realised via RJ45 plugs (with the exception of the mains plug, which is designed as 230 V AC). COM 1 COM 2 Emergency power batteries are required in the following cases: DC drives 24 V DC and systems with skylights.
  • Page 6 System components – Overview 1, 2 1, 2 JK-180 JK-190 NK-SL Louvre window Slideflap Thermoflap Spring return motor 24 V DC drive ALAS 24 V DC drive PD-RJ-AIO-P&G BK AIO-TS RT 45/-RJ-LT RT 45/-RJ PD-RJ-AIO-End 6/32 BK AIO-TS English 99.829.31 1.0/09/24...
  • Page 7 System components – Description 1. Ventilation element (NSHEV) • Containment of power losses by closing the opening in service shafts • Fans and dissipates smoke if necessary • For vertical or horizontal installation • With or without weather protection, depending on the building type Spring return motor or 24 V DC drive: JK-180 –...
  • Page 8 Installation – Weather protection HVC, HVL, ALAS If there is no weather protection in front of the ventilation opening on site, appropriate weather protection must be professionally fitted to the outer shell of the building. The ALAS grille can be guided through the wall opening from the inside and inserted into the opening.
  • Page 9 Installation – Blind JK 180, JK 190, NK-SL (continued) HVC / HVL HVC / HVL min. 20 cm JK 180 JK 180 Standard installation JK-180: flap is inserted into the ceiling or wall from the inside.If the existing opening is too small, the blind with motor can also be installed in the shaft.
  • Page 10 Overview and installation – Point smoke detectors Point smoke detectors are installed at regular intervals in the shaft and report detected smoke to the central unit (BK AIO-TS). MInstallation in the service shaft max. 45 cm If possible, arrange the point smoke detectors vertically in a line under the (the maximum distance between 2 point smoke detectors is 12 m).
  • Page 11 Overview and installation – Smoke vent button - The smoke vent button (RT45/-RJ-LT / RT 45/-RJ) can be used to initiate manual ventilation and reset an alarm. - Up to 8 smoke vent buttons can be connected in series. - A monitoring resistor is used to monitor the line. - Only if another smoke vent button or a smoke detector is connected to the smoke vent button, the circuit board jumper J1 must be removed!
  • Page 12 Central unit – Technical data BK AIO-TS Supply 230 V AC, 50 Hz, +10 %, -15 % Performance 75 W, 127 VA 6.5 W, 12.0 VA Power in standby Output voltage Depending on temperature, max. 27.0 V Ripple 0.4 V at 2.0 A load Nominal output current 2,3 A Number of lines / groups...
  • Page 13 Central unit – Technical data (continued) Positioning requirements for the groups depending on faults Fault 1st group shaft M1 Earth fault Normally closed contact Battery Normally closed contact Shaft group Normally closed contact Shaft line Normally closed contact Control sequence in the event of mains outage Start: Mains outage is detected.
  • Page 14 Central unit assignment RJ45 connections Notice/information: One spring return motor or one DC motor can be connected to each of the M1 and M2 sockets. COM 1 COM 2 Each M socket can control 2 motors via the function module 2M (max. 2 DC motors or 6 spring return Switch motors with max.
  • Page 15 Connection – FAS and BMS input Connection of fire alarm system The central unit can be controlled by an on-site FAS. COM 1 COM 2 If the service shaft is only monitored by fire detectors of the FAS, e.g. installation condition in Austria, the shaft line, connection ‘SD’ Switch must be deactivated (DIP switch S1.7 = ‘OFF’).
  • Page 16 Connection – General status messages COM 1 Edition of various status messages via isolated contacts in the BK AIO-TS. COM 1 COM 2 Output - fault message: Switch Can be set via DIP switches S3.1 and S3.2. Isolated contact in the central unit closes in the event of a fault. The contact is normally closed in the event of mains outage.
  • Page 17 Connection – Lift shaft control COM 2 Connection for incoming and outgoing signals. Output – 24 V DC alarm: COM 1 COM 2 For connection of audible alarms. Switch Output – fault / alarm: Edition of a fault or an alarm via an isolated changeover contact. The function can be set via DIP switch S3.
  • Page 18 Output: M1 & M2 For the forwarding of: - existing NSHEVs on site COM 1 COM 2 - an external fire alarm system - a building control centre Switch - of RT45/-RJ-LT / RT 45/-RJ, siren, ventilation switch etc. not directly on the shaft - Components with cable guidance through empty conduits Connection of 24 V spring return drives and 24 V DC drives...
  • Page 19 Setting the coding switch on the central unit All systems are supplied with the following DIP configuration: - one ventilation element connected to the RJ45 socket M1 - one connected operation panel RT45/-RJ-LT / RT 45/-RJ ON corresponds to switch position 1. Coding switch S1 (1st from left, acts on M1) Status 1st group shaft...
  • Page 20 Setting the coding switch on the central unit (continued) Coding switch S3 (3rd from left) DIP 3 DIP 4 Signalling relay 2: COM 1 – General status reports Free / OFF Fault shaft detector or fault group 1 (shaft group) General malfunction Coding switch S3 (3rd from left) DIP 5...
  • Page 21 Only original D+H spare parts may be used. ON repairs are carried out exclusively by D+H. Only carry out cleaning work in a de-energised state. Wipe off dirt with a dry, soft cloth. Do not use cleaning agents or solvents.
  • Page 22 7. Carry out further testing: Additional components, emergency power supply (option) Maintenance of drives for D+H JK-180 / JK-190 / NK-SL ventilation elements 1. The drives of the JK-180 / JK-190 / NK-SL ventilation elements are designed for at least 60,000 ‘OPEN/CLOSED’ cycles.
  • Page 23 Status displays (normal operation) COM 1 COM 2 Switch Maintenance drives external ventilation elements 1. External, electrically driven ventilation elements such as louvre windows and skylight domes have only been tested up to 11,000 cycles each (CE certificate in accordance with EN 12101-2). 2.
  • Page 24 Function test – Additional components RT 45/-RJ-LT / RT 45/-RJ signalling button 1. Operate the push-button alarm. Red ‘Fire alarm’ LED lights up. If the red LED is not lit: Replace the push-button detector, carry out a function check of the central unit if necessary. 2.
  • Page 25 Completion of maintenance 1. If not already done, reset the system to normal operating mode (press the ‘Reset’ button on the central unit for 1 second). 2. Inform the person responsible for the building that the maintenance work has been completed. Troubleshooting –...
  • Page 26 Troubleshooting – External fault indications COM 1 COM 2 COM 1 COM 2 Switch Switch Fault (lines) Fault (RT) LED (yellow) when LED (yellow) when - RJ45 plug connection recessed - RJ45 plug connection recessed - RT operating button removed - Point smoke detector removed - Mini switch on RT circuit board is in the wrong - Connector to FAS interrupted...
  • Page 27 Troubleshooting – External fault indications (continued) COM 1 COM 2 COM 1 COM 2 Switch Switch Status (ambient temperature) Fault / status (motor group) LED (yellow = signal) for - general malfunction LED (yellow) when LED (red) for - RJ45 plug connection to motor recessed - Ambient temperature in the shaft or machine - Central unit fuse motor defective room >...
  • Page 28 Troubleshooting – Ventilation element does not open (spring return motor) Initial situation: Flap does not open in the event of an alarm or fault, at least 1 LED on the central unit lights yellow or red. CPU = Central Processing Unit, Y = Yes, N = No Pull out the motor VE = Ventilation Element connector plug.
  • Page 29 Troubleshooting – Ventilation element does not open (DC motor) 29/32 English 99.829.31 1.0/09/24 BK AIO-TS...
  • Page 30 Troubleshooting – Ventilation element does not close CPU = Central Processing Unit, Y = Yes, N = No Ventilation element is OPEN Open Close housing housing CPU: CPU: CPU: LED Smoke vent button Yellow LED lights up? Red LED lights up? "Power"...
  • Page 31 Troubleshooting – Ventilation element does not close (continued) CPU = Central Processing Unit, Y = Yes, N = No System is working. Service button on CPU Ventilation element Exit service level 1 Operate twice for 3 seconds closes in service >...
  • Page 32 170 mm D+H Mechatronic AG Georg-Sasse-Str. 28-32 22949 Ammersbek , Germany Tel. : +49 40-605 65 : +49 40-605 65 254 E-Mail: info@dh-partner.com www.dh-partner.com © 2024 D+H Mechatronic AG, Ammersbek Rights to technical modifications reserved 99.829.31 1.0/09/24 100 % recycled paper...
