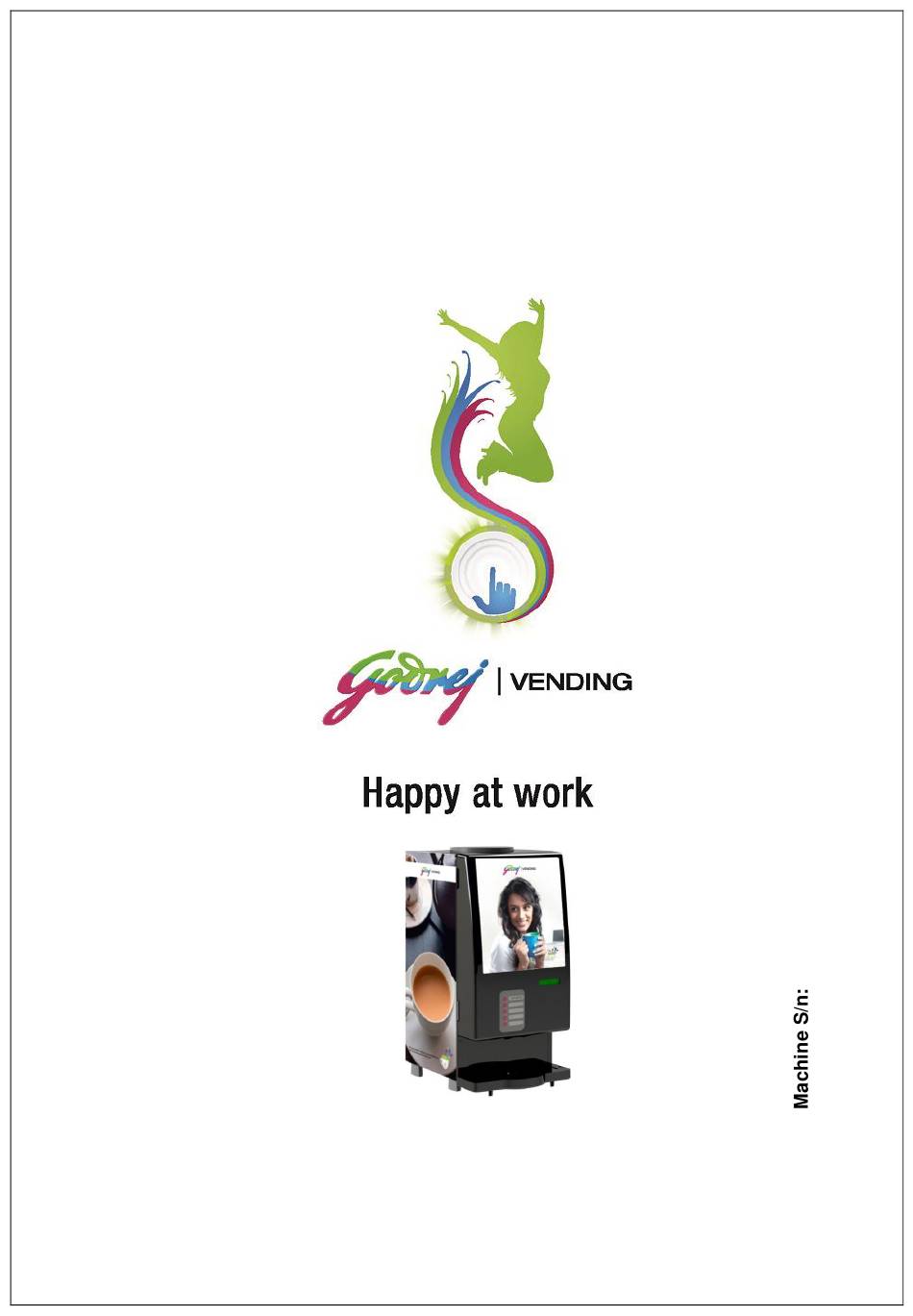

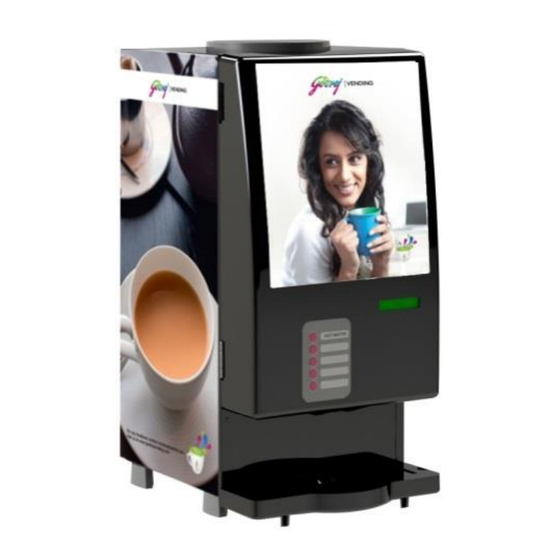

- Page 1 User Manual EcoStar 06 268247 Rev-3...
- Page 2 & Boyce Mfg Co Ltd retains the right to change the product specifications without prior notification. Godrej & Boyce Mfg. Co. Ltd. is not liable for any damage that could affect, directly or indirectly, any person or property as a consequence of …...
- Page 3 ……………………………………………………….8 3.1.1 Electrical connection ……….. ……………………………………………………….8 ……………………………………………………….8 3.1.2 Water connection (if available) 3.1.3 Placing ………………………… ……………………………………………………….8 3.2 Connecting………………………….. ……………………………………………………….9 3.2.1 EcoStar Vending Machine … ……………………………………………………….9 3.3 Commissioning …………………….. ……………………………………….…………….10 Operation………………………………. ………………………………..……………………11 4.1 Introduction ………………………… ……………………………..………………………11 4.2 Taking products ……………………. ………………………………..……………………11 4.3 Special Function Keys…………….
- Page 4 The hot water key can be used to prepare other hot drinks, such as tea with tea bag etc. It can also be used to prepare recipe. It is not permitted to use the EcoStar for any other purposes than those described above. Neither is it permitted to place EcoStar in areas that are cleaned using high pressure or steam.
- Page 5 Vending machine. 1.3.4 Water temperature There is a water boiler inside EcoStar with a water temperature of 80-97°C. The water also remains hot for a long time after EcoStar has been switched off. 1.3.5 Dispensing time The drink is dispensed almost immediately after selection.
- Page 6 Mixing System Boiler The drinks in the EcoStar are prepared in accordance with the instant principle: a specific amount of hot water and soluble product(s) (premix) are dosed in a whipper assembly. There, they are mixed with a rapidly rotating blender. This mixture flows, along with any other soluble products, out of the outlet into your cup.
- Page 7 2 Transport and unpacking 2.1 Transport EcoStar Vending Machine should only be transported in the original packaging. Instructions are given on the packaging that are necessary for storing and transporting, such as keeping it frost-free, not jolting, hand-truck position and maximum stacking height.
- Page 8 3 Installation 3.1 Connection data 3.1.1 Electrical connection Ensure a separate group solely for EcoStar with a 16-Amp fuse durable power outlet wall socket with earth connection Supply voltage : 230 V ~ ± 10% Frequency : 50 Hz ± 2%...
- Page 9 3.2 Connecting WARNING! The EcoStar must be allowed to acclimatize for at least half an hour before it is connected to the mains voltage. 3.2.1 EcoStar Vending Machine with Inverted Bubble Top • Mount the filled 20 litre Inverted Bubble top onto the Inverted Bubble top adapter of the Vending Machine.
- Page 10 Insert the plug in the socket. Switch to “I” (ON) • Set the on/off switch of the EcoStar to “I” (ON). The switch should now light up (The ON / OFF Switch is located at the back of the machine).The boiler now starts to heat up.
- Page 11 Welcome channels on its own. Else it is ready to dispense. • Godrej Eco Star A multi options keypad has been provided with direct flavor selection keys. The user can choose between the options by first choosing the flavor key.
- Page 12 4.3 Special function keys The Hot water key can be used as a special key for special functions and system monitoring. For this you have to keep hot water key presses till display shows “Flush mode” display is self explanatory. By pressing Hot water key i.e.
- Page 13 5 Maintenance 5.1 Maintenance by the operator Introduction Regular maintenance is essential for proper hygiene and flavour of drinks. The Vending Machine can be kept clean safely and efficiently if you follow the instructions carefully. WARNING! Never spray water in the Vending Machine! Routine Maintenance 5.1.1 Daily Maintenance (by user or operator) The objective of these operations is to avert any growth of bacteria in areas in contact with foodstuff.
- Page 14 • Unlock the Whipper Chamber (6) by rotating it Counter Clockwise and gently pull it to avoid the damage to Whipper Motor Shaft, with Blender (5) and Seal (7). • After disassembly, the water inlet pipe (2) and motor assembly (1) will remain in the body. After cleaning, put the whipper assembly back together, re-attach the outlet pipe and rinse the whipper assembly.
- Page 15 Sr.No Description Canister Assembly (without Spout) Canister Lid Gear Box Lock Clip Canister Scraper Spring Canister Wheel Canister Canister Cap ( for wire auger use) Spout Holder Spout Lock Spout Short Auger (Plastic/Steel) O Ring Auger Drive (Plastic) Auger Drive (Steel) Figure 5-1: Canister Assembly...
- Page 16 Sr.No Description Mixer Assembly Complete NMS Steam Trap NMS Funnel NMS Funnel Lock NMS Silicon Tube ID-6 OD-10 Blender NMS Whipper Seal NMS O Ring Whipper Bracket Whipper Chamber NMS Separator Wheel NMS Motor Mounting Bracket NMS Whipper Motor Assembly Pan Phillips head Self tapping screw B7 x 9.5 Cylindrical Screw M3 x 7...
- Page 17 6 Taking out of service If the machine will not be used for an extended period of time ( more than 4 weeks), or if the machine has been out of service for a long period of time, then have an approved service engineer take the following measures for hygiene: •...
- Page 18 7 Technical Specifications Electrical information: • Supply voltage : 230 V ~ ± 10% • Frequency : 50 Hz ± 2% • Maximum power consumption : 1.8 kW (max.) Capacity/content: • Dispensing time : immediately after pressing a key. • Capacity : maximum of 4 drinks per minute •...
- Page 19 8 GLOSSARY Danger Zone Zone inside or close to the Beverage dispensing machine where the presence of an exposed person represents a hazard for the health and safety of that person. Exposed Person Any person who is located wholly or partly in a danger zone. Trained Engineer A specialist who has been specially trained and authorized to carry out the operations for setting up and installation of the machine as well as non-routine maintenance or repair operations which require...
- Page 20 Drip tray It collects the water spilled out of Cup or in Rinse operation which is to be periodically cleaned.
- Page 30 Dealer’s Contact Details...
