Furnware Storg Elska ST22RO2.300.CPWH Quick Start Manual

Download this manual

Do not use powered screw drivers for adjustment.

FITTINGS

14 of 4x16 Self tapping screw

6 of 6,3x12 Euro screw

8 of 3,9x13 Self tapping screw

2 of M6x10 Machine screw

2 of M6 Washer

COMPONENTS

A. Basket

B. Set slides

C. Door brackets

D. Slides bracket kit

E. Cabinet side thickness spacer kit 18/20 mm

F. side thickness spacer kit 16/19 mm

G. Cover caps

MAINTENANCE

Clean with a soft, dry cloth. Avoid using solvents or abrasive.

TOOLS

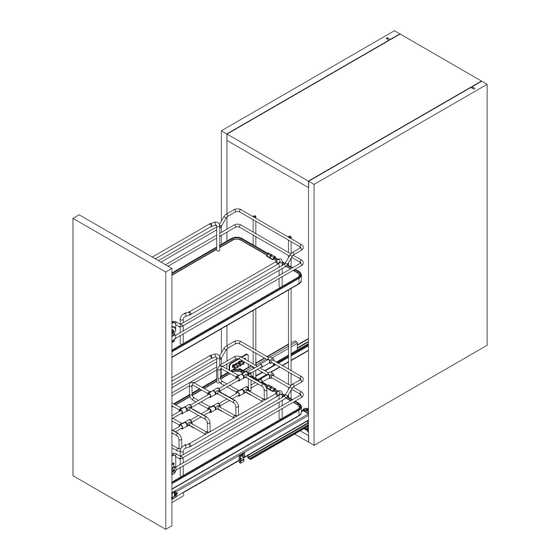

Storg Elska Two Tier Roll-Out

ST22RO2.300.CPWH

ST22RO2.450.CPWH

ST22RO2.600.CPWH

Need help?

Do you have a question about the Storg Elska ST22RO2.300.CPWH and is the answer not in the manual?

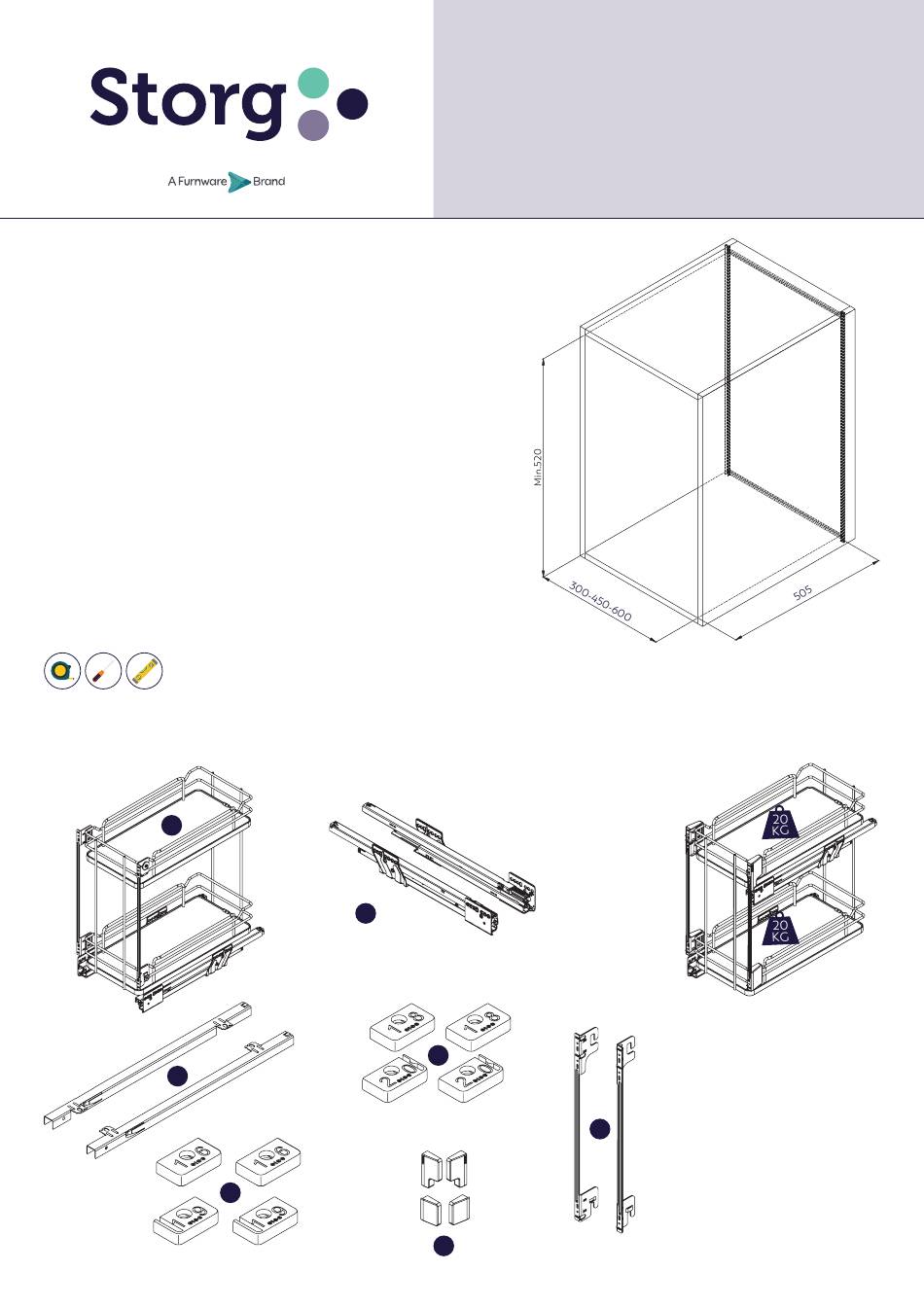

Page 1 Storg Elska Two Tier Roll-Out ST22RO2.300.CPWH ST22RO2.450.CPWH ST22RO2.600.CPWH Do not use powered screw drivers for adjustment. FITTINGS 14 of 4x16 Self tapping screw 6 of 6,3x12 Euro screw 8 of 3,9x13 Self tapping screw 2 of M6x10 Machine screw 2 of M6 Washer COMPONENTS A.
Page 2 8 of 4x16 Self tapping screw Attach slides (B) to the sides of the cabinet following the dimensions shown. NB: Position of slides (B) is optional according to the installation specifics. They can be mounted in top, bottom or diagonally opposite position. 8 of 4x16 Self tapping screw Fix the door brackets (C) to the rear of the door following the dimensions shown.
Page 3 4 of 6,3x12 Euro Screw Screw the slide bracket (D) onto the shelf using the euro screws. NB: Place the Side brackets (D) on the shelves according to how the sides (B) were previously placed (see step 1). Slide the baskets onto the slides and ensure they click into place.
Page 4 Loosen the four screws M6x10 “L”, turn the screw Loosen the four screws M6x10, to adjust the “M” as shown to adjust the door up and down door forward and back. Loosen the door bracket mounting screws to adjust the door to the right and left and insert the four cover caps as shown.
