Do not use powered screw drivers for adjustment.
FITTINGS
4 of M6x40 machine screw
2 of M5x14 machine screw
24 of 4x16 Self-tapping screw

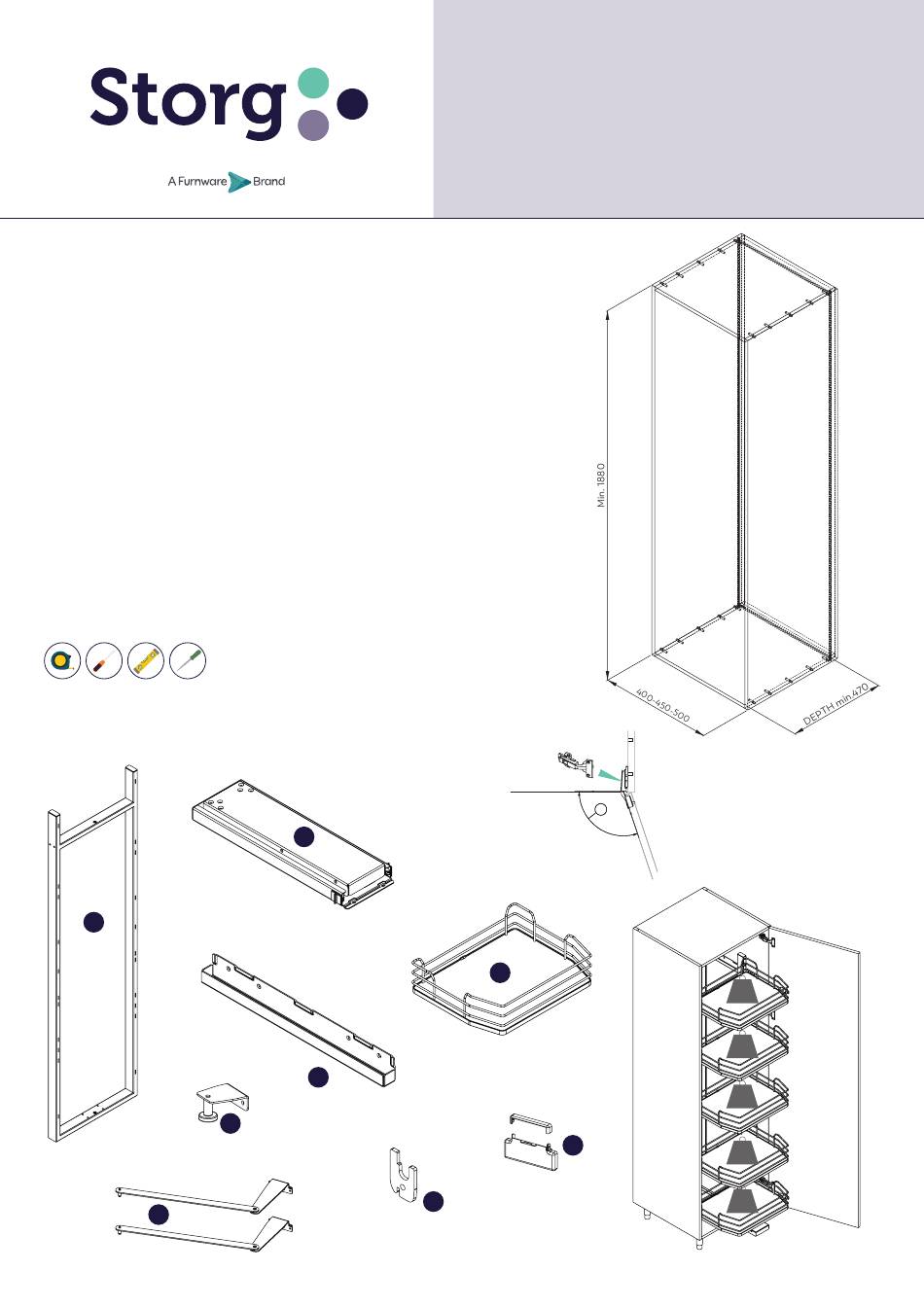

COMPONENTS
A. Frame
B. Bottom slide
C. Lateral slide
D. Lateral slide guide
E. Door bracket
F. Hook for baskets
G. Baskets
H. Door bracket cover set
MAINTENANCE
Clean with a soft, dry cloth. Avoid using solvents or abrasives.
Do not lubricate bearings or slides.
TOOLS
A
E
B
C
D
Storg Elska Gourmet Pantry
ST22PGP.TL400.CPWH
ST22PGP.TL450.CPWH
ST22PGP.TL500.CPWH

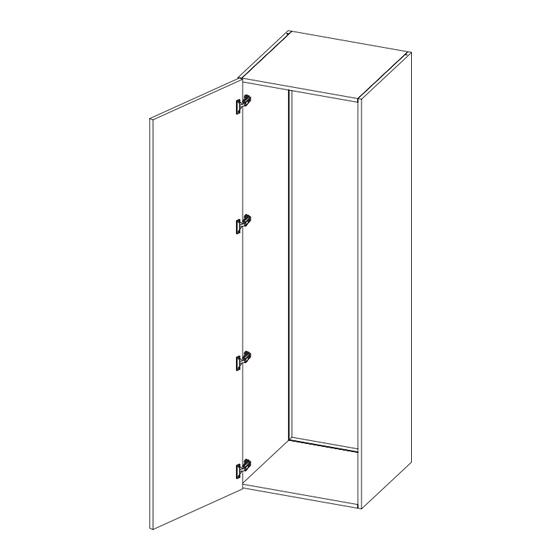

CABINET 300/400
120°
MAX 120º
G
H
F
MAX LOAD CAPACITY
60KG
12
KG
12
KG
12
KG
12
KG
12
KG
Advertisement
Related Manuals for Furnware Storg Elska ST22PGP.TL400.CPWH
Summary of Contents for Furnware Storg Elska ST22PGP.TL400.CPWH
- Page 1 Storg Elska Gourmet Pantry ST22PGP.TL400.CPWH ST22PGP.TL450.CPWH ST22PGP.TL500.CPWH Do not use powered screw drivers for adjustment. FITTINGS 4 of M6x40 machine screw 2 of M5x14 machine screw 24 of 4x16 Self-tapping screw COMPONENTS A. Frame B. Bottom slide C. Lateral slide D.
- Page 2 2 of M5x14 machine screw Choose the door opening direction and then screw the lateral slide guide (D) to the frame (A) by using the two screws M5x14, so that the guide is on the hinge side of the frame. LEFT RIGHT RIGHT...
- Page 3 6 of 4x16 Self-tapping screw Fix the bottom slide (B) on the bottom of the cabinet following the dimensions shown on the hinge side of the cabinet. 28,50 ONLY LEFT ONLY RIGHT VERSION VERSION 400 120 ONLY LEFT ONLY RIGHT VERSION VERSION 4 of M6x40 machine screw...
- Page 4 6 of 4x16 Self-tapping screw Install the door brackets (E) on the door following the dimensions shown and clip them into the frame (A). Install the covers (H), as shown in the pictures. 300/400 400/500/600 DOOR DOOR LEFT RIGHT VERSION VERSION CLICK! CLICK!
