FHUPS1-UNV-50L-SD
GENERAL INSTALLATION GUIDELINES FOR
IMPORTANT SAFE PRACTICES
When using electrical equipment and this lighting device basic safety precaution should
be followed at all times including but not limited to the following:
PLEASE READ CAREFULLYAND FOLLOW ALL INSTRUCTIONS FOR YOUR OWN SAFETY
IMPORTANT: Do not connect battery until fixture is installed.
IMPORTANT: An un-switched AC power source of 100VAC to 277VAC is required.
This device is designed for use in fixtures listed for dry and damp locations.
CAUTION: Make sure all electrical connections conform to the National Electrical Code and all applicable local
regulations.
CAUTION : Do not let power supply cords touch hot surfaces.
CAUTION : Do not mount near gas or electric heaters.
CAUTION: Do not use outdoors.
CAUTION: Battery is rechargeable LiFePO4 type and must be recycled or disposed of properly.
Do not use this emergency driver with accessory equipment other than recommended by manufacturer;
failure to follow this may cause an unsafe condition. Servicing should only be performed by qualified service
personnel. Do not use this emergency driver for other than intended use.
CAUTION:Equipment should be mounted in locations and at heights where it will not readily be subjected to
tampering by unauthorized personnel.
CAUTION: For use with a metal enclosed wiring system.
IMPORTANT: The output EM power will be the maximum of connected battery unless programmed to a
lesser value. EM output power will not exceed the battery rating.
IMPORTANT: Indicator (LED light) illuminated indicates battery in charge mode whenAC power is applied.
It is recommended and required by applicable code to test emergency function to ensure proper operation of
the system; push the test switch for sixty (60) seconds every 30 days to ensure the emergency driver is
functioning as LED light source illuminated. Conduct a ninety minute (90) discharge test one time (1) per year;
LED light source should be illuminated for a minimum of ninety minutes (90).
ASSEMBLYand FIELD INSTALLATION WIRING: WARNING: AC power must be off before proceeding
with assembly or installation of emergency driver.
TESTING SYSTEM:The emergency battery requires a charge minimum of one (1) hour before testing the
circuit. A full charge requires twelve (12) hours (Refer to battery chart).
IMPORTANT: In order to maintain proper operation and warranty coverage, the battery must be recharged once per
year prior to installation.
Fulham Head Quarters:
Fulham Co., Inc
12705 South Van NessAve.
Hawthorne, CA 90250
Fulham Co. Inc.: 12705 South Van Ness Ave., Hawthorne, CA 90250 Tel.: 1-323-779-2980 Fax.: 1-323-754-9060.
Specifications subject to change without notice.

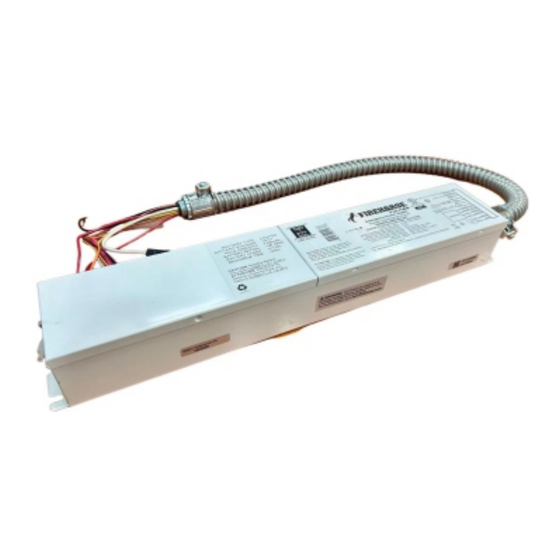

LED EMERGENCY MICRO INVERTER
SAVE THESE INSTRUCTIONS
IP20
LiFePO4
