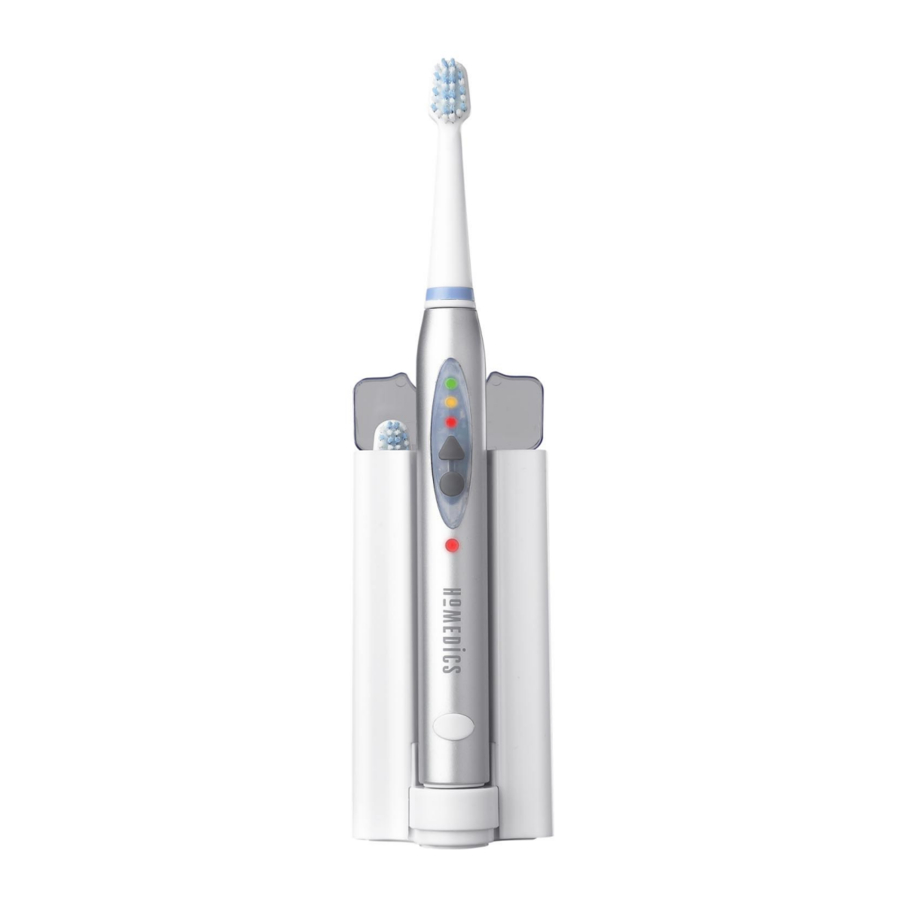

Homedics SoniDent HD-510C Manual

CHARGING INSTRUCTIONS

SoniDent, the easy-to-use sonic plaque remover will enhance your oral hygiene. The rapid movement of the SoniDent disrupts plaque beyond the bristle tips for a more thorough clean with less effort.
Follow this procedure before you use SoniDent for the first time. To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

1. Plug the charger base into a 120-volt outlet. Place the SoniDent handle into the base and allow it to charge for at least 16 hours before using it for the first time.
2. The charger indicator light on the handle will glow red when the toothbrush is correctly placed in the charger base. This is an indication that handle is charging. The indicator will turn off when the toothbrush is removed from the base.
3. The optimum voltage for charging is 120V.
4. To maintain the unit's full performance, it should always be replaced back on the charging base after use.

Note: Charge for at least 16 hours before using the unit for the first time.

HOW TO USE SONIDENT

1. Attach the brush head to the handle by positioning the brush head at a 90-degree angle to the left of the handle (See Figure A). Turn the brush head counter clockwise one-quarter turn, so the bristles are facing the same direction as the ON/OFF button, and the brush head will snap into place (See Figure B).

2. Before brushing, wet the brush head to moisten, then apply toothpaste.
3. To avoid splashing, guide the brush head to your mouth before switching the SoniDent ON. Push the ON/OFF button to activate the unit. The indicator light will glow red when the power is on.
4. SoniDent has been designed with 3 different speed levels to adjust to your own sensitivity level. Scroll through the speeds (low, medium, high) by tapping the arrow button.

5. Guide the brush head to your teeth, placing it at a 45-degree angle towards the gum line. Gently guide the brush head from tooth to tooth, spending a few seconds on the surface of each tooth.
6. Brush the gum lines as well as the teeth, starting with the outside teeth and gums, followed by the insides and finish with the chewing surfaces. Ensure that you spend equal time in all 4 quadrants of your mouth.
7. Do not press to hard or scrub with this unit. The sonic waves penetrate difficult-to-clean areas, removing plaque and bacteria.
8. The auto timer will automatically turn the unit off after the 2-minute dentist recommended brushing time.
   Note: To turn the unit off before the 2 minutes have elapsed, simply press the OFF button.
9. Rinse mouth thoroughly with water.
10. Remove brush head and rinse under running water.
11. Brush heads should be replaced every 2-3 months to ensure optimal performance. HoMedics replacement brush heads (RH-S) for this model are available at your local retailer or check www.homedics.com for a list of retailers that offer these replacement heads.

Note: To maintain optimal performance, we recommend that you replace your brush head every 2-3 months.
Note: We recommend soaking the brush head in a denture cleaner (commercially available) every 2 to 4 weeks to keep it hygienically clean.

All servicing of this unit must be performed by authorized HoMedics service personnel only.

CLEANING AND MAINTENANCE

1. After use, rinse the brush head for several seconds under running water with the handle switched on.
2. Switch off the handle and take off the brush head.
3. Rinse both parts separately under running water and wipe them dry. Note: Be sure to point the handle downward (upside down) when rinsing. Do not allow water to drain down into the handle.
4. After cleaning place the handle back on the charging base. Note: For optimal charging base stability, run the power cord through the right or left slot on the back of the charging base.
5. When SoniDent is not in use for an extended period, unplug the cord and store.
6. Clean the charger base periodically with a soft clothor paper towel. The charger base must be dry before plugging it into an electrical outlet.

MEDICAL SAFEGUARDS

Please note the following instructions for your continued safety.

1. Similar to starting any new oral hygiene product, contact your dentist before using SoniDent if you have had oral or periodontal surgery.
2. Contact your dentist if excessive bleeding occurs or if bleeding continues after 2 weeks.
3. This product is designed for cleaning teeth and gums only. Do not use for any other purpose.

Individuals with pacemakers should consult a physician prior to use.

SPECIAL INSTRUCTIONS

REMOVING AND DISPOSING OF NI-CAD BATTERIES
SoniDent is equipped with long-lasting, rechargeable nickel-cadmium batteries. To help protect our environment, they should be removed at the end of the unit's life for safe disposal. Batteries CANNOT be replaced.

To remove the batteries before discarding product:

1. Place the handle in the charging base and turn counter clockwise to remove the cap.
2. Slide the battery out of the SoniDent handle and remove.
3. Dispose of the cell-pack in compliance with national or local regulations for environmental protection and recycling of raw materials. Do not dispose of the cell-pack by burning or incineration.

Opening the handle will destroy the appliance and invalidate the warranty.
Note: During the first few days of using, your gums may bleed slightly. Any bleeding should stop within a few days. If your gums continue to bleed for a period of 2 weeks or more, discontinue use and consult your dentist.
