- Page 1 USE R M A NU AL...
- Page 2 SOLUTION TO IMPROVE DRY EYE tearstim tearstim, the pioneering IRPL® technology, specially USING THE certified to treat meibomian gland dysfunction and evaporative dry eye, will provide improved visual com- fort and a better quality of life.
- Page 3 • An activation card provided with each Optic cartridge. • An Optic cartridge activation code that enables use of a new cartridge. After registration of your tearstim, you will be able register your new Optic cartridges and get activation codes at https://esw-connectplus.com/#/.
- Page 4 IMPORTANT: YOU MUST KEEP ALL THE ITEMS OF ORIGINAL PACKAGING (BOXES, PACKING BLOCKS, ETC.). NOTE: E-Swin SAS holds exclusive rights for the marketing of the tearstim and its accessories: optic, The manufacturer’s guarantee for parts and labour will only be valid if your device is returned in its complete original clean, patches, stop, gel, mask, eye mask etc.
- Page 6 • Wireless communication devices must be kept at a distance (approximately 3 metres), as these may impair the correct • The power outlet must be easily accessible and can be used, in case of an emergency, to unplug tearstim from the power socket.
- Page 7 • On persons suffering from a skin condition (eczema, inflammation, acne...). • On moles: if they are located on the zone to be solutioned, they must first be protected, for example by covering them with the self-adhesive patches provided with your tearstim. • On eyelids with permanent tattoos.

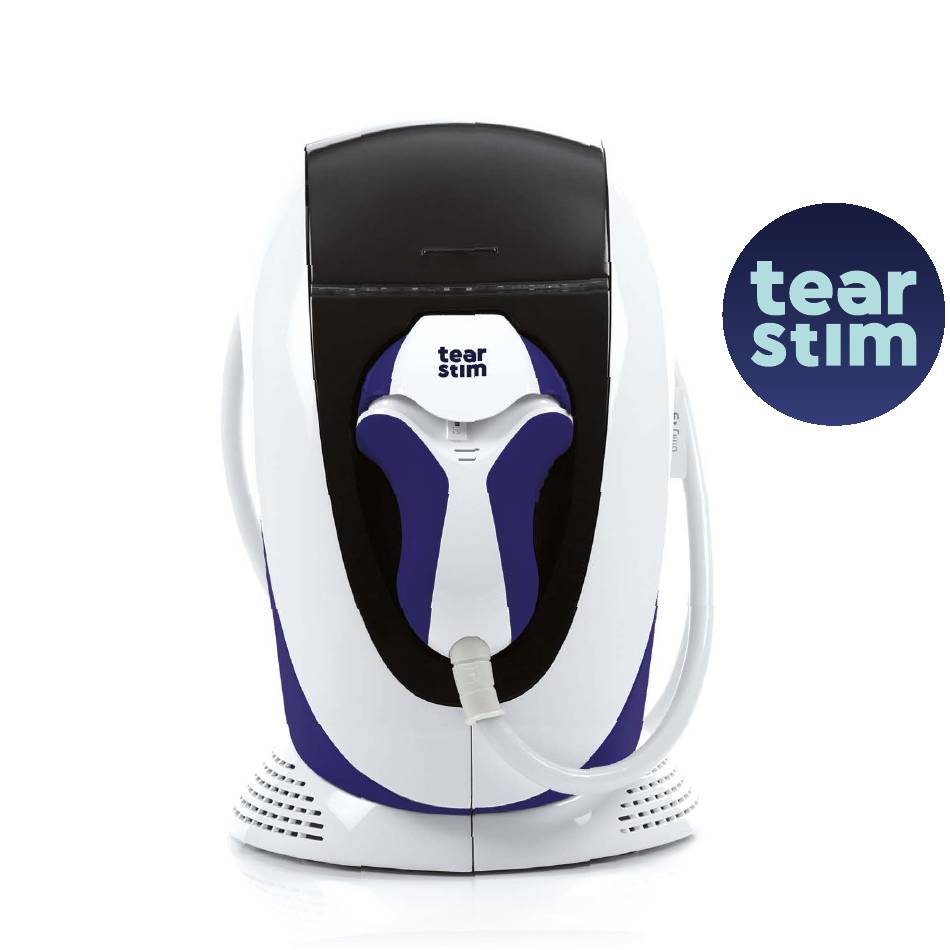

- Page 8 GLOSSARY » BASE » APPLICATOR tip of optical guide ventilation grid visor to protect touchscreen mobile head mobile head locking tab Ready-to-flash indicator signal Trigger button air vents applicator cord support power cord connection activation card slot applicator holding...
- Page 9 All these characters enables you to enter the secure PIN code This icon is displayed on the touch screen throughout the of tearstim, and also to show the remaining number duration of the dry eye session. Pressing it allows you to put flashes at any moment.
- Page 11 (it may take more than 10 minutes). This procedure enables the optical parts to cool with the clean spray provided when you purchased tearstim. Any damaged filter due to non-compliance with the procedure down. The other fans, located in the base of tearstim, will only stop when the device is unplugged.
- Page 12 PREPARING THE PERSON RECEIVING THE SESSION NOTE: Before using the activation card, make sure your tearstim have been registered on the website: https://esw-connectplus.com/#/ and you have entered the activation codes for your “Optic cartridge”. • The person has to be settled in an examination and treatment chair lying or sitting.
- Page 13 If an icon has not been validated, it will continue to blink. intensity level. The arcs indicates the intensity level or power You will not be able to set up or use your tearstim if all the of issued flash.
- Page 14 The Gel, the self-adhesive Patches, the guide plate stop, the Mask goggles and the eye mask protective shells used must be those supplied with your tearstim. The use of any other product may result in the risk of skin burns, and will invalidate the guarantee of your device.
- Page 15 • Finish cleaning the optical guide with the spray clean (images For any intervention after using tearstim, you must wait for the fans located inside the applicator to turn off completely. This enables, among other things, the optical parts to cool down.
- Page 16 Cartridge tube. When it is blinks, it means that you can flash. • Unplug the power cord from the device. All these characters enables you to enter the secure PIN code of tearstim, and also to show the remaining number of flashes at any moment.
- Page 17 It must be spray beforehand on a clean, dry cloth, and then use this cloth to clean the accessible surface of the filter WARNING: It is strictly prohibited to make any modification of any kind to your tearstim.
- Page 18 CHANGING THE tearstim OPTIC CARTRIDGE » STAGE 8 TO ENTER THE CODE IN THE TEARSTIM: » Re-attach the mobile head by pressing delicately as indicated STEP 1: on image to the right Touch the display area . You will get the following answer: •...
- Page 19 By default, the PIN code is 0000. If you do not act on the PIN, you will not be asked for one when you boot the device. If, on the other hand, you change the default PIN code (0000), you will need to enter the new PIN code each time you restart tearstim.
- Page 20 NOTE: Unlike the fans located inside the applicator, the other ones located inside the base of tearstim, will only stop when the device is unplugged.
- Page 21 If you intervene after using the tearstim, used to mask an area where flash procedure is not to be applied surface of the skin using a paper towel or a you must wait for the fan of the device (for example, tattoos).
- Page 22 This enables, among other things, the optical parts to cool down properly. NOTE: Unlike the fans located inside the applicator, the ones located inside the base of tearstim only stop when the device is unplugged. »...
- Page 23 ASSISTANCE » TECHNICAL DEPARTMENT In case of doubt about the use of tearstim, contact our technical department. Visit your customer page at www.esw-vision.com and click on "My E-Swin contacts". » ERROR MESSAGES In addition to its own number (see table below), each error message is notified by the blinking of the warning icon...
- Page 24 Your product has been designed and manufactured using high-quality products, which are suitable for Electromedical Equipment of Class II rating. recycling and re-use. This equipment is a medical device. E-Swin SAS is affiliated to an eco-organization, which undertakes the collection and processing of end-of-life Complies with mdr eu2017/745 requirements. products. 0197...
- Page 25 ± 2 kV 100 kHz IEC 61000–4–4 voltage power supply network. tearstim is equipped with a radio-frequency transmitter at 13.56 MHz in an ASK modulation and at a power lower than 42 dBµA/m. Surge ± 1 kV differential mode ± 1 kV differential mode...
- Page 26 Pulse train overall duration: 170 ms. tearstim is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of the Device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communication equipment (transmitters)
- Page 27 Never bring the base unit or the applicator into contact with water. Do not open the base unit or the applicator, as you may risk exposure to high voltages. Never use cartridges and accessories other than those designated and sold by E-Swin SAS for use with the tearstim.
- Page 28 CONTACT For more information contact: contact@esw-vision.com or visit: www.keepyoureyesfit.com...
