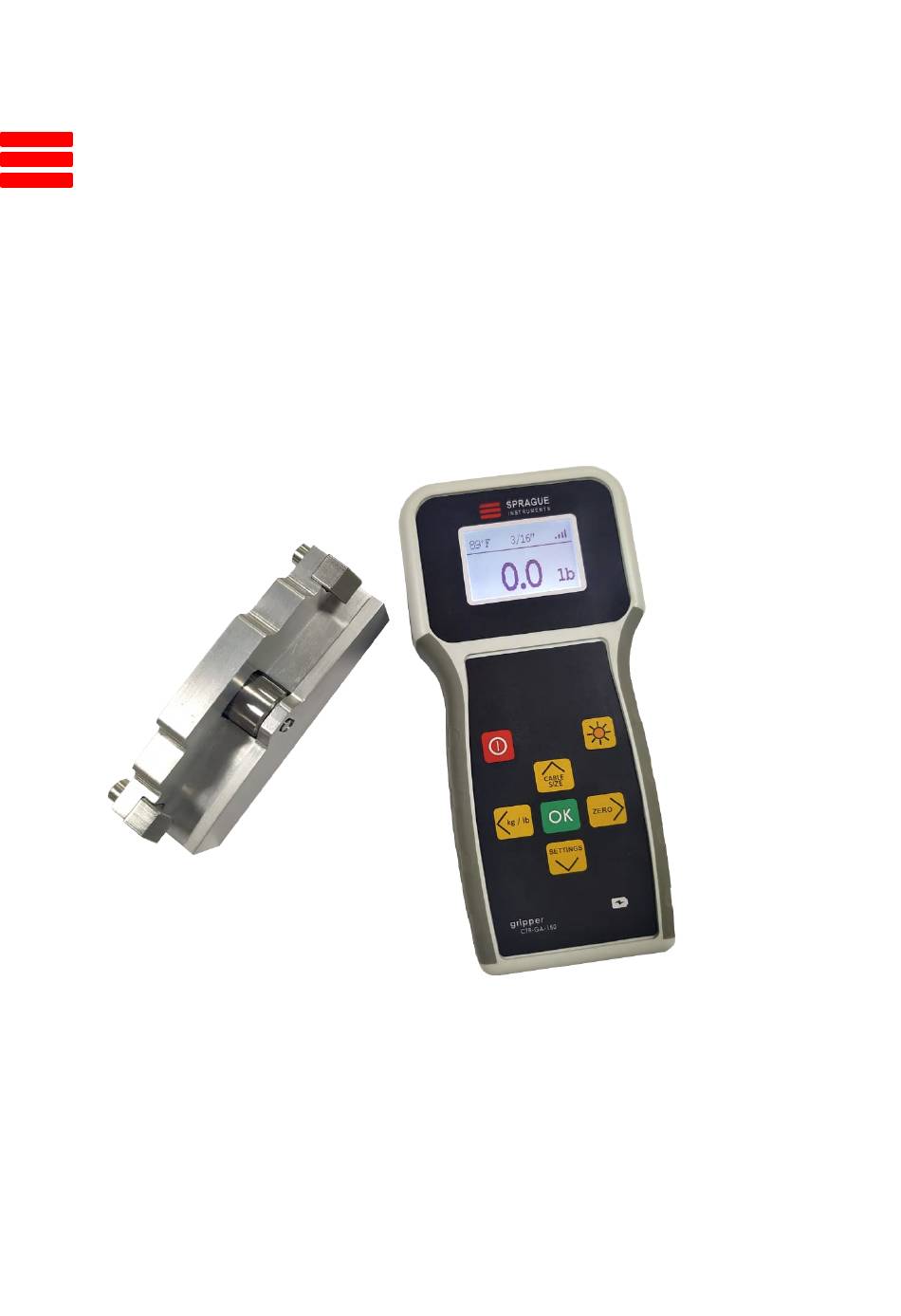

- Page 1 SPRAGUE INSTRUMENTS User Manual Wireless Cable Tension Meter Model: Gripper CTR-GAWL-150 PN# 1345-001 Wireless 03 Oct 24...
- Page 2 Table of Contents Introduction ........................3 In the Box ........................3 System Description ......................4 Display Unit - Buttons ....................7 Battery Charging ......................8 Charge Status LEDs ....................... 8 Operation ................Error! Bookmark not defined. Sensor Unit Power ON ....................8 Cable Size Selection .......................
- Page 3 Introduction Thank you for buying the finest Wireless Cable Tensiometer made today. This manual contains the SPRAGUE Gripper CTR-GAWL-150 specifications and operating instructions. Overview This Tensiometer is a wireless cable tension measuring instrument. It uses Bluetooth technology to communicate between the sensor and display. The display unit shows tension in the cable as measured by the sensor unit.
- Page 4 System Description Display Unit 1. Temperature at the sensor unit 2. Cable tension 3. Power ON/OFF Button 4. Cable Size/Up Navigation Button 5. Tension Unit Selection/ Left Navigation 6. Settings/Down Navigation 7. Charging Port 8. Charge Indication 9. Zero Set/Right Navigation 10.
- Page 5 Specifications Property Details Scale Range 10 to 150 Pounds Scale Resolution .1 Pound Scale Tolerance +/- 2% of Full scale Unit of Measurement Metric – Kg, Imperial – lbs , Calibration Steps Supported Cables Sizes 1/16, 3/32, 1/8, 5/32, 3/16 inches Temperature Units Selectable - C and...
- Page 6 Sensor Unit Charging Voltage 5VDC 500mAH – Li Po Rechargeable Battery Power ~4000 Readings/Charge Auto shut down at 30 minutes Dimension 105x40x27mm Weight 240gm(approx.) Housing 6061 Aluminum...
- Page 7 Operation Display Units Buttons Buttons Naming Functions • ON - Press Power ON/OFF Switch • OFF - Hold 3 Secs Tension Unit • Toggle - units for Tension and Selection/Left Temperature (lbs/Metric) Navigation • Back Button / Navigate Left Display Backlight •...
- Page 8 Battery Charging The Meter and Sensor units are charged with the 5V adapter. A splitter cable is included to charge both units at the same time. Charge Status LEDs (Display & Sensor) Charge is shown by dual color LEDs - . State Charge in Progress Blue...
- Page 9 Cable Size Selection • Pressing the cable size button will step through available cable sizes. • Supported diameter are 1/16, 3/32, 1/8, 5/32, 3/16 inches. • Calibration for each cable size must be done independently prior to first use. Sensor Out of Range •...
- Page 10 • Use the Up/Down arrows for navigation: Use the Up/Down and Left/Right arrows to change the numbers and then press Ok. • To change the password, select “Reset Password”. • If the password is lost/forgotten, please call Sprague for a reset.
- Page 11 Low Battery Indication • When battery reaches 20% capacity, the low battery message will display. It will display again for each 5% decrease. • Low battery messages are – Display unit, low battery: Both units low:...
- Page 12 Settings Menu Calibration The tensiometer requires calibration for each cable size at 5 incremental weights before use. Follow these procedures to calibrate. • Press SETTINGS button. The display will show these options - • Select Calibrate with the UP/Down buttons. •...
- Page 13 • When the ADC value stabilizes, press OK. This will complete calibration for 60lbs and the weight point will change to 3. Add weight for 90lbs and press Ok. • Continue this process to weight point 5 (150lb). • When calibration is complete at 150lbs, press OK to check measurements or choose the left navigation button to go back to the settings menu.
- Page 14 • Use the Left/Right Navigation keys to point to the digit to be set. The selected digit will be underlined. • Use the Up/Down key to set the desired value for the digit selected. • Press OK and the respective Id will set with an acknowledgement pop-up message - •...
