IDENTIFICATION OF PARTS
For your safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove
any prong from the power cord.
WARNING Electrical Information
Be sure the electrical service is adequate for the model you have chosen. This information can be found
on the serial plate, which is located on the side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is
important. The power cord is equipped with a three-prong grounding plug for protection against shock
hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend
to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified
electrician install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.

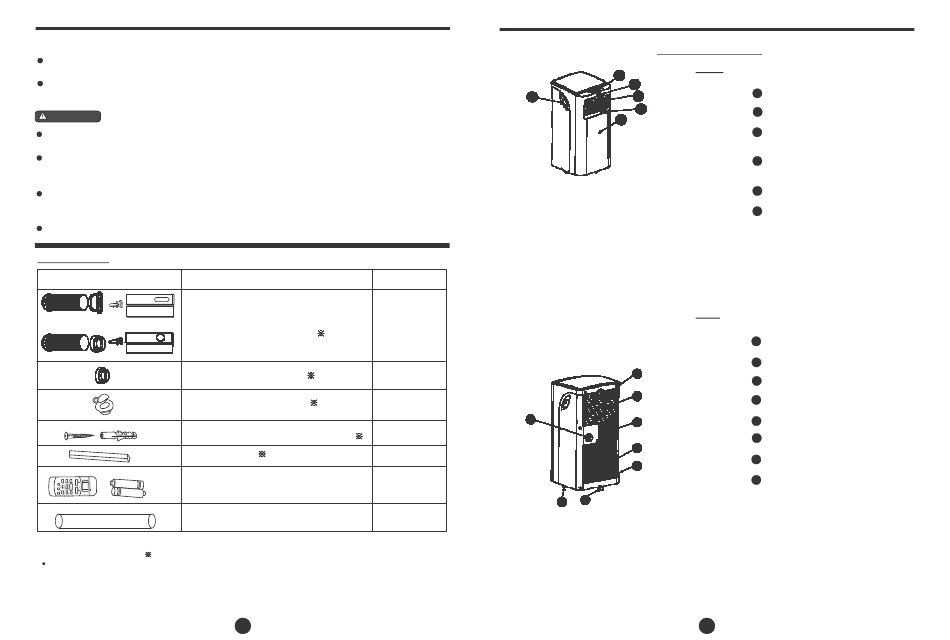

Accessories
PARTS :
Exhaust hose(supplied), adapter B(round
mouth or flat month:depending on models)
or
and Window Slider Kit and bolt
NOTE: Optional parts( ), some models without.
Check all the accessories are included in the package and please refer to the installation instructions for
their usage.
All the illustrations in this manual are for explanation purpose only. Your air conditioner
NOTE:
may be slightly different. The actual shape shall prevail.
PARTS NAME : QUANTITY :
(? )
Adaptor B(round mouth) (? )
Wall Exhaust Adaptor A( ? )
Expansion Plug and wooden screw(? )
Foam seal (? )
Remote Controller and Battery
(For remote control models only)
Drain hose
4
6
1 set
1 set
1 pc
14
4/ pc
3/pc
1set
12
13
1pc
IDENTIFICATION OF PARTS
NAMES OF PARTS
Front
1
2
1 Operation Panel
3
4
Remote Signal Receptor
2
5
Horizontal Louver Control Lever
3
(adjust manually)
Vertical Louver Control Lever
4
(adjust manually)
5 Panel
Fig.1
6 Carrying Handle
(both sides)
Rear
Upper Air Filter
7
(Behind the grille)
8 Air Intake
7
Air Outlet
9
8
10 Lower Air Filter
(Behind the grille)
11 Air Intake
9
Bottom tray drain outlet
12
10
13 Wheel
11
Drain Outlet
14
Fig.2
