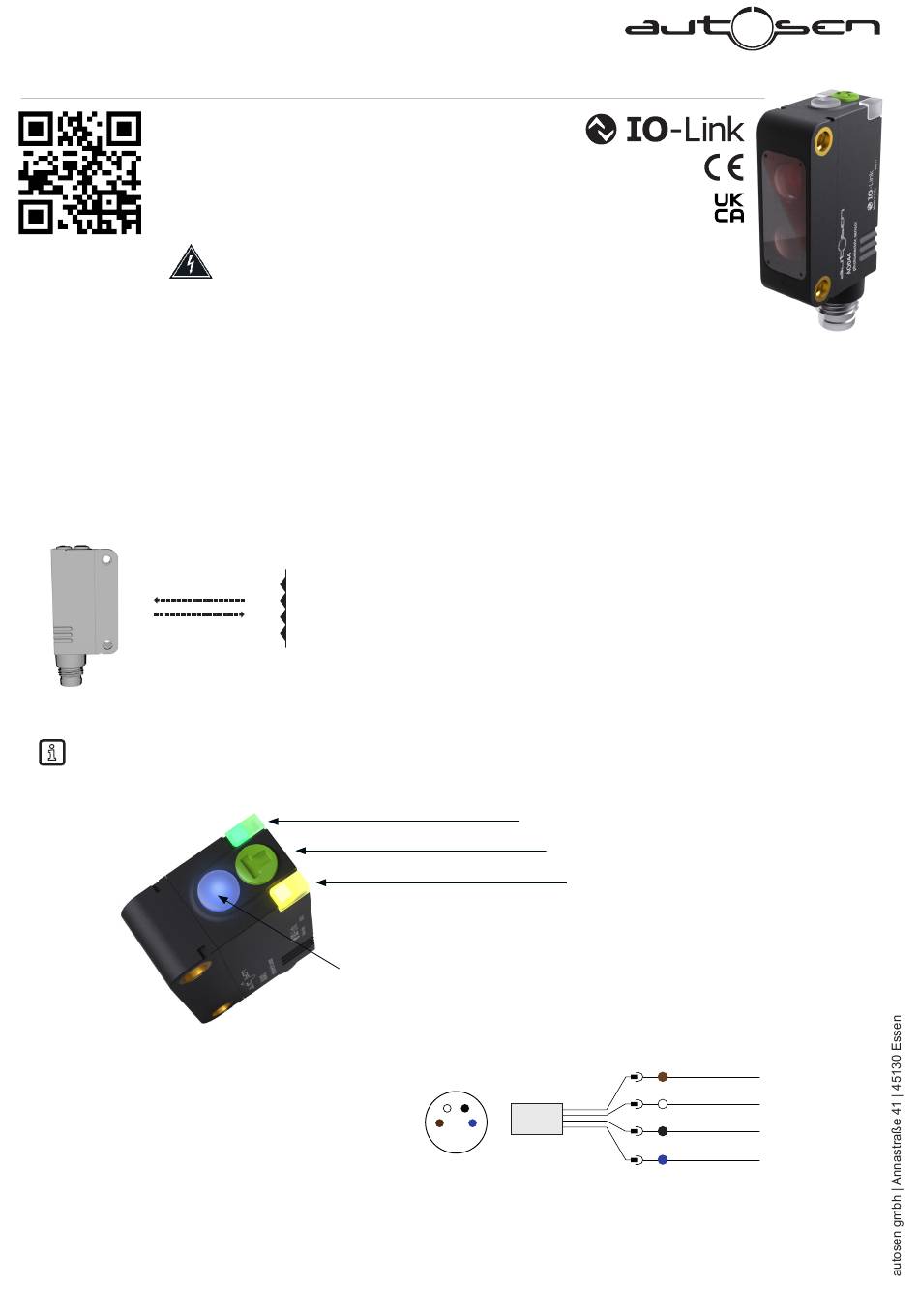

autosen AO044
Retro-reflective sensor
Further technical details as well as suitable accessories
are indicated in a detailed data sheet.
Visit www.autosen.com or scan the QR code.
SAFETY INSTRUCTIONS
► The product must be suitable for the corresponding applications and environmental conditions without any restrictions.
► Only use the product for its intended purpose (-> Intended use).
► If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property may occur.
► The manufacturer assumes no liability or warranty for any consequences caused by tampering with the product or incorrect use by the operator.
► Installation, electrical connection, set-up, operation and maintenance of the product must be carried out by qualified personnel authorised by the
machine operator.
► Protect units and cables against damage.
INTENDED USE
In conjunction with a prismatic reflector or reflective tape the retro-reflective sensor detects objects and materials without contact and indicates
their presence by a switching signal.
INSTALLATION
► Place the triple mirror or reflective tape behind the object to be detected.
► Align the reflective sensor on it and fix it with the help of a mounting bracket.
Maximum range only with precise alignment.
OPERATING AND DISPLAY ELEMENTS
ELECTRICAL CONNECTION
► The unit must be connected by a qualified electrician.
► Disconnect power.
► Connect the unit as follows:
LED blue: io-link communication
2 4
1 3
AUTOMATION & SENSORS
LED green: operation, stability indication
1
L +
Teach button
4
LED yellow: switching output active
3
L-
1
L +
2
4
3
L-
1
L +
2
4
BN
1
3
L-
WH
2
BK
4
3 BU
2
(5)
L +
OUT2
OUT1/IO-Link
L-
