autosen AO043
Diffuse reflection sensor with background suppression
Further technical details as well as suitable
accessories are indicated in a detailed data sheet.
Visit www.autosen.com or scan the QR code.
SAFETY INSTRUCTIONS
► The product must be suitable for the corresponding applications and environmental conditions without any restrictions.
► Only use the product for its intended purpose (-> Intended use).
► If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property may occur.
► The manufacturer assumes no liability or warranty for any consequences caused by tampering with the product or incorrect use by the operator.
► Installation, electrical connection, set-up, operation and maintenance of the product must be carried out by qualified personnel authorised by the
machine operator.
► Protect units and cables against damage.
INTENDED USE
The diffuse reflection sensor detects objects and materials without contact and indicates their presence by a switching signal.

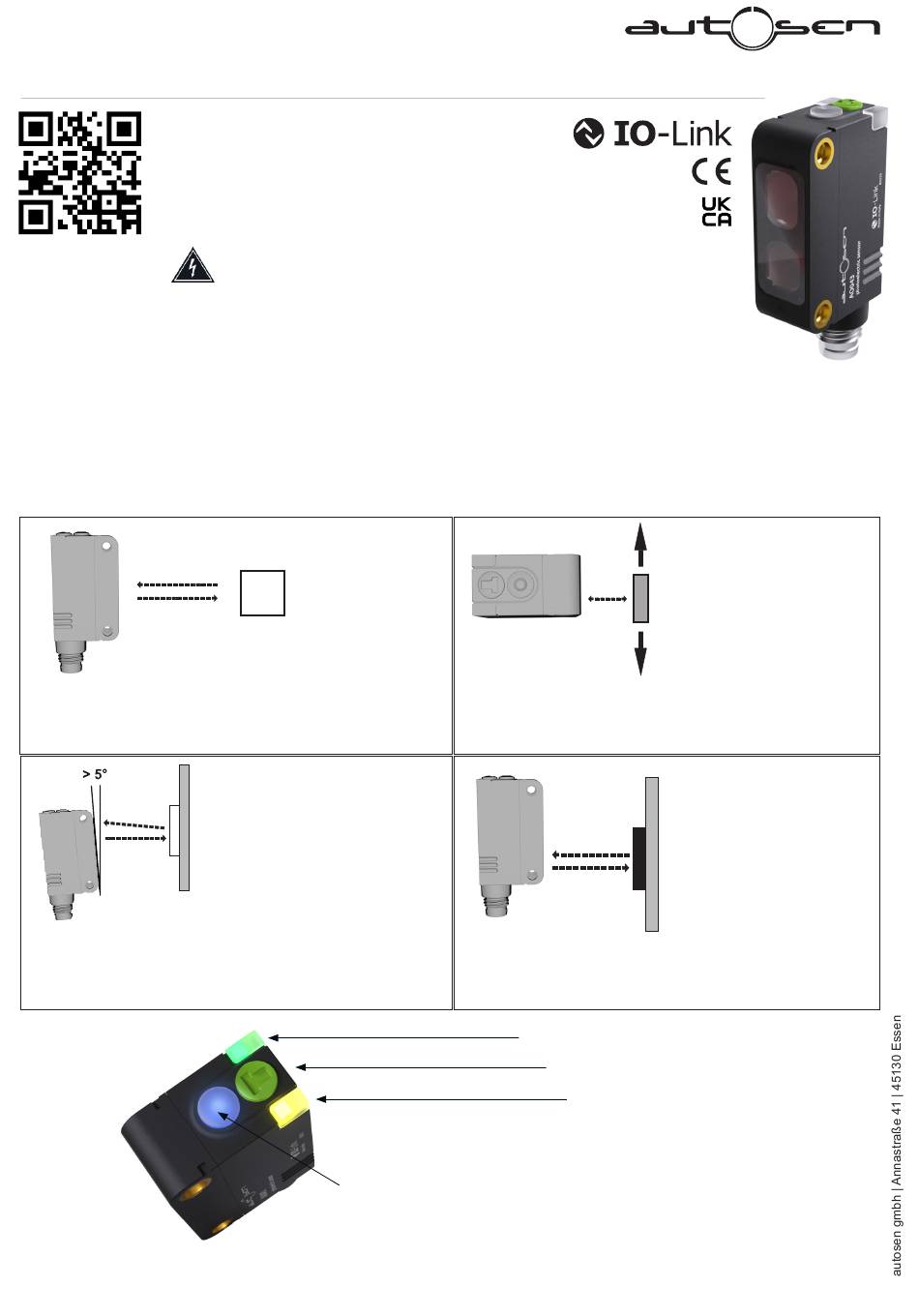

INSTALLATION
► Align the diffuse reflection sensor to the object to be detected.
► For exact alignment, use the accessories for fine adjustment.
► Secure it to a bracket
Shiny object
► In case of shiny object surfaces and less shiny background surfaces
the sensor should be mounted at an angle of approx. 5 - 10°.
OPERATING AND DISPLAY ELEMENTS
Note
► The objects to be detected are to move transversely to the lens of the
Sensor.
► In case of other directions of movement it should be tested before whether
safe switching is Guaranteed.
► Shiny background
In case of shiny background surfaces and less shiny object surfaces the sensor
should be mounted vertically to the background surface.
LED blue: io-link communication
AUTOMATION & SENSORS
LED green: operation, stability indication
Teach button
LED yellow: switching output active
