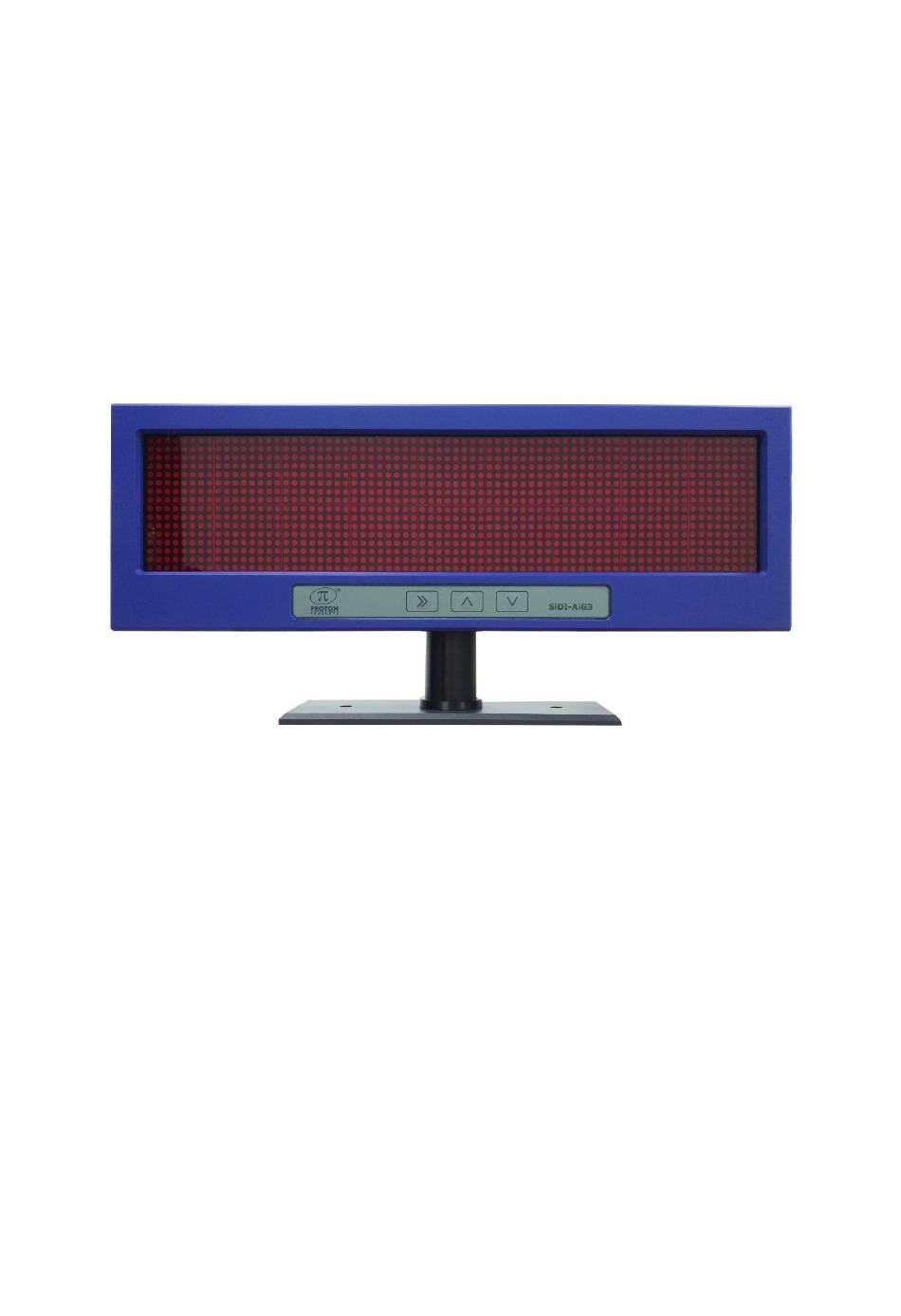

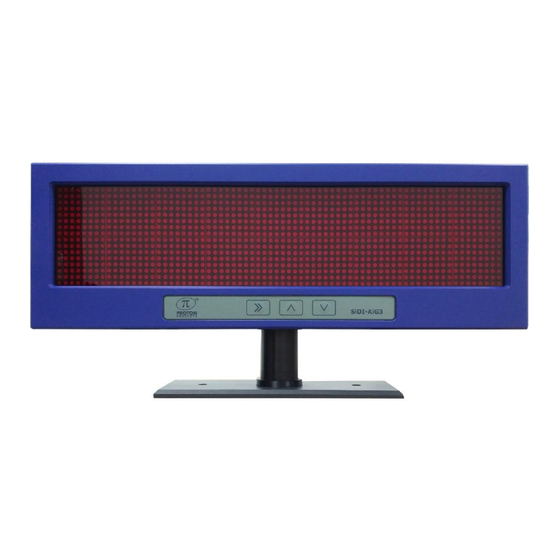

- Page 1 INSTRUCTION MANUAL SiDi-AiG3-CG Large LED Speed and Length Display Unit Issue 1b 2 June 2020 Proton Products Co Ltd 10 Aylesbury End Beaconsfield Buckinghamshire HP9 1LW England www.protonproducts.com Page 1 of 5 SiDI-AiG3-CG Instruction Manual issue 1a...
- Page 2 Table of Contents ..................3 NTRODUCTION ..................3 ONNECTIONS ..............4 UTTONS AND ISPLAY OPTIONS ..................4 PECIFICATIONS ................5 IMENSIONAL DRAWING Page 2 of 5 SiDI-AiG3-CG Instruction Manual issue 1a...
- Page 3 NTRODUCTION The SiDI-AiG3-CG is a large LED Capacitance display unit which is ideal for placing in a production environment where a large visible indicator is required. The SiDI-AiG3-CG is connected to the Proton Products capacitance gauge using RS232 communications. ONNECTIONS...
- Page 4 Height and width of each character: 7 dots by 7 dots= 56 mm by 56mm. Total length and height of the window: 550mm wide by 120mm high. Total number of LED panels: 18 (9 across, 2 down). Protection: IP65 Ambient temperature range: 0℃ to +45℃ Page 4 of 5 SiDI-AiG3-CG Instruction Manual issue 1a...
- Page 5 IMENSIONAL DRAWING Page 5 of 5 SiDI-AiG3-CG Instruction Manual issue 1a...
