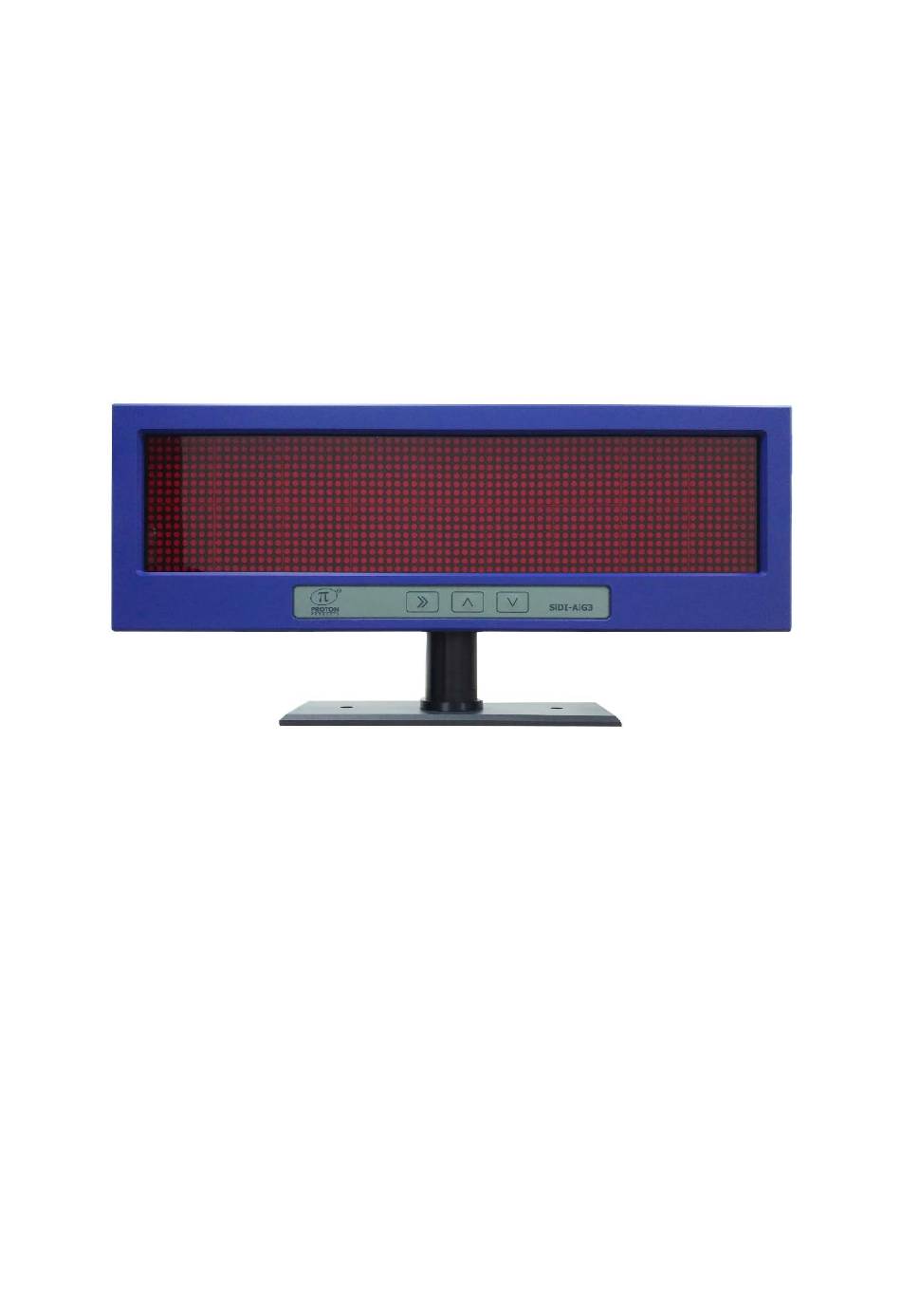

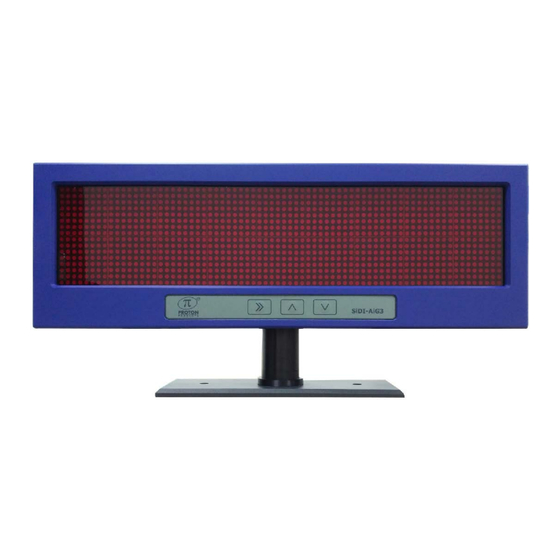

- Page 1 INSTRUCTION MANUAL SiDi-AiG3-SL Large LED Speed and Length Display Unit Issue 1b 19 March 2018 Proton Products Co Ltd 10 Aylesbury End Beaconsfield Buckinghamshire HP9 1LW England www.protonproducts.com Page 1 of 5 SiDI-AiG3-SL Instruction Manual_issue 1b...
-
Page 2: Table Of Contents
Table of Contents ..................3 NTRODUCTION ..................3 ONNECTIONS ..............4 UTTONS AND ISPLAY OPTIONS ..................4 PECIFICATIONS ................5 IMENSIONAL DRAWING Page 2 of 5 SiDI-AiG3-SL Instruction Manual_issue 1b... -
Page 3: Introduction
NTRODUCTION The SiDI-AiG3-SL is a large LED speed and length display unit which is ideal for placing in a production environment where a large visible indicator is required. The SiDI-AiG3-SL is connected to the Proton Products SL speed and length gauge using RS232 communications. -
Page 4: Buttons And Display Options
Height and width of each character: 7 dots by 7 dots= 56 mm by 56mm. Total length and height of the window: 550mm wide by 120mm high. Total number of LED panels: 18 (9 across, 2 down). Protection: IP65 Ambient temperature range: 0℃ to +45℃ Page 4 of 5 SiDI-AiG3-SL Instruction Manual_issue 1b... -
Page 5: Dimensional Drawing
IMENSIONAL DRAWING Page 5 of 5 SiDI-AiG3-SL Instruction Manual_issue 1b...
