PondXpert SolarPulse 500 Instruction Manual

This instruction contains important information for using the product for the first time. Please keep this instruction for later
reference. They should always accompany the product in the event of transfer a new user.
1 OVERVIEW
The solar pump is designed for spitter fountain, pond or outdoor use. In order for the solar pump to operate, the solar
1.1
panel needs to be in direct sunlight.
This solar pump is equipped with battery pack and can be switched on and off by a button switch on the control
1.2
housing.

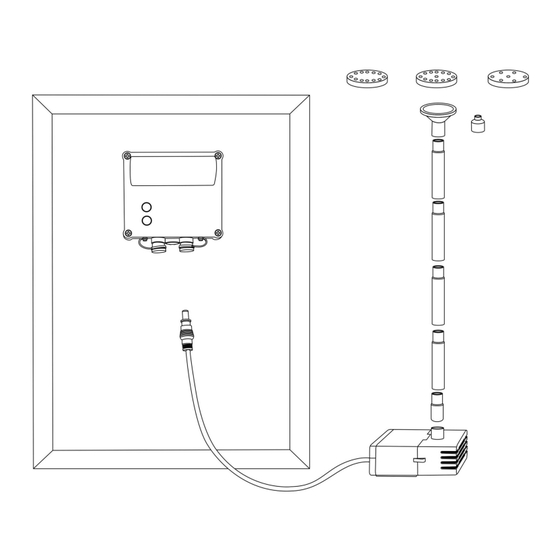

2 ASSEMBLING AND USING YOUR PRODUCT
Unpack all components carefully.
2.1
Place the pump underwater and make sure that, it is fully immersed in water. In case the pump tube is too far from the
2.2
surface of water, you can raise the pump by using stones or brick underlay.
Connect fountain heads as required, or connect the outlet with hose comes from the spitter;
2.3
Connect the pump cable to the socket of the control housing on the rear side of the solar panel;
2.4
The solar pump is now ready to use.
2.5
3 CAUTION
3.1 Do not strike the solar panel
3.2 Do not let the pump run dry for long time
3.3 Do not lift the pump by the power cord
3.4 Operate in freshwater only
4 OPERATING INSTRUCTIONS
Turn on the pump in "Continuous" spray mode:
Press to A button for 3 seconds to turn on the pump, the pump will run until battery flat. The pump will
operate again when battery recharged in next sunny day. In this mode, the water will be spraying
continuously.
Change to "Random" spray mode:
Press B button to change into random spray mode, the pump will run in random mode until battery flat. In
this mode, the water will spray out unpredictably.
Quick charge full energy to the battery: press and hold on 3 seconds to Turn OFF the pump in sunlight
hours and charge the full solar energy to battery.
Battery status:
Green: battery is full charged. Pump will run around 6-8 hours.
