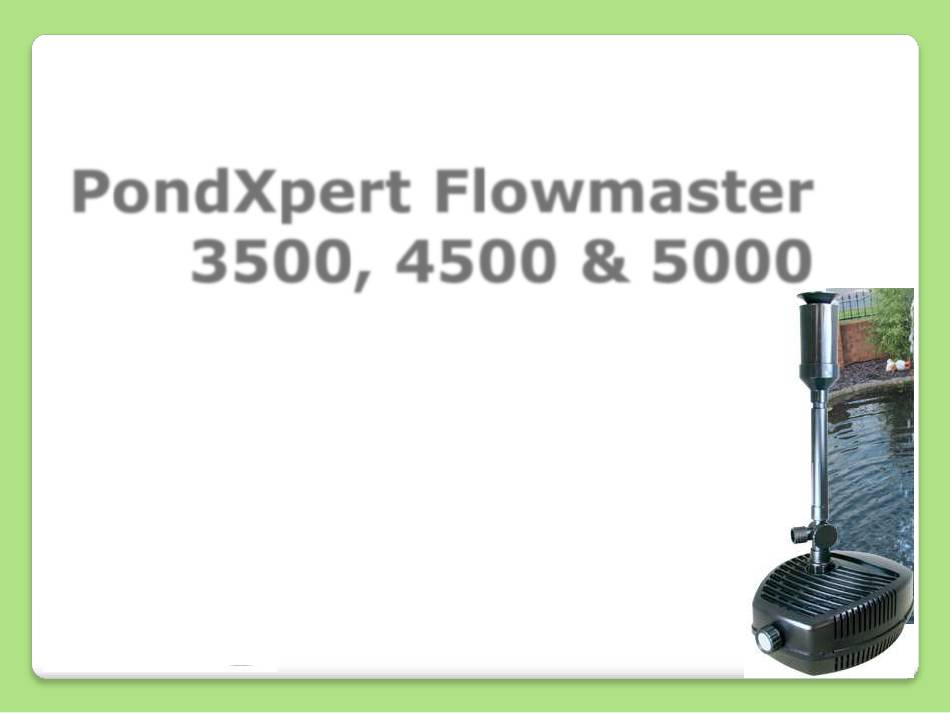

- Page 1 PondXpert Flowmaster 3500, 4500 & 5000 How to set up your PondXpert Flowmaster Pump...
- Page 2 First step Within the box there will be the main pump unit and an assortment of attachments which we will go through in further detail. If you look to the front of the pump you will notice a screw fit blanking plate. This inlet is to be used for cleaning and can be removed during this time whilst out of...
- Page 3 There is the option to use the Flowmaster with or without a fountain attachment. Fountain requirements...
- Page 4 Fountain required Affix union nut to the top of the unit and turn clockwise to tighten...
- Page 5 Fountain required Attach the ‘T’ piece via the larger end push fitment to the union nut. This allows the main fountain attachment pipe to be added.
- Page 6 Fountain required This locking nut needs to be placed over the ‘T’ piece prior to the fountain attachment pole.
- Page 7 Fountain required 1) There should be two poles in the box with the pump, as shown above. 2) The two poles need to be pushed together as above. 3) The finished items should look as above.
- Page 8 Fountain requirement The fountain attachment The fountain attachments push fits via the larger can be fitted to the top of end on to the t’ piece the pole attachment. fitment.
- Page 9 The stepped hosetail can be attached along with the supplied ‘O’ ring to the top of the unit as shown. Once the hosetail has been attached this can be adjusted to fit your chosen hose width. No fountain attachment...
- Page 10 The extra fitment shown above is to allow the attachment of lights to the pond pump; lights are sold separately. The lights required are the PondXpert Sublight 20. These are provided with interchangeable coloured lenses. The fitment slides over the...
