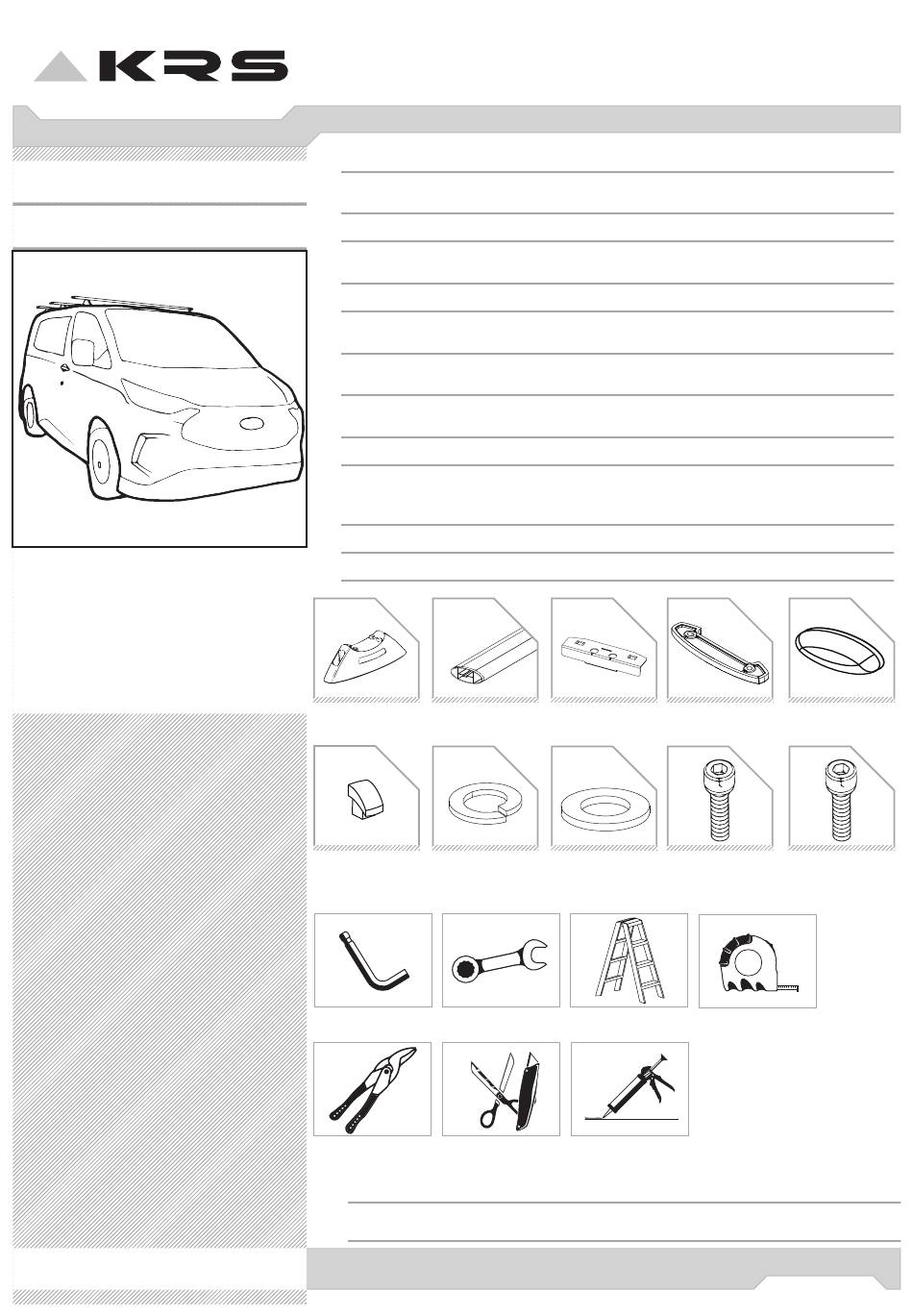

KRS 02FTC.24.3 Installation Manual

Roof Racks
Ford Transit Custom MY24+
KRS Maximum Load Ratings:
1 Bar = 50kg
2 Bar = 100kg
3 Bar = 150kg
4 Bar = 150kg
Note: These ratings are for the KRS product
itself and may differ from the vehicle, always
refer to the lower limit.
02FTC.24.3
P#:
Check List
Check the product part number on the Installation Guide matches the product

supplied.
 Check that all parts listed in the Installation Guide are present in the kit.
Do you have all of the required tools for installation including appropriate eye and

hearing protection (PPE)?
 Always check for airbags, wiring looms and cables before drilling the vehicle.
Additional Notes
Do not exceed the vehicle or KRS system maximum carrying capacity. Overloading will
void both KRS and vehicle warranty.
If the KRS roof rack system has a carrying capacity higher then the vehicle - do not
exceed the vehicle limit.
Do not put roof racks through an automatic car wash
On utility vehicles, If a KRS system is used on both the cabin and an external canopy,
keep only the dominant system rigid. This is to allow movement between the cabin
and canopy as they are independent.
After initial installation checks, periodically assess the tension of all fasteners.
Failure to follow these fitting instructions could result in vehicle or accessory damage
QTY
6

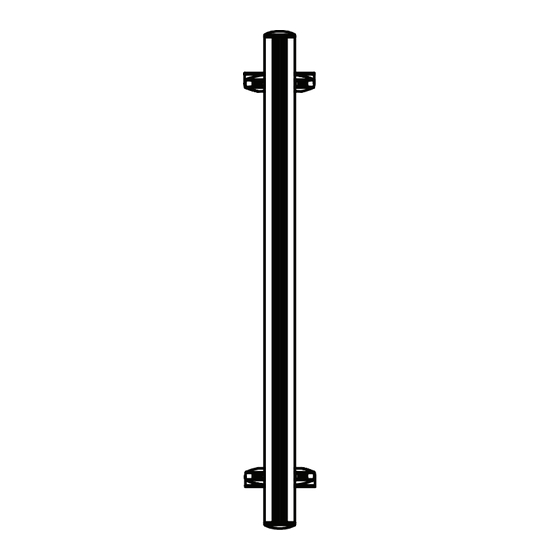

Minirack Foot Cross Bar
(assembled) & wind stripes)
QTY
12
Mini Rack Plugs M8 Spring
Washer SS
Tools Required
Allen Keys (6mm) Spanner (10,18mm)
Tin Snips Scissors / Blade
Torque Settings
Use these torque settings as a reference unless otherwise stated. Torque tools are not supplied
M6: 4-5Nm M8: 8-10Nm M10: 16-18Nm.
Installation Guide
QTY QTY
3 6
Minirack
(+ rubber Transit Custom Brkt
Spacer 10mm
ref: S24MC002
QTY QTY
24 12
M8 Flat Washer M8x30 Cap
SS Head Socket SS
Step Ladder
Silicone Sealant
Ed.1 23-09-2024
QTY
4
End Cap
QTY
16
M8x40 Cap
Head Socket SS
Measuring Tape
Page 1 of 3
QTY
6
QTY
8
