Synido Live Dock A20 Quick Connection Manual

Quick Connection
Guide

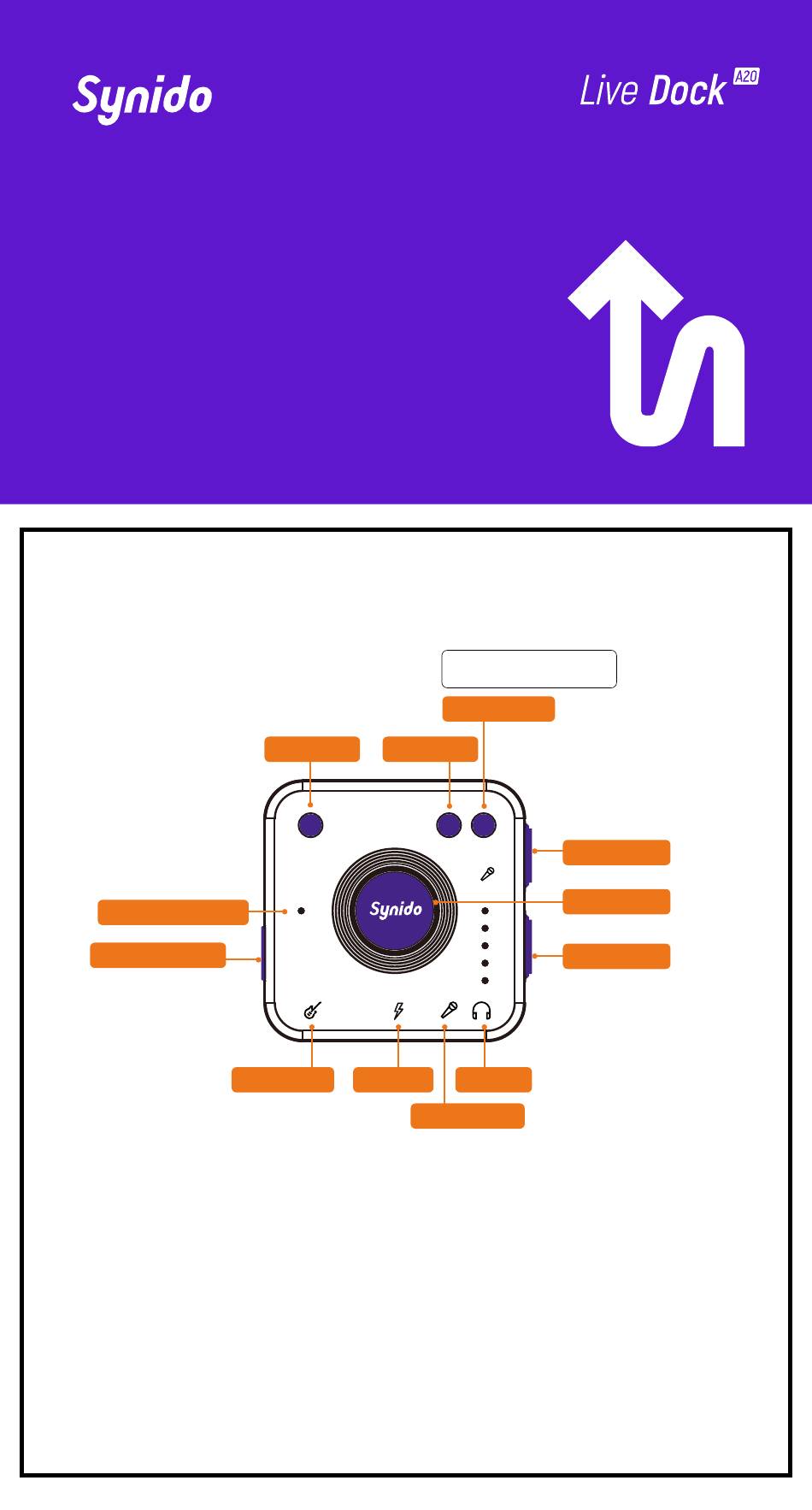

Interface Introduction
Instrument Signal Detection
Mobile Phone/Computer
Tips:
1.M/S Indicator: The red light indicates MONO input (electric guitar, pickups, etc.), while the green light i
ndicates STEREO input (drums, electric piano, effects, etc.).
M/S Switch Instructions:
When connecting a mono audio source, please switch to the M (MONO) mode (red light). If the S
(STEREO) mode is selected (green light), you may only hear sound in one ear during monitoring
and recording.
When connecting a stereo audio source, please switch to the S (STEREO) mode (green light).
If the M (MONO) mode is selected (red light), the sounds in the left and right channels may cancel
each other out.
2.Loopback Button: When enabled, the red light will be on, allowing the computer audio player to play
audio as accompaniment. It is recommended to turn this off when using a mobile device or tablet.

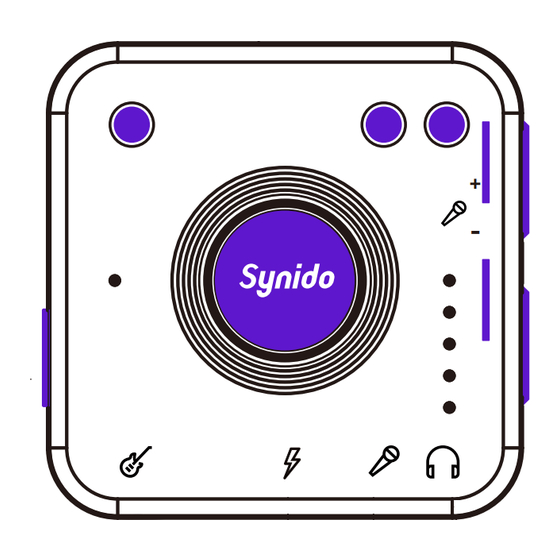

Bluetooth Switch Loopback Button
Instrument Input Power Supply
S Green: Stereo instrument input
M Red: Mono instrument input
Stereo/Mono Switch
Microphone Volume
+
-
Headphone Volume
Instrument Volume
Headphones
5V Microphone Input
