Conlog wCIU Installation Manual page 2

Installation instructions
To display the meter serial number, press
61
Pairing with the meter
Once powered, a new wUIU will have "SEr" shown on the display. Enter the serial number of the meter. If successful, the meter
will show "rF CON" with a tick, you should now see the amount of kWh remaining on the meter.
A blank unit Enter meter serial number
Re-pairing with a meter
Initiate a new pairing Enter meter serial number
# 1 0 0 #
C L
Checking for meter MCU pairing successful
MCU pairing successful
Checking for meter

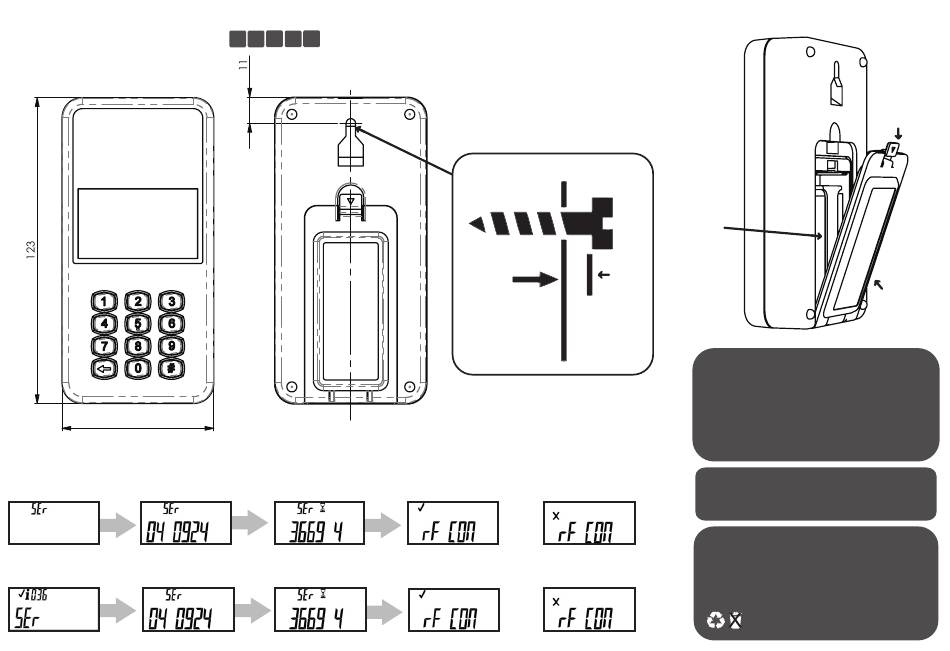

Wall-mount assembly
5mm
OR
MCU pairing unsuccessful
OR
MCU pairing unsuccessful
Insert
battery
into holder
INSTALLATION
• Position the wCIU correctly, ensuring that it is not near
any taps and not directly above a stove or sink
(minimum distance of 1m)
• Drill a hole in accordance with the dimensions printed on
back of the wCIU, deep enough to accomodate a wall plug
• Fit the wall plug and insert a screw, slot the wCIU onto the
mounted screw
• The wCIU may be used as a non-wall mounted loose
device in the home
COMPATABILITY
• This device is compatable with the wBECnano,
wBEC44(09), wBEC42(X) & wBEC44(X)
CAUTION
• Ensure replacement batteries are to standard. Incorrect
replacement may cause a hazard
• Dispose of used batteries in accordance with local
environmental laws
• Images are for reference purposes. Product configuration
shall be in accordance with customer requirements
• Do not install or keep unit in a metallic enclosure
• Ensure product is disposed off in accordance
with local and national regulations
Press to
close battery
cover
Secure
cover
