TO THE OWNER
THIS IS AN OPERATION AND MAINTENANCE MAN-
UAL ONLY AND DOES NOT COVER REPAIR. ALL
MAJOR REPAIR WORK MUST BE PERFORMED BY
AN AUTHORIZED BOLENS DEALER OR THE WAR-
RANTY IS VOID.
Bolens equipment is engineered to give good per-
formance if properly operated and maintained. Keep
your
equipment
clean
Periodically inspect the unit and perform any upkeep
maintenance necessary.
The dealer is obligated by the factory to completely
assemble and service new equipment and thoroughly
explain its operation. He will repair or replace any
parts which fail due to detective material or work -
manship during the warranty period, and also pro -
vide future repair service and parts. To insure con -
tinued satisfactory operation, insist th at your new
equipment be completely serviced and its operation
explained by your dealer at time at delivery
ASSEMBLY

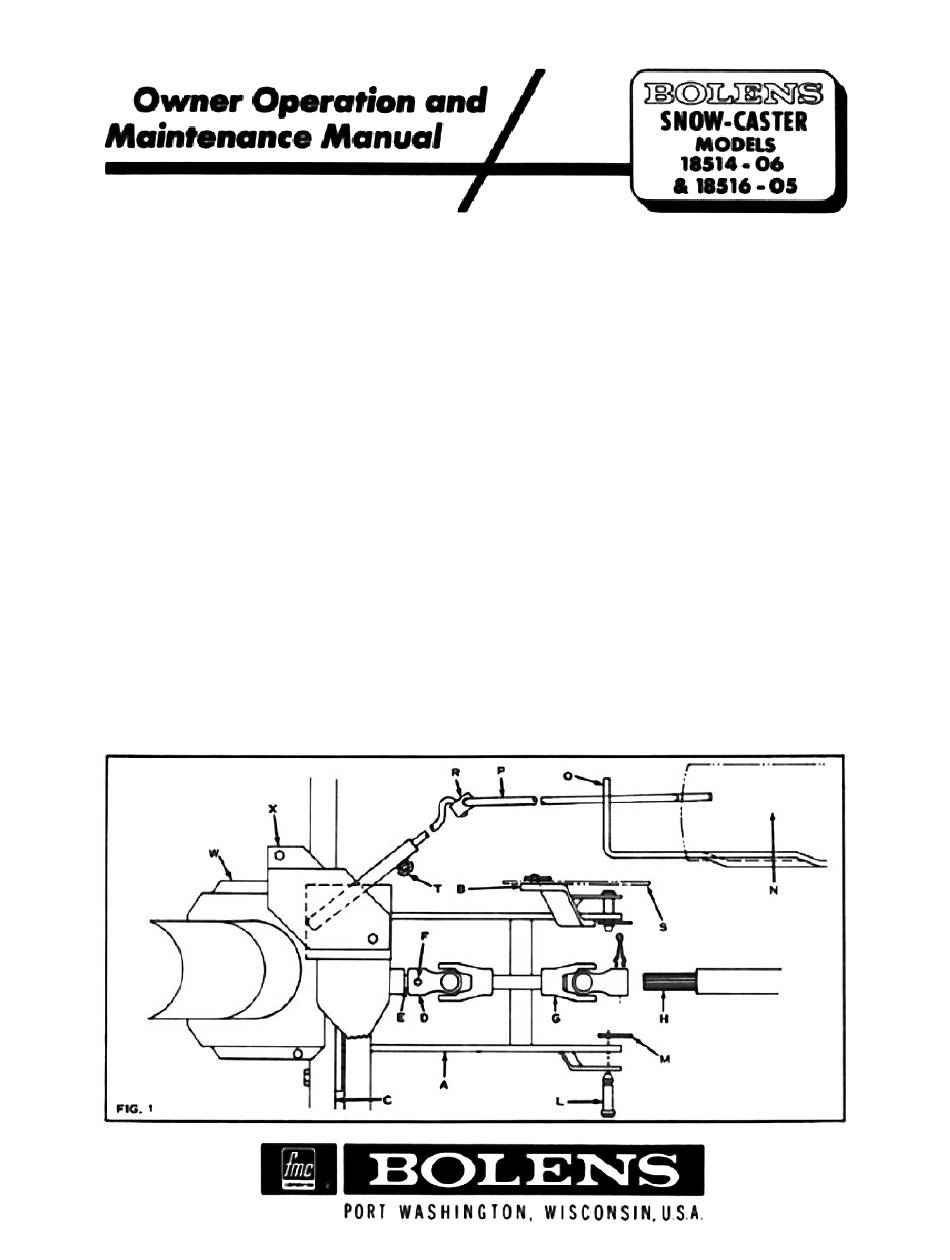

(1) Position outlet duct and cover assembly (W) over
o u t l e t h o l e in r o t o r h o u s in g s o t h a t th e o p en e n d o f
FORM NO. 551875
and
lubricate
regularly.
.
PR INT ED I N U. S. A .
co v e r is to t h e re a r. S ecu re a sse mb l y t o ro to r
housing with (4) 1/4-20 x 1/2 capscrews, (4) 1/4 flat
washers, (4) 1/4 lockwashers, and (4) 1/2 -20 hex
nuts.
(2) Next, mount chute control assembly (X) on top of
gear case support and rotor housing with (2) 5/16 -18
x 7/8 capsc rews, (2) 5/16 flat washers, (2) 5/16
lockwashers, and (2) 5/16-18 hex nuts as illustrated.
Be sure the pinion gear on the chute control assembly
is properly meshed with ring gear on outlet duct as -
sembly. The gears should fit snug but not bind and
can be properly adjusted by use of the slotted mount-
ing holes.
(3) Position deflector cap over top of outlet duct with
star washers between cap and outlet duct. Insert (2)
1/4-20 x 5/8 carriage bolts through holes fro m in-
side, add (2) 15/16 flat washers, and secure with (2)
wing nuts.
(4) Position the hitch (A) In back of rotor housing
with lift arm (B) upward. Attach hitch (A) to cross -
member (C) with 1/2-13 x 2-1/2" capscrews, lock-
washers, and lock nuts.
9/67
