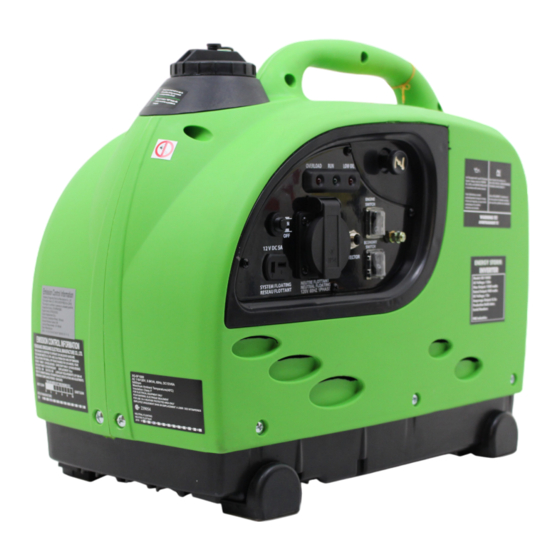

Model ESI-1000i
Please read this manual carefully before operating your new inverter generator.
(CA) in the model number designated California Compliant by CARB 8/12/2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the Energy Storm Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lifan Energy Storm Series

Summary of Contents for Lifan Energy Storm Series

  • Page 1 Model ESI-1000i Please read this manual carefully before operating your new inverter generator. (CA) in the model number designated California Compliant by CARB 8/12/2016...
  • Page 2 OPERATING INSTRUCTIONS AND OWNER’S MANUAL Energy Storm Series ESI-1000i PLEASE KEEP AND READ THIS MANUAL CAREFULLY BEFORE OPERATING YOUR NEW LIFAN POWER USA DIGITAL INVERTER GENERATOR RECORD PURCHASE HERE MODEL # ___________________________________ ENGINE ID # _______________________________ DATE OF PURCHASE _______________________...
  • Page 3 Never operate or let anyone operate this equipment while under the influence of any alcohol, drugs, or medication or when fatigued. Owner’s Manuals are available from Lifan Power USA at 1-866-471-7464.
  • Page 4 SPECIAL HAZARDS • CO Poisoning: Exhaust from engine contains carbon monoxide, a poisonous gas that can cause carbon monoxide poisoning and possible death if inhaled. • Electric shock: Operating equipment in wet conditions or near water can cause electric shock. •...
  • Page 5 TABLE OF CONTENTS Preface Operation of Generator ... . . Product Specifications ... Maintenance ....Safety Instructions .
  • Page 6 All LIFAN Power USA products are manufactured utilizing the latest technology. Built with quality components, your new Power Equipment Product will give you years of dependable service. Your unit, along with all of LIFAN Power USA products are designed, engineered, and manufactured with LIFAN’s Industrial Grade Gasoline Engine.
  • Page 7 PRODUCT SPECIFICATIONS POWERED...
  • Page 9 ONLY operate generators outdoors. Exhaust gas must be prevented from entering confined areas. Direct exhaust gas away from windows, doors, ventilation, and other openings. Do not operate this generator inside or under any buildings. WHEN ADDING OR DRAINING FUEL • Turn inverter generator off and let it cool for at least three minutes before removing fuel cap. Loosen cap slowly in order to relieve pressure in the fuel tank.
  • Page 10 CAUTION! Improper use and care of this inverter generatorr will cause damage and shorten its lifespan. Failure to follow these actions will void all warranties. • Use inverter generator only for appropriate and designated purposes. • The dealer or customer helpline (1-866-471-7464) can instruct you on intended uses.
  • Page 11 CONTROLS AND FEATURES EZ-CARRY HANDLE FUEL CAP CONTROL PANEL ANTI-VIBRATION LEG PADS...
  • Page 12 CONTROLS AND FEATURES EXHAUST PORT FUEL CAP ANTI-VIBRATION LEG PADS...
  • Page 13 CONTROLS AND FEATURES RECOIL STARTER FUEL CAP EZ-CARRY HANDLE ACCESS PANEL (remove for maintenance of air cleaner element, etc.) ANTI-VIBRATION LEG PADS FUEL SHUTOFF VALVE...
  • Page 14 CONTROLS AND FEATURES INDICATOR LIGHTS CIRCUIT PROTECTOR FOR DC SOCKET NEUTRAL GROUND TERMINAL DC SOCKET 120V AC RECEPTACLE...
  • Page 15 PRE-OPERATING INSTRUCTIONS: ASSEMBLY GENERATOR OIL DRAIN TUBE EXTENSION ALLIGATOR CLIPS SPARK PLUG OIL FILL BOTTLE SPARK PLUG 2 PC. WRENCH SCREWDRIVER UNPACKING THE GENERATOR: 1. Set the Carton on a Flat, Rigid Surface. 2. Remove All Contents from Carton EXCEPT Inverter Generator. 3.
  • Page 16 PRE-OPERATING INSTRUCTIONS: SETUP CAUTION: Any attempt to start the generator before it has been properly serviced may result in engine failure and void warranty. ADD ENGINE OIL: Refer to the diagrams below. 1. Place generator on level surface. 2. Remove the Access Panel (Refer to Controls and Features section). 3.
  • Page 17 PRE-OPERATING INSTRUCTIONS: SETUP WHEN ADDING FUEL • Turn generator off and let it cool for a minimum of three minutes before removing fuel cap. • Turn and remove cap slowly in order to relieve residual tank pressure. • Always fill the fuel tank with the unit outdoors. •...
  • Page 18 PRE-OPERATING INSTRUCTIONS: SETUP CAUTION: Any attempt to start the generator before it has been properly serviced may result in engine failure and void warranty. CHECK AIR CLEANER ELEMENT: Refer to diagram below. 1. Remove the Left Access Cover (Refer to Controls and Features section). 2.
  • Page 19 PRE-OPERATING INSTRUCTIONS: SETUP GROUNDING THE GENERATOR: Refer to the diagram below. 1. Connect the Ground Terminal on the generator to an acceptable source of electrical ground, such as a copper-grounding stake, using copper electrical wire with a minimum diameter of 16 gauges.
  • Page 20 • To prevent electrical shock from faulty appliances, the generator should be grounded. Connect a length of heavy cable between the generator’s grounding terminal and an external ground source. • This generator is not intended, nor designed, for use as a standby power supply, or to be connected to an automatic transfer switch (ATS);...
  • Page 21 • Only operate generator outdoors. • Prevent exhaust gas from entering, through windows doors or ventilation intakes, any confined areas. • DO NOT operate generator inside any enclosed or roofed areas. This includes the generator compartment of any recreational vehicle (RV). •...
  • Page 22 PULL-START (RECOIL) MODELS Your ESI 1000i-CA & ESI 2000i-CA is recoil Start. 3. Place the ignition switch in the “ON” (l) position 4. Grasp starter handle and pull slowly until resistance is felt. Then pull the cord rapidly with a full arm stroke. Allow the rope to return slowly.
  • Page 23 • The 120 V receptacles will not supply voltage, regardless of breaker settings. If your generator exhibits this behavior (it only idles, producing no voltage), take the generator to an authorized Lifan Power USA service center for servicing. NOTE: Use the running and starting wattage provided by the equipment manufacturer if available.
  • Page 24 This means there will be less energy for every power stroke. Call Lifan Power USA at 1-866-471-7464, Option – 2, for for High Altitude carburetor jets or to be directed to your nearest Authorized Service Center for re-jetting your carburetor.
  • Page 25 MAINTENANCE NOTE: Refer to Following Procedures for Proper Method to Perform Maintenance MAINTENANCE SCHEDULE...
  • Page 26 MAINTENANCE OIL CHANGE PROCEDURES: Periodic Maintenance of your engine oil should be performed after each 40 hours of use of you Power Equipment Product. Check your engine oil level prior to each use. 1. Start your engine and let it warm up to get the oil warm and thinner. Turn the ignition switch to the “STOP”...
  • Page 27 MAINTENANCE AIR CLEANER MAINTENANCE: Refer to Controls and Features section for diagram. 1. Remove Left Access Cover. 2. Remove the Air Cover Case. 3. Pull out the Air Cleaner cartridge following the direction of the arrow. 4. Check the Air Cleaner Element for cleanliness. If needed clean/replace Air Cleaner Element. 5.
  • Page 28 MAINTENANCE SPARK PLUG MAINTENANCE Recommended spark plug: F7RTC To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. 1. Loosen the cover screws and remove the maintenance door. 2. Remove the spark plug cap. 3.
  • Page 29 MAINTENANCE If the generator has been running, the Fuel Filter Fuel Filter muffler will be very hot. Element Removal Element Assembly Allow it to cool before proceeding. Spark Arrestor: • The spark arrester must be serviced every 100 hours to maintain its efficiency, or a decrease in Horsepower may occur.
  • Page 30 TRANSPORTING THE GENERATOR To prevent fuel spillage when transporting or during temporary storage, the generator should be secured upright in its normal operating position with the ignition switch “OFF” and turn the fuel cap vent to off position. When transporting the generator: •...
  • Page 31 • Place the unit in a clean, dry, and secure location. • Cover with “LIFAN Water Proof Generator Cover,” Item Number LF100-69600 not WARNING included) or canvas/vinyl tarpaulin. Do NOT operate unit with cover installed.
  • Page 32 2. Check if the AC (or DC) Circuit Breaker is in the “ON” position. If not, place in “ON” position. 3. If your unit still does NOT produce electricity after performing the previous checks, call LIFAN Power USA at 1-866-471-7464, your dealer, or authorized Service Center.
  • Page 33 AC APPLICATION 1. 120V AC Receptacle 2. AC Circuit Breaker 3. Grounding Terminal The control panel has an AC breaker (Circuit Protectors): For the 5-20R split duplex receptacle, and one (1) 10a DC breaker for the DC 12v receptacle. Ensure that the breaker is on for the receptacle you want to use. 1.
  • Page 34 OVERSPEED PROTECTION This generator has been designed to prevent the engine from “overspeed” revving. Overspeed revving occurs when a generator’s on-board monitoring systems detect a drop in voltage from the inverter, and the generator attempts to compensate by revving the engine higher to generate more electricity.
  • Page 35 LOW OIL ALARM SYSTEM The low oil alarm system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase falls below a safe limit, the low oil alarm system will automatically shut down the engine (the ignition switch will remain in the “ON”...
  • Page 36 WATTAGE CHART...
  • Page 37 WATTAGE CHART...
  • Page 38 WATTAGE CHART...
  • Page 39 CONVERTING AMPS OR HORSEPOWER INTO WATTS If necessary, use these formulas: Watts = Amps x Volts Running Watts* = Horsepower x 932** (for motors) Remember, this worksheet lists average power requirements a particular manufacturer’s device may use more or less than the listed wattage. •...
  • Page 40 In order to qualify for the limited warranty the product(s) must be purchased in North America from an authorized Equip- Source, LLF d/b/a Lifan Power USA dealer or a dealer authorized by EquipSource to sell Lifan products. This warranty is non-transferable and applies only to the original purchaser.
  • Page 41 REGISTERING YOUR PRODUCT This confirms your warranty coverage and provides a direct link between you and Lifan Power USA if we find it necessary to contact you. Your receipt for purchase including date, model and serial number must be maintained and registered to receive service from an Authorized Service Dealer for warranty service.
  • Page 42 There are no warranties extended other than as provided herein. This limited warranty may be modified only by Lifan Power USA. Any implied warranties allowed by law shall be limited in duration to the terms of the express warranty provided herein. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
  • Page 43 APPENDIX...
  • Page 44 EXPLODE...
  • Page 45 ED VIEW...
  • Page 49 ESI-1000i-CA WIRING DIAGRAM...
