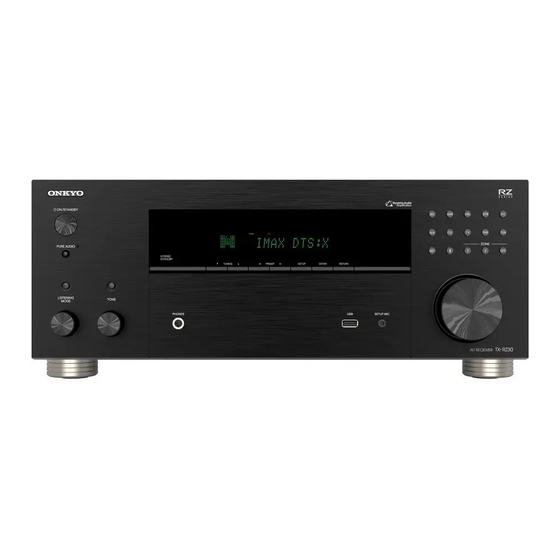

Onkyo TX-RZ30 Instruction Manual
  1. Manuals
  2. Brands
  3. Onkyo Manuals
  4. Stereo Receiver
  5. TX-RZ30
  6. Instruction manual

Onkyo TX-RZ30 Instruction Manual

9.2-channel av receiver/amplifier
Hide thumbs

Advertisement

Quick Links

Download this manual
Instruction Manual
9.2-CHANNEL AV RECEIVER /
9.2-CHANNEL AV AMPLIFIER
TX-RZ30
En

Advertisement

loading
Need help?

Need help?

Do you have a question about the TX-RZ30 and is the answer not in the manual?

Questions and answers

Related Manuals for Onkyo TX-RZ30

Summary of Contents for Onkyo TX-RZ30

  • Page 1 Instruction Manual 9.2-CHANNEL AV RECEIVER / 9.2-CHANNEL AV AMPLIFIER TX-RZ30...
  • Page 2 Table of contents Firmware Update Speaker Layout Speaker Layout Troubleshooting Main Room Main Room Room Supplementary Information Features, etc. released in firmware updates Zone 2 Zone 2 Zone 2 Zone 2 Speaker Connections Speaker Connections Reducing the Power Consumption in Standby State When the following functions are enabled, the power consumption in standby state increases.
  • Page 3 Before starting the procedure Connecting the Subwoofer Connecting a Power Amplifier Firmware Update Connections Update Information of the firmware Checking the Firmware Version of the Unit Notes regarding connections with HDMI cables Firmware Update Procedure Connections Part Names Connecting the TV Front Panel To ARC/eARC TV Display...
  • Page 4 Playing Back on multiple devices (AirPlay2) Amazon Music Basic Operations Registering This Unit with Amazon Music Turning the power on Playing Amazon Music using the Onkyo Controller Selecting a source to play Playing Amazon Music using the remote controller Adjusting the volume TIDAL...
  • Page 5 2. Multi Zone Sound Check Music Server 3. ARC Setup Music Server notes 4. Room EQ ® Windows Media Player 12 settings Onkyo Controller Playing Back Main features Play Queue Initial Setup Adding Play Queue Information Dirac Live Sort and Delete...
  • Page 6 Speaker Combinations License and Trademark General Specifications...
  • Page 7 Before starting the procedure „ What's in the box • Initial Setup Guide (1) * This is an online user manual. This is not supplied with the product. „ Note • Connect speakers with an impedance of 4 Ω to 16 Ω. •...
  • Page 8 Firmware Update Disclaimer: The program and accompanying online documentation are Firmware Update Procedure furnished to you for use at your own risk. Our company will not be liable and you will have no remedy for damages for Updating can take about 20 minutes. Furthermore, existing settings are any claim of any kind whatsoever concerning your use of the program or the maintained regardless of the method used for update.
  • Page 9 Updating via USB 4. Press ON/STANDBY on the main unit to turn the unit into standby mode. The process is completed, and your firmware is updated to the latest version. • While updating the firmware, do not do the following: •...
  • Page 10 firmware file. 4. Connect the USB storage device to the USB port of this unit. • If an AC adapter is supplied with the USB storage device, connect the AC • Others: adapter, and use it with a household outlet. After removing the power plug once, insert it to the outlet, and then start the •...
  • Page 11 Part Names Front Panel – HDMI Standby Through ( →p121) – USB Power Out at Standby ( →p128) – Network Standby ( →p129) – Bluetooth Wakeup ( →p129) D Display ( →p13) • When the Dimmer function is working, the display may go dim.
  • Page 12 Front Panel K LISTENING MODE button/dial: Press the LISTENING MODE button (above) to select a category from “Movie/TV”, “Music” and “Game”, and then turn the LISTENING MODE dial (below) to change the listening mode ( →p67). L TONE button: Adjusts the sound quality. Press the TONE button (above) to select an item to adjust from “Bass”, “Vocal”...
  • Page 13 Display may be displayed when software recorded in Dolby lineage or DTS lineage audio formats is played. For example, if "DialogNorm: +4 dB" is displayed, the source being played is recorded with 4 dB plus the THX standard level. If you play it with the THX standard level, lower the volume by 4 dB.
  • Page 14 Rear Panel D ETHERNET port: Connect to the network with an Ethernet cable. E AC INLET: Connect the supplied power cord. F HDMI OUT jacks: Transmit video signals and audio signals with an HDMI cable connected to a monitor such as a TV or projector. G HDMI IN jacks: Transmit video signals and audio signals with an HDMI cable connected to an AV component.
  • Page 15 Rear Panel banana plugs. Use a plug 4 mm in diameter.) Spade lug connection is not supported. L GND terminal: Connect the ground wire of the turntable. M AUDIO IN jacks: Input AV component audio signals with an analog audio cable. N 12V TRIGGER OUT jack: Connect a device equipped with a 12V trigger input jack to enable power link operation between the device and this...
  • Page 16 Remote Controller ON/STANDBY button the “BLUETOOTH” input selector is selected, B Input selector buttons: Switches the input to be pressing and holding this button for 5 seconds or played. more will switch to the pairing mode. C Play buttons: Used for playback operations RETURN button: Returns the display to the for the Music Server ( →p95) or USB device previous state while setting.
  • Page 17 Remote Controller L TONE buttons: Adjusts the sound quality. ( →p65) M LISTENING MODE buttons: Selects a listening →p67, mode ( p159). N DIMMER button: Switches the brightness of the display with three levels. It cannot be turned off completely. O ZONE 2/ZONE 3 SHIFT button: Used to control the multi-zone function ( →p86).
  • Page 18 Inputting Characters You can input characters or symbols on the keyboard displayed on the TV • Select "A/a" to switch between upper and lower cases. (Can also be switched screen such as when inputting a password for Wi-Fi Setup ( →p123) or naming with the MODE button on the remote controller.) a preset radio station ( →p119).
  • Page 19 Speaker Layout This unit can be used in different ways, depending on the layout of the speakers you are installing. Select the speaker layout that suits the installation environment, then confirm the methods for installation and connection. Speaker Layout 5.1ch 7.1ch 5.1.2ch 7.1.2ch...
  • Page 20 Speaker Layout The listening room and the speaker layout A ZONE A Speakers The speaker system set up in the main room (where this unit is located). B ZONE 2 Speakers The 2 ch speaker system set up in a separate room (ZONE 2). This enables you to play the same source in the main room and the separate at the same time, or to play separate sources.
  • Page 21 Speaker Layout 5.1 Channel System This is a basic 5.1 Channel System. Basic system ( →p28) 5.1 ch + ZONE 2/ZONE 3 ( →p28) 5.1 ch (Bi-Amping) ( →p28) Main Room Zone 2 Zone 2 Zone 3 Zone 3 5.1ch 7.1ch 5.1.2ch 7.1.2ch...
  • Page 22 Speaker Layout 7.1 Channel System This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back speakers. Basic system ( →p28) 7.1 ch + ZONE 2 ( →p28) 7.1 ch (Bi-Amping) ( →p28) Main Room Zone 2 Zone 2...
  • Page 23 Speaker Layout 5.1.2 Channel System A Speaker System that is a 5.1 Channel System with one set of height speakers added. 5.1.2 ch (Front High or Rear High) ( →p29) 5.1.2 ch (Top Front or Top Middle or Top Rear) 5.1.2 ch (Dolby Enabled Speakers (Front or ( →p29) Surround)) ( →p29)
  • Page 24 Speaker Layout 7.1.2 Channel System A Speaker System that is a 7.1 Channel System with one set of height speakers added. 7.1.2 ch (Front High or Rear High) ( →p30) 7.1.2 ch (Top Front or Top Middle or Top Rear) 7.1.2 ch (Dolby Enabled Speakers (Front or ( →p30) Surround or Surround Back)) ( →p30)
  • Page 25 Speaker Layout 5.1.4 Channel System A Speaker System that is a 5.1 Channel System with two sets of height speakers added. 5.1.4 ch (Front High and Rear High) ( →p31) 5.1.4 ch (Front High and Top Middle) ( →p31) 5.1.4 ch (Front High and Top Rear) ( →p31) 5.1.4 ch (Top Front and Top Rear) ( →p31) 5.1.4 ch (Top Front and Rear High) ( →p31) 5.1.4 ch (Front High and Dolby Enabled...
  • Page 26 Speaker Layout 5.1.4 Channel System 5.1.4 ch (Top Front and Dolby Enabled 5.1.4 ch (Top Middle and Rear High) 5.1.4 ch (Dolby Enabled Speakers (Front and Speakers (Surround)) ( →p31) ( →p31) Surround)) ( →p31) 5.1.4 ch (Dolby Enabled Speakers (Front) 5.1.4 ch (Dolby Enabled Speakers (Front) and and Rear High) ( →p31) Top Rear) ( →p31)
  • Page 27 Speaker Installation Setting Up the Speakers How the speakers are set up depends on the size and shape of the room, so here we introduce just a basic layout example. The alphabetic symbols used in this chapter represent the following speakers: Front speaker Left Front speaker Right Center speaker...
  • Page 28 Speaker Installation „ 5.1 Channel System „ 7.1 Channel System a: 22° to 30° a: 22° to 30° b: 120° b: 90° to 110° c: 135° to 150° FL, FR Place the left and right front speakers to match ear height. FL, FR Place the left and right front speakers to match ear height.
  • Page 29 Speaker Installation „ 5.1.2 Channel System Top Speakers High Speakers a: 22° to 30° b: 120° a: 30° to 55° 3´ (0.9 m) b: 65° to 100° or more c: 125° to 150° 3´ (0.9 m) or more TFL, TFR Fit top front speakers on the ceiling in front of the listening position. TML, TMR Fit top middle speakers on the ceiling directly above the listening position.
  • Page 30 Speaker Installation „ 7.1.2 Channel System Top Speakers High Speakers a: 22° to 30° b: 90° to 110° a: 30° to 55° c: 135° to 150° 3´ (0.9 m) b: 65° to 100° or more c: 125° to 150° 3´ (0.9 m) or more TFL, TFR Fit top front speakers on the ceiling in front of the listening position.
  • Page 31 Speaker Installation „ 5.1.4 Channel System Top Speakers High Speakers a: 22° to 30° b: 120° a: 30° to 55° 3´ (0.9 m) b: 65° to 100° or more c: 125° to 150° 3´ (0.9 m) or more TFL, TFR Fit top front speakers on the ceiling in front of the listening position. TML, TMR Fit top middle speakers on the ceiling directly above the listening position.
  • Page 32 Speaker Connections (Before starting the procedure) Speakers you can use with this unit and cable connections 4-16 Speaker Connections Connecting the Subwoofer 5.1 Channel System 35, 36, 37 7.1 Channel System 38, 39, 40 5.1.2 Channel System 41, 42, 43 7.1.2 Channel System 5.1.4 Channel System Connecting a Power Amplifier...
  • Page 33 Speaker Connections Speakers you can use with this unit and cable connections „ Speakers you can use with this unit This unit supports speakers with 4 Ω to 16 Ω impedance. For speaker impedance, check the speaker instruction manual. „ (Note) Speaker Impedance If any of the speakers to be connected has an impedance of 4 Ω...
  • Page 34 Speaker Connections Connecting the Subwoofer Connect a powered subwoofer with this unit using a subwoofer cable. Up to two powered subwoofers can be connected. 5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch a Subwoofer cable...
  • Page 35 Speaker Connections „ 5.1 Channel System 5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch...
  • Page 36 Speaker Connections „ 5.1 Channel System + ZONE SPEAKER (ZONE 2/ZONE 3) MAIN ROOM ZONE 2 ZONE 3 FL(Z2) FR(Z2) FL(Z3) FR(Z3) 5.1ch – Playing Back (ZONE 2) ( →p87) – Playing Back (ZONE 3) ( →p89) 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch...
  • Page 37 Speaker Connections „ 5.1 Channel System (Bi-Amping the Speakers) For high- frequency 5.1ch 7.1ch For low- frequency 5.1.2ch Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of 7.1.2ch your speakers as well.
  • Page 38 Speaker Connections „ 7.1 Channel System 5.1ch 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch...
  • Page 39 Speaker Connections „ 7.1 Channel System + ZONE SPEAKER (ZONE 2) MAIN ROOM ZONE 2 FL(Z2) FR(Z2) 5.1ch – Playing Back (ZONE 2) ( →p87) 7.1ch 5.1.2ch 7.1.2ch 5.1.4ch...
  • Page 40 Speaker Connections „ 7.1 Channel System (Bi-Amping the Speakers) For high- frequency 5.1ch 7.1ch For low- frequency 5.1.2ch Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of 7.1.2ch your speakers as well.
  • Page 41 Speaker Connections „ 5.1.2 Channel System 5.1ch 7.1ch 5.1.2ch *1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers). 7.1.2ch 5.1.4ch...
  • Page 42 Speaker Connections „ 5.1.2 Channel System + ZONE SPEAKER (ZONE 2) MAIN ROOM ZONE 2 FL(Z2) FR(Z2) 5.1ch – Playing Back (ZONE 2) ( →p87) 7.1ch 5.1.2ch *1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers). 7.1.2ch 5.1.4ch...
  • Page 43 Speaker Connections „ 5.1.2 Channel System (Bi-Amping the Speakers) For high- frequency 5.1ch 7.1ch For low- frequency 5.1.2ch Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of 7.1.2ch your speakers as well.
  • Page 44 Speaker Connections „ 7.1.2 Channel System 5.1ch 7.1ch 5.1.2ch *1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers). 7.1.2ch 5.1.4ch...
  • Page 45 Speaker Connections „ 5.1.4 Channel System 5.1ch 7.1ch 5.1.2ch *1 Connect the Height Speakers you have actually installed (HL1/HR1: Front Height Speakers, Top (front side) Speakers, Dolby Enabled Speakers (Front)). 7.1.2ch *2 Connect the Height Speakers you have actually installed (HL2/HR2: Rear Height Speakers, Top (rear side) Speakers, Dolby Enabled Speakers (Surround)). 5.1.4ch...
  • Page 46 Speaker Connections Connecting a Power Amplifier You can connect a power amplifier to the unit and use the unit as a pre-amplifier. This enables you to playback at high volumes that the unit by itself cannot produce. Connect the speakers to the power amplifier. For details, refer to the power amplifier’s instruction manual.
  • Page 47 Connections Notes regarding connections with HDMI cables Connecting the TV Connecting the SUB Monitor Connecting Playback Devices Connecting a TV or Integrated Amplifier in a separate room (Multi-zone) Connecting Antennas (North American and Connections Taiwanese models) Network Connection Connecting External Control Devices Connecting the Power Cord...
  • Page 48 Connections Notes regarding connections with HDMI cables HDMI (High-Definition Multimedia Interface) is a digital interface standard for „ (Note) Placement of cables connecting TVs, projectors, Blu-ray Disc players, game consoles, and other Putting a load on HDMI cables can lead to poor operational performance. Place video components.
  • Page 49 Connections Connecting the TV By connecting a TV to this unit, you can show the video from AV devices connected to this unit on the TV and also play the sound from the TV through this unit. To ARC/eARC TV SUB Monitor ( →p51) Be sure to insert the HDMI ZONE 2 ( →p55)
  • Page 50 Connections • Settings are required when 8K high-quality video is to be played. Refer to "HDMI 4K/8K Signal Format" ( →p104) for information on the settings. Also, use an HDMI cable that supports 8K video.
  • Page 51 Connections Connecting the SUB Monitor SUB Monitor Be sure to insert the HDMI cable all the way in. This unit has multiple HDMI OUT jacks, and another TV or projector can be connected to the HDMI OUT SUB jack. • Switch between MAIN and SUB using the HDMI MAIN/SUB button on the remote controller ( →p16) or "Quick Menu"...
  • Page 52 Connections Connecting Playback Devices Connections to Blu-ray/DVD Disc player and Game consoler with HDMI jacks This is a connection example of an AV component equipped with an HDMI jack. Be sure to insert the HDMI When connecting with an AV component that conforms to the CEC (Consumer cable all the way in.
  • Page 53 Connections Connecting a Blu-ray/DVD Disc player without HDMI Jack Mounted This is a connection example of an AV component unequipped with an HDMI jack. Select cables that match the jacks of the AV component for connection. For example, when video input is connected to the BD/DVD jack, connect the audio input to BD/DVD jack, too.
  • Page 54 Connections Connecting an Audio Component This is a connection example of an audio component. Connect a CD player using an analog audio cable. You can also connect a turntable that has an MM- type cartridge to the PHONO jack. • If the turntable has a built-in phono equalizer, connect it to any of the AUDIO IN jacks other than the PHONO jack.
  • Page 55 Connections Connecting a TV or Integrated Amplifier in a separate room (Multi-zone) Connecting a TV (ZONE 2) While a disc is played on a Blu-ray Disc player in the main room (where this unit Be sure to insert the HDMI is located), you can play the video and audio of the same Blu-ray Disc player or cable all the way in.
  • Page 56 Connections Connecting an Integrated Amplifier (ZONE 2) You can enjoy 2 ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). Use an analog audio cable to connect the ZONE 2 PRE/LINE OUT jacks on this unit to the input jack on an integrated amplifier in the separate room.
  • Page 57 Connections Connecting an Integrated Amplifier (ZONE 3) You can enjoy 2 ch audio in the separate room (ZONE 3) while performing playback in the main room (where this unit is located). Use an analog audio cable to connect the ZONE 3 PRE/LINE OUT jack on this unit to the input jack on an integrated amplifier in the separate room.
  • Page 58 Connections Connecting Antennas (North American and Taiwanese models) Connect the antenna to this unit, and set up the antenna at the best position for listening while receiving radio signals. Attach the indoor FM antenna to the wall using push pins or adhesive tape. a AM loop antenna, b Indoor FM antenna...
  • Page 59 Connections Network Connection This unit can be connected to the network using a wired LAN or Wi-Fi (wireless LAN). You can enjoy network functions such as Internet radio by network connection. If connection is made by the wired LAN, connect the router and the ETHERNET jack with the Ethernet cable as shown in the illustration.
  • Page 60 Connections Connecting External Control Devices IR IN port When connecting a remote control receiver unit consisting of an IR Receiver, etc. to this unit, operation using the remote controller is possible even if the remote control signal is difficult to reach (due to installation in the cabinet, etc.).
  • Page 61 Connections 12V TRIGGER OUT jack When connecting a device equipped with a 12V TRIGGER IN jack such as a BD/DVD player to this unit, the device can be turned on or set to standby by interlocking the operation on this unit. When the desired input is selected on the unit, power link operation will be activated with a control signal of maximum 12 V/100 mA from the 12V TRIGGER OUT jack.
  • Page 62 Connections Connecting the Power Cord Connect the power cord after all the connections are completed. • This model includes a removable power cord. Be sure to connect the power cord to the AC INLET of the unit first, and then connect it to the outlet. Always disconnect the outlet side first when disconnecting the power cord.
  • Page 63 Playback Basic Operations Basic Operations Listening Mode BLUETOOTH ® Playback Listening To the Radio (North American and Taiwanese models) Quick Menu Network Services Playback Spotify AirPlay ® Amazon Music TIDAL Connecting the Sonos System for Playback Internet Radio Convenience functions Multi-zone Playing different audio and video Playing music files saved on a USB storage device...
  • Page 64 – Pressing ON/STANDBY on the main unit. – Using the Onkyo Controller ( →p143) app You can also select a source to play with the following operations: – Using the linking function (HDMI CEC) ( →p66) –...
  • Page 65 – Using the MASTER VOLUME dial on the main unit the input source and listening mode setting. – Using the Onkyo Controller ( →p143) app – Using the linking function (HDMI CEC) ( →p66) You can also adjust the sound quality with the following operations: –...
  • Page 66 Playback Using the linking function (HDMI CEC) Switching the display By using a HDMI cable and connecting to a TV that is compatible with the Repeatedly pressing the button on the remote controller switches the display HDMI CEC (Consumer Electronics Control) function, you are able to perform of the main unit in the following order.
  • Page 67 Playback Listening Mode This unit is equipped with a variety of listening modes, and you can select the optimum listening mode for movies, TV, music, and games by pressing MOVIE/ TV, MUSIC, and GAME. ( →p159) • For details of the effects of each listening mode, refer to "Listening Mode Effects"...
  • Page 68 If a password is requested, enter "0000". • This unit is displayed as "Onkyo TX-RZ30 XXXXXX". This display can be changed using the Friendly Name function ( →p124) or Onkyo Controller ( →p143) (available on iOS or Android™).
  • Page 69 Playback Transmitting audio from this unit to • Depending on the BLUETOOTH wireless technology enabled device, you may need to pair manually. If the device name does not appear in the BLUETOOTH wireless technology enabled list, check the settings of the BLUETOOTH wireless technology enabled device.
  • Page 70 Playback Note • If this unit cannot connect to a BLUETOOTH wireless technology enabled device (wireless headphones, etc.), initialize the pairing information and perform pairing again. Firstly delete all the pairing information saved on this unit. In the Setup menu, select “Hardware” - “Bluetooth” - “Bluetooth Transmitter”...
  • Page 71 Playback Listening To the Radio (North American and Taiwanese models) „ Tuning Manually Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception. 1. Press the TUNER button on the remote controller repeatedly to select either “AM”...
  • Page 72 Playback Presetting a Radio Station „ Registration Procedure „ Selecting a Preset Radio Station You can preset up to 40 of your favorite radio stations. 1. Press TUNER. 2. Press the cursors LEFT/RIGHT to select a preset number. After tuning in to the radio station you want to register, perform the following „...
  • Page 73 Playback Quick Menu „ HDMI You can quickly set convenient features such as adjusting sound quality. HDMI Out: Select the HDMI OUT jack to output video signals from "MAIN", Quick Menu BD/DVD "SUB", and "MAIN+SUB". HDMI Discrete Audio Path Mode If the video is behind the audio, you can delay the audio to offset the A/V Sync: gap.
  • Page 74 Playback You can switch the type of digital filter in the AUDIO DAC (digital „ Audio Digital Filter: analog converter). You can choose "Slow" (gives the sound a soft and fluid feel), Music Optimizer: Improve the quality of the compressed audio. Playback sound "Sharp"...
  • Page 75 Playback „ Room EQ „ Level You can select the slots with registered filters measured with Dirac Live (*1): Front: Adjust the speaker level of the front speakers while listening to the sound. →p140, Dirac Live ( p144) from "Slot1" to "Slot3". Center: Adjust the speaker level of the center speaker while listening to the •...
  • Page 76 Playback Spotify Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how. The Spotify software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses...
  • Page 77 Confirm that this unit and the PC are connected to the same network beforehand. Then, press NET on the remote controller. Next, click the AirPlay icon in iTunes, select this unit from the displayed devices, and start play of a music file. iPhone Onkyo TX-RZ e.g., iOS 10...
  • Page 78 AirPlay-enabled iPhone device. Onkyo TX-RZ You can also play the music files on a PC with iTunes (Ver. 12.8 or later) Onkyo XXXXXXXX equipped. Confirm that this unit and the PC are connected to the same network Onkyo XXXXXXXX beforehand.
  • Page 79 Playback Amazon Music Registering This Unit with Amazon Music 1. Register with the Amazon account on Onkyo Controller. This cannot be set with operations on this unit. Refer to "Onkyo Controller" ( →p143) for information about the app. 2. Start Onkyo Controller and tap the unit when displayed.
  • Page 80 Playing Amazon Music using the Onkyo Controller 1. Start up Onkyo Controller. This unit is automatically displayed after startup. Then, tap and select this unit displayed. 2. Tap "NET" or "NETWORK" on the upper part of the screen to switch to the network screen.
  • Page 81 Registering this unit with TIDAL allows you to enjoy the music distribution service provided by TIDAL. You can register this unit on the screen of Onkyo Controller by downloading Onkyo Controller (available on iOS or Android™) to mobile devices such as a smartphone and tablet.
  • Page 82 Playback Connecting the Sonos System for Playback How to Connect This Unit and Sonos Port 1. Connect the Sonos Port to the AUDIO IN jack of this unit with the RCA audio cable supplied with the Sonos Port. Any input jacks other than the PHONO jack can be used.
  • Page 83 Playback Output Zone: With the cursors LEFT/RIGHT, select the ZONE where you want to listen to the music. "Main": Outputs audio only to the main room (where this unit is located). "Zone 2": Outputs audio only to the separate room (ZONE 2). "Main/Zone 2": Outputs audio to both the main room and separate room (ZONE 2).
  • Page 84 Playback Internet Radio By connecting this unit to an Internet-connected network, you can enjoy Internet radio services such as TuneIn Radio. • To play Internet radio services, the network needs to be connected to the Internet. • Depending on the Internet radio service, a user registration may be required on your PC beforehand. For details of each service, visit the website of each service. Playing Back Perform the following procedure when this unit is on.
  • Page 85 Playback Internet Radio Service Menu You can bookmark specific stations, or delete stations that have been bookmarked. The displayed menu varies according to the service being selected. The menu icon is displayed while a station is being played. When only this icon is displayed, pressing ENTER will display the menu on the screen.
  • Page 86 Playback Multi-zone Using Onkyo Controller ( →p143) is convenient for operations of multi-zone You can enjoy 2 ch audio in the separate room (ZONE 2/ZONE 3) while performing playback in the main room (where this unit is located). The playback. You can use it on mobile devices, such as a smartphone and tablet to same source can be played back in the main room and ZONE 2/ZONE 3 which Onkyo Controller (available on iOS or Android™) has been downloaded.
  • Page 87 Playback Turning ZONE 2 On/Off Playing Back (ZONE 2) 1. Face the remote controller at the unit, and while pressing and holding the Note ZONE 2 SHIFT button, press ON/STANDBY. To control on the main unit, press the ZONE 2 button on the main unit. When turning off, within 8 seconds of pressing the ZONE 2 button, press the OFF •...
  • Page 88 Playback Selecting a source to play in ZONE 2 Adjusting the volume in ZONE 2 1. While pressing the ZONE 2 SHIFT button on the remote controller, press the When ZONE 2 speakers are used input selector of the input you want to play in the separate room. 1.
  • Page 89 Playback Turning ZONE 3 On/Off Playing Back (ZONE 3) 1. Face the remote controller at the unit, and while pressing and holding the Note ZONE 3 SHIFT button, press ON/STANDBY. To control on the main unit, press the ZONE 3 button on the main unit. When turning off, within 8 seconds of pressing the ZONE 3 button, press the OFF •...
  • Page 90 Playback Selecting a source to play in ZONE 3 Adjusting the volume in ZONE 3 1. While pressing the ZONE 3 SHIFT button on the remote controller, press the When ZONE 3 speakers are used input selector of the input you want to play in the separate room. 1.
  • Page 91 Playback Playing different audio and video Displaying Your Favorite Video on TV While Playing Music While listening to the music from a CD or BLUETOOTH enabled device, you can display video on TV from an AV component such as a Blu-ray Disc player. •...
  • Page 92 Playback Setting the video source to be displayed on TV beforehand: When playing the audio of "TUNER", "NET" and "BLUETOOTH", you can set the input selector to be displayed on TV beforehand using "Video Select" ( →p120) on the Setup Menu.
  • Page 93 ENTER to confirm your selection. 6. Select the music file with the cursors, and then press ENTER to start Onkyo Controller ( →p143) is convenient for controlling the playback of music playback. stored on a USB storage device. It can be used on a smartphone or tablet to which you have downloaded Onkyo Controller (for use on iOS and Android™).
  • Page 94 Playback • The USB port of this unit complies with the USB 2.0 standard. The transfer USB Storage Device Requirements speed may be insufficient for some content you play, and sound interruptions, etc. may occur. • This unit can use USB storage devices that comply with the USB mass •...
  • Page 95 • Depending on the type of media server, the unit may not recognize it, or may not be able to play its music files. • Onkyo Controller ( →p143) is convenient for controlling the playback of music stored on a PC or NAS. It can be used on a smartphone or tablet to which you have downloaded Onkyo Controller (for use on iOS and Android™).
  • Page 96 Playback Playing Back 6. Select the target server with the cursors, and press ENTER to display the items list screen. • This unit cannot access pictures and videos stored on servers. Perform the following procedure when this unit is on. •...
  • Page 97 Playback Controlling Remote Playback from a PC You can use this unit to play music files stored on your PC by operating the PC ® in your home network. The unit supports remote playback via Windows Media ® Player 12. To use the remote playback function of this unit with Windows Media Player 12, it must be configured beforehand.
  • Page 98 The Play Queue information is effective until the power cord of this unit is removed from the outlet. Refer to "Onkyo Controller" ( →p143) for information about the app. Adding Play Queue Information 3.
  • Page 99 Playback 2. To reorder the tracks, tap the “ ” editing icon, then tap the “ ” icon of the 4. Tap the " " icon next to the track you want to delete to put in a " ", then track and drag it to the destination.
  • Page 100 Setup Setup Menu Web Setup Initial Setup with Auto Start-up Wizard Onkyo Controller Dirac Live Setup...
  • Page 101 Setup Setup Menu Use the on-screen displays (OSD) that appear on the TV to make the settings. Setup Press SETUP on the remote controller to display the Setup menu. UP/DOWN of the remote controller, and press the ENTER button to confirm your selection. 1.
  • Page 102 Setup 3. Audio Adjust 1. Multiplex/Mono Change the settings of multiplex audio playback. p116 2. Dolby Change the setting of when Dolby signals are input. p116 3. DTS/IMAX Change the setting of when DTS signals are input. p117 Set the low-frequency effect (LFE) level for Dolby Digital series, DTS series, Multichannel PCM, 4.
  • Page 103 Setup Setup 1. Input/Output Assign 1. Input/Output Assign ‰ Upscaling (Default Value: Off) „ 1. TV Out / OSD When a TV supporting 4K/8K is used, video signals input with 1080p can be Make settings for TV output and On-Screen Displays (OSD) that appear on the automatically output with 4K/8K.
  • Page 104 Setup Setup 1. Input/Output Assign ‰ HDMI 4K/8K Signal Format ‰ Zone 2 HDMI (Default Value: Not Use) Set the 4K/8K signal format input and output by this unit. Set to suit the TV or Make the setting when you output to the Zone 2 TV connected to the HDMI OUT player connected.
  • Page 105 Setup Setup 1. Input/Output Assign ‰ Mini Player OSD (Default Value: Always On) „ 2. HDMI Input You can display on the TV the images from another input selected last while You can change input assignment between the input selectors and HDMI IN playing the audio from NET or BLUETOOTH input.
  • Page 106 Setup Setup 1. Input/Output Assign „ 3. Video Input „ 4. Digital Audio Input Change input assignment between the input selectors and COMPONENT Change input assignment between the input selectors and DIGITAL IN VIDEO IN jacks and the VIDEO IN jacks. If you do not assign a jack, select "---". COAXIAL/OPTICAL jacks.
  • Page 107 Setup 1. Input/Output Assign „ 5. Analog Audio Input Change input assignment between the input selectors and AUDIO IN jacks. If you do not assign a jack, select "---". ‰ BD/DVD (Default Value: AUDIO 1) GAME (Default Value: AUDIO 2) CBL/SAT (Default Value: AUDIO 3) STRM BOX (Default Value: AUDIO 4)
  • Page 108 Setup Setup 2. Speaker 2. Speaker „ 1. Configuration ‰ Height 1 Speaker (Default Value: Top Middle) Set the speaker type if height speakers are connected to the HEIGHT 1 Change the settings of connection environment of the speakers. terminals. •...
  • Page 109 Setup Setup 2. Speaker ‰ Height 2 Speaker (Default Value: Rear High) ‰ Bi-Amp (Default Value: No) Set the speaker type if height speakers are connected to the SURROUND Set whether the speakers are bi-amp connected. BACK (HEIGHT 2) terminals. •...
  • Page 110 • When Dirac Live Bass Control ( →p144) is used, the crossover frequency frequencies for each channel. setting made here is not available. Set using Onkyo Controller ( →p143). "Full Band": Full band will be output. • If "Configuration" - "Subwoofer" is set to "No", "Front" is fixed to "Full Band", ‰...
  • Page 111 Setup Setup 2. Speaker „ 3. Distance Double Bass: This can only be selected when the setting for "Configuration" - "Subwoofer" is Set the distance from each speaker to the listening position. "1ch" or "2ch", and the "Front" setting is "Full Band". ‰...
  • Page 112 Setup Setup 2. Speaker „ 4. Level Calibration „ 5. Dolby Enabled Speaker Adjust the volume level of each speaker. Change the settings of Dolby Enabled Speakers. • This setting can be selected when "Configuration" - "Height 1 Speaker" / ‰...
  • Page 113 Setup Setup 2. Speaker „ 6. Equalizer Settings „ 7. THX Audio You can adjust the output volume of the range for each connected speaker. Change the THX Audio settings. Adjust the volume of different sound ranges for each speaker. You can set three ‰...
  • Page 114 Setup Setup 2. Speaker ‰ Loudness Plus (Default Value: On) „ 8. Speaker Virtualizer • This cannot be selected when either of the slots is selected with "Dirac Live" The Speaker Virtualizer function can be switched between On and Off. ( →p75).
  • Page 115 Setup 2. Speaker „ 9. Speaker Combo "Speaker Combo" is a function that optimizes the crossover value suitable for Klipsch speakers. Setting the Klipsch speaker model to be used with "Speaker Combo" updates the content of "Speaker" - "Crossover" on the Setup menu, and the crossover is set to the optimized value suitable for the speakers.
  • Page 116 Setup Setup 3. Audio Adjust 3. Audio Adjust „ 1. Multiplex/Mono „ 2. Dolby Change the settings of multiplex audio playback. Change the setting of when Dolby signals are input. ‰ Multiplex Input Channel (Default Value: Main) ‰ Loudness Management (Default Value: On) Set the audio channel or language to be output when playing multiplex audio or When playing Dolby TrueHD, enable the dialog normalization function which keeps the volume of dialog at a certain level.
  • Page 117 Setup Setup 3. Audio Adjust „ 3. DTS/IMAX ‰ IMAX User Setting (Default Value: Auto) When playing IMAX content with the IMAX sound mode, select whether to Change the setting of when DTS signals are input. automatically apply the speaker setting recommended by IMAX or to set it ‰...
  • Page 118 Setup Setup 3. Audio Adjust „ 4. LFE Level „ 5. Volume Set the low-frequency effect (LFE) level for Dolby Digital series, DTS series, Change the Volume settings. Multichannel PCM, and DSD signals. ‰ Volume Display (Default Value: Absolute) ‰ LFE Level (Default Value: 0 dB) Switch the volume display between the absolute value and relative value.
  • Page 119 Setup Setup 4. Source 4. Source „ 1. My Input Volume „ Audio Select Set a volume value for each input selector. Select the priority for input selection when multiple audio sources are connected ‰ My Input Volume (Default Value: Last) to one input selector, such as connections to both the "BD/DVD"...
  • Page 120 Setup Setup 4. Source „ Video Select OPTICAL When giving priority to input signal from DIGITAL IN OPTICAL jacks When "NET" or "BLUETOOTH" input is selected, you can set the input from • This item can be selected only when the input to be set is which video is displayed on the TV.
  • Page 121 When this function is not used When "Last" is selected, you can switch the input of the unit using the remote controller or the Onkyo Controller even in the standby mode. Auto,...
  • Page 122 Setup Setup 5. Hardware ‰ Audio TV Out (Default Value: Auto) ‰ Audio Return Channel (eARC supported) (Default Value: On) You can enjoy audio through the speakers of the TV while this unit is on. You can enjoy the sound of an HDMI-connected ARC-compatible TV or eARC- •...
  • Page 123 Setup Setup 5. Hardware „ 2. Network ‰ MAC Address (Default Value: -) Change the settings of the Network function. Check the MAC address of this unit. • When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure This value is specific to the component and cannot be changed.
  • Page 124 5. Hardware ‰ Friendly Name (Default Value: Onkyo TX-RZ30 XXXXXX) ‰ AirPlay Device Name (Default Value: Onkyo TX-RZ30 XXXXXX) Change the model name of this unit which is displayed on the device Change the model name of this unit which is displayed on the AirPlay- connected to the network to an easily recognized name.
  • Page 125 Setup Setup 5. Hardware ‰ AirPlay Password (Default Value: -) ‰ Privacy Statement (Default Value: Not Accepted) You can set a password of up to 31 characters so that only users that have When using a network service that requires a login name, email address, input can use AirPlay.
  • Page 126 Setup Setup 5. Hardware „ 3. Bluetooth ‰ Pairing Information (Default Value: -) You can initialize the pairing information stored on this unit. If you are no longer Change the settings for the BLUETOOTH function. able to connect with a device you have paired, try doing this. •...
  • Page 127 Setup Setup 5. Hardware ‰ Low Latency Mode (Default Value: Off) (Bluetooth Transmitter) ‰ Bluetooth Transmitter (Default Value: Off) If the audio from a device connected via BLUETOOTH is delayed compared to the video on the TV when watching a gaming screen, etc., you can reduce the Select whether or not to use the function that transmits audio from this unit to audio delay.
  • Page 128 Setup Setup 5. Hardware ‰ Auto Standby in HDMI Standby Through (Default Value: On/Off) „ 4. Power Management Enable or disable "Auto Standby" while "HDMI Standby Through" is on. Change the settings for the power-save function. • Default values vary depending on the regions. ‰...
  • Page 129 "On". application such as Onkyo Controller that can control this unit. • When this function is set to "On", the power consumption in standby state...
  • Page 130 Setup Setup 5. Hardware „ 5. 12V Trigger „ 6. Works with SONOS Set when outputting the control signal (maximum 12 V/100 mA) through the 12V Change the settings to connect with the Sonos Port. TRIGGER OUT jack. You can enable power link operation when you connect the (SONOS-1/SONOS-2/SONOS-3) unit and the external devices equipped with 12V trigger input jack.
  • Page 131 Setup 5. Hardware ‰ Output Zone (Default Value: Main) Select the zone where you want to listen to the music. • To use this function, set "Input Selector" beforehand. Main Outputs audio only to the main room (where this unit is located).
  • Page 132 Setup Setup 6. Multi Zone 6. Multi Zone „ 1. Zone 2 „ 2. Zone 3 Change the settings for Zone 2. Change the settings for Zone 3. ‰ Output Level (Default Value: Fixed) ‰ Output Level (Default Value: Fixed) Select whether to adjust the volume on the integrated amplifier in the separate Select whether to adjust the volume on the integrated amplifier in the separate room or on this unit when outputting to the separate room (Zone 2).
  • Page 133 Setup 6. Multi Zone „ 3. Remote Play Zone Change the settings for remote play. ‰ Remote Play Zone (Default Value: Auto) When playing with AirPlay or Spotify Connect, or when using the Music Server function to play remotely from your PC, you can set whether to play in the main room (where this unit is located) or in a separate room (Zone 2/Zone 3).
  • Page 134 ‰ Remote ID (Default Value: 1) ‰ Update via NET (Default Value: -) If multiple ONKYO products are installed in the same room, select the ID Press ENTER to select when updating the firmware via network. for the remote control used with this unit from "1", "2" and "3" to prevent •...
  • Page 135 Setup 7. Miscellaneous „ 4. Initial Setup Make the initial setup from the setup menu. • Wait for a while if "Initial Setup" cannot be selected. It can be selected when the network function is activated. „ 5. Lock Lock the Setup menu so that the settings cannot be changed. ‰...
  • Page 136 Setup Web Setup Menu operations You can make the settings for the network function of this unit using an Internet Device Information browser on a PC, smartphone, etc. You can change the Friendly Name or AirPlay Device Name, set an AirPlay Password, etc.
  • Page 137 Setup Initial Setup with Auto Start-up Wizard Operations When you turn the unit on for the first time after purchase, the Initial Setup screen is automatically displayed on the TV to allow you to make settings TV’s REMOTE required for startup using simple operations following on-screen guidance. Inputs 1.
  • Page 138 1. Speaker Setup Wi-Fi settings. • The search for this unit starts automatically when you start Onkyo 1. Select the connected speaker configuration and press ENTER. Controller. Tap this unit to select it when it is displayed, then follow the Note that the image on the screen changes each time you select the number guidance on the app to make the settings.
  • Page 139 Initial Setup. „ When measuring with Dirac Live Download the Onkyo Controller to your mobile device and use the app to operate the measurements. For details on how to measure with Dirac Live, refer to "Measuring with Dirac Live"...
  • Page 140 „ Measuring with Dirac Live tap "Yes". Use the Onkyo Controller to use Dirac Live to take measurements. Use the most • If the number of speaker channels set in "Speaker Setup" in Initial Setup recent version. Note that you cannot make settings using operations on this unit.
  • Page 141 Setup 6. The guidance about outputting the test tone is displayed. Refer to the illustration to set up the speaker setup microphone in the listening position. Follow the on-screen instructions to measure. • Measurement may not be possible if the test tone is too loud or too soft. Tap "Level Adjust"...
  • Page 142 Setup • When it cannot be resolved by performing the re-measurement, confirm „ Measuring with AccuEQ Room Calibration if the speakers are connected correctly. If there is any problem with the Place the supplied speaker setup microphone at the listening position. The unit speaker connection, perform the connection after disconnecting the power automatically measures the test tones output from each speaker, and sets the cord.
  • Page 143 (internet radio or play of a music file) without looking at the TV. • To use Onkyo Controller, this unit needs to be connected to the same network as the mobile device.
  • Page 144 Dirac Live Measuring with Dirac Live Use the Onkyo Controller to use Dirac Live to take measurements. Use the most recent version. Note that you cannot make settings using operations on this unit. Refer to "Onkyo Controller" ( →p143) for information about the app. Also have a tripod ready to set up the speaker setup microphone.
  • Page 145 Setup 5. Select the method of measurement. There are two methods of measuring • Measurement may not be possible if the test tone is too loud or too soft. to choose from; "Quick Measurement" which measures 3 locations; at the Tap "Level Adjust"...
  • Page 146 1. Start the Onkyo Controller and tap the unit when displayed. 2. Tap " " in the bottom of the Onkyo Controller screen to display a list of menus, then tap "Manual Adjust". 3. Select the slot to modify from "Slot1" to "Slot3", then tap "Next".
  • Page 147 Troubleshooting Before starting the procedure When the unit is operating erratically Try restarting the unit Resetting the unit (this resets the unit settings to the default) Troubleshooting „ When the power is turned on, "AMP Diag Mode" Troubleshooting appears on the display of the main unit „...
  • Page 148 Troubleshooting Before starting the procedure Problems may be solved by simply turning the power on/off or disconnecting/ connecting the power cord, which is easier than working on the connection, setting and operating procedure. Try the simple measures on both the unit and the connected device.
  • Page 149 Troubleshooting When the unit is operating erratically ‰ Try restarting the unit ‰ Resetting the unit (this resets the unit settings to the default) Restarting this unit may solve the problem. Set the main unit to standby, then after waiting for 5 seconds or more, press and hold the ON/STANDBY button If the restart of the unit does not solve the problem, reset the unit, and restore of the main unit for at least 5 seconds, and then restart the unit.
  • Page 150 Troubleshooting Troubleshooting ‰ When the power is turned on, "AMP Diag Mode" appears on the display of the main unit • The protection circuit function may have operated. If the unit suddenly enters the standby state and "AMP Diag Mode" appears on the display of the main unit when the power is turned on again, this function is diagnosing whether or not the main unit is malfunctioning or there is an abnormality with the speaker cable connection.
  • Page 151 Troubleshooting ‰ Determining the fault: None of the speakers produce sound Check the audio signal on the external device Check the test tone When the connection is digital You can determine whether there is a fault by checking the test tone. Use the following procedure to check if the digital audio signal is being detected by this unit.
  • Page 152 Troubleshooting ‰ Determining the fault: The left or right speakers 3. Press SETUP on the remote controller, then select "Speaker" - "Level Calibration". produce no sound A test tone is played from the left front speaker after a moment. There is no setting on this unit to turn off the audio of either the left or right 4.
  • Page 153 Troubleshooting ‰ Determining the fault: There is no video – If the setup menu is displayed • Normal operation with an HDMI-DVI adapter is not guaranteed. In addition, If the setup menu is displayed, there is probably a fault with this unit, or video signals output from a PC are not guaranteed.
  • Page 154 Troubleshooting ‰ Determining the fault: Unit turns off ‰ Determining the fault: Does not turn on If the unit turn off during use, the protection circuit may have tripped. First check if the HYBRID STANDBY indicator on the main unit is on. The HYBRID STANDBY indicator lights just by plugging the unit in, so if it does The protection circuit trips when there is a fault with the main unit or when there not light with the unit plugged in, there is probably a fault.
  • Page 155 Appendix Speaker Layouts and Selectable Listening Modes LISTENING MODE buttons and Selectable Listening Modes Input Formats and Selectable Listening Modes Listening Mode Effects Speaker Combinations General Specifications Appendix...
  • Page 156 Appendix Speaker Layouts and Selectable Listening Modes See the following table for selectable listening modes for each speaker layout. Speaker layout (ch) Listening mode 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4 (*2) (*2) DD (Dolby Audio - DD) (*1) (*1) (*1) (*2)
  • Page 157 Appendix Speaker layout (ch) Listening mode 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4 (*3) (*3) (*3) (*3) (*3) (*3) (*3) DTS-HD DTS:X DTS Neural:X (*3) IMAX DTS (*4) (*3) (*3) (*3) (*3) (*3) (*3) (*3) (*4) IMAX DTS:X IMAX Neural:X Speaker layout (ch) Listening mode 2.1.2...
  • Page 158 Appendix Speaker layout (ch) Listening mode 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4 Multich (Multichannel) (*1) (*1) (*1) (*1) (*1) (*3) (*3) (*3) (*3) (*3) (*3) (*3) (*3) (*3) (*1) (*1) (*1) (*5) (*5) (*3) (*3) (*3) (*3) (*3) (*5) (*5) (*1)
  • Page 159 Appendix LISTENING MODE buttons and Selectable Listening Modes Refer to the following table for the listening modes that can be selected with each LISTENING MODE button. LISTENING MODE buttons LISTENING MODE buttons Listening mode MOVIE/TV MUSIC GAME Listening mode MOVIE/TV MUSIC GAME DD (Dolby Audio - DD)
  • Page 160 Appendix LISTENING MODE buttons Listening mode MOVIE/TV MUSIC GAME THX Games THX Sel Games Orchestra Unplugged Studio-Mix TV Logic Game-RPG Game-Action Game-Rock Game-Sports AllCh Stereo Mono Music T-D (Theater-Dimensional)
  • Page 161 Appendix Input Formats and Selectable Listening Modes You can select a variety of listening modes Listening mode DTHD according to the audio format of the signal to be Pure Audio DSur (Dolby Audio (Dolby Atmos input. Direct (Dolby Audio (Dolby Audio - DD+) Audio - (*13)
  • Page 162 Appendix Listening mode IMAX DTS-HD IMAX DTS IMAX DTS (*2) DTS:X Neural:X Neural:X (*2) (*10) DTS:X (*10) (*6) (*10) Input format 2-channel signal input Analog / PCM Music file / DSD (*1) DD / DD+ / DTHD DTS / DTS 96/24 / DTS Express / DTS- HD HR / DTS-HD MSTR (*16)(*17) Multi-channel signal input Multich PCM...
  • Page 163 Appendix Listening mode Orchestra/ Unplugged/ AllCh THX Select T-D (Theater- Studio-Mix/ TV Logic/ Game- Stereo / Cinema/ Music/ (Multich Mono Dimensional) (*2)(*12) Action/ Game-Rock/Game- Mono Music Music/ Cinema/ PCM) (*2) (*9) Input format (*8) RPG/ Game-Sports (*7) Games (*11) Games (*5) 2-channel signal input Analog / PCM Music file / DSD (*1)
  • Page 164 Appendix (*1) You cannot select any mode other than Pure Audio, Stereo, AllCh Stereo and Mono Music if the sampling rate is 5.6/11.2 MHz. (*2) A center speaker or surround speakers need to be installed. (*3) If the input source is Blu-ray Disc and the speaker layout is 5.1 ch or less, DD+ cannot be selected. Instead, the listening mode for DD can be selected. (*4) This can only be selected when no surround back speaker is connected.
  • Page 165 Appendix Listening Mode Effects In alphabetical order installed. „ AllCh Stereo • To enable transfer of this audio format, connect via an HDMI cable and set the audio output on the player to Bitstream output. This mode is ideal for background music. Stereo sound is played through the •...
  • Page 166 Appendix „ Direct „ DTHD (Dolby Audio - TrueHD) This listening mode can be selected for all input signals. Processing that affects This mode faithfully reproduces the sound design recorded in the Dolby TrueHD sound quality is shut down, and sound closer to the original is reproduced. The audio format.
  • Page 167 Appendix „ DTS-HD „ Game-Action This mode faithfully reproduces the sound design recorded in the DTS-HD High This mode is suitable for games with a lot of action. Resolution Audio audio format or DTS-HD Master Audio. • The speaker calibrations measured with Dirac Live are disabled. These audio formats are optional audio formats on Blu-ray Discs.
  • Page 168 Appendix „ IMAX format input which includes IMAX Enhanced content. • IMAX Mode is set to "Auto" at the time of purchase ( →p117). The listening IMAX is an innovator in entertainment technology, combining proprietary mode automatically switches when IMAX Enhanced content is recognized, software, architecture and equipment to create experiences that take you beyond the edge of your seat to a world you've never imagined.
  • Page 169 Appendix „ Pure Audio „ THX THX is a series of specifications for the accurate reproduction of movies This mode reproduces the original sound more faithfully. The display and analog video circuit are turned off to provide purer sound. propounded by the film director George Lucas. THX listening modes include Note that the sound adjustment is not available when this mode is selected.
  • Page 170 Appendix speakers to surround speakers. – THX Sel Gam (THX Select Games): Select the THX Select Games mode to play game sound recorded in a multichannel format. In this mode, the • Adaptive Decorrelation THX ASA processing technology enables the playback of game sound in a While movie theaters have many surround speakers to enable the experience 360-degree sound field which was recorded in PCM, DTS, Dolby Digital and where viewers are surrounded with sound, home theaters normally have only...
  • Page 171 Appendix Speaker Combinations • Up to two powered subwoofers can be connected in either combination. Speaker SURROUND ZONE 2 (*1) ZONE 3 (*1) FRONT CENTER SURROUND HEIGHT 1 HEIGHT 2 Bi-AMP (*1) Channels BACK (ZONE SPEAKER) (ZONE SPEAKER) 2.1 ch 3.1 ch 4.1 ch 5.1 ch...
  • Page 172 Appendix License and Trademark ® The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Administrator,Inc. in the United States and other countries. Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
  • Page 173 "Theater-Dimensional" and "Theater-Dimensional (logo)" are trademarks of Use of the Made for Apple badge means that an accessory has been designed Onkyo Corporation. to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
  • Page 174 Appendix Before any home theater component can be THX Certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. This device has passed THX Certification requirements, which define thousands of parameters, from noise levels and distortion to frequency response and bass management.
  • Page 175 Appendix General Specifications Amplifier Section North American and Taiwanese models European, Middle East, Australian and Asian models (North American models) With 8 ohm loads, both channels driven, from 20 Hz- 20 kHz; rated 100 watts per channel minimum RMS 9 ch × 170 W at 6 ohms, 1 kHz, 1 ch driven of 1% THD power, with no more than 0.08% total harmonic Rated Output Power (IEC)
  • Page 176 Appendix Video Section North American and Taiwanese models European, Middle East, Australian and Asian models 1 Vp-p/75 Ω (Composite Video) 1 Vp-p/75 Ω (Component Video Y) Signal level 0.7 Vp-p/75 Ω (Component Video Pb/Pr) 480i/576i (Component Video) Correspoinding maximum resolution Tuner Section North American and Taiwanese models European, Middle East, Australian and Asian models...
  • Page 177 Appendix HDMI North American and Taiwanese models European, Middle East, Australian and Asian models Input Output 2 (MAIN, SUB/ZONE2) Input *1 Output SUB/ZONE 2 HDMI IN 1 - 6 MAIN ZONE 2 18 Gbps bandwidth 40 Gbps 40 Gbps 40 Gbps ALLM Gaming-VRR SBTM...
  • Page 178 Appendix Corresponding Frame rate Color space Color depth HDMI IN 1 - 6 input resolutions 24/25/30 Hz YCbCr4:2:2 12 bit (*1)Video compressed with DSC (Display (3840x2160p) 8 bit Stream Compression) can be input and YCbCr4:4:4/RGB output. DSC is a video compression 10/12 bit 4K SMPTE technique that enables the transmission of...
  • Page 179 Appendix Network Section North American and Taiwanese models European, Middle East, Australian and Asian models Ethernet LAN 1 (10BASE-T/100BASE-TX) IEEE 802.11 a/b/g/n/ac standard (Wi-Fi ® Wireless LAN standard) 5 GHz/2.4 GHz band MP3 (.mp3) • MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 and 320 kbps, and VBR/2 ch WMA (.wma) •...
  • Page 180 Appendix USB Section North American and Taiwanese models European, Middle East, Australian and Asian models 1 (Front : Ver.2.0, 5 V/1 A) MP3 (.mp3) • MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 and 320 kbps, and VBR/2 ch WMA (.wma) •...
  • Page 181 Appendix General North American and Taiwanese models European, Middle East, Australian and Asian models Power Supply AC 120 V, 60 Hz AC 220 - 240 V, 50/60 Hz Power Consumption 750 W 760 W Full Standby mode 0.2 W 0.2 W 1.8 W Network Standby (wired) 1.6 W...
  • Page 182 Appendix Video Inputs North American and Taiwanese models European, Middle East, Australian and Asian models Composite Component Audio Inputs North American and Taiwanese models European, Middle East, Australian and Asian models Analog 7 (Including PHONO×1) 2 (COAXIAL×1, OPTICAL×1) • Supported sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz, 44.1 kHz, 48 kHz, Digital 88.2 kHz, 96 kHz/16 bit, 20 bit, and 24 bit.
  • Page 183 SN 29404160A_EN © Copyright 2024 Premium Audio Company Technology Center K.K. All rights reserved. ©Copyright 2024 Premium Audio Company Technology Center K.K. Tous droits de reproduction et de traduction réservés. Privacy Policy, available at [https://onkyo.com/intl/privacy-policy]. O2408-1...
Save PDF
