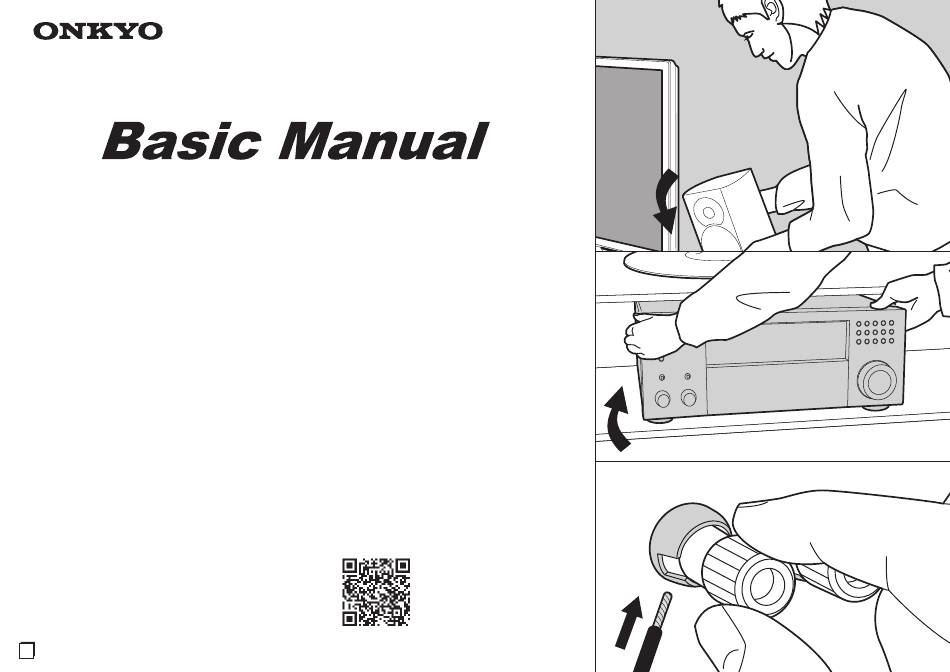

TX-RZ820 / AV RECEIVER
Before Start ..................................................................... 2
What's in the box............................................................... 2
Part Names ...................................................................... 3
Part Names ....................................................................... 3
Install ............................................................................... 7
Installation procedure ........................................................ 7
Step1: Speaker Layout ...................................................... 8
Step2: Connect the Speakers.......................................... 14
Step3: Connect the TV & AV Components...................... 16
Initial Setup ................................................................... 24
Initial Setup with Auto Start-up Wizard ............................ 24
Playback ........................................................................ 26
AV Component Playback................................................. 26
®
Playback................................................. 26
Network Functions........................................................... 27
USB Storage Device ....................................................... 28
Listening to the AM/FM Radio ......................................... 29
Multi-zone........................................................................ 31
Listening Mode................................................................ 33
For details about the Network Functions and listening modes, and
information regarding the advanced settings, refer to the
"Advanced Manual" available on our website.
http://www.onkyo.com/manual/txrz820/adv/en.html
En
Advertisement
Table of Contents
Related Manuals for Onkyo 889951000747
Summary of Contents for Onkyo 889951000747
-
Page 1: Table Of Contents
USB Storage Device ............28 Listening to the AM/FM Radio ......... 29 Multi-zone................ 31 Listening Mode..............33 For details about the Network Functions and listening modes, and information regarding the advanced settings, refer to the "Advanced Manual" available on our website. http://www.onkyo.com/manual/txrz820/adv/en.html... -
Page 2: Before Start
> Before Start > Part Names > Install > Initial Setup > Playback What's in the box 1. Main unit (1) 2. Remote controller (RC-911R) (1), Batteries (AAA/R03) 3. Speaker setup microphone (1) 0 Used during Initial Setup. 4. Indoor FM antenna (1) 5. -
Page 3: Part Names
> Before Start > Part Names > Install > Initial Setup > Playback (*)You can find details in the Advanced Manual. Part Names ... - Page 4 > Before Start > Part Names > Install > Initial Setup > Playback (*)You can find details in the Advanced Manual. 12.SLEEP button: Set the sleep timer. Select from "30 min", "60 min", and "90 min". 13.PHONES jack: Headphones with a standard plug (Ø1/4"/6.3 mm) are connected.
- Page 5 > Before Start > Part Names > Install > Initial Setup > Playback (*)You can find details in the Advanced Manual. 90° 180° ...
- Page 6 > Before Start > Part Names > Install > Initial Setup > Playback (*)You can find details in the Advanced Manual. Remote Controller 17.SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a subwoofer cable. Up to two powered 1.
-
Page 7: Install
> Before Start > Part Names > Install > Initial Setup > Playback Installation procedure This unit can be used in a number of ways, depending on the layout of the speakers you are installing, and the connections made to external devices. Read the following to help make the installation process smoother. -
Page 8: Step1: Speaker Layout
> Before Start > Part Names > Install > Initial Setup > Playback Step1: Speaker Layout 7.1 Channel System Front speakers output front stereo sound and a center speaker outputs center sound such as dialogs and vocals. Surround speakers create back sound field. Powered subwoofer reproduces bass sounds and creates rich sound field. - Page 9 > Before Start > Part Names > Install > Initial Setup > Playback 5.1.2 Channel System-1 (Front High Speakers/Rear High Speakers) This is a basic 5.1 channel system consisting of front speakers, a center speaker, surround speakers, and a powered subwoofer, with the addition of front height speakers or rear high speakers, which are both types of 3´...
- Page 10 > Before Start > Part Names > Install > Initial Setup > Playback 5.1.2 Channel System-2 (Ceiling Speakers) This is a basic 5.1 channel system consisting of front speakers, a center speaker, surround speakers, and a powered subwoofer, with the addition of top front speakers, top middle speakers, or top rear speakers, which are types of height speakers.
- Page 11 > Before Start > Part Names > Install > Initial Setup > Playback 5.1.2 Channel System-3 (Dolby Enabled Speakers (Dolby Speakers)) This is a basic 5.1 channel system consisting of front speakers, a center speaker, surround speakers, and a powered subwoofer, with the addition of Dolby enabled speakers (front), Dolby enabled speakers (surround) or Dolby enabled speakers (surround back) which are both types of height speakers.
- Page 12 > Before Start > Part Names > Install > Initial Setup > Playback Bi-Amping the Speakers With a 5.1 channel system, it is possible to connect front speakers that support Bi-Amping to improve the quality of the bass and treble. Bi-Amping compatible speakers need their terminals for the tweeters connected to one amplifier and their terminals for woofers connected to another amplifier, so it is not possible to connect height speakers...
- Page 13 > Before Start > Part Names > Install > Initial Setup > Playback Speaker combinations 0 In any of the combinations, up to two powered subwoofers can be connected. ZONE 2 SURROUND (ZONE SPEAKER) Speaker Channels FRONT CENTER SURROUND BACK HEIGHT Bi-AMP (P22)
-
Page 14: Step2: Connect The Speakers
> Before Start > Part Names > Install > Initial Setup > Playback Step2: Connect the Speakers Standard Connections (Pages 8 to 11) Connect 12345678 for a 7.1 channel system. Connect 1234569: for a 5.1.2 channel system. Up to two powered subwoofers can be connected. - Page 15 > Before Start > Part Names > Install > Initial Setup > Playback Connecting with Bi-Amping Speakers (Page 12) Make sure you remove the jumper bar fitted between the woofer jacks and tweeter jacks of the front speakers. Refer to "Standard Connections (Pages 8 to 11)" (P14) to connect the center speaker, surround speakers, and powered subwoofer.
-
Page 16: Step3: Connect The Tv & Av Components
> Before Start > Part Names > Install > Initial Setup > Playback Step3: Connect the TV & AV Components 1. Connect the TV To ARC TV For a TV that supports the ARC (Audio Return Channel) (*1) feature, use an HDMI cable and connect according to illustration "a". - Page 17 > Before Start > Part Names > Install > Initial Setup > Playback 2. Connect the HDMI AV Component This is an example of connection with an AV component that has an HDMI jack. With connection to an AV component that conforms with the CEC (Consumer Electronics Control) standard, you can use features such as the HDMI CEC feature (*) that links with the input selector, and the HDMI Standby Through feature which allows you to...
- Page 18 > Before Start > Part Names > Install > Initial Setup > Playback 3. Connect the Non-HDMI AV Component This is an example of connection with an AV component that does not have an HDMI jack. Make the connections to the AV component to match the jacks it has.
- Page 19 > Before Start > Part Names > Install > Initial Setup > Playback 4. Connect the Audio Component Example of a connection with an audio component. Connect a CD player using a digital optical cable or analog audio cable. You can also connect a turntable that has an MM-type cartridge to the PHONO jack.
- Page 20 > Before Start > Part Names > Install > Initial Setup > Playback 5. Multi-zone Connection-1 (ZONE 2 TV) You can enjoy content from a Blu-ray Disc player on a TV equipped with an HDMI input jack in the separate room (ZONE 2) by playing a Blu-ray Disc player in the main room (where this unit is located), or play the content from another AV component.
- Page 21 > Before Start > Part Names > Install > Initial Setup > Playback 6. Multi-zone Connection-2 (ZONE 2/3 PRE/ LINE OUT) You can enjoy 2ch audio in the separate room through speakers connected to a pre-main amplifier or power amplifier by, for example, playing a Blu-ray Disc player in the main room (where this unit is located) and listening to internet radio in the separate room (ZONE 2/ZONE 3).
- Page 22 > Before Start > Part Names > Install > Initial Setup > Playback 7. Multi-zone Connection-3 (ZONE (ZONE 2A for North SPEAKER) American models) You can enjoy 2ch audio in the separate room by, for example, playing a Blu-ray Disc player in the main room (where this unit is located) and listening to internet radio through the speakers in the separate room (ZONE 2).
- Page 23 > Before Start > Part Names > Install > Initial Setup > Playback 8. Connect Other Cables Antenna Hookup Move the antenna around while playing the radio to find the position with the best reception. Use a thumb tack or similar to attach the indoor FM antenna to a wall.
-
Page 24: Initial Setup
> Before Start > Part Names > Install > Initial Setup > Playback Initial Setup with Auto Start-up Wizard Initial Setup Starts Automatically When you turn the unit on for the first time after purchasing it, Initial Setup is automatically shown on the TV to enable you to make settings required for startup using simple operations following onscreen guidance. - Page 25 > Before Start > Part Names > Install > Initial Setup > Playback room as quiet as possible during measurement. The image on the screen changes as you choose the If you select "Scan Networks", there are a further two 0 If you have connected a subwoofer, check the power and volume of the number of channels in "Speaker Channels", so refer to it choices of connection method.
-
Page 26: Playback
0 Due to the characteristics of enter "0000". player connected to the BD/DVD jack. BLUETOOTH wireless technology, the 0 This unit is displayed as "Onkyo TX- Press TV to listen the TV's sound.To sound produced on this unit may slightly RZ820 XXXXXX". -
Page 27: Network Functions
> Before Start > Part Names > Install > Initial Setup > Playback Network Functions INPUT Basic Operations Spotify application on your smartphone to display a list of Network Functions on or tablet and create a Spotify premium the TV. By connecting this unit to the network you account. -
Page 28: Usb Storage Device
> Before Start > Part Names > Install > Initial Setup > Playback USB Storage Device INPUT Basic Operations 5. Press ENTER on the remote controller again in the next screen. The list of You can play music files stored on a USB folders and music files on the USB storage device. -
Page 29: Listening To The Am/Fm Radio
> Before Start > Part Names > Install > Initial Setup > Playback Listening to the AM/FM Radio You can receive AM and FM radio stations ST" indicator lights. 3. While pressing the cursors (b) on on this unit with the built-in tuner. Perform the remote controller, select the desired When FM broadcasts reception is poor: the following procedure when the unit is on. - Page 30 > Before Start > Part Names > Install > Initial Setup > Playback ∫ Using RDS (European and (Rock music) / Easy M (Middle of the road music) / Light M (Light classics) / Asian models) Classics (Serious classics) / Other M (Other music) / Weather / Finance / RDS stands for Radio Data System and is Children (Children’s programmes) /...
-
Page 31: Multi-Zone
> Before Start > Part Names > Install > Initial Setup > Playback Multi-zone turn the TONE dial to adjust. Basic Operations Pure Audio, it will automatically switch to input to be played in the separate room. the Direct listening mode. 0 On the main unit, after pressing ZONE You can enjoy audio in the separate room 2 or ZONE 3, within 8 seconds press... - Page 32 > Before Start > Part Names > Install > Initial Setup > Playback 0 The information for a connected device can be displayed on the TV To return the remote controller screen in a separate room. Press the to main room control mode: button while the remote controller While holding down MODE on the is in the mode for controlling ZONE 2.
-
Page 33: Listening Mode
> Before Start > Part Names > Install > Initial Setup > Playback Listening Mode Dolby Digital/DTS Modes Checking the Input Format and This unit is equipped with a variety of natural flow of timbre with the sound field listening modes, and you can select the towards the front. - Page 34 "Theater-Dimensional" and "Theater-Dimensional (logo)" are trademarks of Logo are trademarks or registered trademarks of HDMI Licensing LLC in the Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Onkyo Corporation. United States and other countries. Dolby Surround, Dolby Vision and the double-D symbol are trademarks of Dolby Laboratories.
- Page 36 For Product Support only: +33 969 368 138 http://www.fr.onkyo.com/fr/ F1710-1 (C) Copyright 2017 Onkyo & Pioneer Corporation Japan. All rights reserved. http://www.onkyo.com/privacy/ Printed in Malaysia / Imprimé en Malaisie * 2 9 4 0 2 7 9 0 A *...
