User Manual

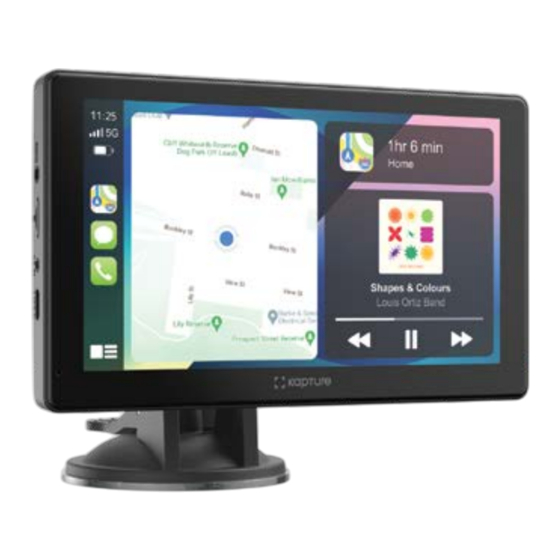

7.0" Connected Smart Monitor

Your Connection On The Road

SmartDrive 700

KPT-W70

Need help?

Do you have a question about the SmartDrive 700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kapture SmartDrive 700

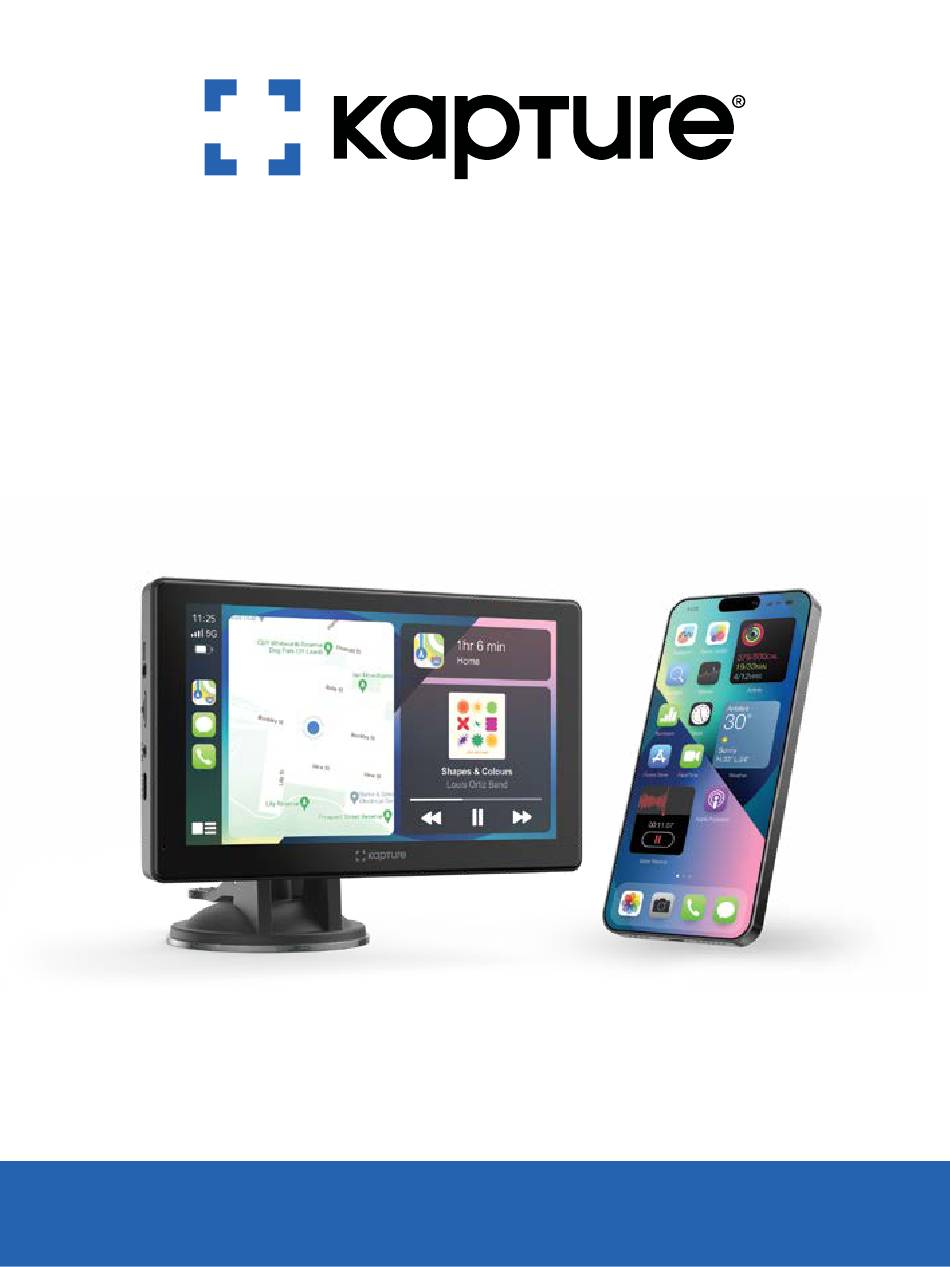

Page 1 User Manual 7.0" Connected Smart Monitor Your Connection On The Road SmartDrive 700 KPT-W70...
Page 2 CONTENTS Cautions Introduction Package contents Product overview Micro SD card installation Product installation Windscreen suction mount..... 10 Air con vent mount ........12 Rear camera installation Rear camera wiring ........15 Rear camera connection ......16 Rear camera features .......16 Power connection Auto power on/off ........17 Home screen Apple CarPlay ..........
Page 3 12.0 Reversing Camera Calibration 13.0 Settings 14.0 Basic set up 15.0 Troubleshooting 16.0 Additional explanation 17.0 Warranty Warranty terms and conditions ......41 Indemnity ..............42 Warranty and warranty disclaimer ....43 Limitations of kapture liability ......46 Your Connection On The Road...
Page 4 CAUTIONS • Please ensure you are using your Smart Monitor within your country's road laws. • Please make sure you are familiar with your local road legislation before use. • The time and date need to be set before you start using the product.
Page 5 • Always power this product using the supplied charger. • Never dismantle this product. • Do not dispose of this product in fire. • Disposal of this product should observe local regulations. Your Connection On The Road...
Page 6 INTRODUCTION Thank you for purchasing a Kapture KPT-W70 Smart Monitor. This product enables your smartphone to be seamlessly connected via Bluetooth and Wi-Fi for hands-free operation while driving. Please read through these instructions before attempting to install this product. For the latest...
Page 7 PRODUCT OVERVIEW Your Connection On The Road...
Page 8 1. Display screen 2. Power button: Long press to power on/off. Short press to turn on/off display. 3. AUX input 4. Micro SD card slot (Not provided) 5. Rear Camera input (Rear Camera Sold separately) 6. Type-C connector (for power supply) 7.
Page 9 MICRO SD CARD INSTALLATION Please insert the memory card into the Micro SD Card slot with the chip contact surface facing down. Insert until you hear a click. Your Connection On The Road...
Page 10 PRODUCT INSTALLATION There are two mounting options available for installation: 1. Windscreen suction mount 2. Air Con vent mount WINDSCREEN SUCTION MOUNT Figure: 1 • Insert the mount at the back of the KPT-W70. • Clean windscreen area where the suction mount is to be mounted.
Page 11 1. Clean the windscreen area where the suction mount is to be mounted. 2. Pull the suction cup lever up to release suction. 3. Press the suction mount on the windscreen and lock it by pressing the suction cup lever down until it snaps into place.
Page 12 AIR CON VENT MOUNT Figure: 2 • Choose area of aircon vent where the device is to be installed, then insert the mount hook into the air grille so it holds the grille piece. Turn the knob until it’s firmly scecured. •...
Page 13 MOUNTING NOTES • Please use only the included charging cable to power the Smart Monitor. Other cables may not work or may damage the product. REAR CAMERA KPT-UNICAM INSTALLATION (SOLD SEPARATELY) 1. Select a flat, central location near the number plate lamp at the rear of your vehicle to mount the camera.
Page 14 4. Insert the rear camera cable through the intended drilled hole and check the installation position. 5. Mark a position suitable for the second screw and drill a small hole. 6. Fasten the second screw and tighten both screws securely. Figure: 3...
Page 15 REAR CAMERA WIRING To enable the KPT-W70 to display the Rear Camera view when the vehicle is in reverse gear, the red Reversing Light Wire must be connected to the reverse light circuit. Otherwise, the Rear Camera will not work in conjunction with reverse gear.
Page 16 REAR CAMERA CONNECTION (Camera sold separately, Part No: KPT-UNICAM) Connect the Rear Camera cable from the Smart Monitor to the Rear Camera as shown above. REAR CAMERA FEATURES After successfully installing and connecting the rear camera into the main front unit, the rear camera images will be displayed on the KPT-W70 display screen.
Page 17 POWER CONNECTION • Only use the supplied 12/24V power adaptor to power the KPT-W70. • Once the KPT-W70 is securely installed on the windscreen or dashboard, plug the 12/24V power adaptor cable into the vehicle’s 12/24V power port. • Run the cable along the vehicle’s dashboard and plug the Type-C connector into the KPT-W70.
Page 18 HOME SCREEN ™ 1. Apple CarPlay : Touch for instructions to connect with iPhone. ™ 2. Andriod Auto : Touch for instructions to connect with Android phones. 3. Rear Camera: (Sold separately).
Page 19 4. Volume Button: Touch to adjust volume. 5. Brightness Button: Touch to adjust screen brightness. 6. Micro SD card content 7. Do Not Disturb Mode: Touch to enable auto reject of incoming calls. 8. Audio Output: Touch to change the sound output via Bluetooth, FM , AUX, or built-in speaker.
Page 20 APPLE CARPLAY FIRST-TIME CONNECTION Touch the Apply CarPlay icon to show the connection instructions. After first connection, it will show 'Connected' and display the Apple CarPlay menu. 8.1.1 IPHONE SET-UP • Please turn on Bluetooth and Wi-Fi on your iPhone. •...
Page 21 • After successful Bluetooth pairing, Wi-Fi will automatically connect between the KPT-W70 and your iPhone. • Allow Contacts and Favorites Sync will pop up on your phone, please touch Allow. • Use CarPlay with 'KPT-W70' will pop up on your phone, please click Use CarPlay. •...
Page 22 Press Exit to return to the main screen. When this screen is powered on, it will automatically connect to the last connected phone. ANDROID AUTO FIRST-TIME CONNECTION Touch the Android Auto icon to show the connecting instructions. After first connection, it will show Connected and display the Android Auto menu.
Page 23 8.2.1 ANDROID AUTO SET-UP HOW TO SET UP: Touch the Android Auto icon. Turn on the Wi-Fi and Bluetooth on the mobile phone; tap 'Pair New Device' (in Bluetooth settings) on your phone and find the Bluetooth name 'KPT-W70_XXXX' in the Bluetooth list, click to pair.
Page 24 From now on, connection between the KPT-W70 and your Android phone will be automatic each time the KPT-W70 is powered on when your phone is within close proximity. Press Exit to return to the main screen. NOTE: • First-time connection will take slightly longer. •...
Page 25 AUDIO OUTPUT Default sound output is set from the device’s in- built speaker. To improve the sound experience, it’s recommended to change the sound output to Car Audio via Bluetooth or FM or AUX. Car Audio is recommended. Your Connection On The Road...
Page 26 CAR AUDIO How to connect to car audio via Bluetooth 1. Touch icon 1 2. Touch icon 2 3. Touch icon 3 4. Touch the button on icon 4 to turn On /Off...
Page 27 Your Connection On The Road...
Page 28 FM TRANSMITTER 1. Touch icon 1. 2. Touch icon 2. 3. Touch icon on the menu bar. 4. Touch icon 4 to turn On/Off. The FM Transmitter can be used to transmit audio from the KPT-W70 to your vehicle’s stereo speakers. When you turn on the FM Transmitter, the KPT-W70 will be muted.
Page 29 Your Connection On The Road...
Page 30 1. Touch icon 1. 2. Touch icon 2. 3. Touch icon 3. 4. Touch icon 4 to turn On/Off.
Page 31 If your device is connected via an auxiliary cable to the AUX port of your vehicle, select AUX to play audio through the car stereo speakers. Your Connection On The Road...
Page 32 10.0 BUILT-IN SPEAKER If you want to use the KPT-W70's in-bulit speaker, follow steps below: 1. Touch icon 1. 2. Touch the button in icon 2 to turn On/Off.
Page 33 11.0 MICRO SD CARD MEDIA FILE The MICRO SD card can be used to store movies and music, which can be played once the card is inserted into the slot. Please use MICRO SD cards from major brands such as SanDisk, Kingston, Toshiba, and Samsung.
Page 34 12.0 REVERSING CAMERA CALIBRATION After connecting the camera (sold separately) successfully, please follow below steps: tap to change image to mirror or non-mirror, the change will be effective after you next power on. Flip the image upside down. Flip the image left to right. Flip the image left to right and upside down.
Page 35 aligning with the rearmost edge of the parking space). 4. Stop when screen's guidelines are aligned with actual space. Set up will be applied when you next power on. 13.0 SETTINGS Click the right icon on the menu bar. 14.0 BASIC SET UP Your Connection On The Road...
Page 36 15.0 TROUBLESHOOTING PROBLEM SOLUTION Unable to turn on Check if DC head of the cigarette lighter CarPlay Screen. power cord is damaged or aging. Ensure power plug is not disconnected or burned out. Touch screen is not Reset the unit to factory mode and try again. responding.
Page 37 PROBLEM SOLUTION Android Auto cannot Only Android phones are supported. connect. Update Android system and related applications to the latest version. Disconnect any VPN on the mobile phone if applicable. Ensure WiFi and Bluetooth functions on mobile phone are working. Restart the Android phone and reconnect.
Page 38 PROBLEM SOLUTION When connecting Check if another phone is connected or CarPlay or Android attempting to auto-connect to the CarPlay Auto, Bluetooth of screen. Disconnect Bluetooth/WiFi from device cannot be other phones, then connect the preferred seen or cannot be device again.
Page 39 MORE INFORMATION ON CARPLAY: Wireless CarPlay supported phone models should be running operating systems above iOS 9. The following phones are compatible with CarPlay: iPhone 15, iPhone 15 Plus, iPhone 15 Pro, iPhone 15 Pro-f, iPhone 14, iPhone 14 Plus, iPhone 14 Pro, iPhone 14 Pro-Max, iPhone 13 Pro, iPhone 13 Pro-Max, iPhone 13, iPhone 13 mini, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 11, iPhone XS, iPhone XS-Max, iPhone XR, iPhone X, iPhone 8, iPhone...
Page 40 Based on the working principle of the CarPlay Screen, please pay attention to the following: When using CarPlay/Android Auto function, the phone's WiFi will be occupied by the CarPlay Screen. You need to manually disconnect other WiFi to keep the wireless CarPlay/Android Auto in use.
Page 41 17.0 WARRANTY WARRANTY TERMS AND CONDITIONS Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
Page 42 Electronics, will be borne by you. Phone: +61 03 8331 4800 Email: info@kapturecam.com.au INDEMNITY You agree to defend, indemnify and hold harmless Kapture and its subsidiaries and affiliates from and against any and all claims, proceedings, injuries, liabilities, losses, costs and expenses (including reasonable legal...
Page 43 WARRANTY AND WARRANTY DISCLAIMER Kapture has a limited warranty on whereby Kapture warrants to you and only to you that Kapture products will be free from defects in materials and workmanship for one (1) year from the date of your purchase (unless a longer warranty period is required by law).
Page 44 Kapture (including third party content), that any defects in the Kapture will be corrected or that the Kapture products or services will be compatible with any other specific hardware or service.
Page 45 Kapture does not undertake any risk that you or property, or the person or property of others, may be subject to injury or loss if such an event occurs. The allocation of such risk remains with you, not Kapture. Other than the above product warranty for...
Page 46 Kapture. Any liability for negligence is limited to direct losses usually and typically foreseeable in such case.
Page 47 Additionally, this provision is not intended to limit Kapture’s liability in the event of Kapture’s wilful or intentional misconduct. Your Connection On The Road...
Page 48 V1.0 Your Connection On The Road www.kapturecam.com.au | www.kapturecam.co.nz All Images, Information and Content are Copyright © 2024 www.directed.com.au Directed Electronics Australia Pty Ltd. All Rights Reserved. www.directed.co.nz...
