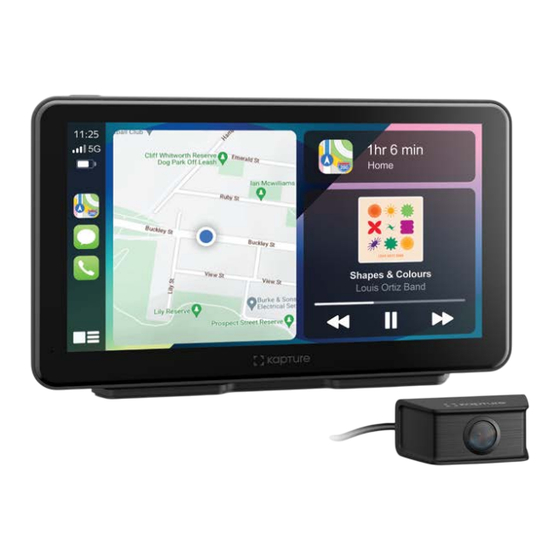

User Manual

7.0" Connected Smart Monitor

With Dual Channel Dash Camera

Your Connection On The Road

SmartDrive 702

KPT-W72

Need help?

Do you have a question about the SmartDrive 702 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kapture SmartDrive 702

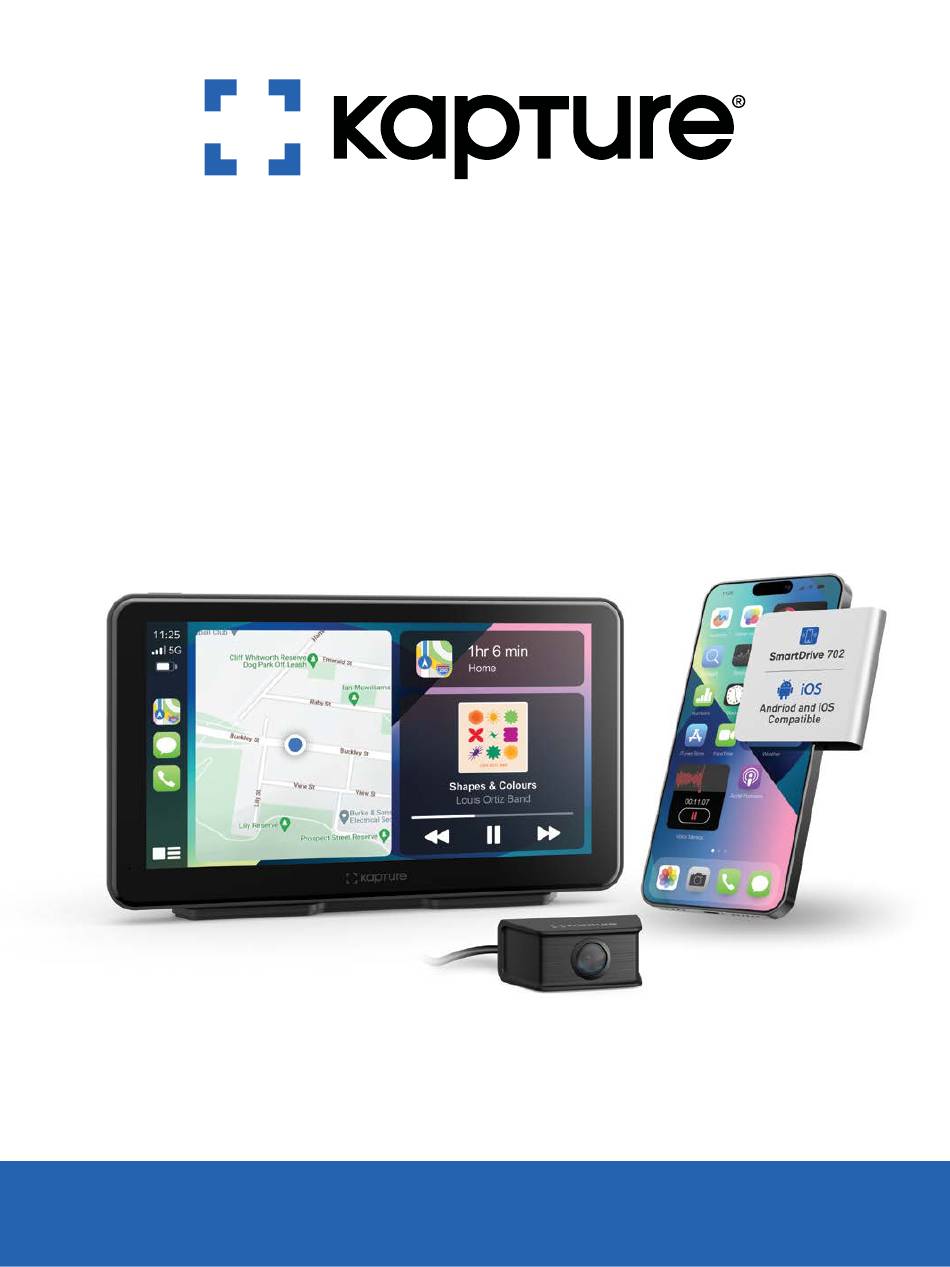

Page 1 User Manual 7.0" Connected Smart Monitor With Dual Channel Dash Camera Your Connection On The Road SmartDrive 702 KPT-W72...
Page 2 CONTENTS Cautions Warning Micro SD card warning Introduction Package contents Product overview Micro SD card installation Product installation Windscreen suction mount..... 10 3M adhesive suction mount ....12 Rear camera installation Rear camera wiring ........16 Rear camera connection ......16 Rear camera features .......17 Power connection Auto power on/off ........18 Micro SD card...
Page 3 Home screen Dash camera..........22 Apple CarPlay ..........24 9.2.1 iPhone set-up ..........24 Android Auto ..........26 9.3.1 Android Auto set-up ......27 10.0 Audio output 10.1 KPT-W72 Speakers ........29 10.2 Car Audio ............ 30 10.3 FM Transmitter..........32 10.3.1 FM Transmitter set-up ......33 10.4 AUX ..............33 11.0...
Page 4 CAUTIONS • Please ensure you are using your Dash Camera within your country's road laws. • Please make sure you are familiar with your local road legislation before use. • The time and date need to be set before you start recording.
Page 5 WARNING • Always power this product using the supplied charger. • Never dismantle this product. • Do not dispose of this product in fire. • Disposal of this product should observe local regulations. MICRO SD CARD WARNING • This product can only be used with Micro SD Cards, Class 10 or above with 32GB to 256GB storage capacity.
Page 6 INTRODUCTION Thank you for purchasing a Kapture SmartDrive 702 Wireless Smart Monitor with Dual Channel Dash Camera. This product enables your smartphone to be seamlessly connected via Bluetooth and Wi-Fi for hands-free operation while driving. It also comprises a built-in front Dash Camera and a rear camera to facilitate hassle-free driving and navigation.
Page 7 PRODUCT OVERVIEW Your Connection On The Road...
Page 8 1. Display screen 2. AUX input 3. Micro SD card slot 4. Rear camera input 5. Microphone 6. Type-C connector (for power supply) 7. Front camera lens 8. 3M adhesive/magnectic mount 9. Speaker vent 10. Reset button - Press this button to restart the device.
Page 9 MICRO SD CARD INSTALLATION Please insert the memory card into the Micro SD Card slot with the chip contact surface facing up. Insert it until you hear a click sound. Your Connection On The Road...
Page 10 2. 3M adhesive mount WINDSCREEN SUCTION MOUNT Figure: 1 • Insert the magnetic mount holder at the back of the SmartDrive 702. • Clean the windscreen area where the suction mount is to be mounted. • Unlock the mount. • Press the suction mount on the windscreen...
Page 11 4. Pull the suction cup lever up to release suction. 5. Press the suction mount on the windscreen and lock it by pressing the suction cup lever down until it snaps into place. 6. Snap the SmartDrive 702 onto the magnetic mount holder. Your Connection On The Road...
Page 12 3M ADHESIVE SUCTION MOUNT Figure: 2 • Insert the magnetic mount holder at the back of the SmartDrive 702. • Clean the area on the dashboard where the mount is to be placed. • Remove the 3M tape at the bottom of the mount.
Page 13 4. Place the mount on the cleaned surface and press it firmly for two minutes. 5. Snap the SmartDrive 702 on to the magnetic mount holder. 6. Adjust the height and view angle of the SmartDrive 702 using the knob at the back of the 3M adhesive mount.
Page 14 MOUNTING NOTES • Make sure the camera lens is within the range of the windscreen wiper so that there is a clear line of view when it rains. • Do not touch the camera lens. Fingerprints on the lens will result in unclear videos or photos. If your photos or videos are blurred, this may be rectified by cleaning the lens gently with a microfibre cloth.
Page 15 the intended drilled hole and check the installation position. 5. Mark a position suitable for the second screw and drill a small hole. 6. Fasten the second screw and tighten both screws securely. Figure: 3 Your Connection On The Road...
Page 16 REAR CAMERA WIRING Figure: 4 To enable the Smart Monitor to display the Rear Camera view when the vehicle is engaged in reverse gear, the red Reversing Light Wire must be connected to the reverse light circuit. Otherwise, the Rear Camera will not work in conjunction with reverse gear.
Page 17 SmartDrive 702 display screen. Both front and rear camera images will now be displayed on the SmartDrive 702 display screen and the two cameras will begin recording simultaneously and automatically when the Smart Monitor is powered on via your vehicle ignition.
Page 18 POWER CONNECTION • Only use the supplied 12/24V power adaptor to power the SmartDrive 702. • Once the SmartDrive 702 is securely installed on the windscreen or dashboard, plug the 12/24V power adaptor cable into the vehicle’s 12/24V power port.
Page 19 NOTE: • The SmartDrive 702 is designed to be powered only by the supplied DC power plug. Its internal battery is NOT designed for primary use. MICRO SD CARD FORMATTING INSERTED MICRO SD CARD It is highly recommended to format the Micro SD card before use.
Page 20 To format the Micro SD card, please follow the steps below: 1. Press the Settings button 2. Press the "Format" button. Your Micro SD card will now begin to format.
Page 21 HOME SCREEN 1. Date and time: Displays the current date and time. 2. Brightness button: Touch to adjust screen brightness. 3. Volume button: Touch to adjust the volume. 4. Display button: Touch to turn off the screen, and touch anywhere on the screen again to wake up the screen.
Page 22 DASH CAMERA After the Micro SD card is successfully inserted and formatted, the system will start recording. The dot will turn red indicating that the device is in recording mode. Touch the Dash Camera button to enter into the camera interface as shown in the image below.
Page 23 1. Record: Touch to stop recording. A blinking red button indicates that recording is in progress. 2. Brightness: Touch to open the Brightness bar. Adjust the brightness by dragging the brightness bar from left to right. 3. Main menu: Touch to return to Main menu 4.
Page 24 APPLE CARPLAY FOR FIRST-TIME CONNECTION Touch the Apply CarPlay icon to show the connecting instructions. After first connection, it will show "Connected" and display the Apple CarPlay menu. 9.2.1 IPHONE SET-UP 1. Touch the Apple CarPlay icon on the display screen. 2.
Page 25 • Please turn on Bluetooth and Wi-Fi on your iPhone. • Pair your iPhone with the Smart Monitor. • After successful Bluetooth pairing, Wi-Fi will automatically connect between the SmartDrive 702 and your iPhone. Your Connection On The Road...
Page 26 SmartDrive 702 and your iPhone will be automatic each time the SmartDrive 702 is powered on when your iPhone is within close proximity. Press Exit to return to the SmartDrive 702 Menu. ANDROID AUTO FOR FIRST-TIME CONNECTION Touch the Android Auto icon to show the connecting instructions.
Page 27 9.3.1 ANDROID AUTO SET-UP Please ensure that you have downloaded the latest Android Auto app from the Google Play Store to your smartphone. Use Bluetooth to pair your Android phone with the Smart Monitor. NOTE: • First-time connection will take slightly longer. •...
Page 28 From now on, connection between the SmartDrive 702 and your Android phone will be automatic each time the SmartDrive 702 is powered on when your Android phone is within close proximity. Press Exit to return to the SmartDrive 702 Menu.
Page 29 10.0 AUDIO OUTPUT 10.1 KPT-W72 SPEAKERS Select "KPT-W72" to play audio through the device's built-in speaker. Your Connection On The Road...
Page 30 10.2 CAR AUDIO Select "Car Audio" to play audio either through your smartphone speaker or the car stereo speakers if your smartphone is connected via Bluetooth to the device. This selection only needs to done once to maintain the same selection.
Page 31 Under Android Auto mode, in the Bluetooth settings for the SmartDrive 702 on your smartphone, it is suggested to disable the "Media Audio" so that the default audio is via the SmartDrive 702 built-in speaker when connected to your smartphone. This only applies to Android Auto mode.
Page 32 SmartDrive 702 to your vehicle’s built-in stereo speakers. When you turn on the FM Transmitter, the SmartDrive 702 will be muted. You will have to match the frequency of the FM Transmitter to a free frequency channel on the vehicle head unit...
Page 33 702 built-in speaker is now muted. 2. Turn on the vehicle's radio and select a free frequency channel. 3. On your SmartDrive 702, select the frequency you have chosen on your radio. 4. Once the frequencies are matched, the SmartDrive 702 will automatically playback its audio through the vehicle’s built-in stereo...
Page 34 11.0 VEHICLES WITH BLUETOOTH FUNCTIONALITY FM TRANSMITTER MUSIC/CALLS INITIATED/CALLS RECEIVED/ STATUS CALLS INITIATED WITH SIRI/GOOGLE/ NAVIGATION INSTRUCTIONS FM Transmitter Played through vehicle’s audio system via enabled FM Transmitter. FM TRANSMITTER MUSIC CALLS CALLS STATUS INITIATED RECEIVED FM Transmitter Play through Played Played disabled and...
Page 35 Siri'. SmartDrive 702 will use your smartphone data for all CarPlay and Android services. • Not all apps on your smartphone are accessible via the SmartDrive 702. It will depend on iOS and Android terms and conditions. Your Connection On The Road...
Page 36 12.0 SETTINGS SETTING OPTION DEFAULT Camera 1080P Front +1080P 1080P Front + Resolution Rear / 1080P Rear 2.5K Front +1080P Rear / 720P Front +720P Rear Loop recording 1min/3min/5min 1min Audio recording On/Off G-Sensor Off/Low/Mid/High Date and time 12hr/24hr 12hr Auto LCD off Always on/1 min/5mins Always on...
Page 37 13.0 REVERSING GUIDELINES SETTINGS Touch on the Reversing Guidelines button to enter into settings and calibration. Touch On or Off to switch guidelines on or off. When guide lines are turned off, they will not show on the display screen when the vehicle is in reverse gear.
Page 38 14.0 PARKING MONITOR This function is designed to monitor and record any incident that may occur when your car is parked. The SmartDrive 702 must be hardwired to your vehicle's electrical circuit for the function to be used. Recording in Parking Monitor* mode can be done in time lapse mode to save memory space on the Micro SD Card.
Page 39 15.0 TROUBLESHOOTING PROBLEM SOLUTION Unable to start the Check whether the DC head of the 12V device. power cord is damaged or worn. Check whether the fuse of the power plug is disconnected or damaged. No touch control Touch control is invalid during powering response up of the device.
Page 40 16.0 WARRANTY WARRANTY TERMS AND CONDITIONS Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
Page 41 Phone: +61 03 8331 4800 Email: info@kapturecam.com.au INDEMNITY You agree to defend, indemnify and hold harmless Kapture and its subsidiaries and affiliates from and against any and all claims, proceedings, injuries, liabilities, losses, costs and expenses (including reasonable legal fees), including but not limited to, claims...
Page 42 WARRANTY AND WARRANTY DISCLAIMER Kapture has a limited warranty on whereby Kapture warrants to you and only to you that Kapture products will be free from defects in materials and workmanship for one (1) year from the date of your purchase (unless a longer warranty period is required by law).
Page 43 Kapture. In the event of any loss, damage or injury, you will not look to Kapture to compensate you or anyone else. You release and waive for yourself and your insurer all subrogation and other rights to recover against Kapture arising as a result of the payment of any claim for loss, damage or injury.
Page 44 Other than as permitted by law, Kapture does not exclude, limit or suspend other rights you have, including those that may arise from the nonconformity of a sales contract.
Page 45 Should the claim for damages be based on wilful or grossly negligent breach of contractual duty or obligation on the part of Kapture, the preclusion and limitation of liability mentioned in the preceding sentences will not apply. The...
Page 46 Kapture may be liable, or for non-contractual liability. Some states and countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
Page 47 Your Connection On The Road...
Page 48 V1.0 Your Connection On The Road www.kapturecam.com.au | www.kapturecam.co.nz All Images, Information and Content are Copyright © 2023 www.directed.com.au Directed Electronics Australia Pty Ltd. All Rights Reserved. www.directed.co.nz...
