- Page 1 PS-6CRBP ParkAlert Roof and Bumper Rear Sensing System INSTALLATION MANUAL...

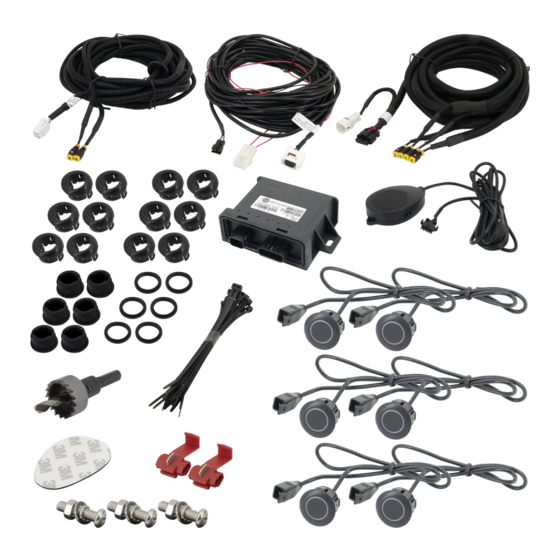

- Page 2 Thank you for purchasing the PS-6CRBP WHAT’S INCLUDED: • (6) Surface-mount sensors with 18” pigtail • (6) Rubber Sleeves • (6) 6° Sensor Bezels • (6) 12° Sensor Bezels • Control Module • Speaker with Volume Control • Main Sensor Harness •...
-
Page 3: Recommended Tools
Recommended Tools: • High Torque Drill with low RPM setting for drilling metal • Grease Pencil and Center Punch for marking drill point • 1/8” carbide-tipped drill bit for starting pilot hole • Pliers, Crimpers and Soldering Iron • Multi-Meter •... -
Page 4: Sensor Placement
Sensor Placement 8-20in 200-500mm 8-12in 200-300mm 24-28in 600-700mm GROUND 8-16in 8-16in 200-400mm 200-400mm Vehicle Width 16in/400mm 16in/400mm <87in/2200mm <87in/2200mm 16in/400mm 24in/600mm >87in/2200mm 24in/600mm 24in/600mm... - Page 5 Drilling Holes and Installing Sensors Warnings/Precautions: Please consult with us before installing on a vehicle with any rear mounted external appliances which may interfere with the system’s detection and cause false detection. (1) The Sensor Holes Using the provided Hole Saw, drill the sensor holes. Always wear approved safety glasses when drilling and use caution.
-
Page 6: Mounting The Control Module
Routing Sensor Harnesses to Control Module Many vehicles will have factory grommets to allow routing of wires from the outside to the inside of the vehicle. If drilling a hole through a metal body panel to route the sensor wires into the vehicle, determine where the sensor wires will enter into the vehicle and route to the control module. -
Page 7: Wiring Diagram
Wiring Diagram Module Speaker Harness Top Sensors Speaker Power & Ground Connection Bottom Sensors Top Sensor Harness - Orange Module - Green Speaker- Blue Main Harness - Yellow Power/Speaker Harness - Purple Sensors -... - Page 8 Dimensions (mm/in) 63.7mm / 2.5” 2000mm / 78.7” 70.2 / 2.8” 15.0mm/0.9” 21.5mm / 0.8” 24.2mm / 0.95” 26mm / 1.0” 115mm/4.5”...
-
Page 9: Specifications
Specifications PS-6CRBP Operating Voltage Range 9-16V DC Rated Voltage 12V DC Rated Current <350 mA Operating Temperature -30°C - 80°C Waterproof Grade (Sensors & Module) IP67 Detection Range (Top / Bottom) 3.9' (1.2m) / 5.6' (1.7m) Main Sensor Harness Length 19.1' (5.8m) Hole Saw 24.5mm (use with Rubber Sleeves)
