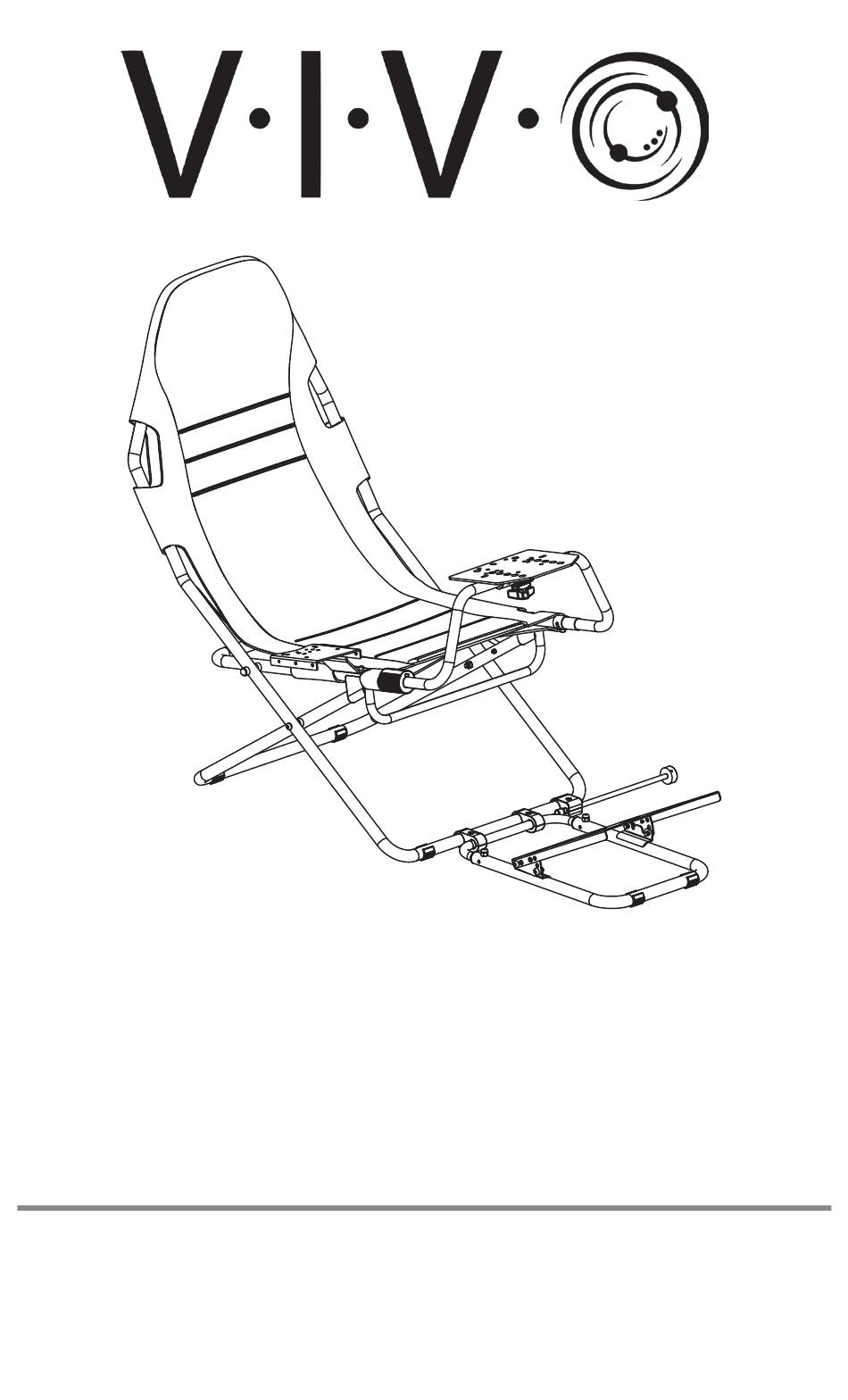

- Page 1 Folding Racing Simulator Cockpit STAND-RACE2F Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
- Page 3 Package Contents A (x1) B (x1) C (x1) D (x1) Chair Mesh Chair Mesh Folding Chair Steering Wheel Frame Support E (x1) F (x2) G (x1) H (x1) Kickstand Kickstand Shifter Mount Shifter Bracket Bracket I (x2) Strap Included Hardware & Tools S-A (x5) S-B (x1) S-C (x1)
- Page 4 Assembly Steps STEP 1 Install Kickstand (E) to the left side of the Folding Chair (A) using Kickstand Brackets (F), M6x25mm Screw (S-B) and M6 Nut (S-C). Tighten using 5mm Allen Wrench (T-B).
- Page 5 STEP 2 Extend the Kickstand (E) from the Folding Chair (A). Unfold the Footrest (A1) of the Folding Chair by swinging it forward. Unfold the Folding Chair (A) by grabbing the top as shown and pulling apart.
- Page 6 STEP 3 Insert Steering Wheel Support (D) to the front of the Folding Chair (A) and secure the left side using M6x12mm Screw (S-A), M6 Washer (S-D) and 5mm Allen Wrench (T-B). Secure the right side of Steering Wheel Support (D) by sliding the smooth side of Lock over the Screw and rotating outwards.
- Page 7 STEP 4 Attach Shifter Bracket (H) to the left or right side of Folding Chair (A), then attach Shifter Mount (G) to the Shifter Bracket using M6x12mm Screws (S-A) and 5mm Allen Wrench (T-B).
- Page 8 STEP 5 Insert Chair Mesh Frame (C) into the top of Folding Chair (A). Open the flaps of the Chair Mesh (B).
- Page 9 STEP 6 Place the Chair Mesh (B) onto the Folding Chair (A) and fasten the velcro straps as shown. Fasten straps securely for a comfortable fit.
- Page 10 Accessing the Chair Turn the Knob on the right side inward, then slide it back to unlock. Knob Flip up the Steering Wheel Support (D) to access the chair.
- Page 11 Adjusting the Pedal Angle To adjust the foot pedal angle, remove the screws on the sides of foot rest using 5mm Allen Wrench (T-B), line up the holes at the desired angle, then reinstall the previously removed screws.
- Page 12 Adjusting the Pedal Length To adjust the pedal length, loosen the screws on the top of the footrest using 5mm Allen Wrench (T-B), adjust the footrest to the desired length, then retighten the screws.
- Page 13 Adjusting the Steering Wheel Angle To adjust the steering wheel angle, loosen the Knob on the underside of the Steering Wheel Support (D), adjust the angle then retighten the Knob. Knob...
- Page 14 Adjusting the Steering Wheel Position To adjust the steering wheel position, remove the preinstalled screws and nuts from Mounting Plate (D1) using 4mm Allen Wrench (T-A). Reposition the Mounting Plate (D1) and reinstall the previously removed screws and nuts using 4mm Allen Wrench (T-A).
- Page 15 Stowing the Chair Pull together the Folding Chair (A) to fold and secure using Strap (I). Push in the Kickstand (E), fold up the pedal and secure using Strap (I). The pedal may need to be extended to be secured. Follow the steps on Adjusting the Pedal Length on page 12 to extend the pedal.
- Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
