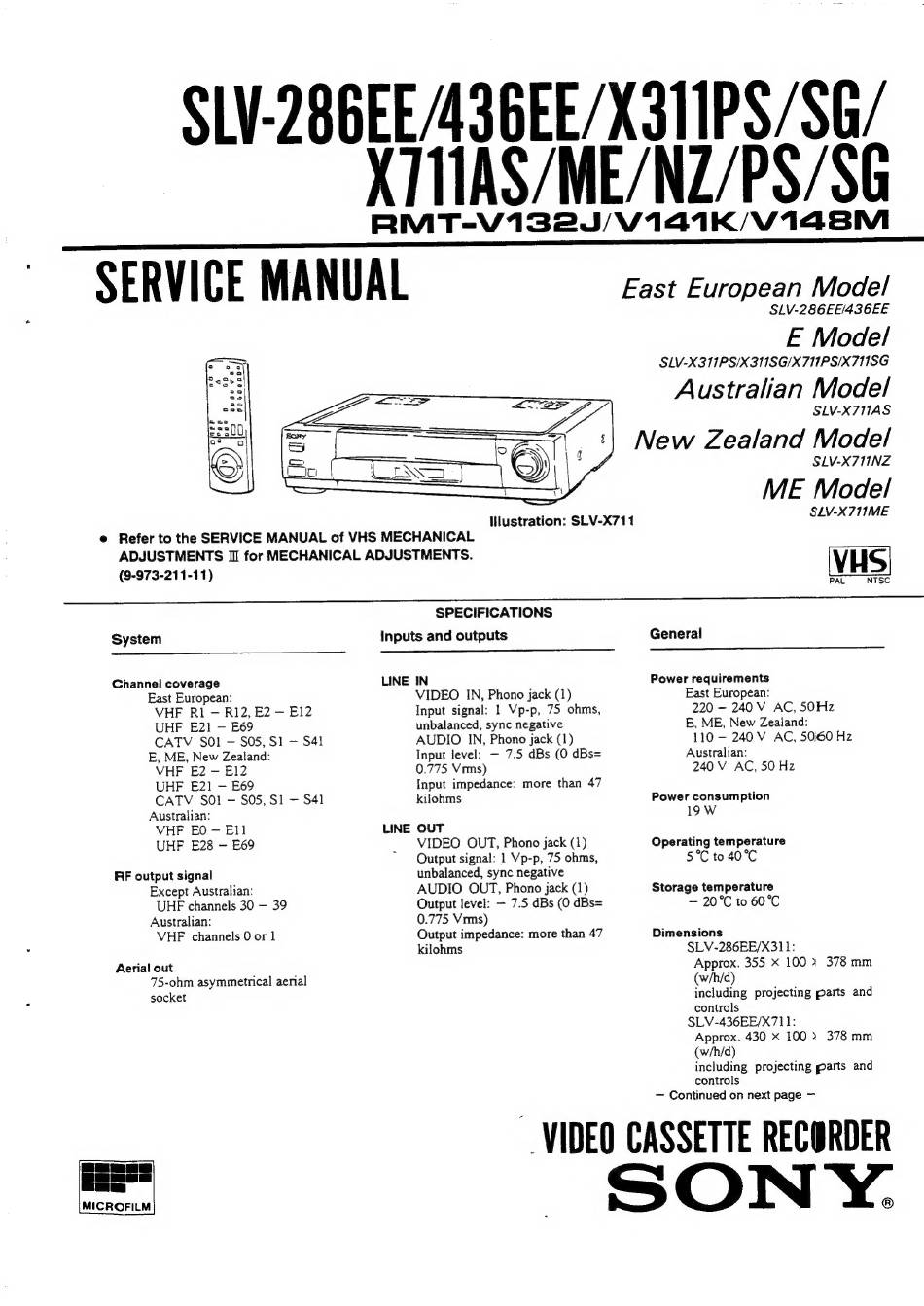

Sony SLV-286EE Service Manual

Illustration: SLV-X711
e Refer to the SERVICE MANUAL of VHS MECHANICAL
ADJUSTMENTS II for MECHANICAL ADJUSTMENTS.
(9-973-211-11)
System
Channel coverage
East European:
VHF RI — R12, E2 — El2
UHF E21 — E69
CATV S01 — S05, S1 — S41
E, ME, New Zealand:
VHF E2 — El2
UHF E21 — E69
CATV S01 — S05, SI — S41
Australian:
VHF E0 - Ell
UHF E28 — E69
FF output signal
Except Australian:
UHF channels 30 — 39
Australian:
VHF channels 0 or 1
Aerial out
75-ohm asymmetrical aerial
socket
MICROFILM
SPECIFICATIONS
Inputs and outputs
LINE
LINE
IN
VIDEO IN, Phono jack (1)
Input signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO IN, Phono jack (1)
Input level: — 7.5 dBs (0 dBs=
0.775 Vrms)
Input impedance: more than 47
kilohms
OUT
VIDEO OUT, Phono Jack (1)
Output signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO OUT, Phono jack (1)
Output level: — 7.5 dBs (0 dBs=
0.775 Vrms)
Output impedance: more than 47
kilohms
East European Model
SLV-286EE/436EE
E Model
SLV-X311PS/X311SG/X711PSIX711SG
Australian Model
SLV-X711AS
New Zealand Model
SLV-X711NZ
ME Model
SLV-X711ME
PAL NTSC
General
Power requirements
East European:
220 — 240 V AC, 50Hz
E, ME, New Zealand:
110 — 240 V AC, 5060 Hz
Australian:
240 V AC, 50 Hz
Power consumption
19 W
Operating temperature
5°C to 40°C
Storage temperature
— 20°C to 60°C
Dimensions
SLV-286EE/X311:
Approx. 355 x 100 » 378 mm
(w/h/d)
including projecting parts and
controls
SLV-436EE/X711:
Approx. 430 x 100 » 378 mm
(w/h/d)
including projecting parts and
controls
— Continued on next page —
VIDEO CASSETTE RECORDER
