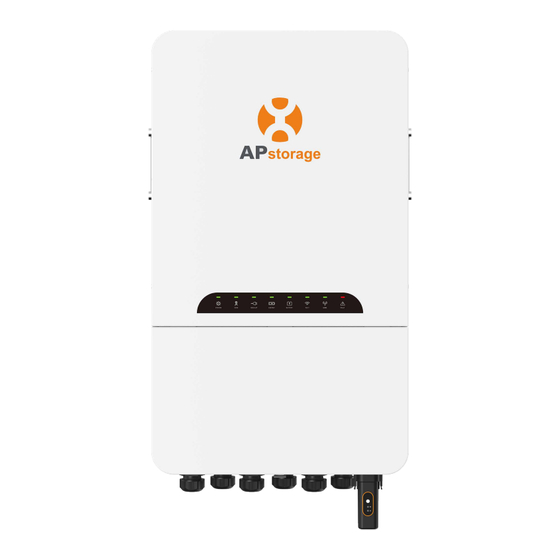

APstorage ELT-12 Quick Installation Manual

APstorage ELT-12 Quick Installation Manual

Three-phase ac coupled battery inverter (pcs)
Hide thumbs Also See for ELT-12:

Advertisement

Quick Links

Safe and Smart Energy Management System
Three-phase AC coupled Battery Inverter (PCS)
Quick Installation Guide
ELT-12
Important Safety Information
EU Declaration Of Conformity
2024-10-30 REV1.3

Advertisement

loading
Need help?

Need help?

Do you have a question about the ELT-12 and is the answer not in the manual?

Questions and answers

Summary of Contents for APstorage ELT-12

  • Page 1 Safe and Smart Energy Management System Three-phase AC coupled Battery Inverter (PCS) Quick Installation Guide ELT-12 Important Safety Information EU Declaration Of Conformity 2024-10-30 REV1.3...
  • Page 2 Follow all of the instructions in this manual. These instructions are key to the installation and maintenance of the APstorage PCS. These instructions are not meant to be a complete explanation of how to design and install APstorage PCSs. All instal- lations must comply with national and local electrical codes and standards.
  • Page 3 If any damage or missing accessories are found, please contact the manufacturer. Only qualified professionals should install or replace the APstorage PCS, and all electrical installations must comply with local regulations. When performing installations and other operations, please wear personal protective equipment, use insulated tools, and wear anti-static equipment to prevent static damage to the PCS.
  • Page 4 The dry contacts can be set to one of the following functions: generator control and load control. The APstorage system supports third-party generators. In the event of a grid disconnection or other conditions, APstorage can automatically control the generator to start, serving as a backup power source for the battery and load.
  • Page 5 4 Wiring Diagram Diagram for Australia, New Zealand, South Africa, etc. AC Breaker Load DC Breaker Do not connect this terminal Battery when the neutral wire and PE Load wire are connected together. AC Breaker GEN/ Off-grid AC Breaker Input Grid System2 N-BAR...
  • Page 6 4 Wiring Diagram ① DC Breaker BAT + BAT - Battery Pack ③ AC Breaker Battery communication ⑥ AC Breaker Backup Load Home Load ④ AC Breaker ② AC Breaker ⑤ AC Breaker L1(R) L2(S) L3(T) PV system 1 PV system 2 Grid ①...
  • Page 7 ≤25 ≤9 ≤12 ≤7 DC terminals GRID terminals GEN/LOAD terminals ATS terminals Model Cable(mm Torque value DC Cable ELT-12 10Nm Grid Cable ELT-12 2.5Nm GEN/LOAD Cable ELT-12 1.2Nm ATS Cable ELT-12 1.2Nm Battery Inputs: "Use No. 90°C Copper Wire only";...
  • Page 8 5 Installation instructions STEP 1 Mark the holes position on the wall and drill holes according to wall type and expansion screws type. The Configured expansion screw is drilled with a diameter of 12mm(0.5”) and a depth of 50-55mm(1.9-2.2”). STEP 2 Put the expansion screws into the holes on the wall.
  • Page 9 NOTE: Ensure that the polarity of the battery and PCS are correctly connected, otherwise PCS may be damaged. NOTE: APstorage ELS/ELT series PCS are DC/AC isolated, so the battery ground should not be connected to AC ground. Leave battery ground point floating could ensure the system working safely and stably.
  • Page 10 5 Installation instructions STEP 5 CT Wiring The CT ring wiring is shown in the following figure, where CT1/2/3 corresponds to grid L1/2/3 and CT7/8/9 corresponds to L1/2/3 of GRID-PV. Grid PV Systems 1 The arrows on the CT ring (as shown in the figure) should all point towards PCS. CT4/CT5/CT6: Reserve Please thread the wire of the CT ring through the COM cable connector below.
  • Page 11 6.2 Initialize the PCS QR code for downloading the app: 6.2.1 Scan the QR code to download and install the EMA Manager app. 6.2.2 Log in to the app and tap Local access. Select APstorage to start the initialization process. 10 EN...
  • Page 12 6.2.3 Connect the PCS Tap Connect next to Bluetooth connection supported based on the device model. On the page that appears, select the UID of the PCS. After the PCS is successfully connected, the message "Succeed to connect with the device via bluetooth" is displayed. After that, the SYSTEM indicator light turns OFF and the FAULT indicator light becomes steady red.
  • Page 13 Select the parameters to be configured. The PV System and Genertor parameter is optional, and the Grid Profile and Battery Company parameters are required. For the configuration of third-party generators, please refer to the relevant user manual or contact the APstorage technical support team. (Optional) Perform the PV configuration.
  • Page 14 Perform the grid configuration. Tap Grid Profile. Configure the Country/Region and Set Standard parameters based on your country or region and the grid standard. Parameters are displayed based on your settings. Retain the default values or change the values based on actual needs.
  • Page 15 6.2.5 System Upgrade After you tap OK, you proceed to the Software Upgrade step. In this step, the app detects the software version of the PCS. If the software version is already the latest, tap Next Step. If the latest version is available, tap Upgrade. The upgrade progress is displayed during the upgrade process.
  • Page 16 The app can perform system self-check on the following three systems: pure energy storage system, APsystems PV system, and third-party PV system. The app performs system self-check based on the preceding settings in this section. 6.2.6.1 Pure Energy Storage System If no PV device is configured in the previous stage, the following pages are displayed.
  • Page 17 During the self-check process, the front LED indicator light of PCS is as follows: Off-grid startup Grid-connected startup/Grid-side CT check PV-side CT check SYSTEM SYSTEM SYSTEM WI-FI WI-FI WI-FI GRID GRID GRID BATTERY BATTERY BATTERY ENERGY ENERGY ENERGY After self-check is complete, tap Go to the home page in the dialog box displayed to complete the initialization process. 6.2.6.3 Third-Party PV System If the third-party PV system is configured in the previous stage, the following pages are displayed.
  • Page 18 6.2.7 Initialization Completed After self-check is complete, tap Go to the home page in the dialog box displayed to complete the initialization process. 17 EN...
  • Page 19 Building 2, No. 522, Yatai Road, Nanhu District, Jiaxing City, Zhejiang 314050, China declare under our sole responsibility that the product, Product Description: Power Conversion System Model No.: ELT-12, ELT-10, ELT-8, ELT-6 to which this declaration relates, is conformity with the following standards and/or other normative documents.
  • Page 20 Please scan the code to install the APP, get the EU Declaration of Conformity and Instructions APsystems EMEA Karspeldreef 8, 1101 CJ, Amsterdam, The Netherlands Phone: +31 (0)85 3018499 Email: info.emea@APsystems.com Web: emea.APsystems.com APsystems France 22 Avenue Lionel Terray 69330 Jonage, France Phone: 031-10-2582670 Email: info.emea@APsystems.com Web: emea.APsystems.com...
