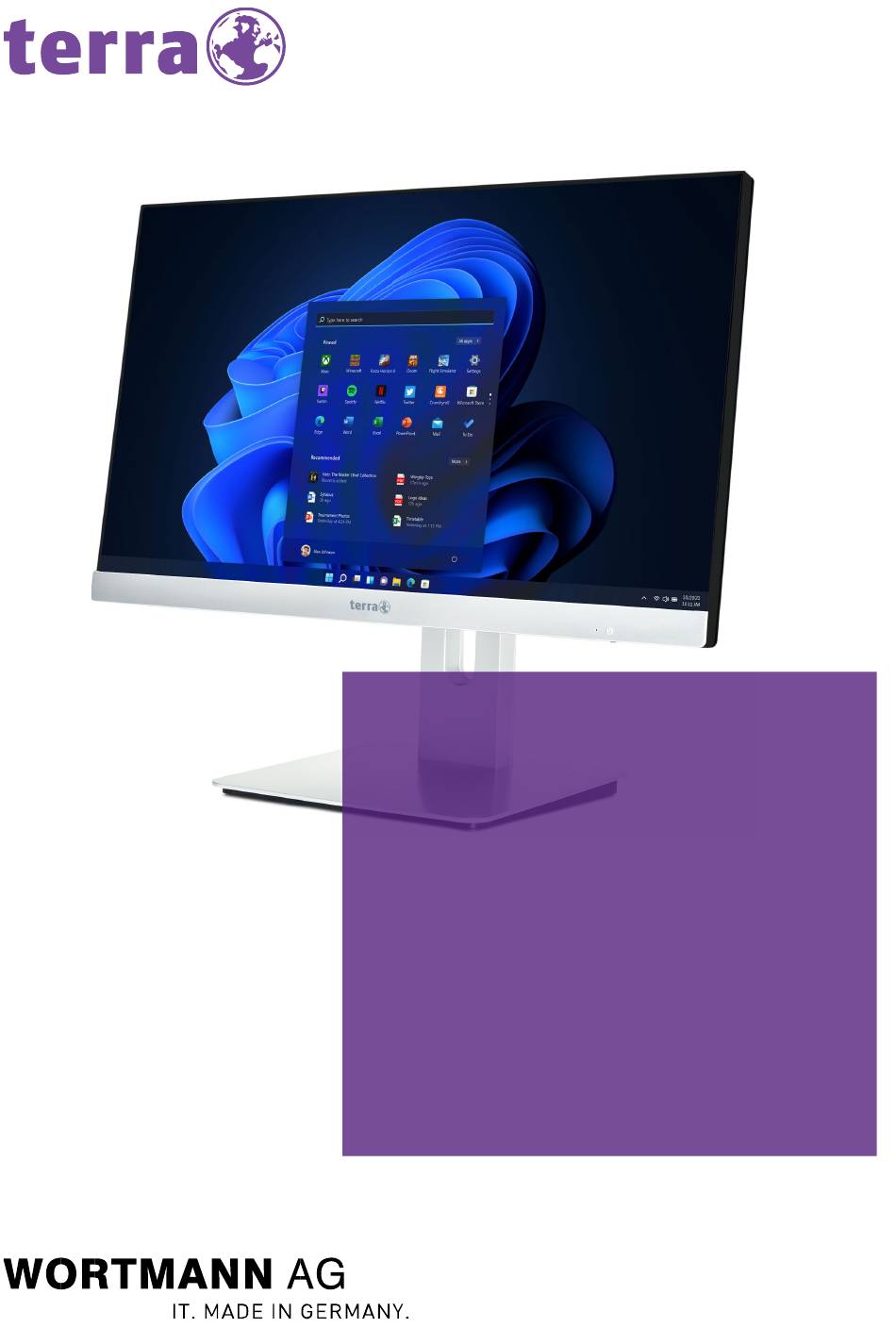

- Page 1 ALL-IN-ONE 2405HA USER MANUAL ENGLISH Apps from Windows Store; vary by market. Montage sample. Pictured configuration can be different from the real configuration.
- Page 2 TERRA AIO System User's Manual Rev. 5.1 WORTMANN AG...
- Page 3 WORTMANN's prior written permission. Documentation Classifications In order to assist in the use of this product, WORTMANN AG provides the following types of documentations: For quick set-up of the product, read the Quick Installation Guide included with the product.
- Page 4 Sound and microphone problems ................Miscellaneous problems ................... Specifications ........................21 Intel ® Alder Lake S CPU Support List ................22 CE-mark .......................... 23 Declaration of conformity with EU standards ..............24 GENERAL PUBLIC LICENSE (GPL) - VER.2 ..............25 WORTMANN AG...
- Page 5 CAUTION: Indicates important information to prevent potential damage to the unit and data, or personal injury caused by improper use. NOTE: Indicates additional information for particular situation. TIP: Indicates useful information for completing a task. WORTMANN AG...
- Page 6 The box contents above are for reference only and the actual items shall depend on the product package you obtain. The box contents are subject to change without notice. The motherboard image is for reference only. WORTMANN AG...
- Page 7 Getting Start With Your PC Touring Your PC This section describes the views and the features of the controls, ports, buttons, components, and connectors of your computer. Front View Item Description Power Press power button to turn on computer. Indicators LED indicators WORTMANN AG...
- Page 8 The internal fans blow hot air away from heat-sensitive components in the computer. Keep the vents clean and free of dirt and dust, as blocking it may cause serious thermal problems. Computer Stand You can adjust the computer stand for the best viewing angle. WORTMANN AG...
- Page 9 Right-side View Item Description Connect the USB plugs into the USB ports to connect your USB devices, such as MP3 players, digital USB 3.2(Gen1) Ports cameras, keyboard and mouse, or external hard disk drives, etc. WORTMANN AG...
- Page 10 USB printer, USB flash drive and etc. Mic In Jack A microphone can be connected to the MIC in jack. Stereo speakers, earphone or front surround speakers Line Out Jack can be connected to Line Out jack. WORTMANN AG...
- Page 11 Adjustment of view angle Tilt Range (degree): Tilt Range (degree): Forward -5°~-2° Backward 20°~23° Lift Range: 130mm±5mm Swivel range: The computer can rotate 140 degrees to the left and to the right. WORTMANN AG...
- Page 12 To adjust the image alignment, following step A and B. A, Right-click on the desktop then select “Display settings”. B, Move cursor to Orientation item then click to select which degree on the list for requirement. WORTMANN AG...
- Page 13 3. Align the screw holes on the back cover of the computer reserved for VESA Mount with corresponding ones on the stand and lock with the screws. 4. Lock the base to the lifting stand by tightening the screws. Part 1 Part 2 Carefully lift the computer and adjust the angle of the screen. WORTMANN AG...
- Page 14 Then follow the on-screen instructions to complete the initial setup. Turning Off Your PC To turn off the system, close all the active windows, and then click the Windows start menu at bottom left corner of your screen, then click power button then click Shutdown button. WORTMANN AG...
- Page 15 For details about installing the wireless LAN card, router, or access point, please refer to the manuals that shipped with the product you purchased or contact that manufacturer. 1. Choose a network you intend to join from the list. WORTMANN AG...
- Page 16 2. If you are able to successfully connect to a wireless network, you will receive a message indicating that the connection has been established. 3. Open the Web browser and access any Web site to test the network connection. If the selected network requires security authentication, please enter user name and password. WORTMANN AG...
- Page 17 If you are using a wired Internet connection, make sure that your computer is using an Ethernet cable, instead of a tele-phone cable, to connect with the broadband modem which is purchased from your ISP. For assistance setting up your modem, contact your ISP. WORTMANN AG...
- Page 18 Right-click the desktop, and then select Screen Resolution. too large or too In the prompted window, set the Resolution to 1920 x 1080, small, or the ima- and then click Apply and OK to complete the settings. ges are blurred. WORTMANN AG...
- Page 19 Click Settings > Control Panel > Mouse to open the Mouse Properties dialog box. Click Pointer Options tab and drag the Motion slider toward Slow or Fast to adjust the speed at which the cursor responds to mouse movement. When done, click OK to finish the configuration. WORTMANN AG...
- Page 20 Then try playing the file again. If the audio file still cannot be played, it might require a codec that is not supported by Windows Media Player. For more information about available codecs, see the documentation for Windows Media Player at the Microsoft web site. WORTMANN AG...
- Page 21 Try connecting your USB device directly to the USB port on your computer. Check if you need to pre-install software before connecting your USB device. Read the documentation or user manual of the product. WORTMANN AG...
- Page 22 Storage Temperature -20 C - 60 ° ° Requirement Operating Relative Humidity 10% ~ 85 % Non-condensing Storage Relative Humidity 10%~ 85% Non-condensing Dimension 540 mm (W) x 516 mm (H) x 235 mm (D) Net Weight 7.8KG WORTMANN AG...
- Page 23 3.3GHz/12MB/60W i3-12100T 2.2GHz/12MB/35W Intel ® Core™ i3 Processor i3-12300 3.5GHz/12MB/60W i3-12300T 2.3GHz/12MB/35W i5-12400 2.5GHz/18MB/65W i5-12400T 1.8GHz/18MB/35W i5-12500 3.0GHz/18MB/65W Intel ® Core™ i5 Processor i5-12500T 2.0GHz/18MB/35W i5-12600 3.3GHz/18MB/65W i5-12600T 2.1GHz/18MB/35W i7-12700 2.1GHz/25MB/65W Intel ® Core™ i7 Processor i7-12700T 1.4GHz/25MB/35W WORTMANN AG...
- Page 24 If your country is not included in this list, please make inquiries of the relevant supervisory author- ity to find out if this product can be used in your country. WORTMANN AG...
- Page 25 D eclaration of conformity with EU standards 1 9 B 1 9 B WORTMANN AG...
- Page 26 License and to the absence of any warranty; and give any other recipients of the Program a copy of this WORTMANN AG License along with the Program.
- Page 27 with a work based on the Program) on a volume of a storage or distribution medium does not 10. If you wish to incorporate parts of the Program into other free programs whose distribution bring the other work under the scope of this License. conditions are different, write to the author to ask for permission.
- Page 28 Bredenhop 20_32609 Hüllhorst Tel +49 5744.944-0_Fax +49 5744.944-100 www.wortmann.de Montage sample. Pictured configuration can be different from the real configuration.
